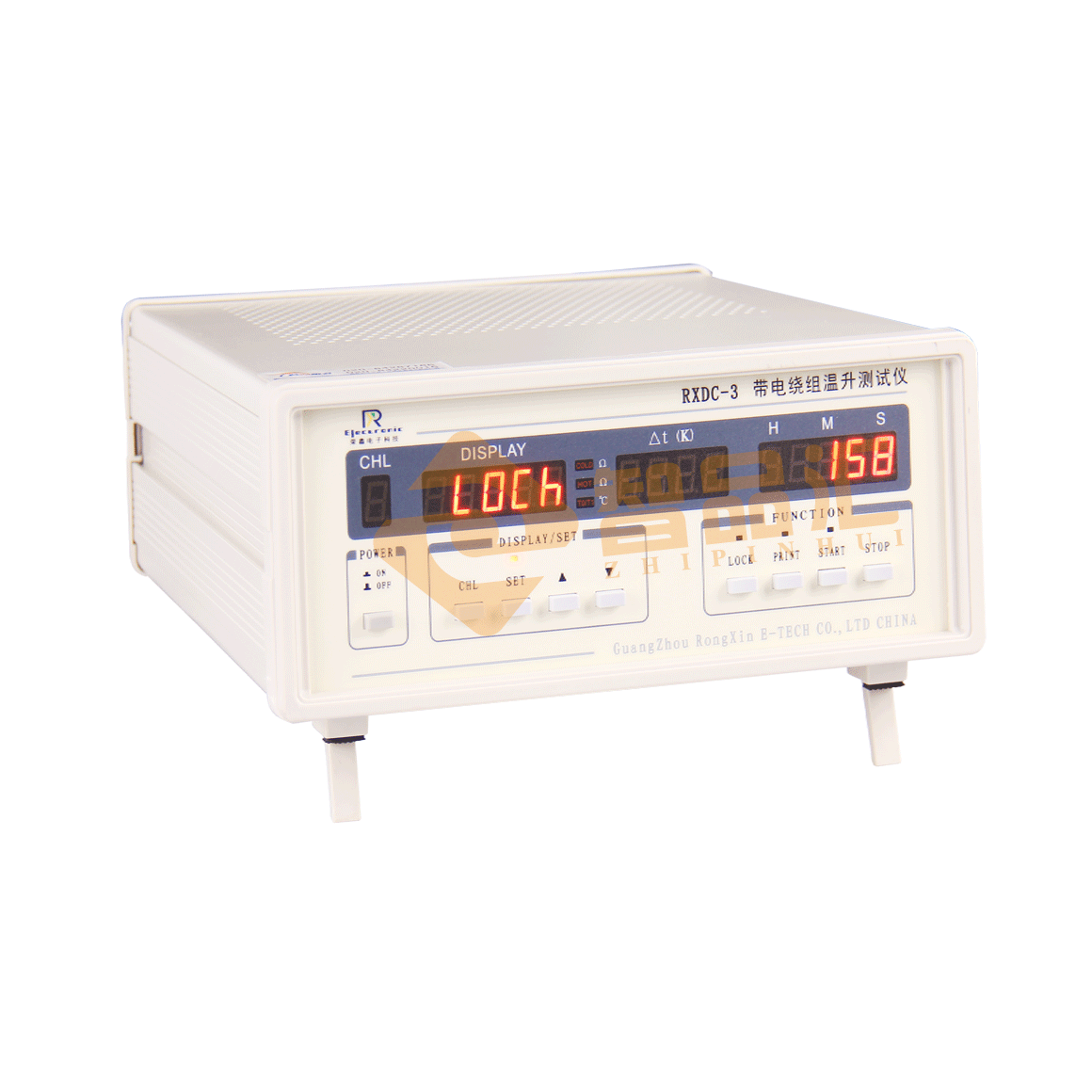

Overview of RXDC-3 On-Load Winding Temperature Rise Tester:

Main applications:  Measures temperature rise in coils of motors, compressors, transformers, etc.,

supporting on-load temperature rise testing.  It measures cold resistance using the four-wire method and

calculates the real-time temperature rise under load using a built-in algorithm. This method is more accurate and

effective than traditional thermocouple methods and does not damage the sample. Supports both frequency-controlled

and fixed-frequency compressor temperature rise testing.

(Available in single-channel and dual-channel versions; single-channel tests one winding, dual-channel tests both

primary and secondary windings simultaneously)

◆ Measurement range: 0.5~20~200~2000Ω

◆ Measurement accuracy: Cold state: ±0.1% READ + 0.1% FS;

                                                       Hot state: ±0.15% READ + 0.15% FS

◆ Ambient temperature: Measurement range: 0~50°C, Accuracy: ±0.5°C

◆ Temperature rise: Calculated using the temperature rise formula

◆ Thermal resistance response time: <30 seconds

◆ Test time: Up to 99 hours 59 minutes 59 seconds, accuracy ±0.1%

◆ Winding temperature coefficient can be set between 0 and 999.9; all settings are retained after power outage.

◆ Standard RS232 serial port for communication with a computer. Test software: records temperature data,

      displays temperature   rise curves, supports query and printing.

◆ Power supply: AC 220V±10%, 50Hz/60Hz, Power consumption <15W

◆ Operating environment: Temperature: 25°C±15°C, Humidity: 60%±30%

◆ Dimensions: 307mm (W) × 395mm (D) × 140mm (H), Weight: approx. 10kg.
