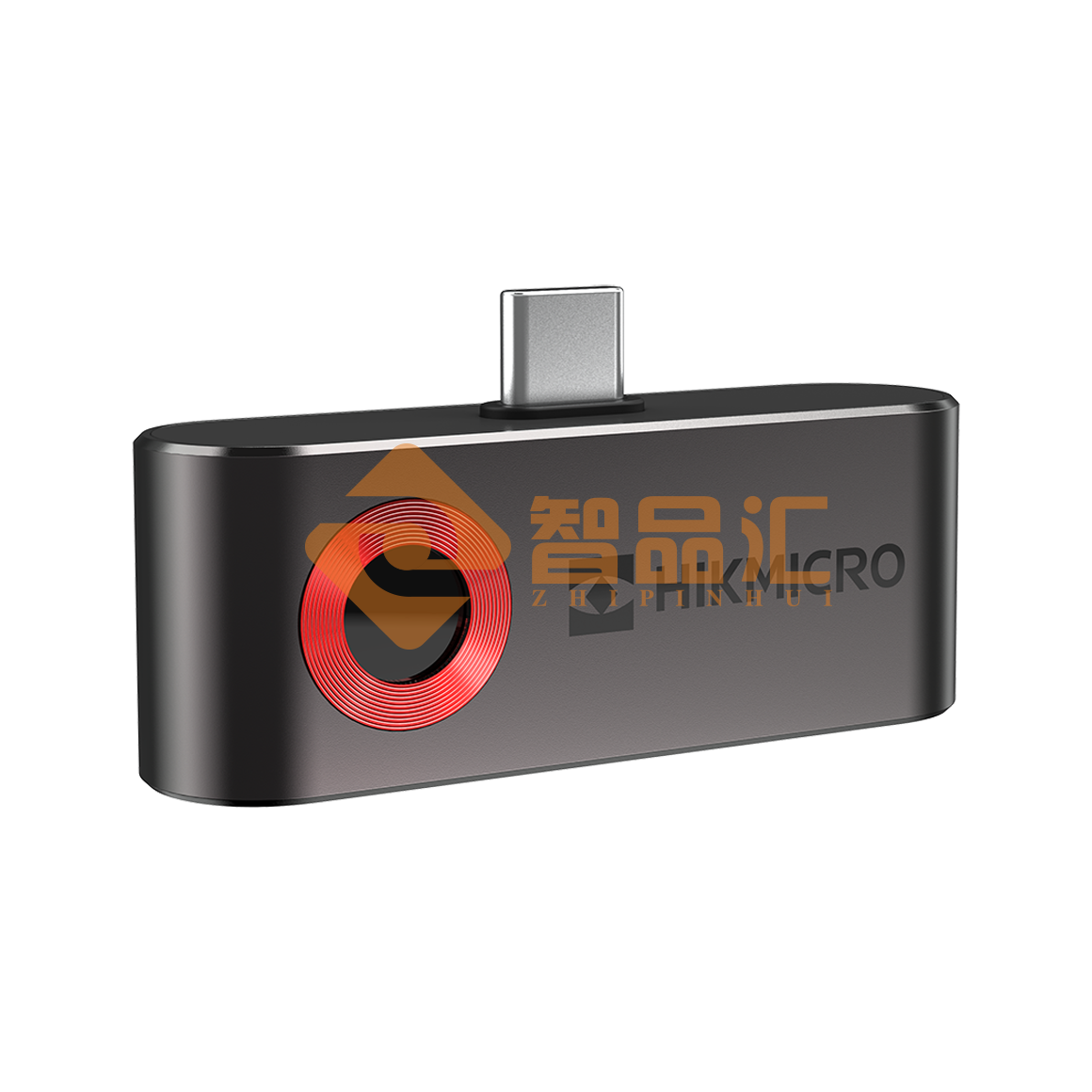

400-816-6687**ZH-TJP10-3AMF Smartphone Thermal Imaging Thermometer**
- **Thermal Imaging:**
- Original Resolution: 160 × 120, high-sensitivity vanadium oxide uncooled detector
- Supports timed and temperature difference shutter correction
- Supports 3D noise reduction and image detail enhancement
- Adjustable with 15 color palettes
- **Temperature Measurement:**
- Temperature Range: -20°C to 350°C
- Temperature Accuracy: ±2°C or ±2%
**Specifications**
- **Thermal Imaging:**
- Sensor Type: Uncooled Vanadium Oxide Microbolometer
- Detector Resolution: 160 × 120
- Spectral Range: 8~14 μm
- NETD (Noise Equivalent Temperature Difference): <50 mK (@25°C, F#=1.0)
- Maximum Image Size: 160 × 120
- Minimum Focus Distance: 0.2 m
- Field of View: 38.3° × 50°
- Frame Rate: 25 Hz
- Pixel Size: 17 μm
- Minimum Measurement Distance: 20 cm
- F-Number: F1.1
- Temperature Units: Celsius, Fahrenheit, Kelvin
- Temperature Range: -20°C to 350°C
- Accuracy: ±2°C or ±2%
- Spatial Resolution (IFOV): 5.31 mrad
- **System Functions:**
- Power Interface: TYPE-C
- **System Parameters:**
- Operating Temperature and Humidity: 0°C to 40°C
- Storage Temperature and Humidity: -20°C to 60°C
- Protection Rating: IP40
- Drop Resistance: 1 m
- Weight: 26 g
- Dimensions: 54.1 mm × 15 mm × 27.5 mm
- Accessories: Carrying pouch, user manual
