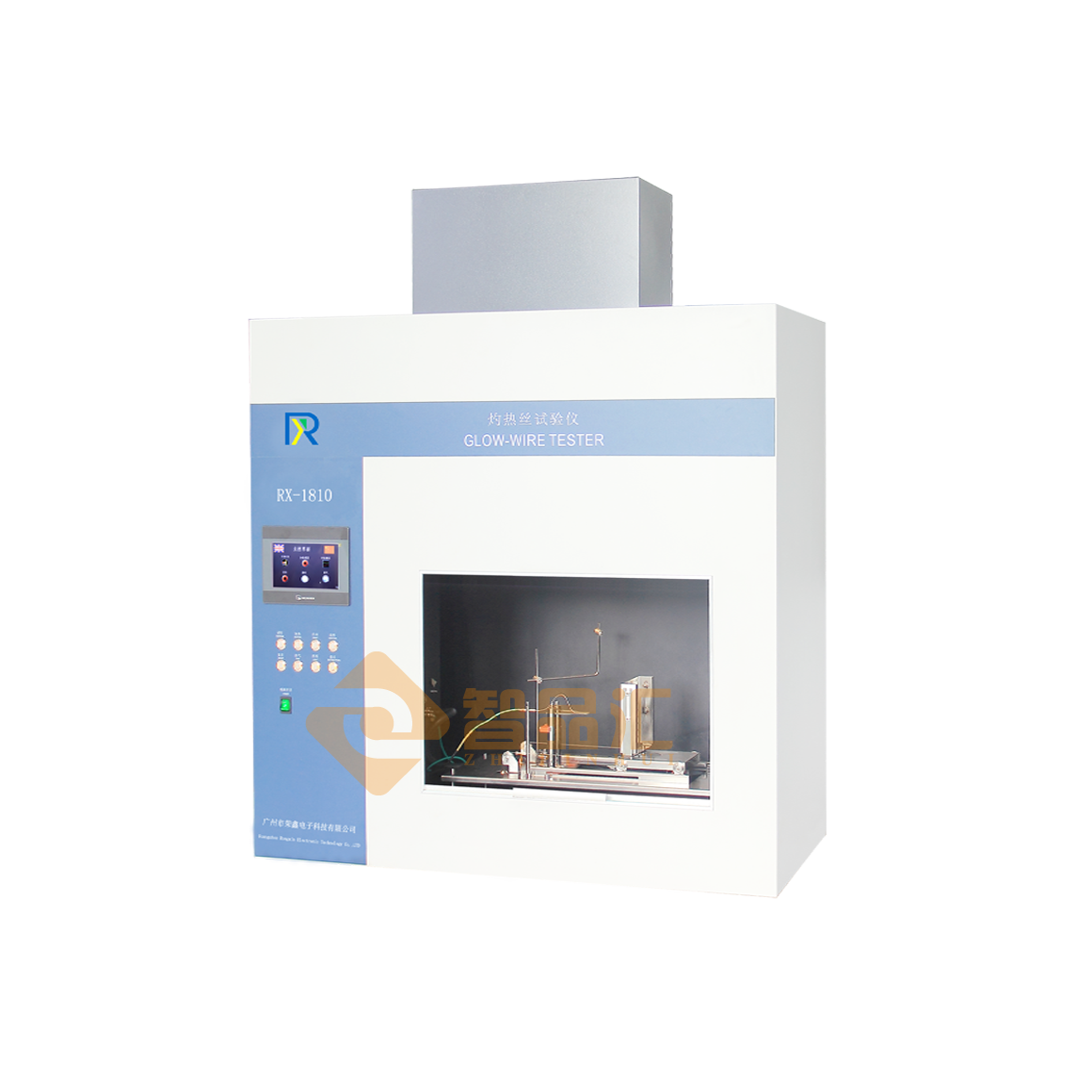

RX1810 Hot Wire Tester
I. Overview
Product Features: The glow wire test is based on GB 4706.1-2008, IEC60695-2-10: 2000 ~ IEC60695-2-13: 2000 "Glow Wire/Hot Wire, Basic Test Methods, Glow Wire Test Equipment and General Test Procedures" and UL 746A, IEC829, DIN695, VDE0471 and other standards, using the flameless ignition source program simulation test items. The glow wire tester is suitable for lighting equipment, low-voltage electrical appliances, household appliances, machine tool electrical appliances, motors, power tools, electronic instruments, electrical instruments, information technology equipment, electrical business equipment, electrical connectors and accessories, and other electrical and electronic products and their components and parts research, production and quality inspection departments, and also suitable for insulation materials, engineering plastics or other solid combustible materials industries.
2. Performance parameters:
Control method | Adopt the most advanced PLC control to achieve intelligent control mode |
Display mode | True color LCD display, user-friendly operation interface |
Glow Wire | 4mm ± 0.04mm Ni/Cr(80/120) Special standard ring, horizontal static |
Thermocouple | 0.5mm K type, imported insulated high temperature resistant armored thermocouple, armored sleeve heat resistant 1100 ℃ (better than the standard 1050 ℃) |
Glow wire heating temperature | Continuously adjustable within the range of 500℃～1000℃≤, temperature measurement accuracy ±10℃ |
Glow-wire test pressure of the test piece | 1.0N±0.1N (adjustable) (better than standard 1.0N±0.2N) |
Maximum penetration depth | 7mm ± 0.5mm (adjustable) |
Sample moving speed | 10mm /s ～ 25mm /s |
Test time | 30s±0.1s (1s to 999.9s digital display, presettable) |
Ignition pad thickness | 10mm thick white pine board covered with 12g/m2 ~ 30g/m2 standard silk paper, 200mm ± 5mm below the glow wire |
Test area volume | ≥ 0.5m 3 Background black; |
Dimensions | Width 1120mm × Depth 520mm × Height 1020mm, Exhaust hole 100mm |
Zhipinhui After-Sales Policy:
*After-Sales Hotline: +864008166687
1. Our company has assembled a team of experienced field engineers and senior technicians to promptly respond
to any equipment issues and provide after-sales maintenance.
2. Within China, within one week of new product delivery, our after-sales technical staff will install the equipment and
provide after-sales training at the customer's location, using the contact information and address provided by the customer.
3. All complaints related to product quality will be responded to within one hour. Within 3-5 hours within the province,
and within 24-48 hours outside the province, we will arrive at the customer's site,
determine the appropriate action based on the complaint, and provide after-sales repairs. (Domestic)
4. For international travel, our company can also arrange for an after-sales engineer to visit you for installation and
commissioning. Please discuss any travel and catering issues in advance.
We also provide video installation guides for you to choose from, providing you with a comprehensive and multi-faceted solution.
5. Any material costs related to product quality during the warranty period will be borne by our company.
6. During the warranty period, we will provide free repairs due to improper use or environmental factors.
The materials and accessories used for repairs will be charged at cost only.
