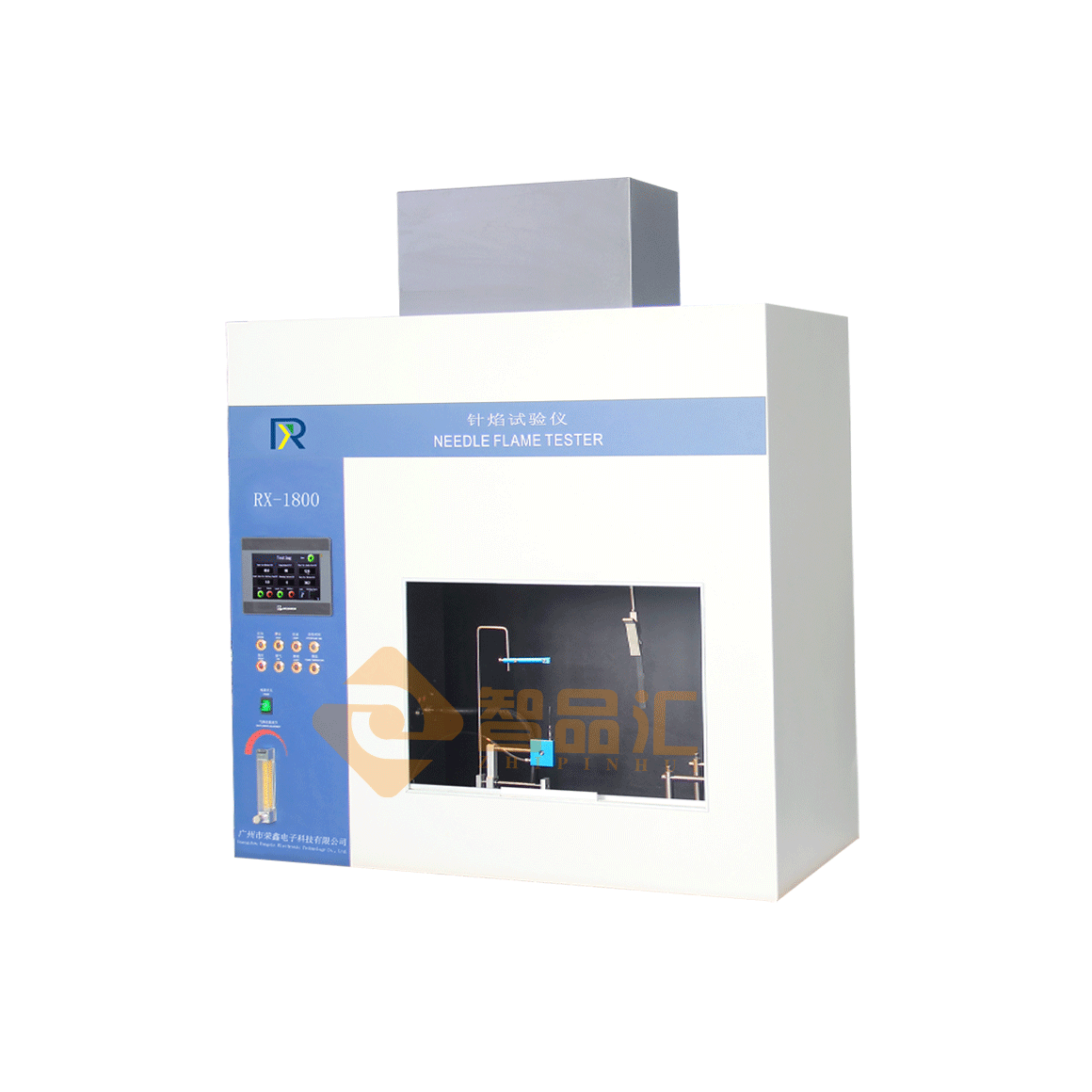

RX1800 Needle Flame Tester
1. Overview
Product Features: The needle flame test is a simulation test item specified in GB4706.1-2005, GB5169.5-2008, IEC60695-11-5, IEC60335-1 and other standards. The needle flame test uses a needle burner of specified size (Φ0.9mm) to pass a specific gas (butane or propane) to burn the test sample at a 45° angle in a timed and directional manner. The ignition hazard of the small flame caused by the fault condition inside the equipment is evaluated by observing whether the test sample and the ignition cushion layer are ignited and the burning time and length. The needle flame tester is suitable for lighting, low-voltage electrical appliances, household appliances, machine tool electrical appliances, motors, power tools, electronic instruments, electrical instruments, information technology equipment, electrical business equipment, electrical connectors, accessories and other electrical and electronic equipment and their components and assemblies research, production and quality inspection departments, and is also suitable for insulating materials, engineering plastics or other solid combustible materials industries.
2. Technical parameters
◆ Control mode: adopt the most advanced PLC control at present, and achieve intelligent control mode
◆ Display mode: true color LCD display, humanized operation interface
◆ Needle burner: stainless steel, inner hole Φ 0.5mm ± 0.1mm, outer diameter ≤Φ 0.9mm, length ≥ 35mm
◆ Burner angle: vertical (when adjusting and measuring the flame height) and inclined 45° (when testing)
◆ Ignition padding: 10mm thick white pine board, covered with 12g/m2 ~ 30g/m2 standard silk paper, 200mm ± 5mm below the flame application
◆ Combustion gas: 95% butane gas (reference gas), propane gas can also be used
◆ Gas flame temperature gradient: 100℃ ± 2℃ ~ 700℃ ± 3℃ (room temperature ~ 999℃), 23.5s±1.0s(1s～999.9s)
◆ Flame height: 12mm±1mm (adjustable)
◆ Burning time: 5s, 10s, 20s, 30s, 60s, 120s -1 +0 s(1s～999.9s digital display can be preset)
◆ Burning time: 1s～999.9s(digital display, can be manually paused to maintain digital display)
◆ Test space: ≥ 0.3m3, background black
◆ Temperature sensor: K type Φ 0.5mm insulated armored thermocouple, armored sleeve heat resistant 1100℃
◆ Dimensions: width 1120mm × depth 520mm × height 1250mm, exhaust hole Φ 100mm;
◆ Test power supply: 220V 0.5kVA
RX1800 Needle Flame Tester
1. Overview
Product Features: The needle flame test is a simulation test item specified in GB4706.1-2005, GB5169.5-2008, IEC60695-11-5, IEC60335-1 and other standards. The needle flame test uses a needle burner of specified size (Φ0.9mm) to pass a specific gas (butane or propane) to burn the test sample at a 45° angle in a timed and directional manner. The ignition hazard of the small flame caused by the fault condition inside the equipment is evaluated by observing whether the test sample and the ignition cushion layer are ignited and the burning time and length. The needle flame tester is suitable for lighting, low-voltage electrical appliances, household appliances, machine tool electrical appliances, motors, power tools, electronic instruments, electrical instruments, information technology equipment, electrical business equipment, electrical connectors, accessories and other electrical and electronic equipment and their components and assemblies research, production and quality inspection departments, and is also suitable for insulating materials, engineering plastics or other solid combustible materials industries.
2. Technical parameters
◆ Control mode: adopt the most advanced PLC control at present, and achieve intelligent control mode
◆ Display mode: true color LCD display, humanized operation interface
◆ Needle burner: stainless steel, inner hole Φ 0.5mm ± 0.1mm, outer diameter ≤Φ 0.9mm, length ≥ 35mm
◆ Burner angle: vertical (when adjusting and measuring the flame height) and inclined 45° (when testing)
◆ Ignition padding: 10mm thick white pine board, covered with 12g/m2 ~ 30g/m2 standard silk paper, 200mm ± 5mm below the flame application
◆ Combustion gas: 95% butane gas (reference gas), propane gas can also be used
◆ Gas flame temperature gradient: 100℃ ± 2℃ ~ 700℃ ± 3℃ (room temperature ~ 999℃), 23.5s±1.0s(1s～999.9s)
◆ Flame height: 12mm±1mm (adjustable)
◆ Burning time: 5s, 10s, 20s, 30s, 60s, 120s -1 +0 s(1s～999.9s digital display can be preset)
◆ Burning time: 1s～999.9s(digital display, can be manually paused to maintain digital display)
◆ Test space: ≥ 0.3m3, background black
◆ Temperature sensor: K type Φ 0.5mm insulated armored thermocouple, armored sleeve heat resistant 1100℃
◆ Dimensions: width 1120mm × depth 520mm × height 1250mm, exhaust hole Φ 100mm;
◆ Test power supply: 220V 0.5kVA
