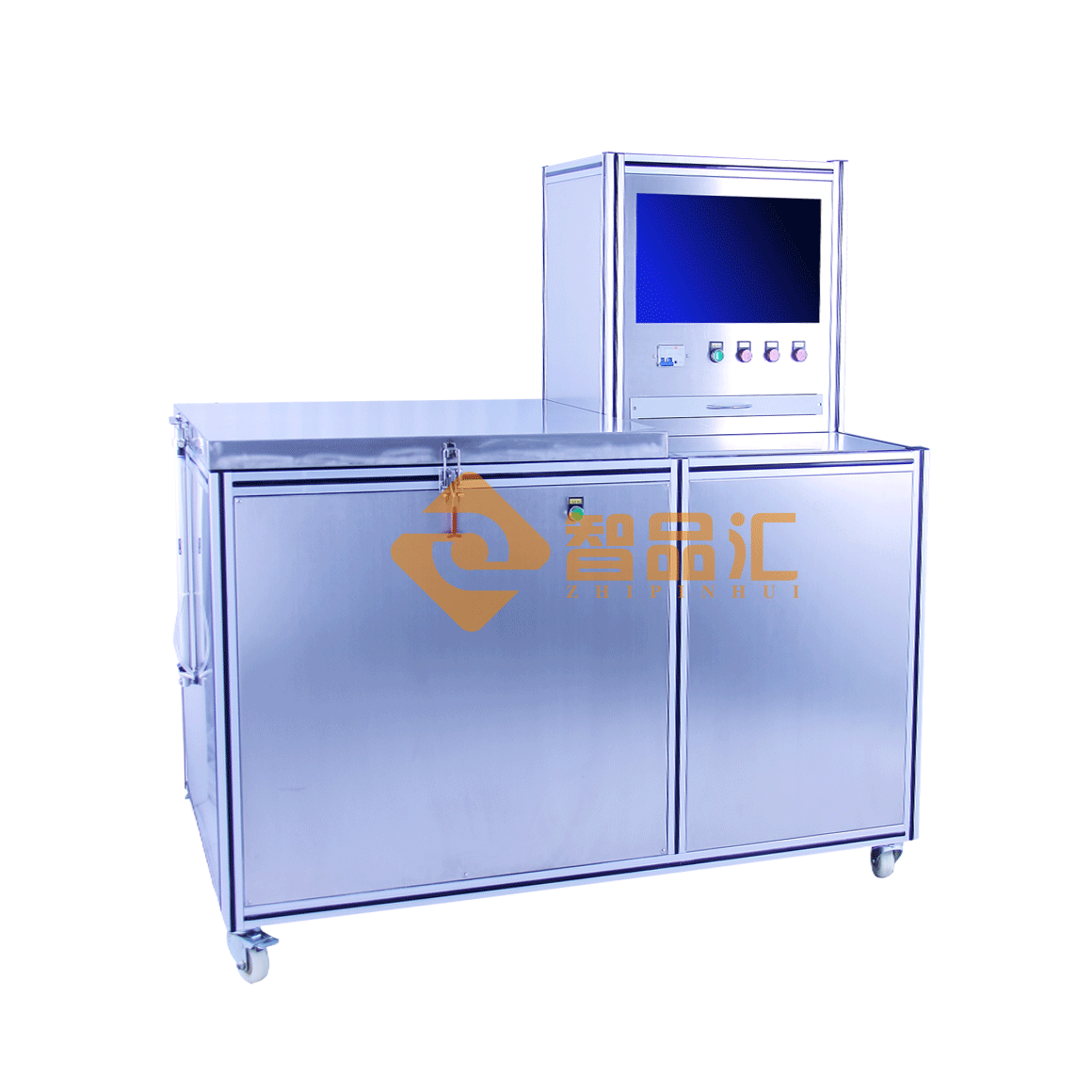

WR-64A Temperature Control Device Intelligent Tester Parameter Overview:

This device tests the temperature characteristics (operation temperature and recovery temperature)
of thermal cutouts (thermostats) in accordance with GB14536.1-2008. It is computer-controlled,
automatically testing, and outputting test results.

1. Control Power Supply: AC220V, 50Hz, 3kVA

2. Number of Test Stations: 30

Applicable Products: Thermal cutouts and thermal fuses, both normally closed and normally open

3. Operate and Recovery Temperature Test Range: Ambient Temperature +20°C to 250°C

Resolution: 0.1°C

Temperature Test Accuracy: 0.3% READ + 10 characters

Temperature Uniformity in the Component Placement Area: ±2°C

Medium: Air

Test Chamber Structure: Cylindrical, with air circulation

4. Each product is equipped with an indicator light to indicate on/off status.

A computer is used to set parameters, control temperature, collect data, and generate reports.

The operating system is Chinese XP, and the software interface is in Chinese.

Configuration: One integrated touchscreen industrial control computer

(Pentium 4/1.8GHz or higher CPU, 2GB RAM, 32GB SSD, 15-inch LCD monitor),

with Chinese XP operating system and Office software installed.

① Four operating modes: 1: ON test 2: OFF test 3: ON-OFF test 4: OFF-ON test

5. System Protection Features:

A. Immediately shuts off power when a circuit leak occurs.

B. After a sudden power outage, the device will not automatically resume operation upon restoration.

C. Automatically shuts off heating protection when the furnace temperature exceeds 250°C.

D. The test cover is equipped with a door-operated switch; testing is interrupted when the door is opened.

6. Operating Temperature: 0-40°C

Operating Humidity: No more than 95% (RH), non-condensing, and free of corrosive gases or vapors.

7. Overall Dimensions: L × W × H = approximately 1400 × 900 × 1400 mm
