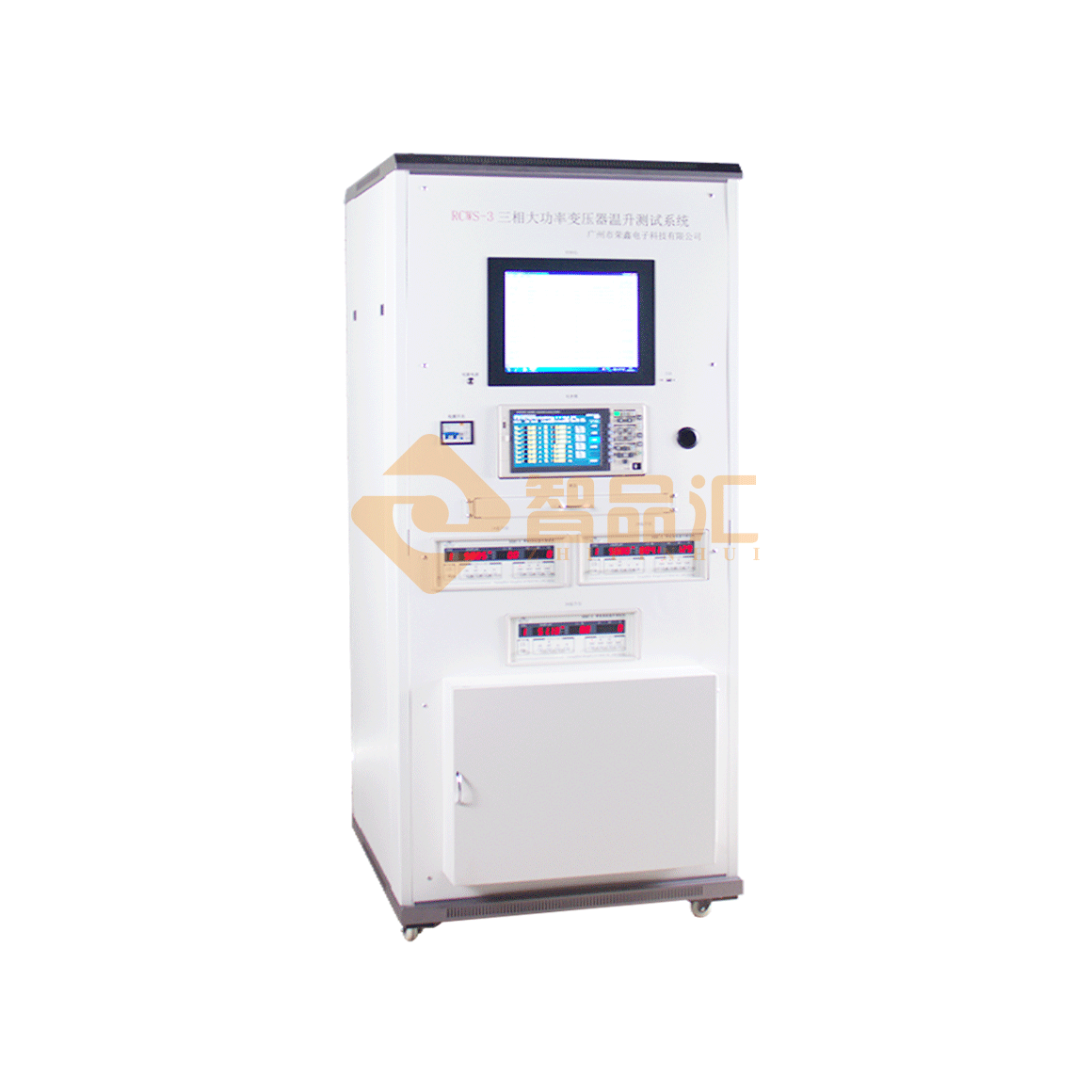

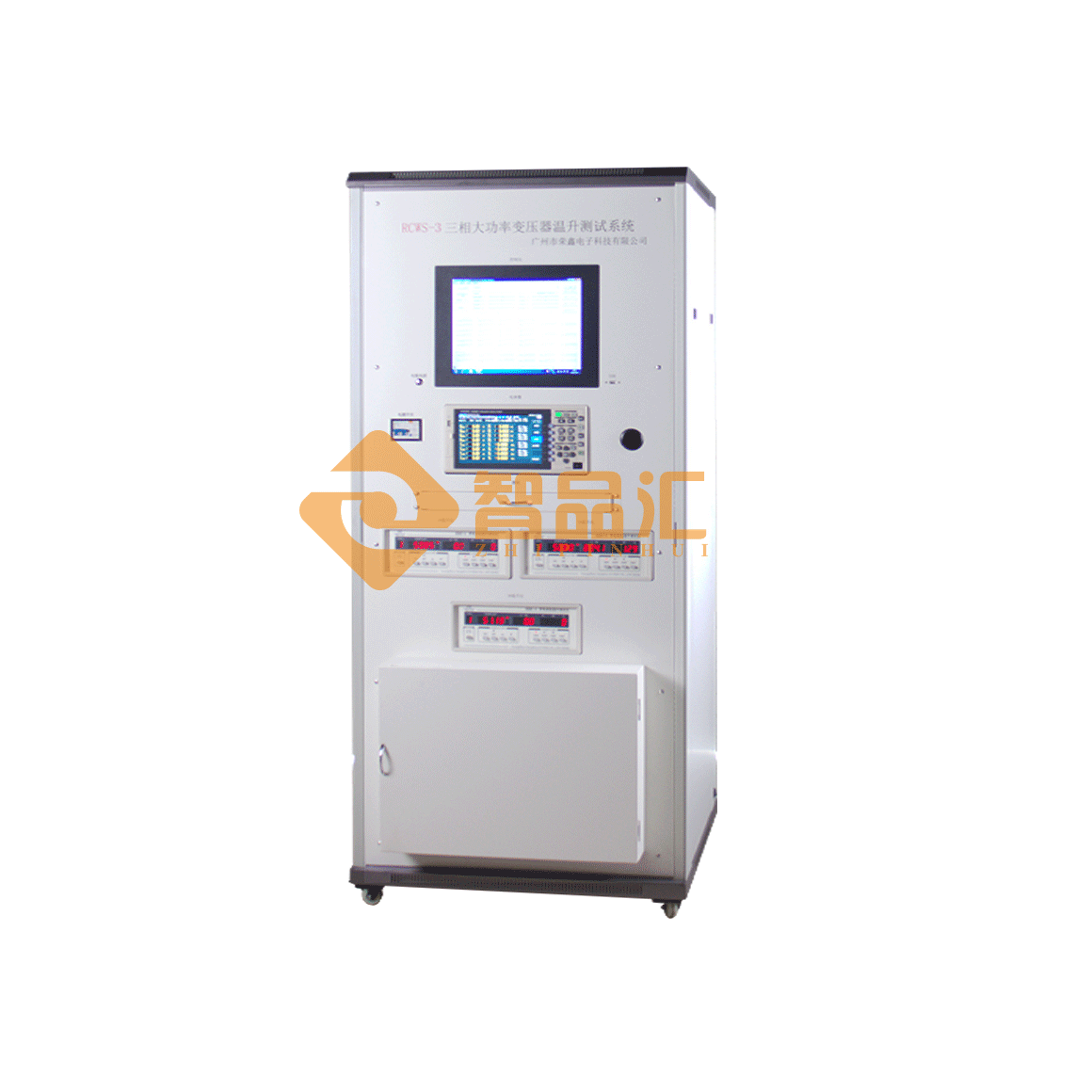

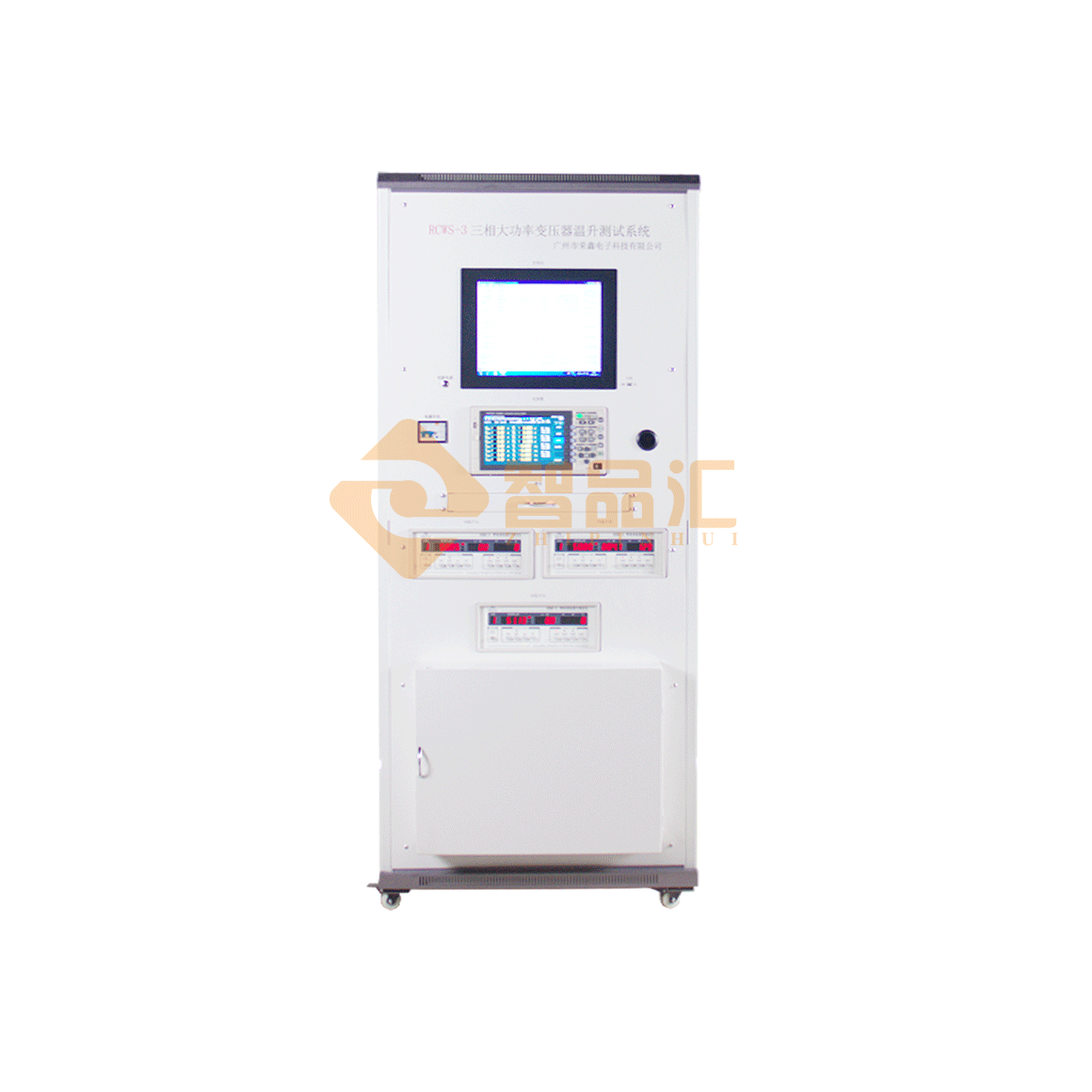

RCWS-3 Three phase High power Transformer Temperature Rise Testing System

Non-standard products

Delivery

Free delivery

reservation

400-816-6687

Product Details Parameter Overview evaluate（0） After sales guarantee

Book Now

RCWS-3 Three-phase High-power Transformer Temperature Rise Testing System Designed and manufactured in accordance with standards such as GB755, GB1094, GB6450, and GB17647 1. Measurement range: 0.0500～1.9999～19.999～199.99Ω, simultaneous testing of six input and output channels 2. Measurement accuracy: Cold state ±0.15%READ + 0.15%FS Hot state ±0.25%READ + 0.25%FS 3. Ambient temperature: Measurement range 0～50°C, measurement accuracy ±0.5°C 4. Temperature rise: Calculated according to the temperature rise formula 5. Thermal resistance response time: < 60 seconds 6. Experimental time: Up to 99 hours, 59 minutes and 59 seconds, accuracy ±0.1% 7. The temperature coefficient of the winding can be set from 0 to 999.9, and all set parameters are retained during a power outage. 8. The instrument is equipped with a standard serial port and can communicate serially with a computer. 9. The equipment is configured with an integrated liquid crystal touch screen computer, with 2G of memory, a 1.8G dual-core CPU, and a 32G solid-state drive. 10. Content of the Chinese testing software: Record data on voltage, current, power, and temperature changes, display curves, query and print, and export data
