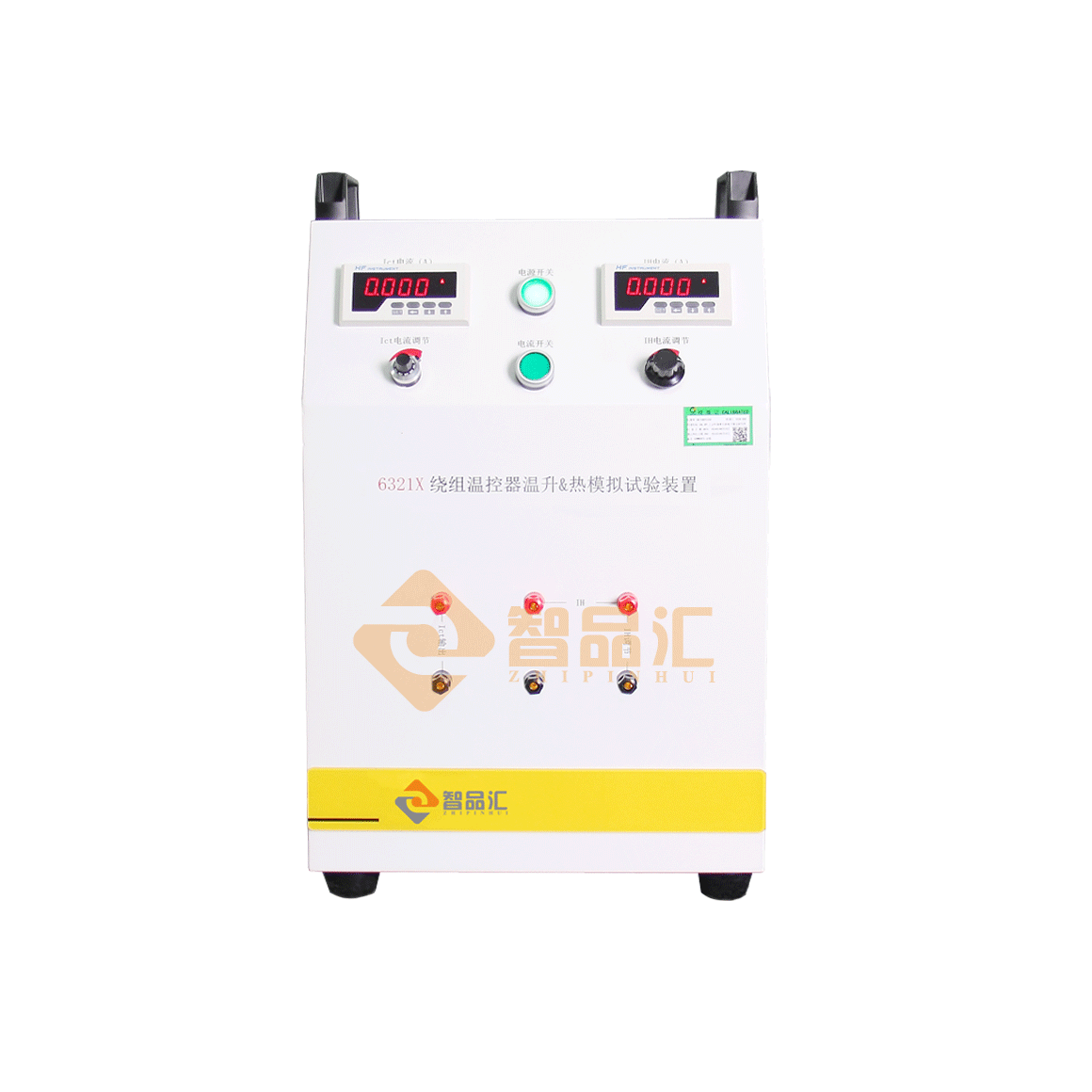

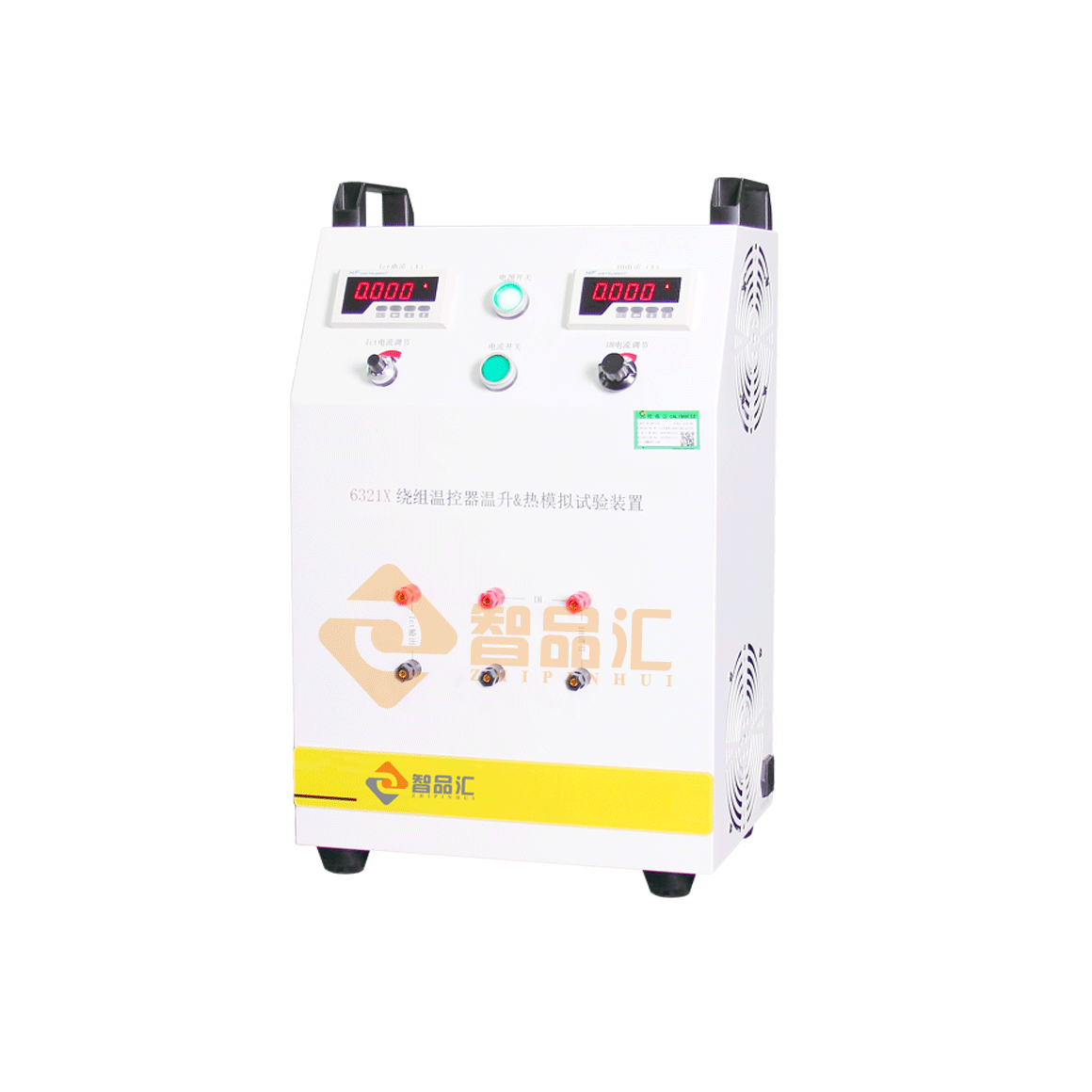

400-816-66876321X Winding Temperature Controller Temperature Rise & Thermal Simulation Test Device
I. Overview
This test device is designed and manufactured in accordance with the standards JB/T 8450 and JB/T 6302. It provides a high-stability CT current source with a fluctuation degree of no more than 5mA/30min. It conducts temperature rise thermal simulation tests on the winding temperature controller to check whether the temperature rise value (or temperature value) of the winding temperature controller product under the above specific temperature and CT current meets the technical indicators.
II. Main Technical Parameters
1. Test ambient temperature environment: Provided by the user themselves.
2. Test current Ict: Adjustable range AC0.5～5A/50Hz, with a display accuracy of 1%.
Output current fluctuation degree: ≤5mA/30min.
Maximum output power: No more than 60VA.
3. IH current display: 0.5～1.999A, with a display accuracy of 1%.
Equipped with a trimming potentiometer.
4. Working power supply: AC220V, 50Hz, with a power consumption of approximately 750VA.
5. Overall dimensions of the device: Approximately width 350mm * depth 250mm * height 500mm.
6. Approximate overall weight of the device: Approximately 10kg.
7. Working environment: 0～40℃, relative humidity ≤80% and without condensation.
