400-816-6687RXWS－2D Connector Thermal Cycle Temperature Rise Test Bench It is developed in accordance with the test methods for current and temperature rise of electronic connectors in GB15287, GB15288, GB20234.1, GB2099, GB16915, GB15092, GB17465, GB11918, GB13140, GB14048, GB7251, UL310, UL498, UL817, UL941, UL1059, IEC60309, IEC60998, IEC60669, IEC61058, IEC60439, EIA-364-70 and relevant standards of other electrical accessories. It can be used to assess the surface heating condition of electrical accessories when connected to the load current, and whether the temperature rise of the electrodes meets the requirements of the standards. 1. Program-controlled current source: (AC/DC can be customized according to customer requirements) Maximum output voltage: No more than DC5V Output constant adjustable test current: Continuously adjustable from DC0～50～500.0A (customizable) Current display accuracy: ±(0.5% of the reading + 5 digits) Test current stability: ±(1% of the set value + 5 digits) 2. Controller: Power-on/power-off time: 1～99.99 minutes/hour Number of on-off cycles: 1～9999 times, with power-off memory function. It will stop automatically when the set number of cycles is reached. 3. Temperature rise test: Temperature measurement range: 0～260℃, accuracy ±0.3% of the reading +1℃; Resolution: 0.1℃ Temperature measurement: 8 channels (including 1 point for measuring the ambient temperature) Configure 8 channels to collect temperature data simultaneously Configure thermocouples: 8 pieces of T-type 30AWG fine wire thermocouples of Omega Company in the United States, each with a length of 2 meters; Temperature data recording: Automatically completed by the computer. Configure computer test software, and Excel reports can be exported. 4. Power supply: Single-phase AC220V±10%, 50/60Hz, 5KVA 5. Configure one integrated industrial control computer with a touch screen (CPU above Pentium 4/1.8G, 2G memory, 256G solid-state drive, 15-inch liquid crystal display), installed with the XP Chinese operating system and OFFICE processing software. 6. Dimensions: Approximately width 800mm×depth 800mm×height 1800mm, with a weight of approximately 350kg.

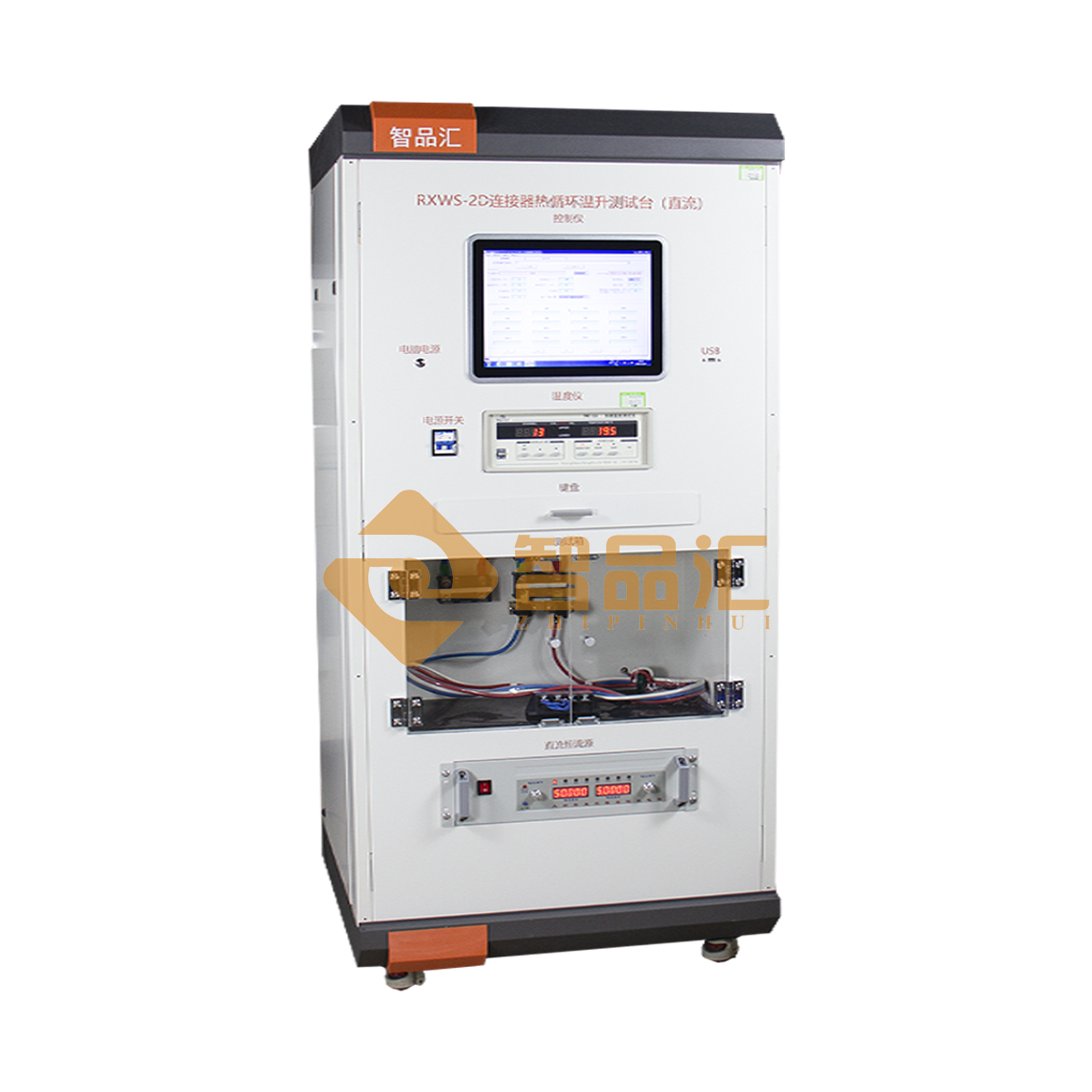

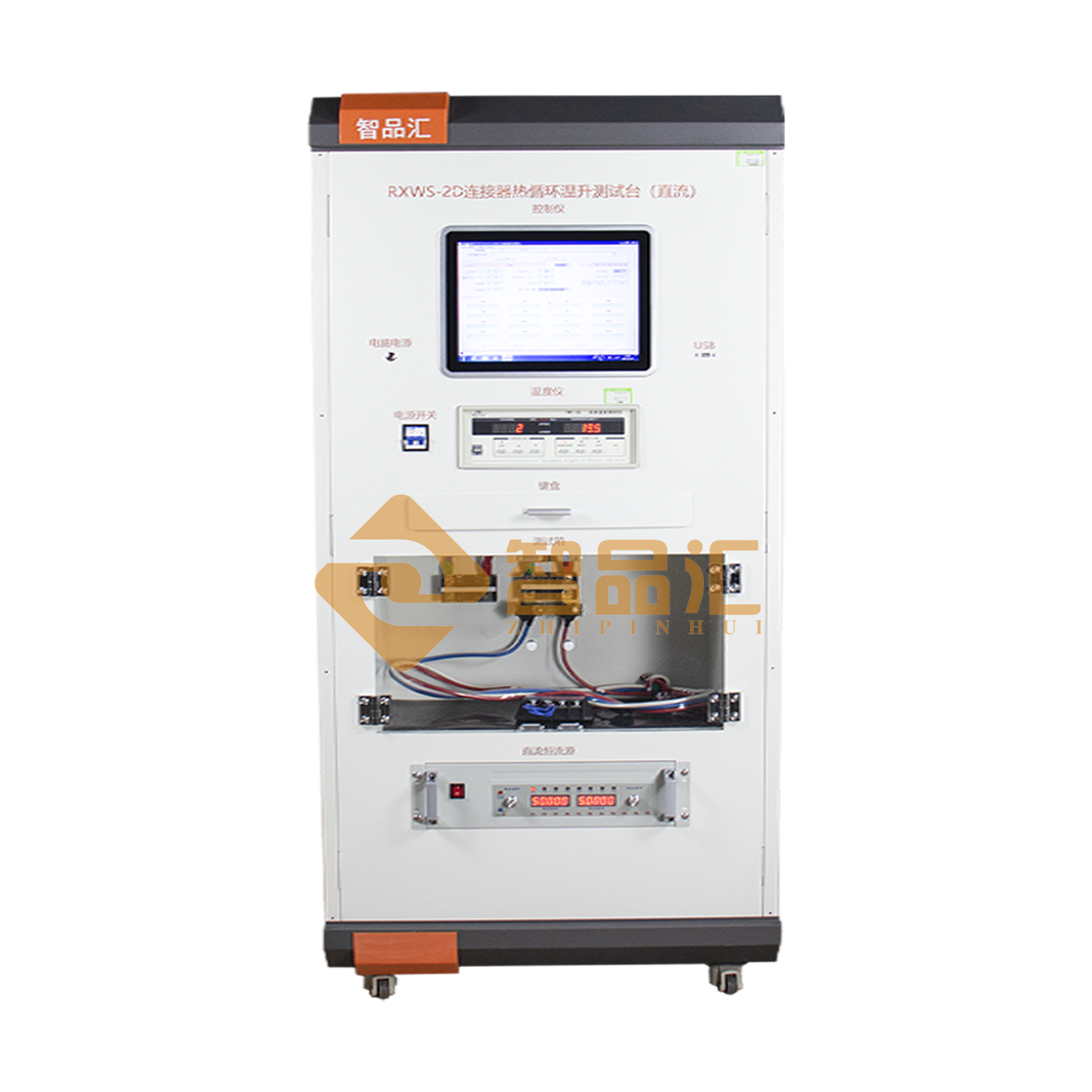

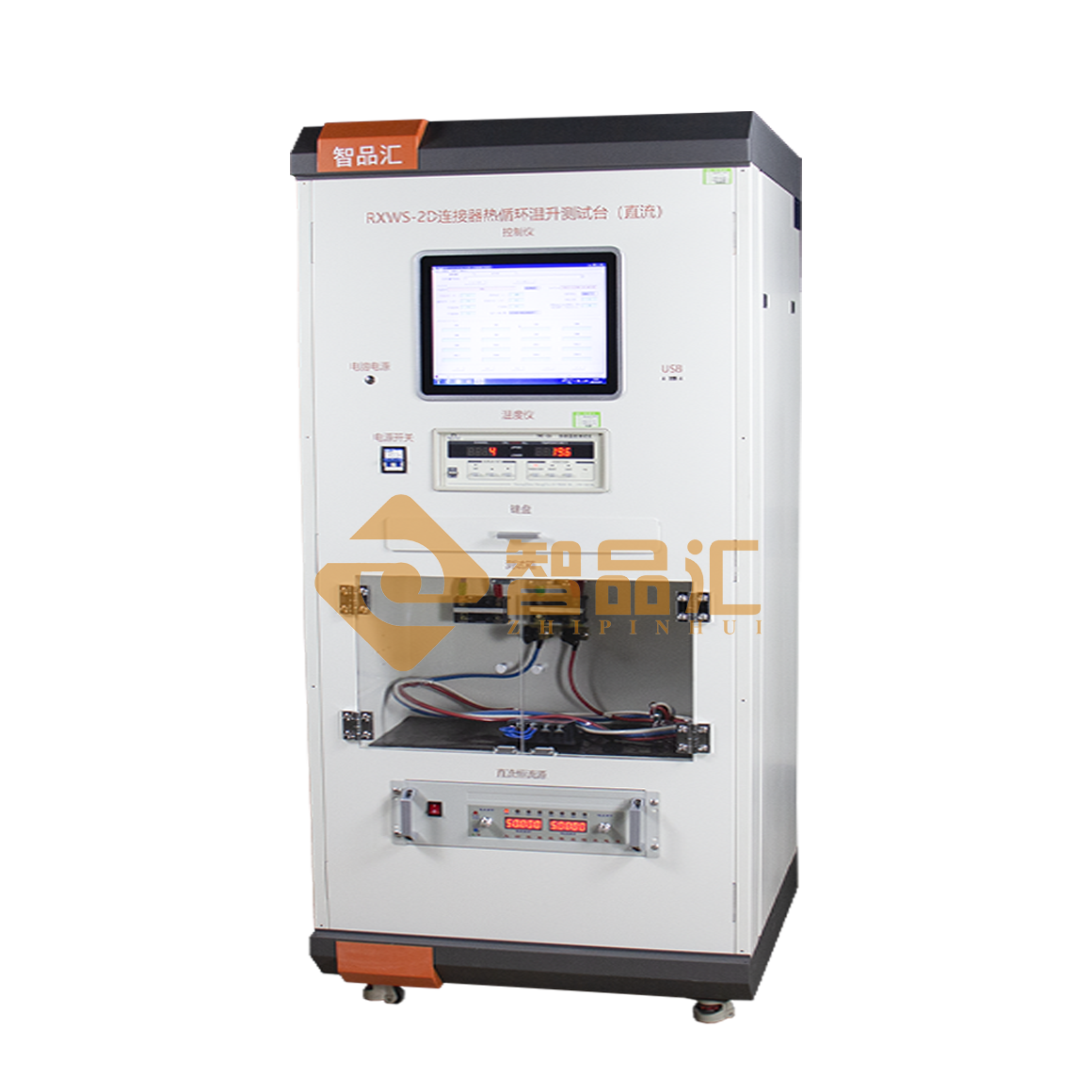

RXWS－2D Connector Thermal Cycle Temperature Rise Test Bench It is developed in accordance with the test methods for current and temperature rise of electronic connectors in GB15287, GB15288, GB20234.1, GB2099, GB16915, GB15092, GB17465, GB11918, GB13140, GB14048, GB7251, UL310, UL498, UL817, UL941, UL1059, IEC60309, IEC60998, IEC60669, IEC61058, IEC60439, EIA-364-70 and relevant standards of other electrical accessories. It can be used to assess the surface heating condition of electrical accessories when connected to the load current, and whether the temperature rise of the electrodes meets the requirements of the standards. 1. Program-controlled current source: (AC/DC can be customized according to customer requirements) Maximum output voltage: No more than DC5V Output constant adjustable test current: Continuously adjustable from DC0～50～500.0A (customizable) Current display accuracy: ±(0.5% of the reading + 5 digits) Test current stability: ±(1% of the set value + 5 digits) 2. Controller: Power-on/power-off time: 1～99.99 minutes/hour Number of on-off cycles: 1～9999 times, with power-off memory function. It will stop automatically when the set number of cycles is reached. 3. Temperature rise test: Temperature measurement range: 0～260℃, accuracy ±0.3% of the reading +1℃; Resolution: 0.1℃ Temperature measurement: 8 channels (including 1 point for measuring the ambient temperature) Configure 8 channels to collect temperature data simultaneously Configure thermocouples: 8 pieces of T-type 30AWG fine wire thermocouples of Omega Company in the United States, each with a length of 2 meters; Temperature data recording: Automatically completed by the computer. Configure computer test software, and Excel reports can be exported. 4. Power supply: Single-phase AC220V±10%, 50/60Hz, 5KVA 5. Configure one integrated industrial control computer with a touch screen (CPU above Pentium 4/1.8G, 2G memory, 256G solid-state drive, 15-inch liquid crystal display), installed with the XP Chinese operating system and OFFICE processing software. 6. Dimensions: Approximately width 800mm×depth 800mm×height 1800mm, with a weight of approximately 350kg.
Zhipinhui After-Sales Policy:
*After-Sales Hotline: +864008166687
1. Our company has assembled a team of experienced field engineers and senior technicians to promptly respond
to any equipment issues and provide after-sales maintenance.
2. Within China, within one week of new product delivery, our after-sales technical staff will install the equipment and
provide after-sales training at the customer's location, using the contact information and address provided by the customer.
3. All complaints related to product quality will be responded to within one hour. Within 3-5 hours within the province,
and within 24-48 hours outside the province, we will arrive at the customer's site,
determine the appropriate action based on the complaint, and provide after-sales repairs. (Domestic)
4. For international travel, our company can also arrange for an after-sales engineer to visit you for installation and
commissioning. Please discuss any travel and catering issues in advance.
We also provide video installation guides for you to choose from, providing you with a comprehensive and multi-faceted solution.
5. Any material costs related to product quality during the warranty period will be borne by our company.
6. During the warranty period, we will provide free repairs due to improper use or environmental factors.
The materials and accessories used for repairs will be charged at cost only.
