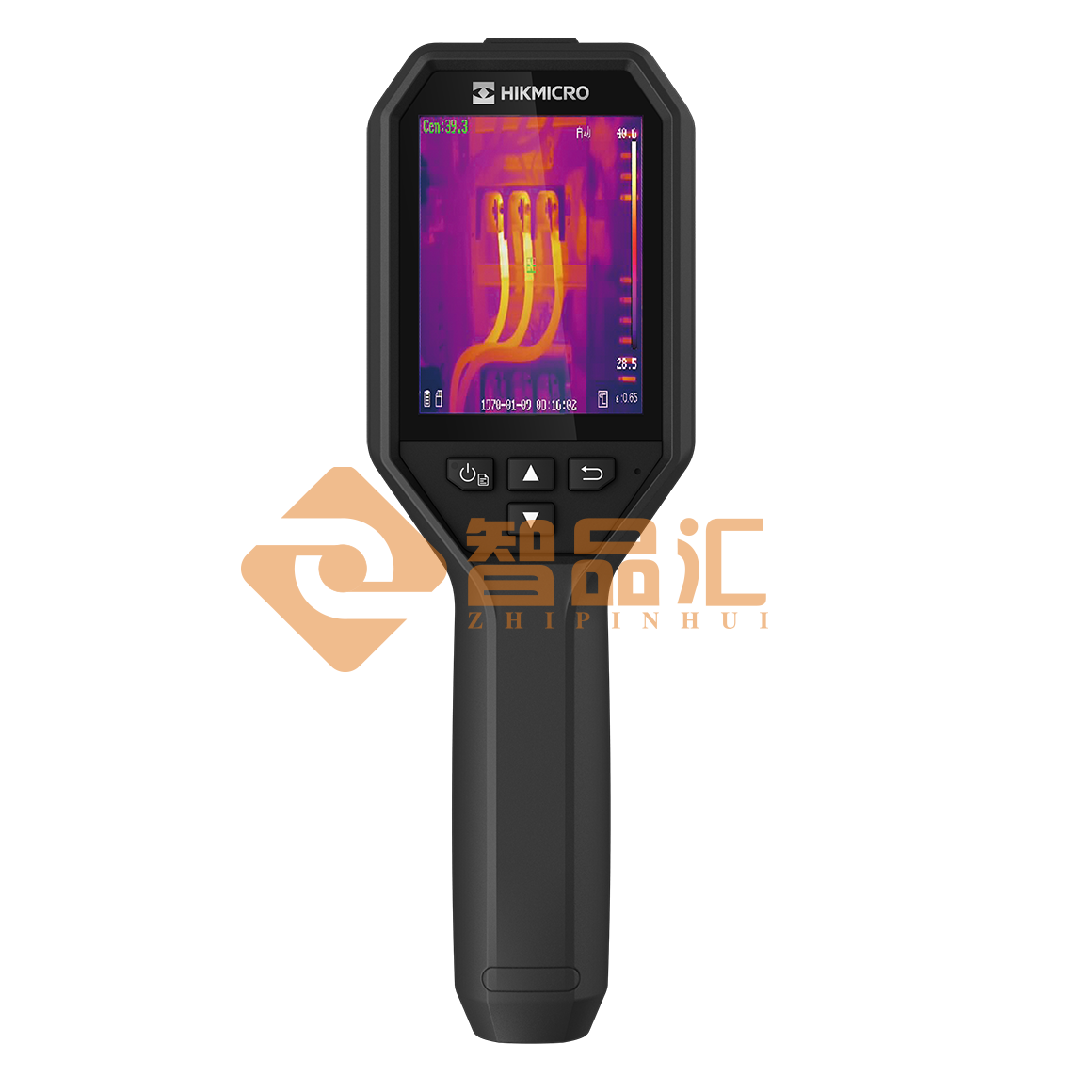

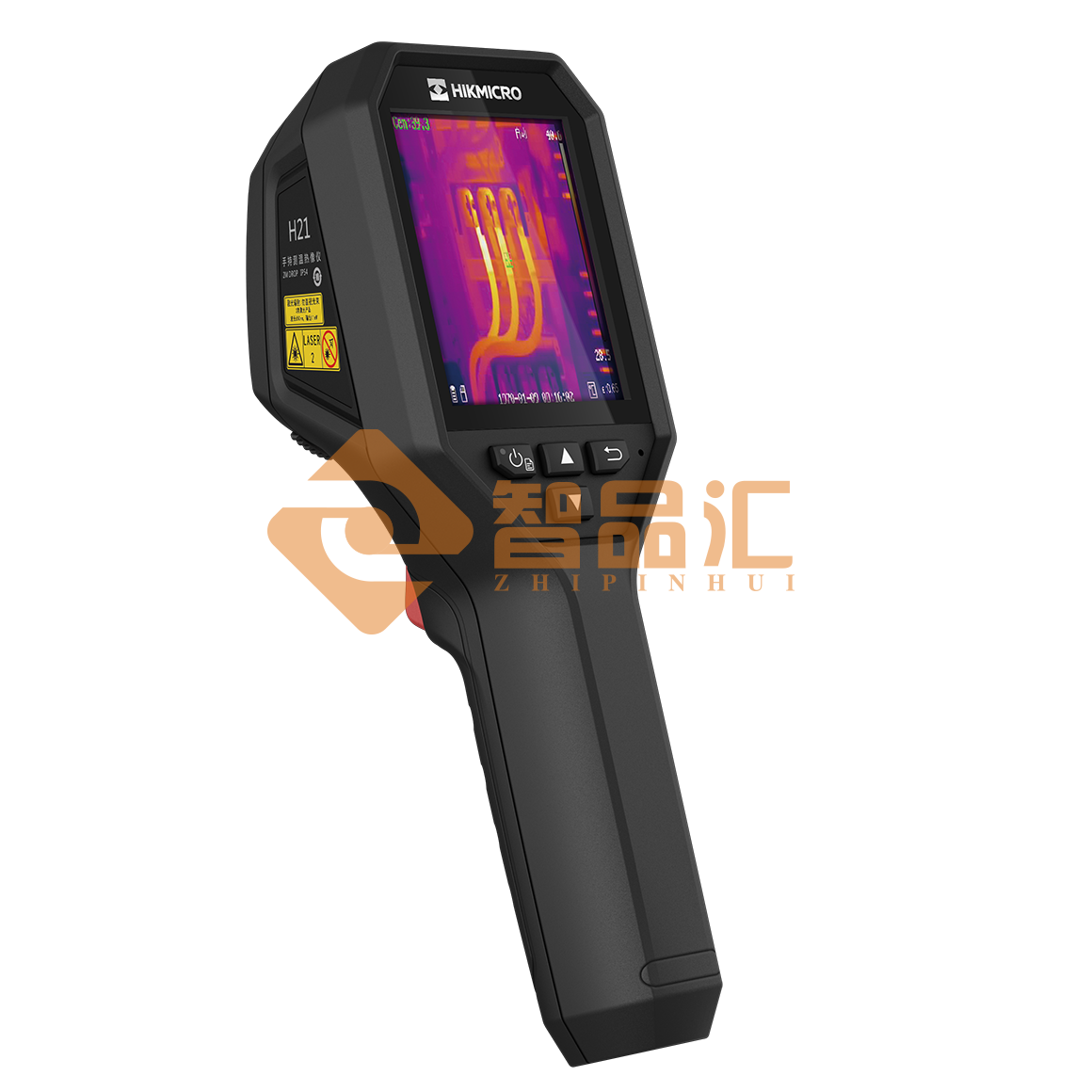

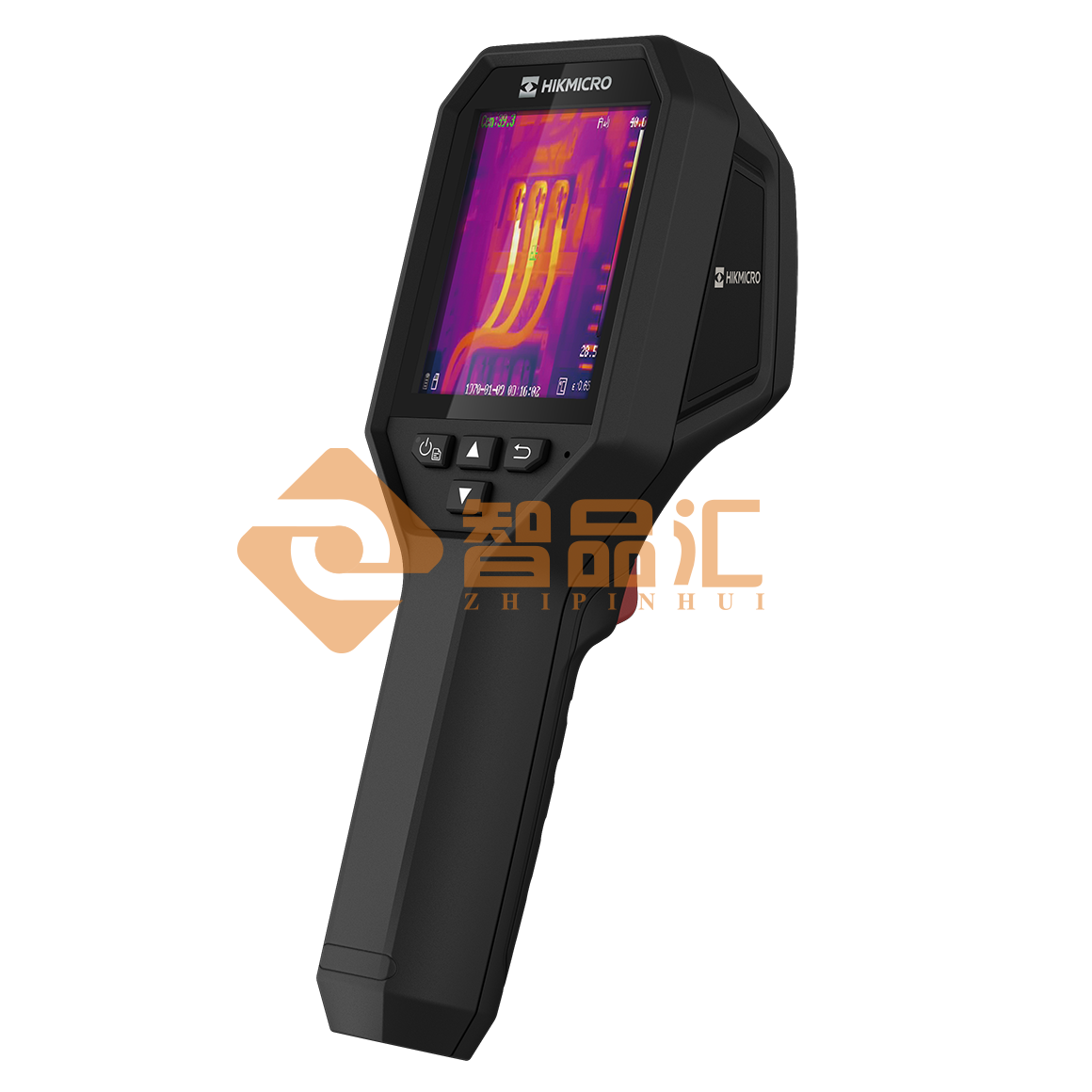

400-816-6687ZH-TPH21Pro-3AXF Handheld Thermal Imaging Thermometer for Temperature Measurement Thermal Imaging Image: - Original resolution: 256 × 192, high-sensitivity vanadium oxide uncooled detector - Supports timed and temperature difference shutter correction - Supports 3D noise reduction function and image detail enhancement function - Supports 4 adjustable pseudo-color modes Dual-light Fusion: Supports the fusion of thermal imaging and visible light Temperature Abnormality Alarm Function: - Temperature measurement range: -20 °C~350 °C - Temperature measurement accuracy: ±2 °C or ±2% of the reading (whichever is greater) System Functions: - Standby time > 6 h, supports automatic shutdown power-saving mode - Supports temperature measurement at the central point, maximum temperature, and minimum temperature - Picture storage with full-screen temperature measurement information, supports offline temperature measurement analysis (used in conjunction with the client) Specification Parameters ·Thermal Imaging: - Sensor type: Uncooled vanadium oxide microbolometer - Detector resolution: 256 × 192 - Response band: 8~14 μm - NETD (Noise Equivalent Temperature Difference): < 50 mk (@25 °C, F#=1.0) - Maximum image size: 240 × 320 - Minimum imaging distance: 0.3 m - Field of view: 37.2° × 50.0° - Frame rate: 25 Hz - Pixel size: 12 μm - Minimum measurement distance: 0.3 m - F-number: F1.0 - Temperature measurement unit: Celsius, Fahrenheit, Kelvin - Temperature measurement range: -20 °C~350 °C - Accuracy: ±2 °C or ±2% of the reading (whichever is greater) - Spatial resolution (IFOV): 3.3 mrad ·Visible Light: - Resolution: 1600 × 1200 - Field of view: 55° × 42° - Maximum image size: 1600 × 1200 - Picture resolution: 1600 × 1200 ·Image Display: - Display: 3.2-inch LCD screen (240 × 320) - Image modes: White hot, black hot, iron red, rainbow - Picture display modes: Fusion, thermal imaging, visible light, picture-in-picture - Maximum image size: 240 × 320 - Frame rate: 25 Hz - Image format: JPEG image with temperature measurement information, supports offline analysis by the client - UVC screen projection: Supported ·System Functions: - Lighting: Supported - WIFI: Not supported - Alarm linkage: Supports sound alarm, light alarm, and image alarm - Temperature measurement rules: 6 temperature measurement points (central point, maximum temperature, minimum temperature, and 3 custom points) - Storage: 16 GB built-in emmc - Power interface: Type-C direct charging - Battery type: Rechargeable lithium-ion battery - Charging time: < 3 h @25 °C - Battery working time: > 6 h @25 °C ·System Parameters: - Power management: Adjustable; off, 5 minutes, 10 minutes, 20 minutes - Operating temperature and humidity: -10 °C~50 °C, ≤95% - Storage temperature and humidity: -20 °C~60 °C, ≤95% - Protection level: IP54 - Drop resistance level: 2 m - Weight: 380 g (including battery) - Dimensions: 221.7 mm × 73.5 mm × 80.5 mm - Accessories: 5 V power adapter, USB cable, wrist strap lanyard, instruction document
ZH-TPH21Pro-3AXF Handheld Thermal Imaging Thermometer for Temperature Measurement Thermal Imaging Image: - Original resolution: 256 × 192, high-sensitivity vanadium oxide uncooled detector - Supports timed and temperature difference shutter correction - Supports 3D noise reduction function and image detail enhancement function - Supports 4 adjustable pseudo-color modes Dual-light Fusion: Supports the fusion of thermal imaging and visible light Temperature Abnormality Alarm Function: - Temperature measurement range: -20 °C~350 °C - Temperature measurement accuracy: ±2 °C or ±2% of the reading (whichever is greater) System Functions: - Standby time > 6 h, supports automatic shutdown power-saving mode - Supports temperature measurement at the central point, maximum temperature, and minimum temperature - Picture storage with full-screen temperature measurement information, supports offline temperature measurement analysis (used in conjunction with the client) Specification Parameters ·Thermal Imaging: - Sensor type: Uncooled vanadium oxide microbolometer - Detector resolution: 256 × 192 - Response band: 8~14 μm - NETD (Noise Equivalent Temperature Difference): < 50 mk (@25 °C, F#=1.0) - Maximum image size: 240 × 320 - Minimum imaging distance: 0.3 m - Field of view: 37.2° × 50.0° - Frame rate: 25 Hz - Pixel size: 12 μm - Minimum measurement distance: 0.3 m - F-number: F1.0 - Temperature measurement unit: Celsius, Fahrenheit, Kelvin - Temperature measurement range: -20 °C~350 °C - Accuracy: ±2 °C or ±2% of the reading (whichever is greater) - Spatial resolution (IFOV): 3.3 mrad ·Visible Light: - Resolution: 1600 × 1200 - Field of view: 55° × 42° - Maximum image size: 1600 × 1200 - Picture resolution: 1600 × 1200 ·Image Display: - Display: 3.2-inch LCD screen (240 × 320) - Image modes: White hot, black hot, iron red, rainbow - Picture display modes: Fusion, thermal imaging, visible light, picture-in-picture - Maximum image size: 240 × 320 - Frame rate: 25 Hz - Image format: JPEG image with temperature measurement information, supports offline analysis by the client - UVC screen projection: Supported ·System Functions: - Lighting: Supported - WIFI: Not supported - Alarm linkage: Supports sound alarm, light alarm, and image alarm - Temperature measurement rules: 6 temperature measurement points (central point, maximum temperature, minimum temperature, and 3 custom points) - Storage: 16 GB built-in emmc - Power interface: Type-C direct charging - Battery type: Rechargeable lithium-ion battery - Charging time: < 3 h @25 °C - Battery working time: > 6 h @25 °C ·System Parameters: - Power management: Adjustable; off, 5 minutes, 10 minutes, 20 minutes - Operating temperature and humidity: -10 °C~50 °C, ≤95% - Storage temperature and humidity: -20 °C~60 °C, ≤95% - Protection level: IP54 - Drop resistance level: 2 m - Weight: 380 g (including battery) - Dimensions: 221.7 mm × 73.5 mm × 80.5 mm - Accessories: 5 V power adapter, USB cable, wrist strap lanyard, instruction document
Zhipinhui after-sales service
Equipment after-sales policy:
*Equipment warranty period: One Year
*After sales hotline: 4008166687
1. Our company has assembled a team of experienced on-site engineers and senior technicians who can respond promptly to any equipment issues and provide after-sales maintenance.
2. Within one week of the delivery of the new product, our after-sales technical department staff will provide installation and after-sales training for the equipment at the customer's location based on the contact information and address provided by the customer.
3. All complaints related to product quality will be responded to within 1 hour. Within 3-5 hours within the province and 24-48 hours outside the province, the customer will arrive at the scene and determine the handling measures based on the complaint situation, and carry out after-sales maintenance.
4. To better address customers' difficulties and concerns, our company promises that all maintenance personnel will be on call.
5. Any costs related to product quality during the shelf life will be borne by our company.
6. During the warranty period, we will provide free repairs due to improper use by your side or natural environment. The materials and accessories used for repairs will only be charged at cost price.
