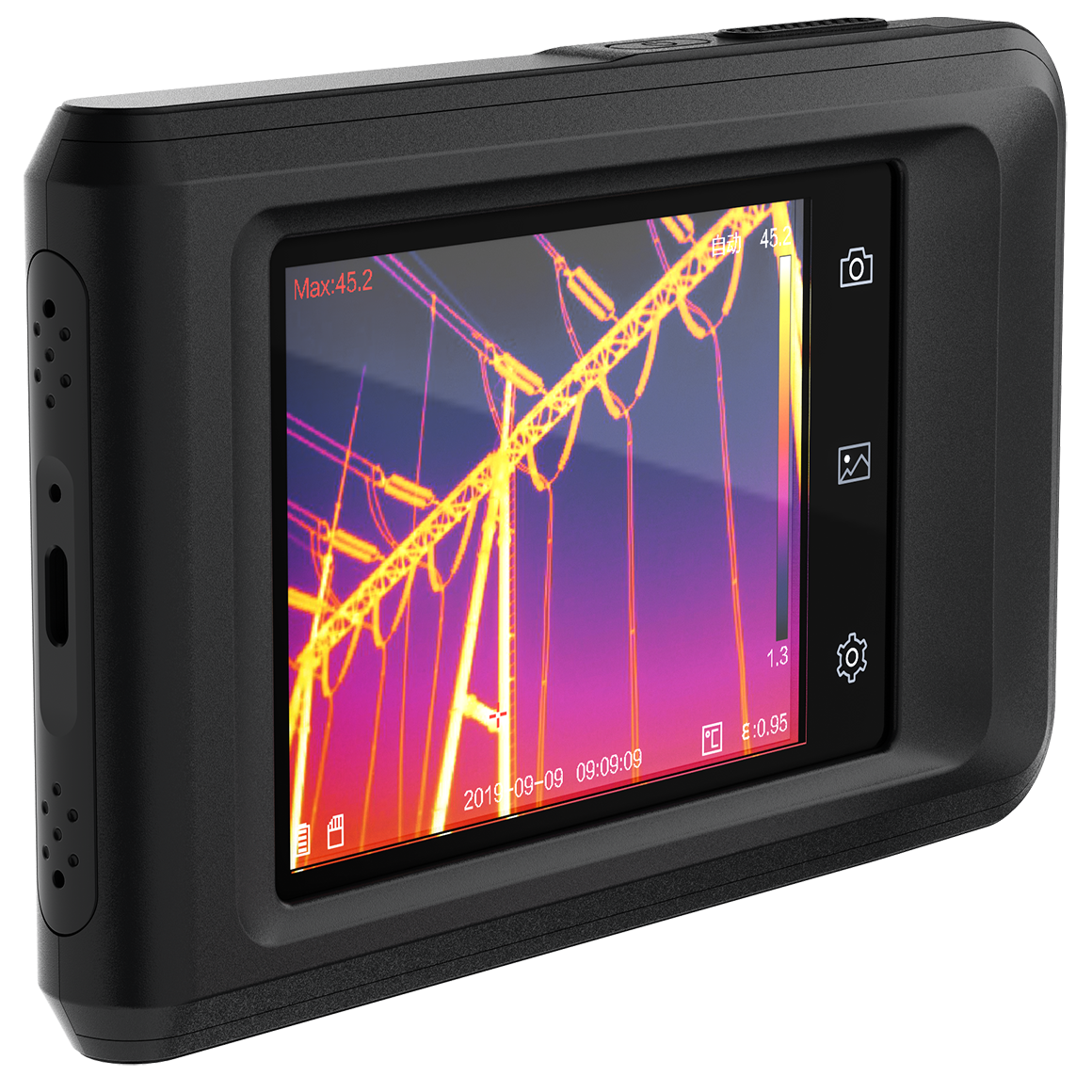

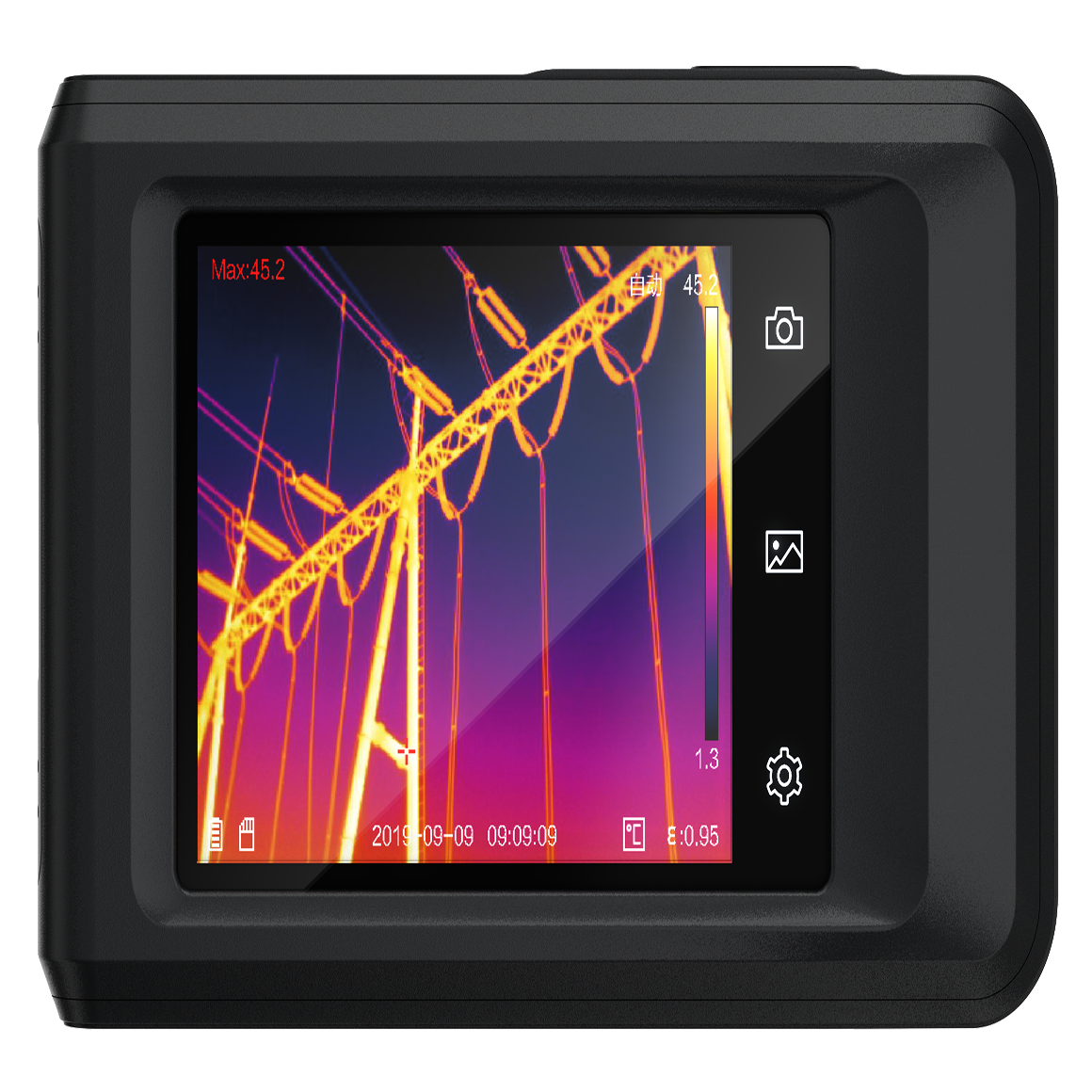

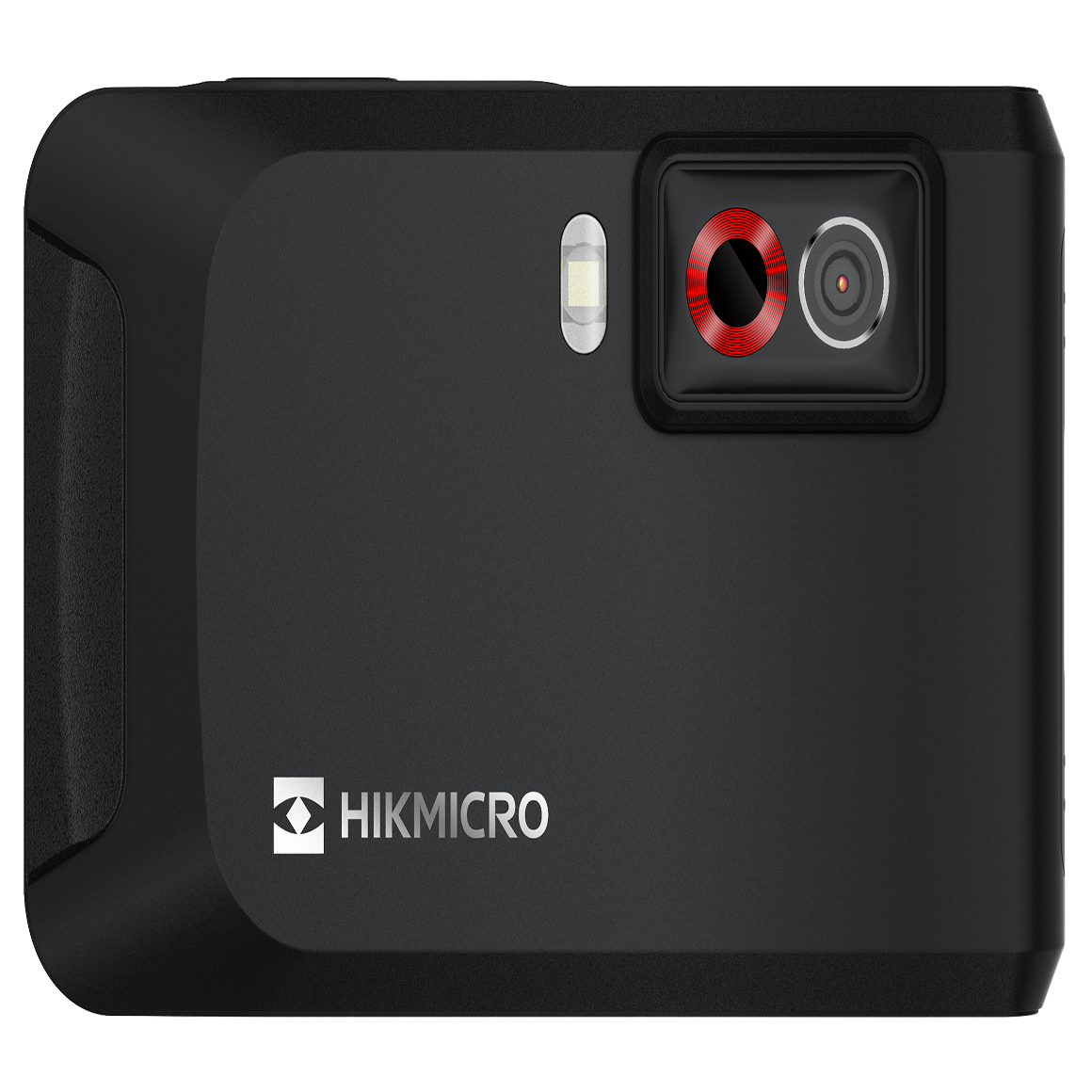

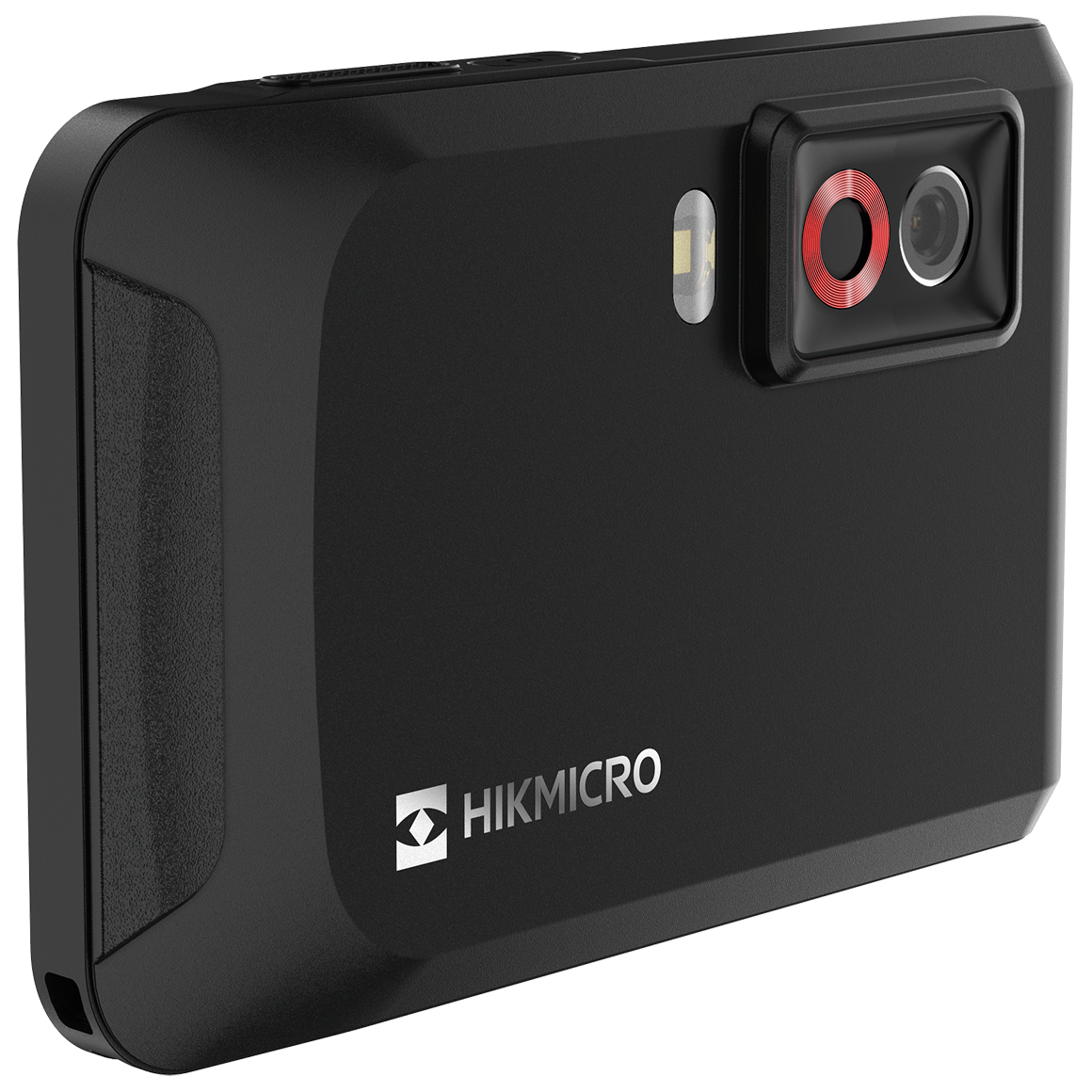

400-816-6687ZH-TPK20-3AQF/W Handheld Pocket Thermal Imaging Thermometer The resolution of the infrared detector is 256×192 (49,152 pixels), and the NETD is < 50 mK (@ 25 °C, F# = 1.0) Temperature measurement range: -20°C~400°C Temperature measurement accuracy: ±2°C or ±2% (whichever is the greater value) Supports continuous digital zoom from 1.x to 4.x Supports automatic AGC, manual AGC, and one-click AGC Frame rate: 25 Hz 8 MP visible light camera Battery life can reach up to 4 hours Specification Parameters ·Thermal Imaging Sensor type: Uncooled detector Response band: 8~14 μm NETD (Noise Equivalent Temperature Difference): < 50 mk (@25 °C, F#=1.0) Maximum image size: 256*192 Focal length of the thermal imaging lens: 3.5mm Minimum imaging distance: 0.3m Field of view: 50° × 37.5° Digital zoom: 1X~4X, minimum change 0.1X Frame rate: 25 Hz Pixel size: 12μm F-number: F1.1 Temperature measurement range: -20 °C~400 °C Accuracy: ±2° or ±2% (whichever is the greater value) Spatial resolution (IFOV): 3.43mrad ·Visible Light Maximum image size: 3264 × 2448 Picture resolution: 1600 x 1200 Video resolution: 1600 x 1200 ·Image Display Display: 3.5'' LCD capacitive touchscreen, 640 × 480 Image modes: Supports 7 pseudo-color modes such as rainbow and iron red Picture display modes: Visible light, thermal imaging, dual-light fusion, picture-in-picture ·System Functions Temperature measurement rules: Supports hot spot, cold spot, and central point UVC screen projection: Supported Battery capacity: 2100mAh Charging time: It can be quickly charged to 94% of the battery level in 1.5 hours and fully charged in 2.5 hours; Bluetooth: Supported Photography: Thermal imaging, visible light, dual-light fusion, picture-in-picture Video recording: Thermal imaging, visible light, dual-light fusion, picture-in-picture Lighting: Supported Text annotation: Supported Interface language: Chinese WIFI: Supported Storage: 16 GB Hardware interface: TYPE-C Battery type: Lithium-ion battery Battery working time: 4 h ·System Parameters Tripod mounting: Supported, standard UNC ¼”-20 hole position Operating temperature and humidity: -10 °C~50 °C, ≤95% Protection level: IP54 Drop resistance level: 2 m Weight: 218g Dimensions: 138.5 mm × 85.2 mm × 23.6 mm Accessories: Adapter, data cable, cloth bag, lanyard, user manual Client Software PC-side software: Supports Hikmicro Analyzer client App: Supports Weiying Thermal Vision APP Screen projection: Supports UVC screen projection
ZH-TPK20-3AQF/W Handheld Pocket Thermal Imaging Thermometer The resolution of the infrared detector is 256×192 (49,152 pixels), and the NETD is < 50 mK (@ 25 °C, F# = 1.0) Temperature measurement range: -20°C~400°C Temperature measurement accuracy: ±2°C or ±2% (whichever is the greater value) Supports continuous digital zoom from 1.x to 4.x Supports automatic AGC, manual AGC, and one-click AGC Frame rate: 25 Hz 8 MP visible light camera Battery life can reach up to 4 hours Specification Parameters ·Thermal Imaging Sensor type: Uncooled detector Response band: 8~14 μm NETD (Noise Equivalent Temperature Difference): < 50 mk (@25 °C, F#=1.0) Maximum image size: 256*192 Focal length of the thermal imaging lens: 3.5mm Minimum imaging distance: 0.3m Field of view: 50° × 37.5° Digital zoom: 1X~4X, minimum change 0.1X Frame rate: 25 Hz Pixel size: 12μm F-number: F1.1 Temperature measurement range: -20 °C~400 °C Accuracy: ±2° or ±2% (whichever is the greater value) Spatial resolution (IFOV): 3.43mrad ·Visible Light Maximum image size: 3264 × 2448 Picture resolution: 1600 x 1200 Video resolution: 1600 x 1200 ·Image Display Display: 3.5'' LCD capacitive touchscreen, 640 × 480 Image modes: Supports 7 pseudo-color modes such as rainbow and iron red Picture display modes: Visible light, thermal imaging, dual-light fusion, picture-in-picture ·System Functions Temperature measurement rules: Supports hot spot, cold spot, and central point UVC screen projection: Supported Battery capacity: 2100mAh Charging time: It can be quickly charged to 94% of the battery level in 1.5 hours and fully charged in 2.5 hours; Bluetooth: Supported Photography: Thermal imaging, visible light, dual-light fusion, picture-in-picture Video recording: Thermal imaging, visible light, dual-light fusion, picture-in-picture Lighting: Supported Text annotation: Supported Interface language: Chinese WIFI: Supported Storage: 16 GB Hardware interface: TYPE-C Battery type: Lithium-ion battery Battery working time: 4 h ·System Parameters Tripod mounting: Supported, standard UNC ¼”-20 hole position Operating temperature and humidity: -10 °C~50 °C, ≤95% Protection level: IP54 Drop resistance level: 2 m Weight: 218g Dimensions: 138.5 mm × 85.2 mm × 23.6 mm Accessories: Adapter, data cable, cloth bag, lanyard, user manual Client Software PC-side software: Supports Hikmicro Analyzer client App: Supports Weiying Thermal Vision APP Screen projection: Supports UVC screen projection
Zhipinhui after-sales service
Equipment after-sales policy:
*Equipment warranty period: One Year
*After sales hotline: 4008166687
1. Our company has assembled a team of experienced on-site engineers and senior technicians who can respond promptly to any equipment issues and provide after-sales maintenance.
2. Within one week of the delivery of the new product, our after-sales technical department staff will provide installation and after-sales training for the equipment at the customer's location based on the contact information and address provided by the customer.
3. All complaints related to product quality will be responded to within 1 hour. Within 3-5 hours within the province and 24-48 hours outside the province, the customer will arrive at the scene and determine the handling measures based on the complaint situation, and carry out after-sales maintenance.
4. To better address customers' difficulties and concerns, our company promises that all maintenance personnel will be on call.
5. Any costs related to product quality during the shelf life will be borne by our company.
6. During the warranty period, we will provide free repairs due to improper use by your side or natural environment. The materials and accessories used for repairs will only be charged at cost price.
