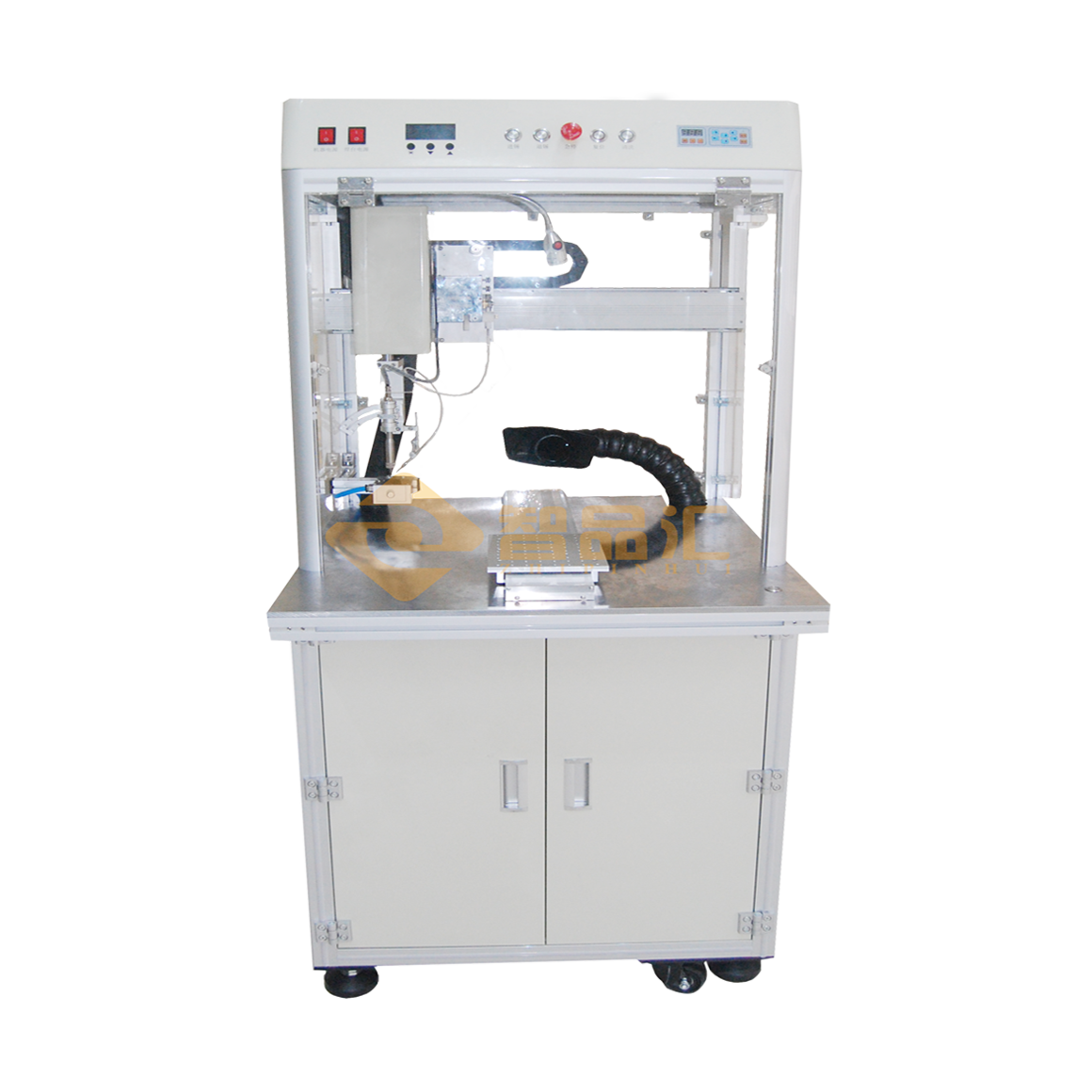

ZH-L331R立式环保型焊锡机Vertical Environmental Protection Soldering Robot
焊锡机器人Soldering Robot | ZH-L331R 立式精准4轴Vertical precision 4 axis |
加工范围Processing range X/Y/ /Z/R | 300mm/300mm/100mm/<300°(可定制Customizable) |
Y轴平台最大负载Y-axis platform maximum load | 15KG |
XY/Z轴移动速度XY/Z axis movement speed (mm/sec) | 0-1200 |
XYZ轴重复精度Axis Repeatability | <±0.02mm |
控制方式Programming method | 工业控制卡Industrial Control Card |
编程方式Program recording capacity | 示教盒Teaching box |
程序记录容量Program recording capacity | 1000个程序1000 programs |
马达系统Motor system | 步进级精密马达Stepping precision motors |
传动方式Transfer method | 进口同步带+ HIWIN精密直线导轨Imported synchronous belt + precision linear guide rail |
焊台功率Soldering station power | 大功率150W High power 150W |
温度范围Temperature range | 0-500° |
自动破锡器Automatic tin-breaker | 送锡精准.百分百破锡Send tin precisely. 100% tin break. |
适用锡丝Applicable tin wire | 0.6-1.2MM |
专利型真空吸洗机构Patented vacuum suction mechanism | 锡渣回收方便Tin slag is easily recycled |
锡烟处理Tin smoke treatment | 工业抽烟过滤器Industrial smoke filter |
输入电源Input power | AC220V(内部开关转换Internal switch conversion) |
工作环境温度Working temperature | 5-40℃ |
外形尺寸Dimensions | L680*W510*H820 |
机器重量Machine weight | 60KG |
功能特点Functional characteristics
1、 单Y、双Y 根据加载自动上料和下料机构，实现一只流作业。Single Y/double Y can be automatically loaded.
2、 工业自动破锡机，精准送锡。Industrial automatic tin-breaker, delivery tin accurately.
3、 内设堵锡、卡锡、无锡线检测功能。It is equipped with tin plug, tin stuck and tin line detection function.
4、 专利型真空清洗烙铁头机构,解决传统吹气清洗所造成烙铁头上的残锡无法清洗干净而产生焊接不良或是焊点污秽，对机器清洁或锡渣回收更大提高。The patented vacuum cleaning iron head mechanism solves the problem that the residual tin on the soldering iron head caused by traditional blow cleaning cannot be cleaned, resulting in bad welding or solder joint contamination, and the machine cleaning or tin slag recovery capability is greatly improved.
5、焊锡锡烟直接过滤，解决焊锡工种职业病。Solder tin smoke can be eliminated through or directly filtered to solve occupational diseases in soldering jobs.
6、 最新卡式定位或基子定位设计,拆装容易,而且不会因为更换烙铁头而使位置移动。The latest card positioning or base positioning design, easy assembly and disassembly, and will not be due to change the position of the iron head and move.
7、自动焊锡机具有多组记忆程序,可依照不同的产品可分别作记忆。Automatic soldering machine has multiple sets of memory programs, which can be stored separately according to different products.
Zhipinhui after-sales service
Equipment after-sales policy:
*Equipment warranty period: One Year
*After sales hotline: 4008166687
1. Our company has assembled a team of experienced on-site engineers and senior technicians who can respond promptly to any equipment issues and provide after-sales maintenance.
2. Within one week of the delivery of the new product, our after-sales technical department staff will provide installation and after-sales training for the equipment at the customer's location based on the contact information and address provided by the customer.
3. All complaints related to product quality will be responded to within 1 hour. Within 3-5 hours within the province and 24-48 hours outside the province, the customer will arrive at the scene and determine the handling measures based on the complaint situation, and carry out after-sales maintenance.
4. To better address customers' difficulties and concerns, our company promises that all maintenance personnel will be on call.
5. Any costs related to product quality during the shelf life will be borne by our company.
6. During the warranty period, we will provide free repairs due to improper use by your side or natural environment. The materials and accessories used for repairs will only be charged at cost price.
