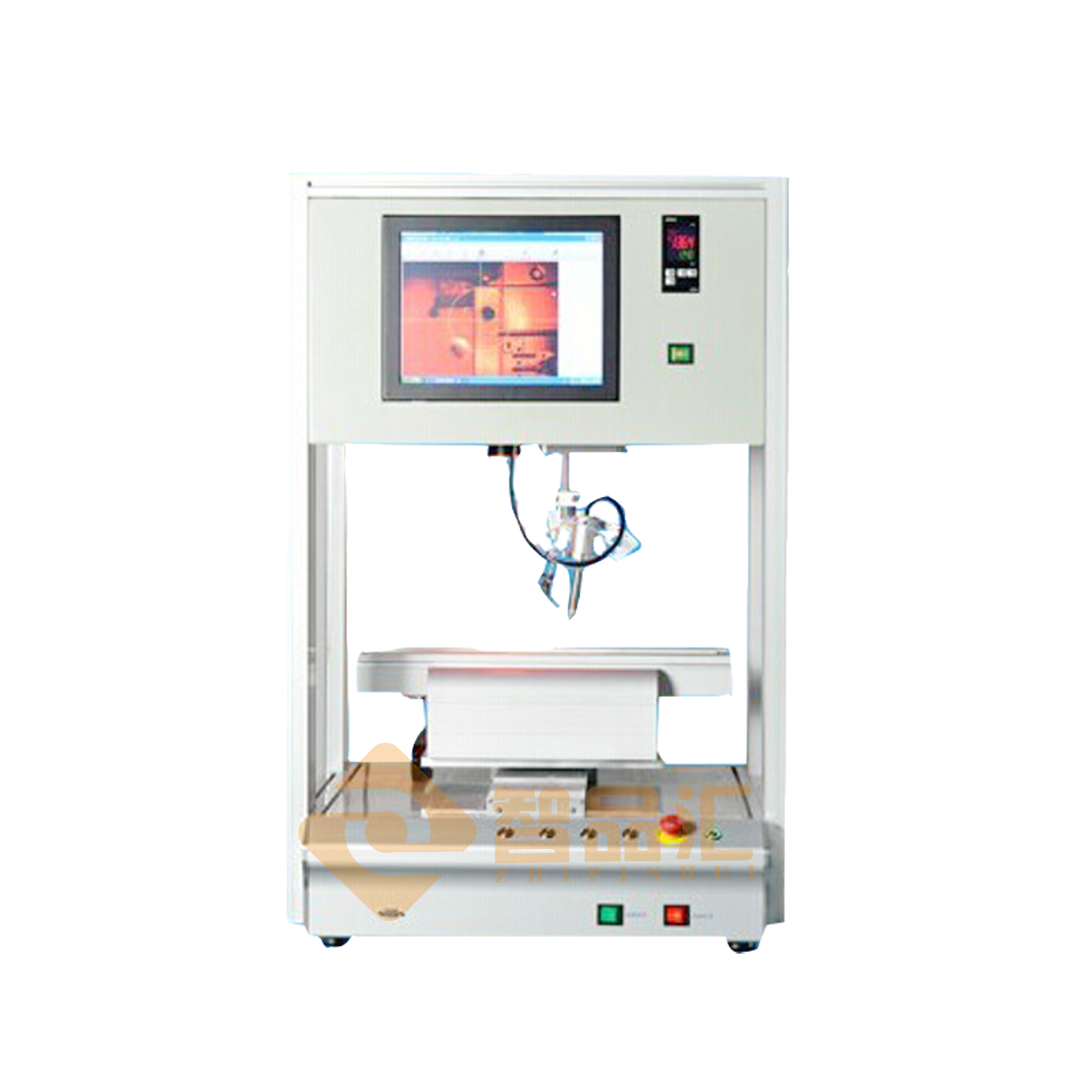

ZH-331R视觉焊接机Visual welding robot ZH-331R(CCD)
视觉焊锡机器人Visual soldering robot | ZH-331R(CCD) 立式精准4轴Vertical precision 4 axis |
加工范围Processing range X/Y/Z/R | 300/300/100/<300°(可定制Customizable) |
Y轴平台最大负载Y-axis platform maximum load | 20KG |
X/Y/Z轴移动速度X/Y/Z axis movement speed (mm/sec) | 0-1000 |
XYZ轴重复精度XYZ Axis Repeatability | <±0.02mm |
编程方式Programming method | 示教盒/触摸屏Teaching box/Touch screen |
控制方式Control mode | PLC/工业控制卡/工业电脑PLC/Industrial Control Card/ Industrial computer |
马达系统Motor system | 步进级精密马达Stepping precision motors |
传动方式Transfer method | 同步带/丝杆+ HIWIN精密直线导轨Synchronous belt + HIWIN precision linear guide rail |
焊台功率Soldering station power | 150W |
温度范围Temperature range | 0-500° |
锡丝范围Tin wire range | 0.6-1.2MM |
锡烟处理Tin smoke treatment | 60W抽系统/工业抽烟过滤器（选配）60W Extraction System/ Industrial smoke filter (optional) |
摄像机Camera | 高速彩色摄像机（根据产品配）High-speed color camera (according to product configuration) |
图像处理速度Image processing speed | 每画面<120毫秒Every screen <120 milliseconds |
输入电源Input power | AC220V(内部开关转换Internal switch conversion) |
产品尺寸Dimensions | 700*600*800 |
功能特点Functional characteristics
1、 内设堵锡、卡锡、无锡线检测功能。It is equipped with tin plug, tin stuck and tin line detection function.
2、 扫描 PCB 板电脑上形成同比例 2D 图片和坐标。Scan the PCB board computer to form the same proportion 2D picture and coordinates.
3、 编程时直接点击焊盘图像，焊枪自动跑到焊盘上方。Click on the pad image directly during programming, and the torch will automatically run over the pad.
4、 焊接前CCD扫描焊点坐标，通过实时改动坐标判断焊点准确位置。Before welding, the CCD scans the welding spot coordinates, and determines the exact position of the welding spot by changing the coordinates in real time
5、 根据产品需要，焊接完成时可以判断焊接品质，可以对检测虚焊、假焊、空焊识别。According to the needs of the product, the quality of the welding can be judged when the welding is completed, and the identification of the rosin joint, tack weld, and empty weld can be detected.
