ZH-L4T 四头自动焊锡精准4轴

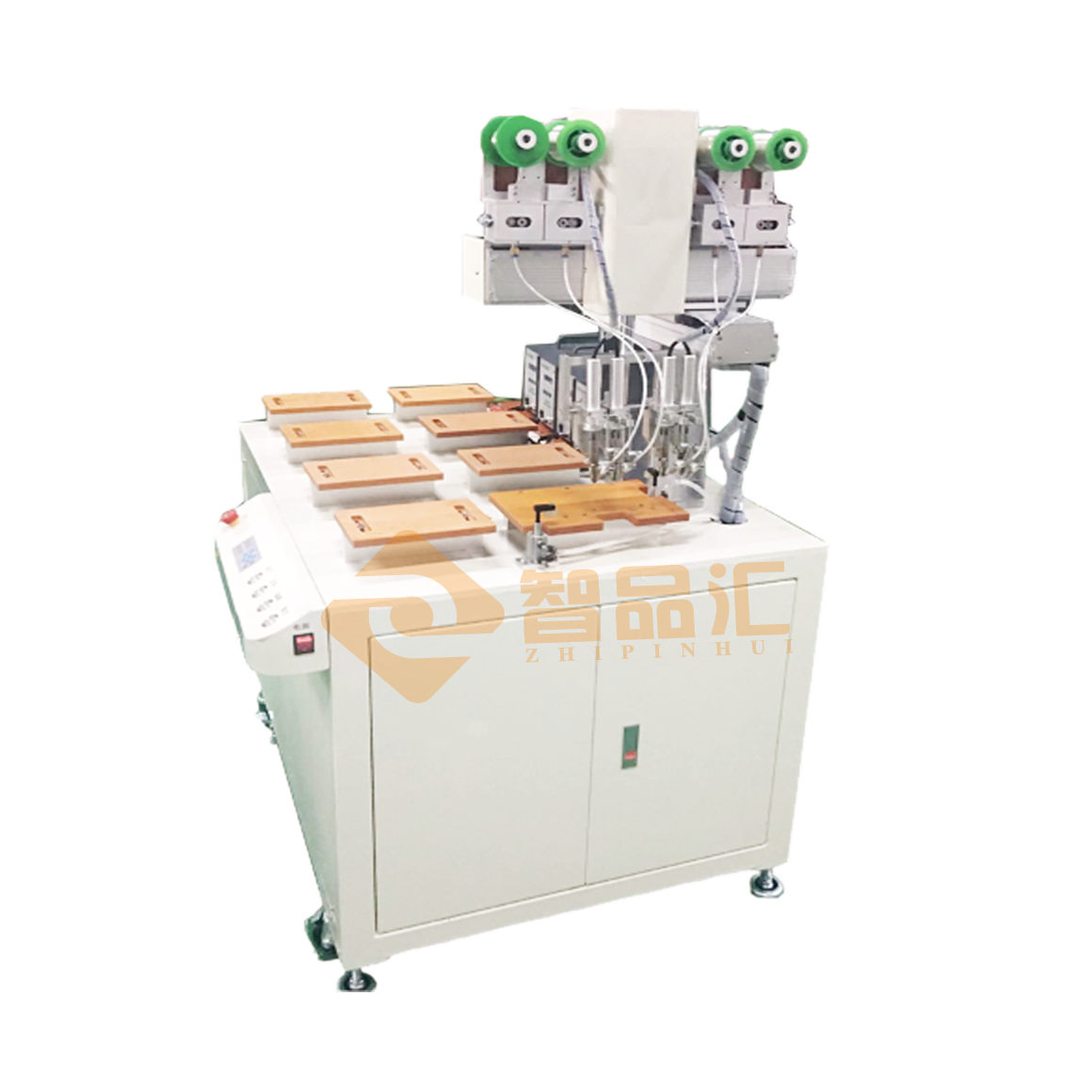

Four head automatic soldering machine ZH-L4T precision 4 axis
四头自动焊锡机Four head automatic soldering machine | ZH-L4T 精准4轴TLD-L4T precision 4 axis |
加工范围Processing range X/Y/Z/R | 300mm/200mm/200mm/100mm/<320°(可定制Customizable) |
Y轴平台最大负载Y-axis platform maximum load | 15KG |
X/Y/Z轴移动速度axis movement speed (mm/sec) | 0-1200 |
XYZ轴重复精度XYZ Axis Repeatability | <±0.02mm |
控制方式Control Mode | 工业控制卡Industrial Control Card |
编程方式Programming method | 持编程器Handheld programmer |
程序记录容量Program recording capacity | 999组程序999 programs |
马达系统Motor system | 步进级精密马达Stepping precision motors |
传动方式Transfer method | 高精度同步带或精密级丝杆+直线导轨。High precision synchronous belt or precision grade wire rod + linear guide rail |
焊台功率Pad power | 大功率320W焊台High power 320W welds |
温度范围temperature range | 0-500° |
自动破锡器Automatic tin breaker | 送锡精准.百分百破锡Accurate delivery of tin |
适用锡丝Application of tin wire | 0.6-1.2MM |
专利型真空吸洗机构Patented vacuum washing mechanism | 锡渣回收方便The tin slag is easy to recycle |
锡烟处理Tin tobacco treatment | 抽烟系统/工业抽烟过滤器(选配) Smoking system / industrial smoking filter (selected) |
输入电源Input power supply | AC220V(内部开关转换Internal switch conversion) |
工作环境温度Working environment temperature | 5-40℃ |
外形尺寸Dimensions | L1000*W800*H1500 |
机器重量Machine weight | 200KG |
功能特点Functions and characteristics
1、 四头同时焊接，工作效率是普通四倍。The four heads are welded at the same time, and the working efficiency is four times.
2、 工业自动破锡机，精准送锡。Industrial automatic tin breaking machine, accurate delivery of tin.
3、 内设堵锡、卡锡、无锡线检测功能。Inside, Sn plugging, tin, Wuxi line detection function.
4、 专利型真空清洗烙铁头机构,解决传统吹气清洗所造成烙铁头上的残锡无法清洗干净而产生焊接不良或是焊点污秽，对机器清洁或锡渣回收更大提高。Patented vacuum cleaning soldering iron head mechanism.
5、 焊锡锡烟可以根据通过管道排放或直接过滤，解决焊锡工种职业病。Tin tin smoke can be used to prevent occupational diseases by discharging or directly filtering through pipes.
6、根据产品定制高强度烙铁头多层镀层耐高温氧化。According to the product custom made high strength iron head multilayer coating high temperature oxidation.
7、可针对客户的需求设计各种不同的烙铁头。Different kinds of iron heads can be designed for customers' needs.
8、可搭配自动化输送带,做全自动化作业,联机容易。Can be equipped with automatic conveyor belt, fully automated operation, online easy.
Zhipinhui after-sales service
Equipment after-sales policy:
*Equipment warranty period: One Year
*After sales hotline: 4008166687
1. Our company has assembled a team of experienced on-site engineers and senior technicians who can respond promptly to any equipment issues and provide after-sales maintenance.
2. Within one week of the delivery of the new product, our after-sales technical department staff will provide installation and after-sales training for the equipment at the customer's location based on the contact information and address provided by the customer.
3. All complaints related to product quality will be responded to within 1 hour. Within 3-5 hours within the province and 24-48 hours outside the province, the customer will arrive at the scene and determine the handling measures based on the complaint situation, and carry out after-sales maintenance.
4. To better address customers' difficulties and concerns, our company promises that all maintenance personnel will be on call.
5. Any costs related to product quality during the shelf life will be borne by our company.
6. During the warranty period, we will provide free repairs due to improper use by your side or natural environment. The materials and accessories used for repairs will only be charged at cost price.
