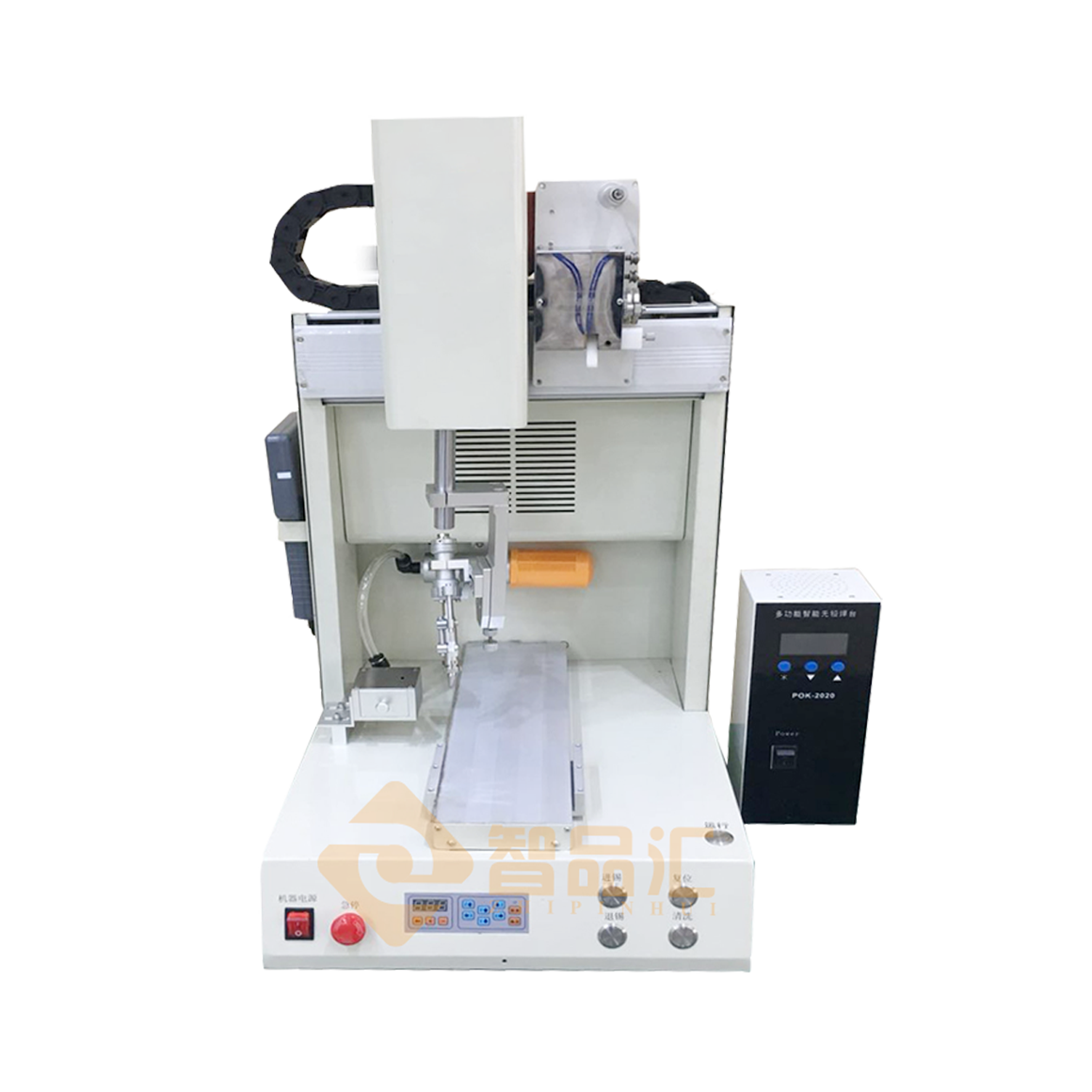

ZH-331R台式焊锡机Desktop Soldering Robot

焊锡机器人Soldering Robot	ZH-331R 精准4轴Precision 4-axis
加工范围Processing range X/Y/ /Z/R	300mm/300mm/100mm/<300°(可定制Customizable)
Y轴平台最大负载Y-axis platform maximum load	15KG
X/Y/Z轴移动速度XY/Z axis movement speed (mm/sec)	0-1200
XYZ轴重复精度XYZ Axis Repeatability	<±0.02mm
控制方式Control mode	工业控制卡Industrial Control Card
编程方式Programming method	示教盒Teaching box
程序记录容量Program recording capacity	1000组程序1000 programs
马达系统Motor system	步进级精密马达Stepping precision motors
传动方式Transfer method	进口同步带+ HIWIN精密直线导轨synchronous belt + HIWIN precision linear guide rail
焊台功率Soldering station power	发热芯，大功率150W High power 150W
温度范围Temperature range	0-500°
自动破锡器Automatic tin-breaker	送锡精准.百分百破锡Send tin precisely. 100% tin break.
适用锡丝Applicable tin wire	0.6-1.2MM
专利型真空吸洗机构Patented vacuum suction mechanism	锡渣回收方便Tin slag is easily recycled
锡烟处理Tin smoke treatment	抽烟系统Extraction System
输入电源Input power	AC220V(内部开关转换Internal switch conversion)
工作环境温度Working temperature	5-40℃
外形尺寸Dimensions	L680W510H820
机器重量Machine weight	60KG

功能特点Functional characteristics

1、单Y/双Y可以根据加载自动上料和下料机构，实现一只流作业。Single Y/double Y can be automatically loaded and unloaded according to the loading mechanism to realize one stream operation.

2、工业自动破锡机，精准送锡。Industrial automatic tin-breaker, delivery tin accurately.

内设堵锡、卡锡、无锡线检测功能。It is equipped with tin plug, tin stuck and tin line detection function.

3、

4、专利型真空清洗烙铁头机构。Patented vacuum cleaning iron head mechanism .

5焊锡锡烟可以根据通过管道排放或直接过滤，解决焊锡工种职业病。Solder tin smoke can be eliminated through the pipeline or directly filtered to solve occupational diseases in soldering jobs.
6、最新卡式定位或基子定位设计,拆装容易,而且不会因为更换烙铁头而使位置移动。The latest card positioning or base positioning design, easy assembly and disassembly, and will not be due to change the position of the iron head and move.
