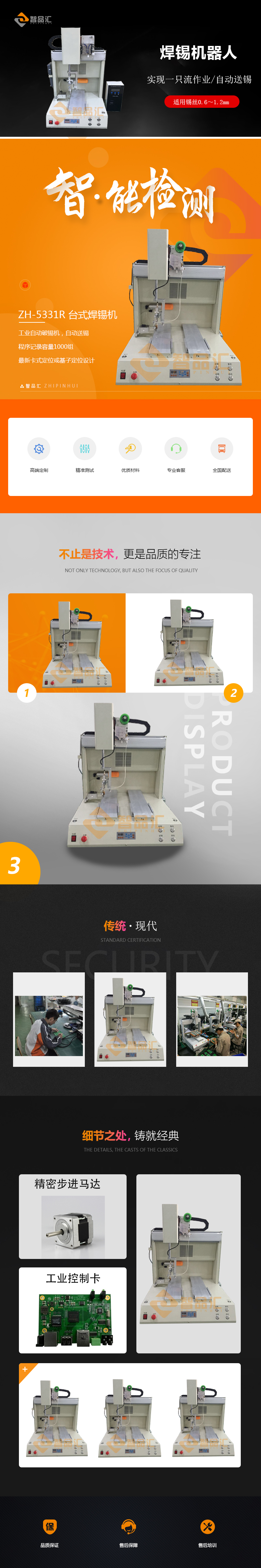

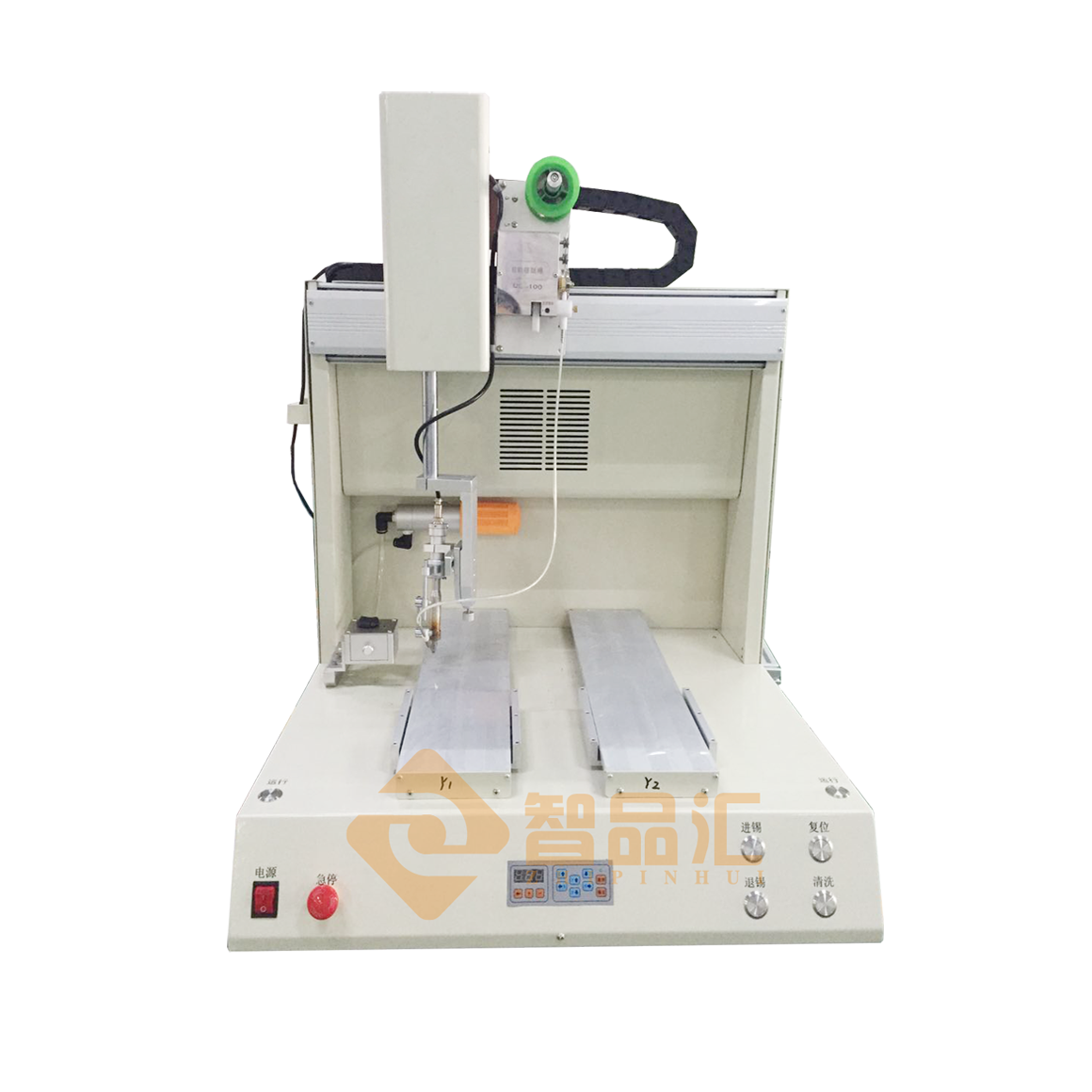

ZH-5331R台式焊锡机Desktop Soldering Robot
焊锡机器人Soldering Robot | ZH-5331R 精准5轴Accurate 5-axis |
加工范围Processing range X/Y1/Y2/Z/R | 500mm/300mm/300mm/100mm/<320°(可定制Customizable) |
Y轴平台最大负载Y-axis platform maximum load | 15KG |
X/Y/Z轴移动速度XY/Z axis movement speed (mm/sec) | 0-1200 |
XYZ轴重复精度XYZ Axis Repeatability | <±0.02mm |
控制方式Control mode | 工业控制卡Industrial Control Card |
编程方式Programming method | 示教盒Teaching box |
程序记录容量Program recording capacity | 1000组程序1000 programs |
马达系统Motor system | 步进级精密马达Stepping precision motors |
传动方式Transfer method | 同步带+精密直线导轨Imported synchronous belt + precision linear guide rail |
焊台功率Soldering station power | 大功率150W High power 150W |
温度范围Temperature range | 0-500° |
自动破锡器Automatic tin-breaker | 送锡精准.百分百破锡. Send tin precisely. 100% tin break. |
适用锡丝Applicable tin wire | 0.6-1.2MM |
专利型真空吸洗机构Patented vacuum suction mechanism | 锡渣回收方便Tin slag is easily recycled |
锡烟处理Tin smoke treatment | 抽烟系统Extraction System |
输入电源Input power | AC220V(内部开关转换Internal switch conversion) |
外形尺寸Dimensions | L680*W760*H820 |
机器重量Machine weight | 70KG |
功能特点Functional characteristics
1、 双Y 连续工作，减少上下料等待时间。Double Y continuous work, reduce the waiting time for loading.
2、 工业自动破锡机，精准送锡。Industrial automatic tin-breaker, delivery tin accurately.
3、 内设堵锡、卡锡、无锡线检测功能。It is equipped with tin plug, tin stuck and tin line detection function.
4、 专利型真空清洗烙铁头机构。The patented vacuum cleaning iron head mechanism .
5、焊锡锡烟可以根据通过管道排放或直接过滤，解决焊锡工种职业病。Solder tin smoke can be eliminated through the pipeline or directly filtered to solve occupational diseases in soldering jobs.
6、 最新卡式定位或基子定位设计,拆装容易,而且不会因为更换烙铁头而使位置移动。The latest card positioning or base positioning design, easy assembly and disassembly, and will not be due to change the position of the iron head and move.
7、自动焊锡机具有多组记忆程序,可依照不同的产品可分别作记忆。Automatic soldering machine has multiple sets of memory programs, which can be stored separately according to different products.
