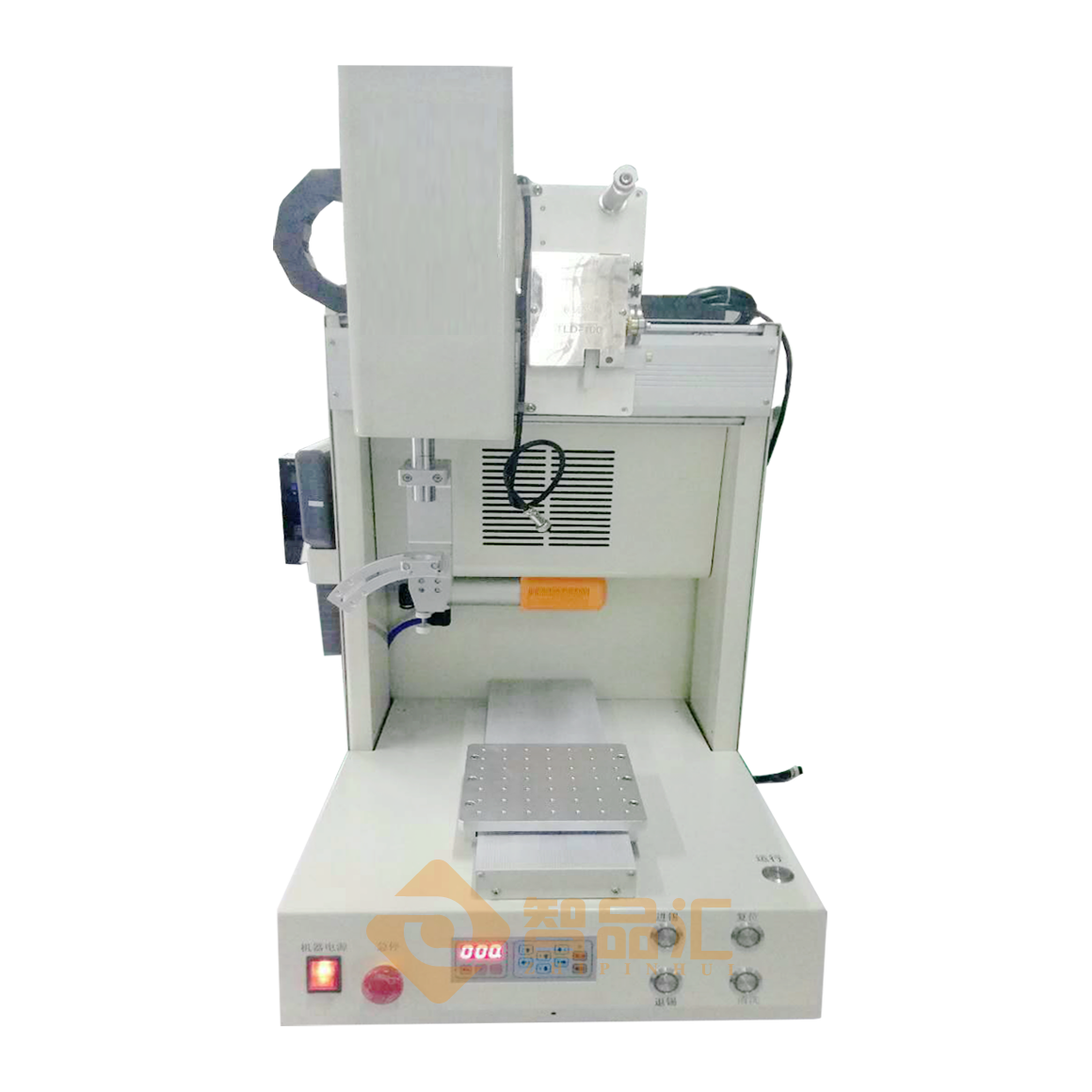

ZH-211R台式焊锡机Desktop Soldering Robot

焊锡机器人Soldering Robot	ZH-221R 精准4轴Accurate 4-axis
加工范围Processing range X/Y/ /Z/R	200/200/100/<300°(可定制Customizable)
Y轴平台最大负载Y-axis platform maximum load	15KG
X/Y/Z轴移动速度X/Y/Zaxis movement speed (mm/sec)	0-1000
XYZ轴重复精度XYZ Axis Repeatability	<±0.02mm
编程方式Programming method	示教盒/触摸屏Teaching box/Touch screen
控制方式Control mode	工业控制卡Industrial Control Card
马达系统Motor system	步进级精密马达Stepping precision motors
传动方式Transfer method	同步带+ HIWIN精密直线导轨Synchronous belt + HIWIN precision linear guide rail
焊台功率Soldering station power	150W
温度范围Temperature range	0-500°
锡丝范围Applicable tin wire	0.6-1.2MM
锡烟处理Tin smoke treatment	60W抽系统Extraction System
输入电源Input power	AC220V(内部开关转换Internal switch conversion)
工作环境温度Working temperature	5-40℃
产品尺寸Dimensions	450400750

功能特点Functional characteristics

1、单Y/双Y可以根据加载自动上料和下料机构，实现一只流作业。Single Y/double Y can be automatically loaded and unloaded according to the loading mechanism to realize one stream operation.

工业自动破锡机，精准送锡。Industrial automatic tin-breaker, delivery tin accurately.

2、内设堵锡、卡锡、无锡线检测功能。It is equipped with tin plug, tin stuck and tin line detection function.

3、专利型真空清洗烙铁头机构,解决传统吹气清洗所造成烙铁头上的残锡无法清洗干净而产生焊接不良或是焊点污秽，机器清洁或锡渣回收能力大大提高。The patented vacuum cleaning iron head mechanism solves the problem that the residual tin on the soldering iron head caused by traditional blow cleaning cannot be cleaned, resulting in bad welding or solder joint contamination, and the machine cleaning or tin slag recovery capability is greatly improved

4、焊锡锡烟可以根据通过管道排放或直接过滤，解决焊锡工种职业病。Solder tin smoke can be eliminated through the pipeline or directly filtered to solve occupational diseases in soldering jobs.

6、简单易学，一般人3小时内可以教会。Easy to learn, most people can learn within 3 hours.
