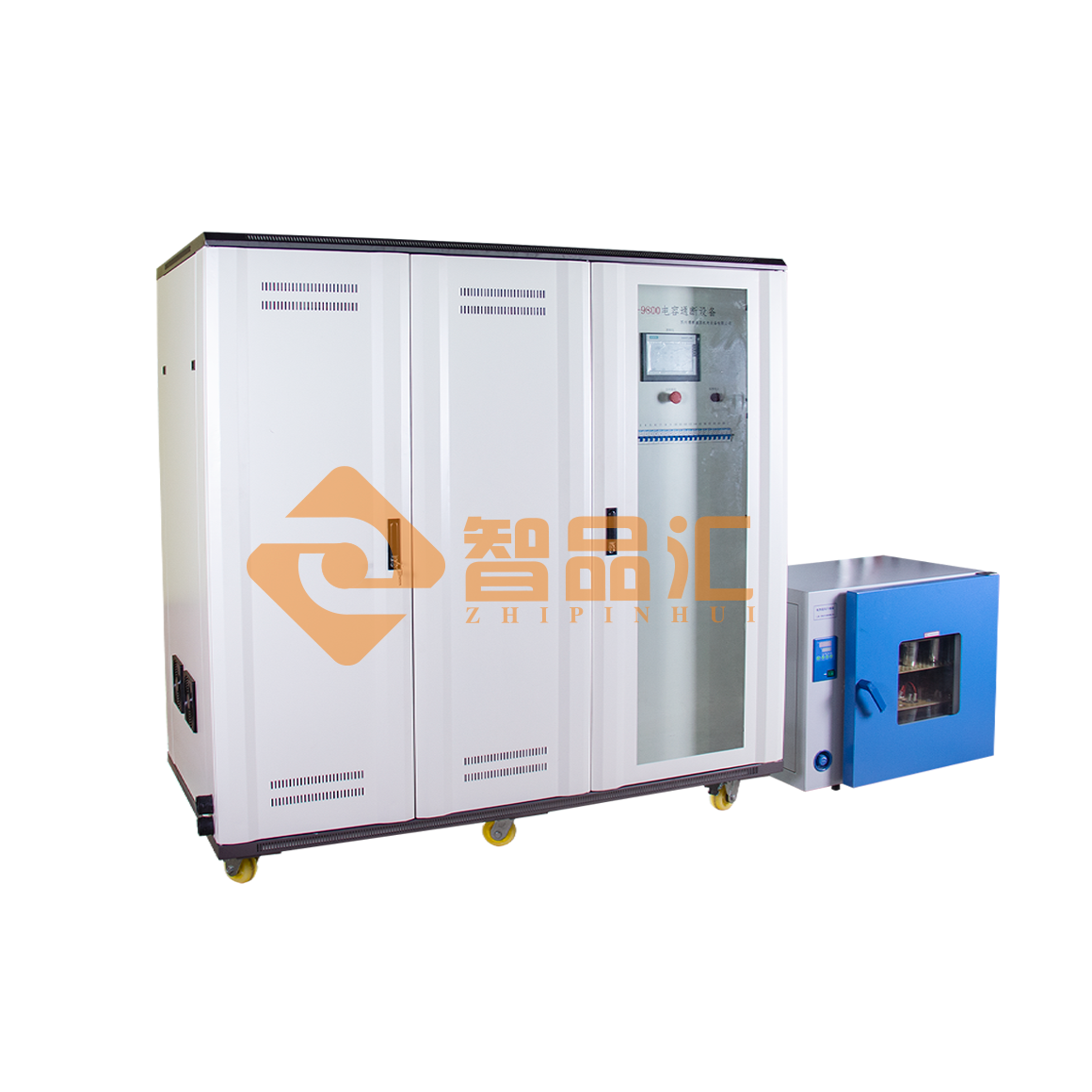

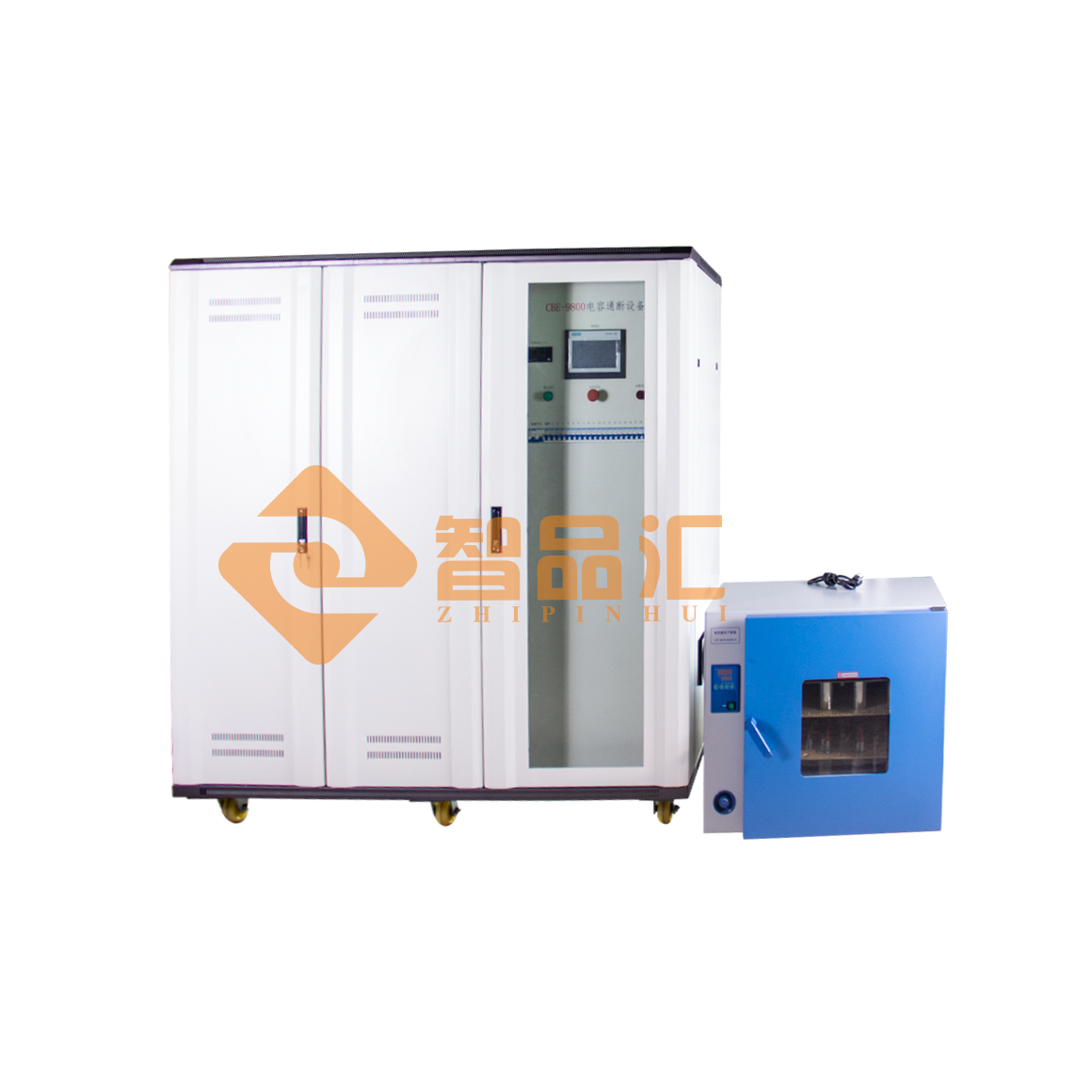

RXCBE9800 AC capacitor durability test bench

Equipment Overview	This device is designed and manufactured in accordance with the requirements of GB/T3667·1-2016, and is suitable for capacitor manufacturers, household appliance factories and quality inspection departments to conduct quality inspection of capacitors. The device uses parallel reactors for precise compensation, making it very low in terms of grid capacity requirements. It uses PLC+touch screen control, and can digitally set the test voltage, operating time, test capacity, etc.; and digitally display the test voltage and each capacitor test current. The system is equipped with electric motors, which can automatically increase or decrease the voltage, and at the same time complete the automatic voltage regulation of the output voltage, eliminating the need for a voltage regulator. It has the characteristics of simple operation, intuitive display, and convenient adjustment.
Capacitance range	Single capacitor 1～50μF Un ≤ 500V
Workstation	18 workstations, each equipped with an overload short-circuit protection switch
Test voltage	AC 0～700V Continuously adjustable, digital display accuracy ± (2% reading + 2 characters) Voltage control accuracy: 1~10% adjustable, voltage setting resolution is 1V, digital setting voltage value
Continuous mode test time	0～9999.9H Power failure retention, automatic discharge of capacitors after test completion Time control accuracy index: ± (0·1% + 1min;)
Continuity test mode	On-off time: 1~99s, adjustable; Number of tests: 1~999999 times, adjustable Charging resistance is automatically set according to the standard
Control Display	Adopt Siemens PLC + touch screen to set parameters, control, and real-time display of test voltage, current, time, number of times and other parameters
Automatic compensation function	Real-time monitoring of line current. When the capacitance of the capacitor changes too much during the test (based on the line current), the instrument will automatically reduce the voltage, re-compensate the reactance, and then increase the voltage to continue the test.
High temperature test fixture	Equipped with 18-station capacitance test fixture (insert type, wire clamp type, temperature resistance 105℃) A set of high-temperature test wires is provided when leaving the factory
High temperature test chamber	Equipped with a stainless steel inner tank with a 70-degree high temperature test chamber, the temperature control range is +15 to 200°C, and the uniformity is no more than ±2 degrees Temperature fluctuation is ±1°C
Power supply	Single phase AC 220V 50Hz 4KVA
Device size	1800mm wide * 950mm deep * 1700mm high, weighing about 1400k The equipment shell is sprayed with plastic and has been pre-treated to have anti-corrosion properties. There are sturdy and durable universal wheels at the bottom to facilitate the movement of the equipment.

RXCBE9800 AC capacitor durability test bench

Equipment Overview	This device is designed and manufactured in accordance with the requirements of GB/T3667·1-2016, and is suitable for capacitor manufacturers, household appliance factories and quality inspection departments to conduct quality inspection of capacitors. The device uses parallel reactors for precise compensation, making it very low in terms of grid capacity requirements. It uses PLC+touch screen control, and can digitally set the test voltage, operating time, test capacity, etc.; and digitally display the test voltage and each capacitor test current. The system is equipped with electric motors, which can automatically increase or decrease the voltage, and at the same time complete the automatic voltage regulation of the output voltage, eliminating the need for a voltage regulator. It has the characteristics of simple operation, intuitive display, and convenient adjustment.
Capacitance range	Single capacitor 1～50μF Un ≤ 500V
Workstation	18 workstations, each equipped with an overload short-circuit protection switch
Test voltage	AC 0～700V Continuously adjustable, digital display accuracy ± (2% reading + 2 characters) Voltage control accuracy: 1~10% adjustable, voltage setting resolution is 1V, digital setting voltage value
Continuous mode test time	0～9999.9H Power failure retention, automatic discharge of capacitors after test completion Time control accuracy index: ± (0·1% + 1min;)
Continuity test mode	On-off time: 1~99s, adjustable; Number of tests: 1~999999 times, adjustable Charging resistance is automatically set according to the standard
Control Display	Adopt Siemens PLC + touch screen to set parameters, control, and real-time display of test voltage, current, time, number of times and other parameters
Automatic compensation function	Real-time monitoring of line current. When the capacitance of the capacitor changes too much during the test (based on the line current), the instrument will automatically reduce the voltage, re-compensate the reactance, and then increase the voltage to continue the test.
High temperature test fixture	Equipped with 18-station capacitance test fixture (insert type, wire clamp type, temperature resistance 105℃) A set of high-temperature test wires is provided when leaving the factory
High temperature test chamber	Equipped with a stainless steel inner tank with a 70-degree high temperature test chamber, the temperature control range is +15 to 200°C, and the uniformity is no more than ±2 degrees Temperature fluctuation is ±1°C
Power supply	Single phase AC 220V 50Hz 4KVA
Device size	1800mm wide * 950mm deep * 1700mm high, weighing about 1400k The equipment shell is sprayed with plastic and has been pre-treated to have anti-corrosion properties. There are sturdy and durable universal wheels at the bottom to facilitate the movement of the equipment.
