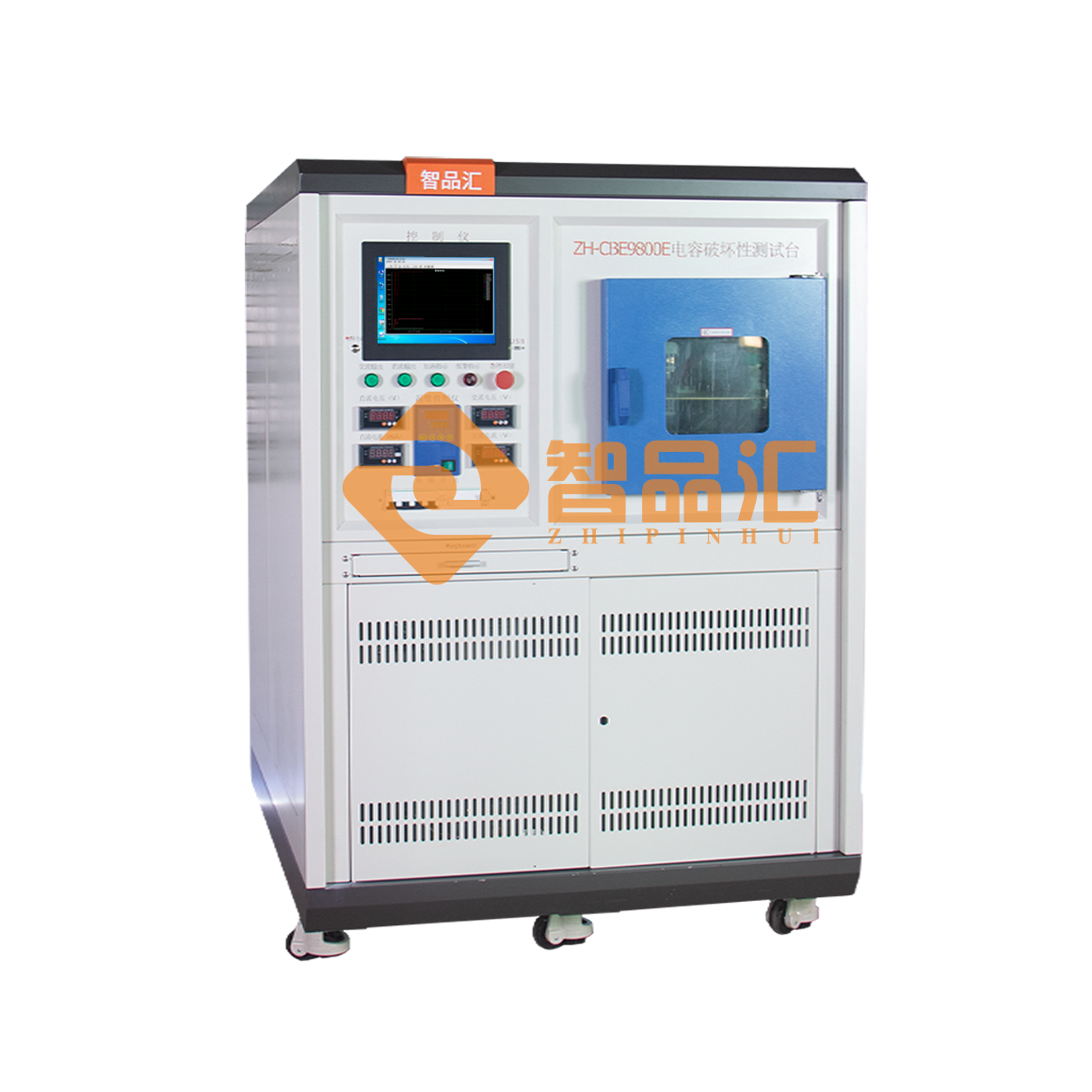

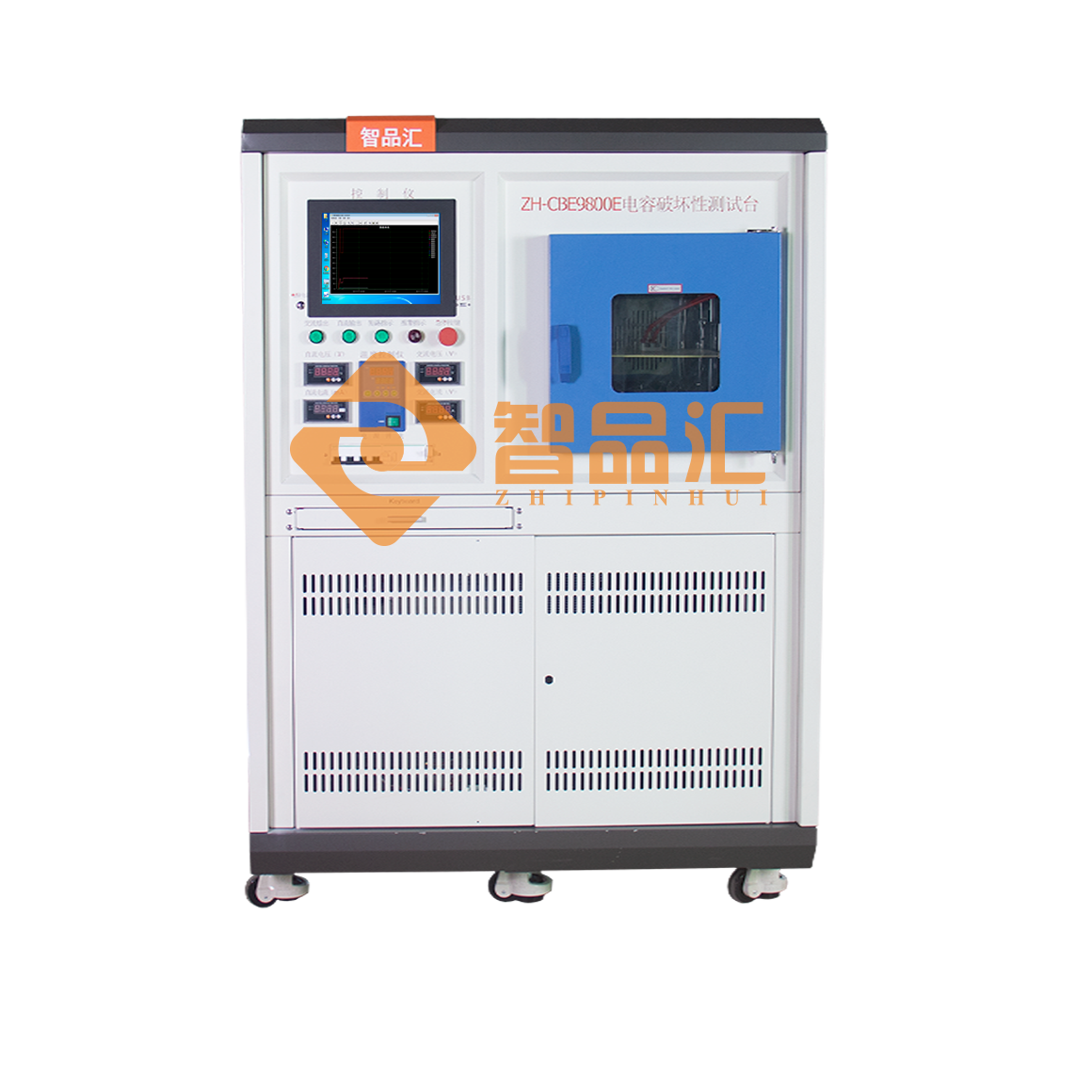

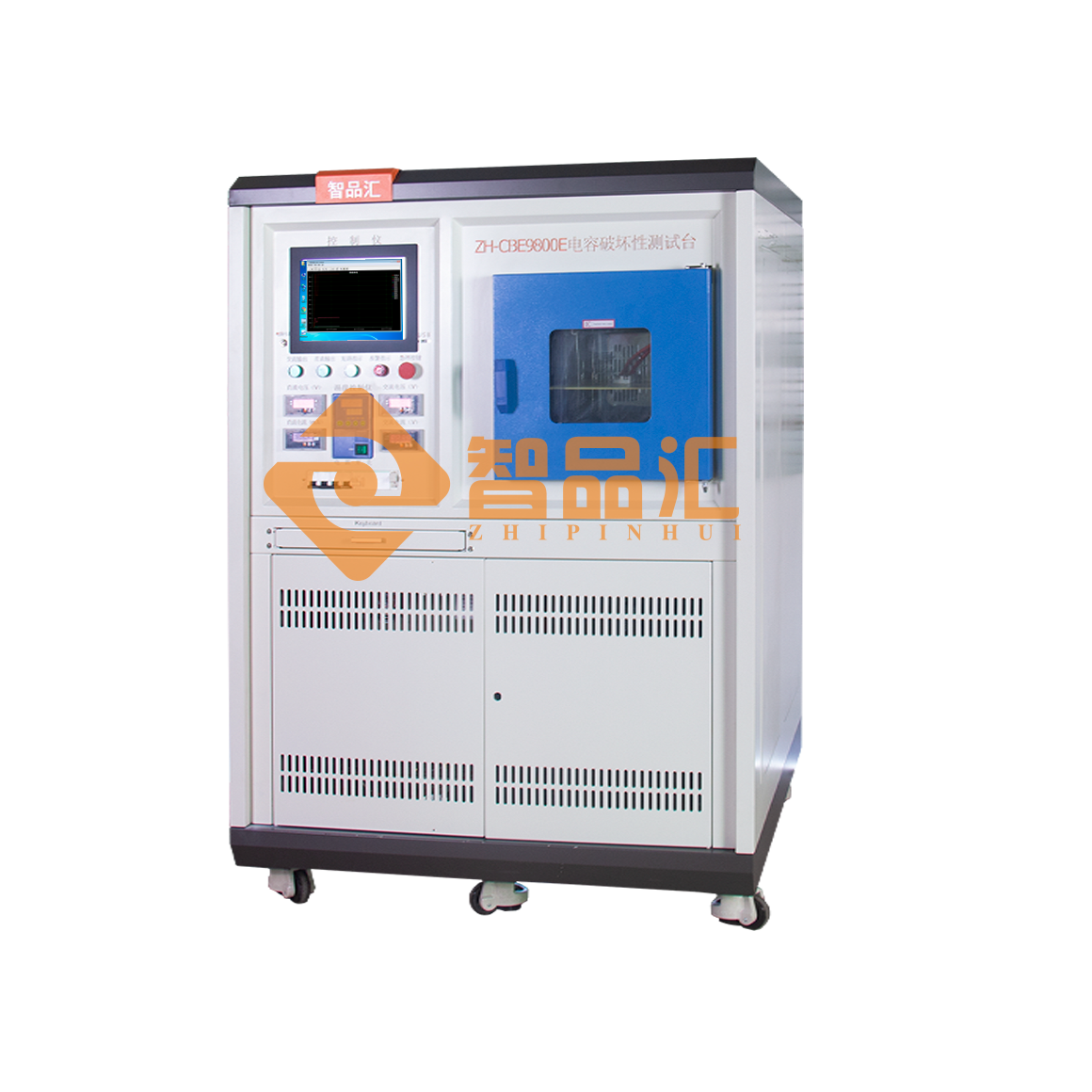

ZH-CBE6800E Capacitor Destructive Test Stand (Upaagraded Version)

1. Overview

This series of devices conducts destructive test items on AC motor running capacitors and AC motor self-healing starting capacitors with a rated voltage of 500V and below according to the latest standards such as GB 3667.1-2016, GB 18489, VDE0560-8, and IEC60252. It contains two parts: DC test instrument and AC instrument. The DC power supply should be able to provide an open circuit voltage equivalent to 10UN and have the ability to provide a continuous short-circuit current greater than 50mA; the AC power supply should be able to provide a test voltage equivalent to 1.3UN, and the instantaneous short-circuit current should be at least 300A. The equipment has DC voltage and current, AC voltage and current display; the equipment also has load short circuit, overload and other protection measures; it has the characteristics of simple operation, intuitive display, and convenient adjustment.

Provide P1, P2 or S1/S2, S3 safety standard compatibility test.

The whole machine adopts PLC+touch screen control, automatically controls the voltage increase and decrease, and automatically completes the test.

2. Main technical parameters:

1. Test range: Capacity 1~100uF

2. Equipment load: 1 self-healing capacitor;

3. Test voltage:

AC: 0~700V ±1%FS

DC: 0~2.5~4~5KV ±1%FS

With the ability to provide more than 50mA continuous short-circuit current;

Boost speed: 100~1000V/minute Accuracy is about ±20%

4. Current display:

AC current: 1~25A　 　 ±(0.75% reading + 0.75% reading range)

DC current: 1~100mA 　±(0.75% reading + 0.75% reading range)

5. Timing test time:

DC experiment 5 minutes timing: 0~99 minutes adjustable　　 ±0.2%

The equipment comes with AC preheating operation 2 hours timing: ±0.2%

AC open circuit or 5-minute operation timing: 0~9H59Min adjustable ±0.2%

AC short circuit 8-hour timing: 0~9H59Min adjustable ±0.2%

6. The equipment has electric voltage regulation and automatic timing functions; the equipment has its own product power-on preheating function; there are overcurrent, overvoltage and other protection measures; there is leakage protection, and the test box is safe and explosion-proof to ensure safe and reliable operation of the test.
7. The equipment adopts PLC+touch integrated computer control, and automatically completes the test according to the set parameters, which is convenient and simple
