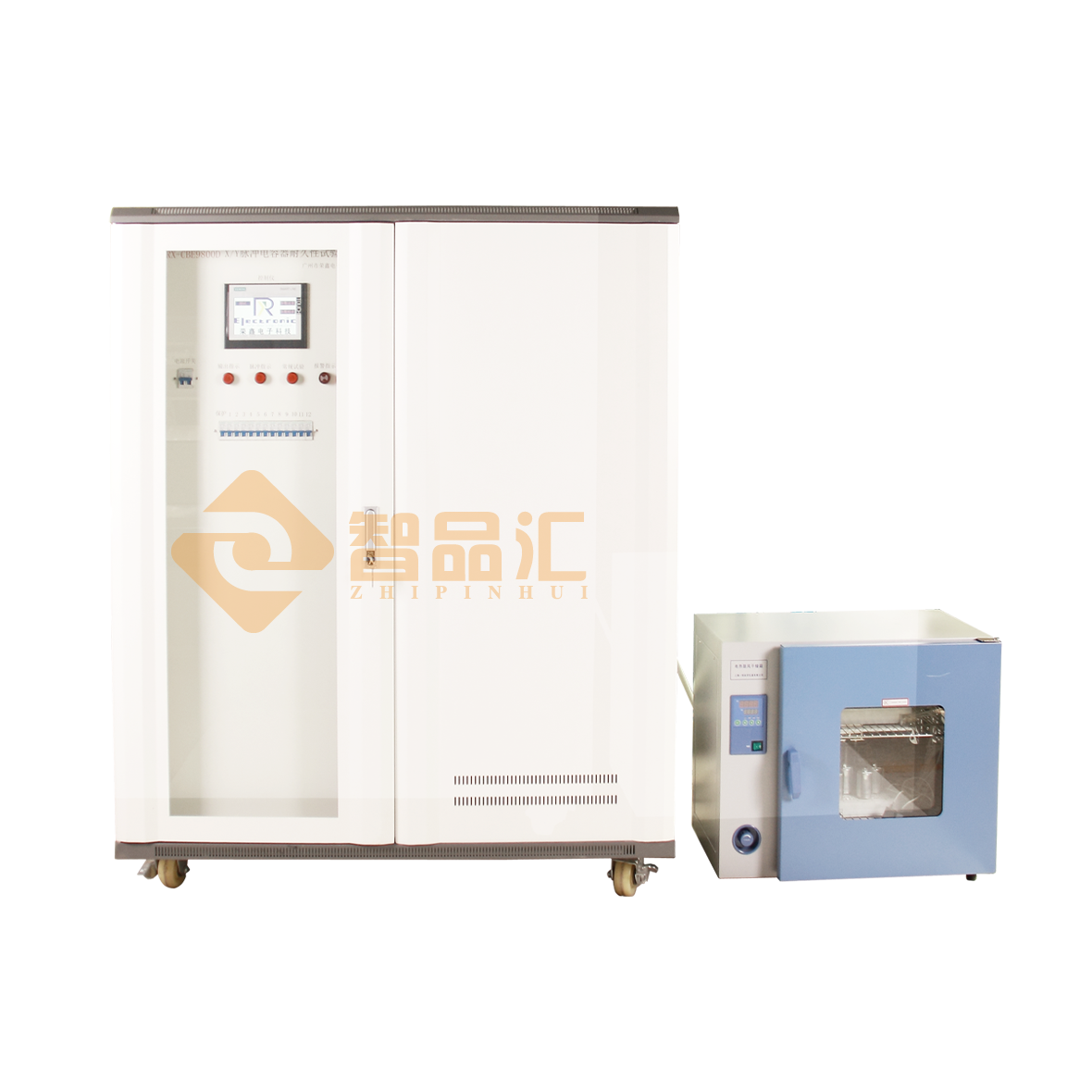

RX-CBE9800DX/Y Pulse Capacitor Durability Test Device

This device is designed and manufactured in accordance with GB/T 14472-1998 4.14 (Appendix B) X/Y capacitor durability test requirements, and is suitable for capacitor manufacturers, household appliance factories and quality inspection departments to conduct capacitor quality inspections. The device uses parallel reactors for precise compensation, which makes it have very low requirements for grid capacity and low electricity costs for running tests, saving test costs. It uses microcomputer control to digitally set test voltage, running time, test capacity, etc.; and digitally display test voltage and each capacitor test current. The system is equipped with an electric voltage regulator, which can automatically increase or decrease voltage, and at the same time complete the automatic voltage regulation of the output voltage, eliminating the need for a voltage regulator. It has the characteristics of simple operation, intuitive display, and convenient adjustment.

1. Test range: capacitors with a total capacity of up to 120μF and a rated voltage less than 500V

2. Test voltage: 50~650V, digital display voltage accuracy ±1%

3. 1000V pulse voltage: 50~1000V manual adjustment, digital display accuracy ±1%,

Conversion cycle once an hour, conversion time <30 seconds, duration 0.1 seconds

4. Test time: 0.1~9999.9 hours power failure retention ±0.2%

Capacitors automatically discharge after test completion

5. Equipment load: 12 channels, each with a maximum capacity of 10uF, each equipped with a 47Ω resistor and overload circuit breaker
