400-816-6687ZH8865 Wind Pressure Switch Automatic Debugging Platform
1. Product Introduction:
The
automatic debugging table of air pressure switch uses equipment to
automatically debug the air pressure switch. The test table adopts PLC
master control, touch display operation, and the rotation adjustment
device adopts stepper motor; the main accessories adopt imported and
domestic well-known brands, the work is stable and reliable, and the
operation is simple and convenient.
2. Technical parameters:
2.1. Test stations: 2~4
2.2. Debugging process:
a) Load the product and start the test
b) Automatic power-on signal
c) Automatic air intake at the air inlet
d) Automatic debugging
e) The system controls the adjustment speed according to the switch information returned by the micro switch
f) After debugging, the system performs a test on the product (optional)
g)
If OK, release the fixture to take out the product, and if NG, debug
again (the number of reciprocating debugging can be set, and no
debugging will be performed when the number is reached)
2.3. The test bench has multiple stations, each of which is independently controlled; no interference with each other
2.4. The test data has a power-off memory function
2.5. The debugging speed can be adjusted according to the customer's requirements for the product

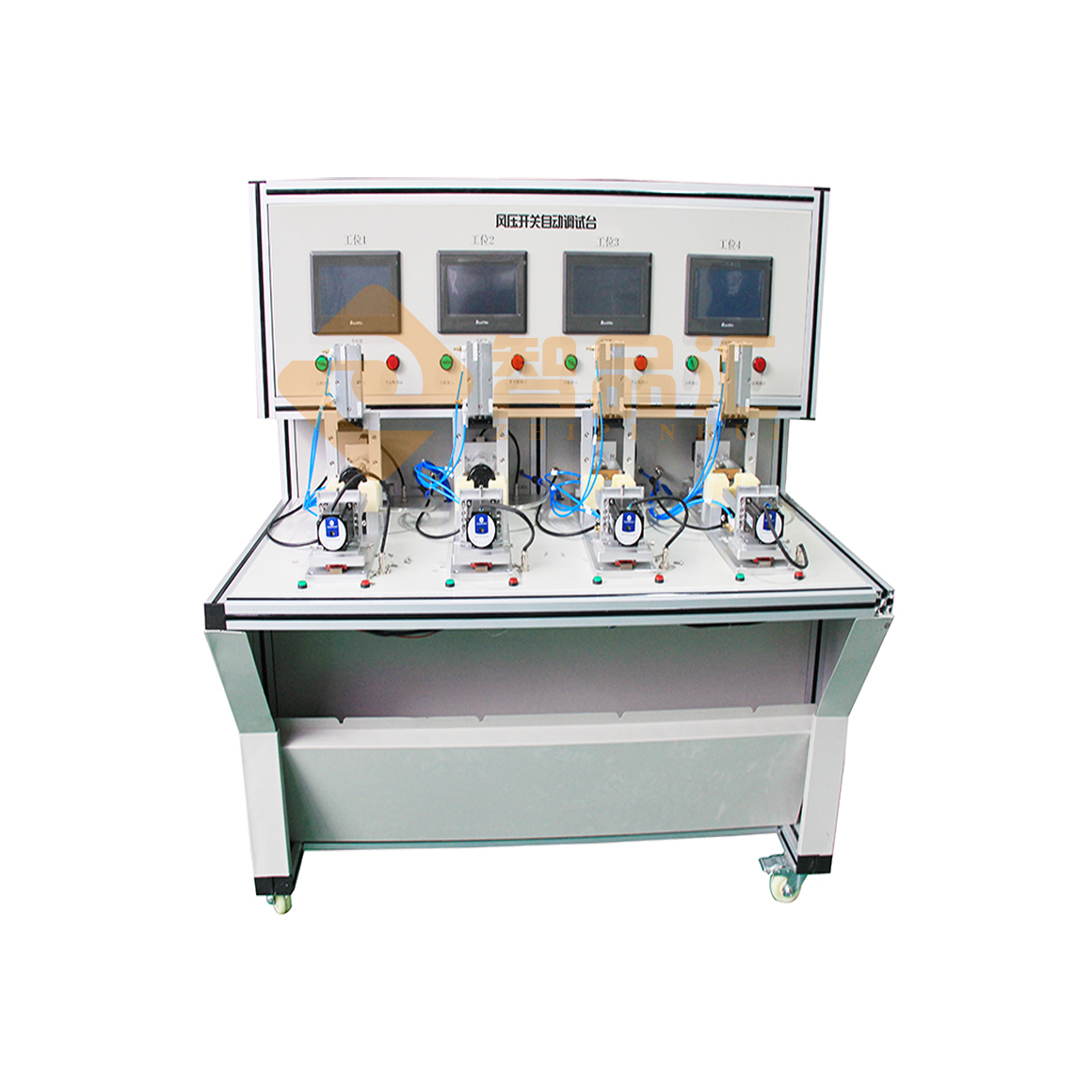

ZH8865 Wind Pressure Switch Automatic Debugging Platform
1. Product Introduction:
The automatic debugging table of air pressure switch uses equipment to automatically debug the air pressure switch. The test table adopts PLC master control, touch display operation, and the rotation adjustment device adopts stepper motor; the main accessories adopt imported and domestic well-known brands, the work is stable and reliable, and the operation is simple and convenient.
2. Technical parameters:
2.1. Test stations: 2~4
2.2. Debugging process:
a) Load the product and start the test
b) Automatic power-on signal
c) Automatic air intake at the air inlet
d) Automatic debugging
e) The system controls the adjustment speed according to the switch information returned by the micro switch
f) After debugging, the system performs a test on the product (optional)
g) If OK, release the fixture to take out the product, and if NG, debug again (the number of reciprocating debugging can be set, and no debugging will be performed when the number is reached)
2.3. The test bench has multiple stations, each of which is independently controlled; no interference with each other
2.4. The test data has a power-off memory function
2.5. The debugging speed can be adjusted according to the customer's requirements for the product
Zhipinhui After-Sales Policy:
*After-Sales Hotline: +864008166687
1. Our company has assembled a team of experienced field engineers and senior technicians to promptly respond
to any equipment issues and provide after-sales maintenance.
2. Within China, within one week of new product delivery, our after-sales technical staff will install the equipment and
provide after-sales training at the customer's location, using the contact information and address provided by the customer.
3. All complaints related to product quality will be responded to within one hour. Within 3-5 hours within the province,
and within 24-48 hours outside the province, we will arrive at the customer's site,
determine the appropriate action based on the complaint, and provide after-sales repairs. (Domestic)
4. For international travel, our company can also arrange for an after-sales engineer to visit you for installation and
commissioning. Please discuss any travel and catering issues in advance.
We also provide video installation guides for you to choose from, providing you with a comprehensive and multi-faceted solution.
5. Any material costs related to product quality during the warranty period will be borne by our company.
6. During the warranty period, we will provide free repairs due to improper use or environmental factors.
The materials and accessories used for repairs will be charged at cost only.
