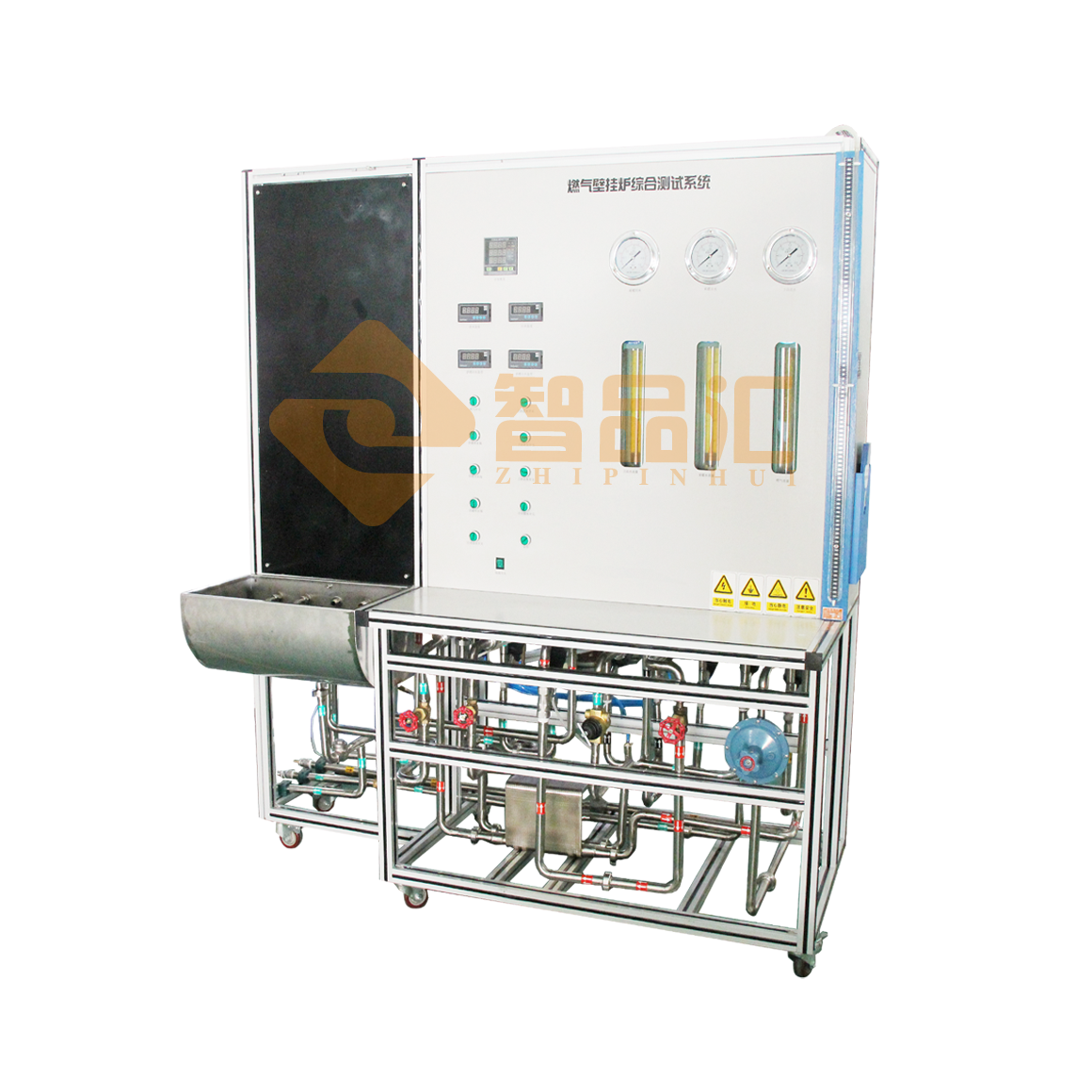

400-816-6687ZH8801 Gas Hanging Fireplace Comprehensive Testing System
Reference:
NE483-1999; EN625-1996; GB25034-2010; CJ/T228-2006 technical
requirements, developed and designed with imported and domestic
high-quality sensors, flow transmitters and other high-tech accessories,
mainly used for comprehensive performance testing of gas heating water
boiler systems.
Technical parameters:
1. Gas flow: 1 ~ 80 L/min Accuracy: 0.5 level
2. Gas primary pressure: 0 ~ 10KPa Accuracy: 0.5 level
3. Gas secondary pressure: 0 ~ 5KPa Accuracy: 0.5 level
4. Bathroom water flow: 0 ~ 20L/min Accuracy: 0.5 level
5. Heating water flow: 0 ~ 30L/min Accuracy: 0.5 level
6. Heating water outlet temperature; 0 ~ 100℃ Accuracy: 0.5 level
7. Heating return water temperature: 0 ~ 100℃ Accuracy: 0.5 level
8. Bathroom water inlet temperature: 0 ~ 100℃ Accuracy: 0.5 level
9. Bathroom water outlet temperature: 0 ~ 100℃ Accuracy: 0.5 level
10. Gas temperature: 0 ~ 50℃ Accuracy: 0.5 level
11. Cooling water inlet temperature: 0 ~ 100℃ Accuracy: 0.5 level
12. Cooling water outlet temperature: 0 ~ 100℃ Accuracy: 0.5 level
13. Bathroom inlet pressure: 0 ~ 1.0 MPa Accuracy: 0.5 level
14. Heating return water pressure: 0 ~ 1.0 MPa Accuracy: 0.5 level
10. Heating outlet pressure: 0 ~ 1.0 MPa Accuracy: 0.5 level
16. Cooling water inlet pressure: 0 ~ 1.0 MPa Accuracy: 0.5 level
17. Machine working voltage: 0 ~ 300V Accuracy: 0.5 level
18. Machine working current: 0 ~ 10A Accuracy: 0.5 level
19. Machine power: 0 ~ 3KW Accuracy: 0.5 level
ZH8801 Gas Hanging Fireplace Comprehensive Testing System
Reference: NE483-1999; EN625-1996; GB25034-2010; CJ/T228-2006 technical requirements, developed and designed with imported and domestic high-quality sensors, flow transmitters and other high-tech accessories, mainly used for comprehensive performance testing of gas heating water boiler systems.
Technical parameters:
1. Gas flow: 1 ~ 80 L/min Accuracy: 0.5 level
2. Gas primary pressure: 0 ~ 10KPa Accuracy: 0.5 level
3. Gas secondary pressure: 0 ~ 5KPa Accuracy: 0.5 level
4. Bathroom water flow: 0 ~ 20L/min Accuracy: 0.5 level
5. Heating water flow: 0 ~ 30L/min Accuracy: 0.5 level
6. Heating water outlet temperature; 0 ~ 100℃ Accuracy: 0.5 level
7. Heating return water temperature: 0 ~ 100℃ Accuracy: 0.5 level
8. Bathroom water inlet temperature: 0 ~ 100℃ Accuracy: 0.5 level
9. Bathroom water outlet temperature: 0 ~ 100℃ Accuracy: 0.5 level
10. Gas temperature: 0 ~ 50℃ Accuracy: 0.5 level
11. Cooling water inlet temperature: 0 ~ 100℃ Accuracy: 0.5 level
12. Cooling water outlet temperature: 0 ~ 100℃ Accuracy: 0.5 level
13. Bathroom inlet pressure: 0 ~ 1.0 MPa Accuracy: 0.5 level
14. Heating return water pressure: 0 ~ 1.0 MPa Accuracy: 0.5 level
10. Heating outlet pressure: 0 ~ 1.0 MPa Accuracy: 0.5 level
16. Cooling water inlet pressure: 0 ~ 1.0 MPa Accuracy: 0.5 level
17. Machine working voltage: 0 ~ 300V Accuracy: 0.5 level
18. Machine working current: 0 ~ 10A Accuracy: 0.5 level
19. Machine power: 0 ~ 3KW Accuracy: 0.5 level
Zhipinhui After-Sales Policy:
*After-Sales Hotline: +864008166687
1. Our company has assembled a team of experienced field engineers and senior technicians to promptly respond
to any equipment issues and provide after-sales maintenance.
2. Within China, within one week of new product delivery, our after-sales technical staff will install the equipment and
provide after-sales training at the customer's location, using the contact information and address provided by the customer.
3. All complaints related to product quality will be responded to within one hour. Within 3-5 hours within the province,
and within 24-48 hours outside the province, we will arrive at the customer's site,
determine the appropriate action based on the complaint, and provide after-sales repairs. (Domestic)
4. For international travel, our company can also arrange for an after-sales engineer to visit you for installation and
commissioning. Please discuss any travel and catering issues in advance.
We also provide video installation guides for you to choose from, providing you with a comprehensive and multi-faceted solution.
5. Any material costs related to product quality during the warranty period will be borne by our company.
6. During the warranty period, we will provide free repairs due to improper use or environmental factors.
The materials and accessories used for repairs will be charged at cost only.
