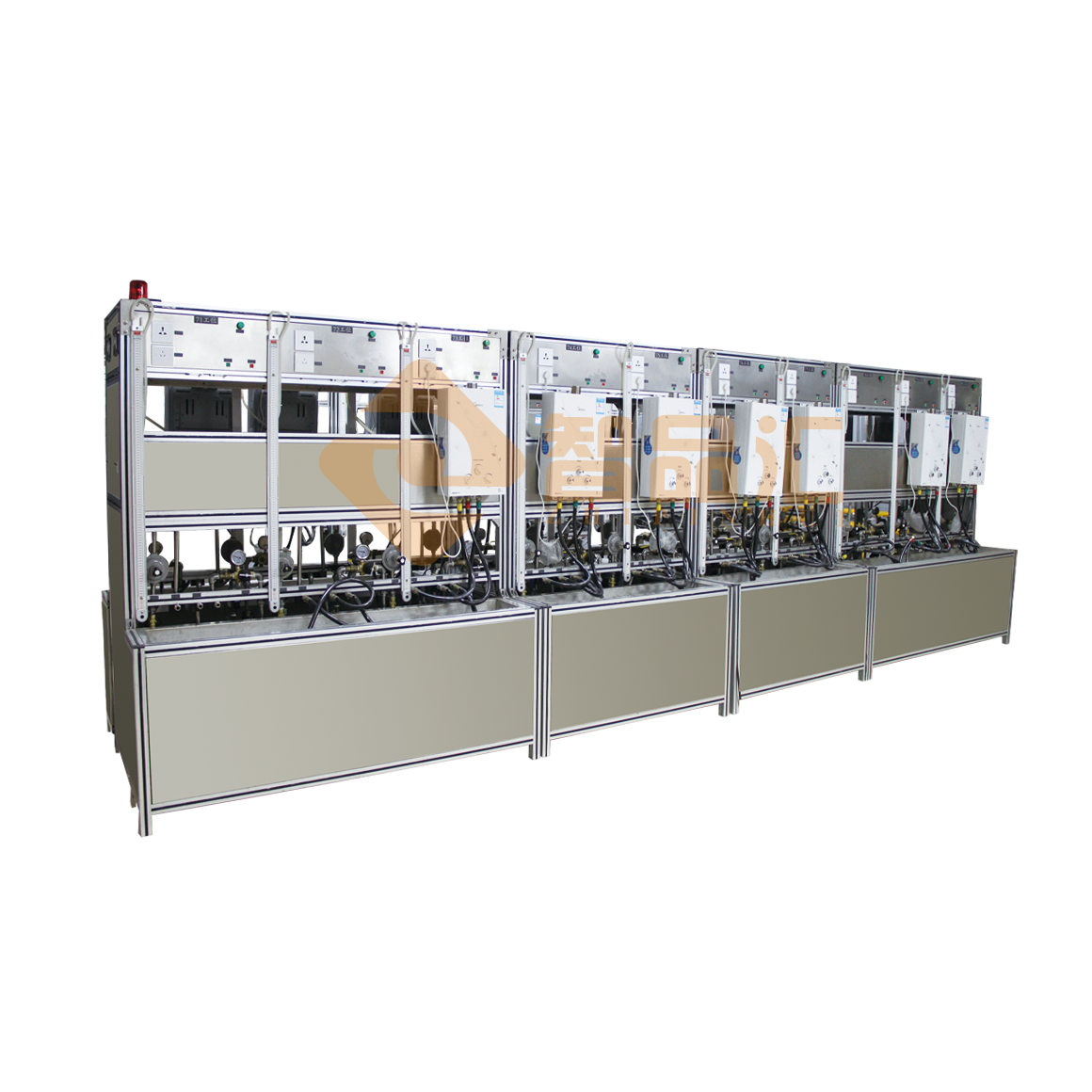

ZH8803 Gas Water Heater Life Test Stand
1.
According to relevant standards and customer requirements, the
durability test of gas water heaters is carried out. The test bench can
be controlled by ordinary control or touch screen, or industrial control
computer can be selected; it is suitable for testing all gas water
heaters; the chassis adopts aluminum profile frame and stainless steel
sheet metal, and the appearance is beautiful and generous;
2. Technical parameters:
2.1. Water pressure test: 0. 05MPa ~ 0.50MPa;
2.2. Gas pressure test: 2kPa ~ 4kPa; adjustable
2.3. Waterway on-off time can be set in 0 ~ 999s
2.4. The number of tests can be preset in 0 ~ 999999 times;
2.5. Design test station: 1-5. (Customizable)
2.6. It has a compressed air connection port and a water blowing device to dry the water in the water heater after the test;
2.7. It has the function of testing the primary pressure and water pressure of the gas system;
2.8. The hook of the water heater can be moved up and down and left and right;
2.9.
It has a beautiful appearance, a compact and reasonable structure, and
various components and measuring instruments are easy to disassemble and
install;
2.10. The water pressure and gas pressure tests use pointer instruments, which are convenient and intuitive;
2.11. The number of tests has a power-off memory function
ZH8803 Gas Water Heater Life Test Stand
1. According to relevant standards and customer requirements, the durability test of gas water heaters is carried out. The test bench can be controlled by ordinary control or touch screen, or industrial control computer can be selected; it is suitable for testing all gas water heaters; the chassis adopts aluminum profile frame and stainless steel sheet metal, and the appearance is beautiful and generous;
2. Technical parameters:
2.1. Water pressure test: 0. 05MPa ~ 0.50MPa;
2.2. Gas pressure test: 2kPa ~ 4kPa; adjustable
2.3. Waterway on-off time can be set in 0 ~ 999s
2.4. The number of tests can be preset in 0 ~ 999999 times;
2.5. Design test station: 1-5. (Customizable)
2.6. It has a compressed air connection port and a water blowing device to dry the water in the water heater after the test;
2.7. It has the function of testing the primary pressure and water pressure of the gas system;
2.8. The hook of the water heater can be moved up and down and left and right;
2.9. It has a beautiful appearance, a compact and reasonable structure, and various components and measuring instruments are easy to disassemble and install;
2.10. The water pressure and gas pressure tests use pointer instruments, which are convenient and intuitive;
2.11. The number of tests has a power-off memory function
