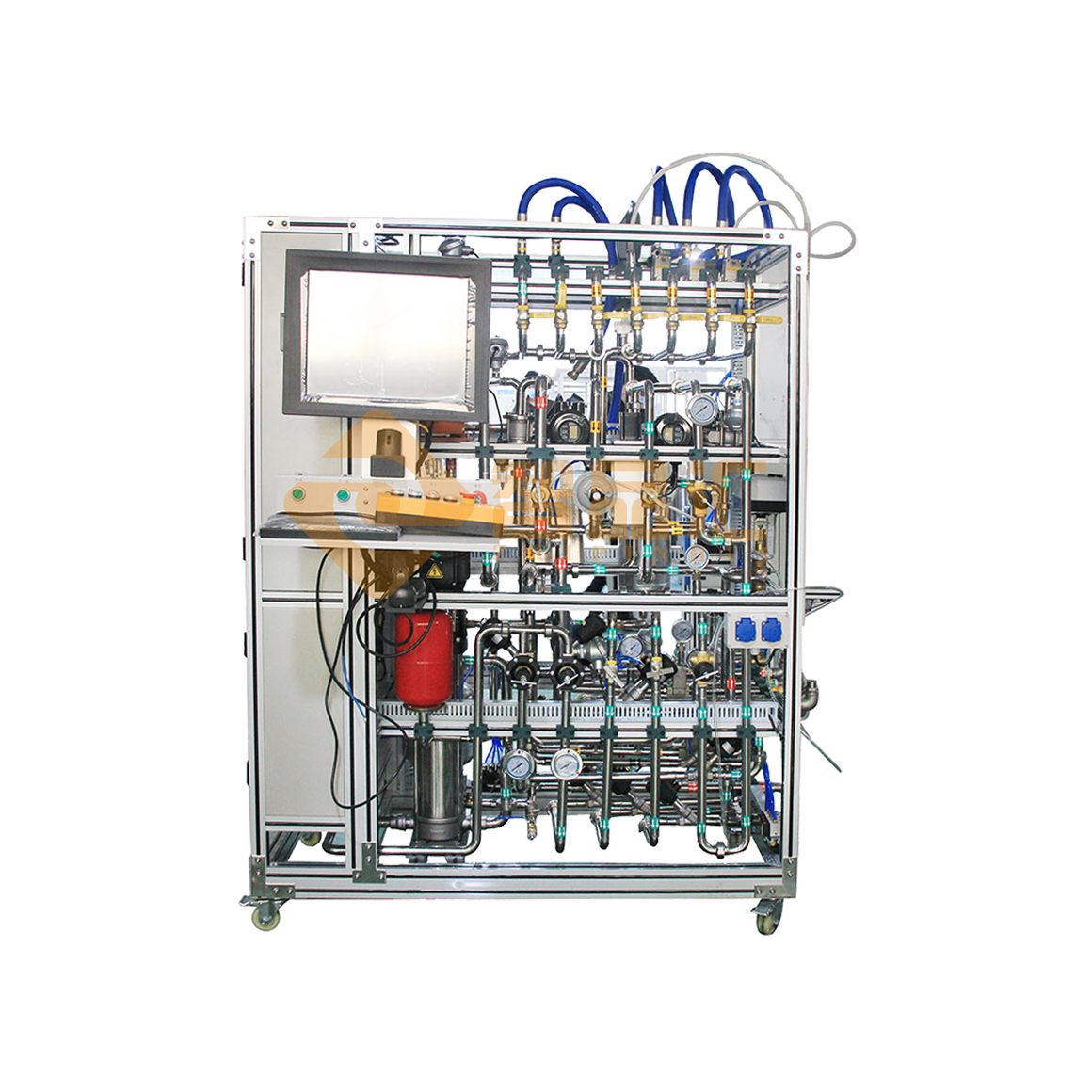

ZH8819 Wall mounted Boiler Comprehensive Testing Platform (Dedicated for Production Lines)

1. Overview:

Online performance test bench for wall-mounted boilers, refer to GB6392 25304 standard; The gas heating wall-mounted boiler performance test bench is a test bench designed specifically for gas heating wall-mounted boilers; it is suitable for use in the production line and laboratory of wall-mounted boiler manufacturers. The appearance and accuracy of the test bench can be selected according to product needs. This test bench refers to the relevant requirements in GB25034-2010 CJ/T228-2006 and meets the test requirements of gas heating wall-mounted boilers

Technical parameters:

2. Domestic hot water system

1), inlet and outlet water temperature; 0.0～100.0℃, test accuracy: ±1.5﹪F.S; (LED digital display).

2), water flow; 100～1000L/h, test accuracy: ±1.5﹪F.S; (glass rotor flow measurement).

3), start water flow; (glass rotor flowmeter measurement).

4) Start water pressure; (pressure gauge 0.0～0.6MPa, 1.6-level gauge display)

5) Water channel high pressure resistance test; (pressure 0.0～1.6MPa, pressure gauge 0.0～2.5MPa display)

6) Open flame leak test function;

7) Gas flow test; (gas is measured by glass rotor flowmeter)

8) Gas pressure test; (U-type pressure gauge: 0.0～5000 Pa display)

9) Dry the water channel after the test is completed

III. Heating system test function:

1) Maximum hot water temperature; 0.0～100.0℃, test accuracy: ±1.5﹪F.S; (LED digital display).

2) Minimum start temperature; 0.0～100.0℃, test accuracy: ±1.5﹪F.S; (LED digital display).

3) Gas flow test; (Gas is measured by glass rotor flowmeter)

4) Gas primary and secondary pressure test; (U-type pressure gauge: 0.0~5000 Pa display)

5) Waterway high pressure resistance test; (pressure 0.0~0.4MPa, pressure gauge 0.0~1.0MPa display)

6) Mutual leakage test between heating waterway and bathroom waterway
