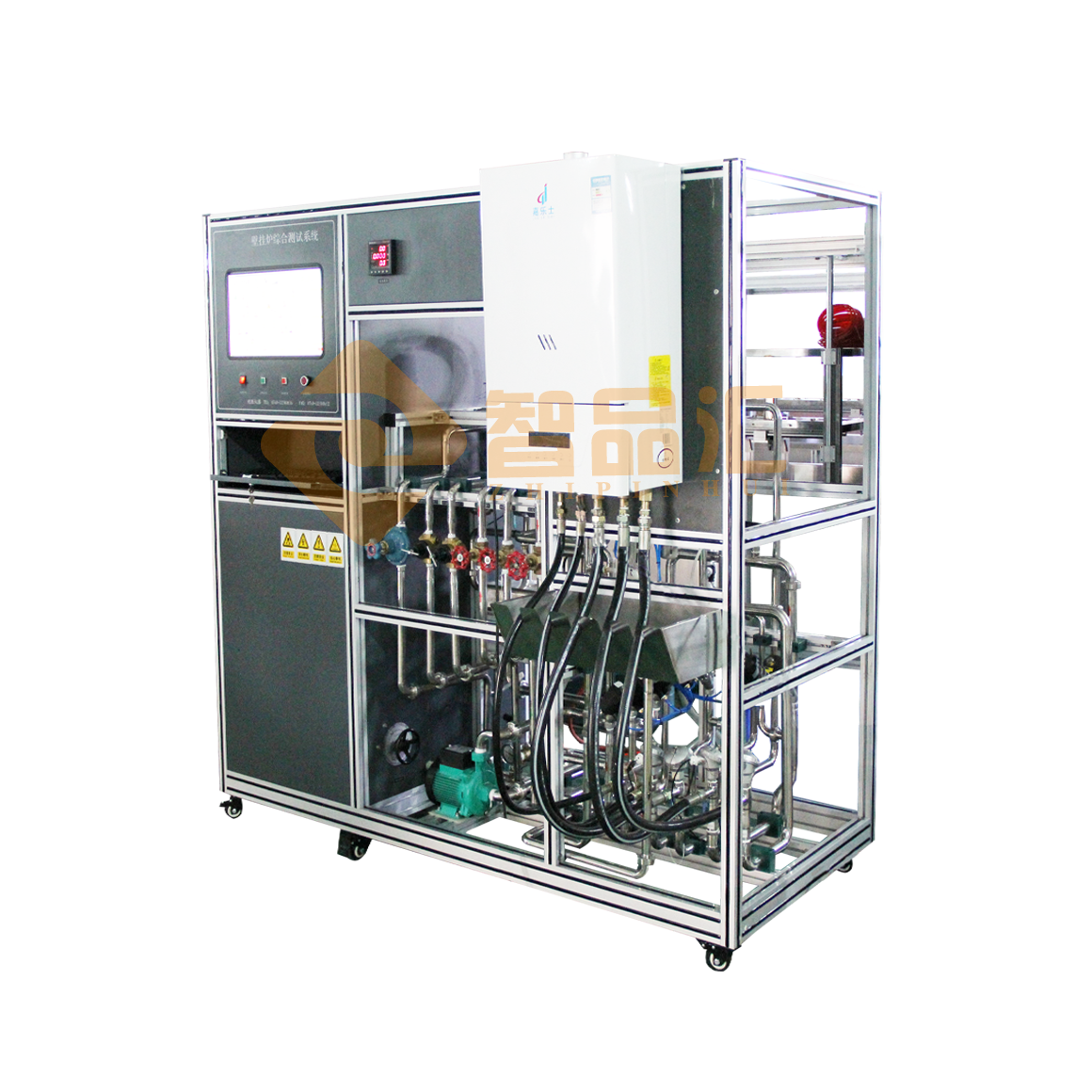

ZH8804 Wall mounted Boiler Comprehensive Testing System
1. Overview
Reference: NE483-1999; EN625-1996; GB25034-2010; CJ/T228-2006 technical requirements, developed and designed with imported and domestic high-quality sensors, flow transmitters and other high-tech accessories, mainly used for comprehensive performance testing of gas heating water boiler systems.
2. Technical parameters:
2.1. Gas flow: 1 ~ 80 L/min Accuracy: 0.5 level
2.2. Gas primary pressure: 0 ~ 10KPa Accuracy: 0.5 level
2.3. Gas secondary pressure: 0 ~ 5KPa Accuracy: 0.5 level
2.4. Bathroom water flow: 0 ~ 20L/min Accuracy: 0.5 level
2.5. Heating water flow: 0 ~ 30L/min Accuracy: 0.5 level
2.6. Heating water outlet temperature; 0 ~ 100℃ Accuracy: 0.5 level
2.7. Heating return water temperature: 0 ~ 100℃ Accuracy: 0.5 level
2.8. Bathroom water inlet temperature: 0 ~ 100℃ Accuracy: 0.5 level
2.9. Bathroom water outlet temperature: 0 ~ 100℃ Accuracy: 0.5 level
2.10. Gas temperature: 0 ~ 50℃ Accuracy: 0.5 level
2.11. Cooling water inlet temperature: 0 ~ 100℃ Accuracy: 0.5 level
2.12. Cooling water outlet temperature: 0 ~ 100℃ Accuracy: 0.5 level
2.13. Bathroom inlet pressure: 0 ~ 1.0 MPa Accuracy: 0.5 level
2.14. Heating return water pressure: 0 ~ 1.0 MPa Accuracy: 0.5 level
2.10. Heating outlet pressure: 0 ~ 1.0 MPa Accuracy: 0.5 level
2.16. Cooling water inlet pressure: 0 ~ 1.0 MPa Accuracy: 0.5 level
2.17. Machine working voltage: 0~300V Accuracy: 0.5 level
2.18. Machine working current: 0~10A Accuracy: 0.5 level
2.19. Machine power: 0~3KW Accuracy: 0.5 level
ZH8804 Wall mounted Boiler Comprehensive Testing System
1. Overview
Reference:
NE483-1999; EN625-1996; GB25034-2010; CJ/T228-2006 technical
requirements, developed and designed with imported and domestic
high-quality sensors, flow transmitters and other high-tech accessories,
mainly used for comprehensive performance testing of gas heating water
boiler systems.
2. Technical parameters:
2.1. Gas flow: 1 ~ 80 L/min Accuracy: 0.5 level
2.2. Gas primary pressure: 0 ~ 10KPa Accuracy: 0.5 level
2.3. Gas secondary pressure: 0 ~ 5KPa Accuracy: 0.5 level
2.4. Bathroom water flow: 0 ~ 20L/min Accuracy: 0.5 level
2.5. Heating water flow: 0 ~ 30L/min Accuracy: 0.5 level
2.6. Heating water outlet temperature; 0 ~ 100℃ Accuracy: 0.5 level
2.7. Heating return water temperature: 0 ~ 100℃ Accuracy: 0.5 level
2.8. Bathroom water inlet temperature: 0 ~ 100℃ Accuracy: 0.5 level
2.9. Bathroom water outlet temperature: 0 ~ 100℃ Accuracy: 0.5 level
2.10. Gas temperature: 0 ~ 50℃ Accuracy: 0.5 level
2.11. Cooling water inlet temperature: 0 ~ 100℃ Accuracy: 0.5 level
2.12. Cooling water outlet temperature: 0 ~ 100℃ Accuracy: 0.5 level
2.13. Bathroom inlet pressure: 0 ~ 1.0 MPa Accuracy: 0.5 level
2.14. Heating return water pressure: 0 ~ 1.0 MPa Accuracy: 0.5 level
2.10. Heating outlet pressure: 0 ~ 1.0 MPa Accuracy: 0.5 level
2.16. Cooling water inlet pressure: 0 ~ 1.0 MPa Accuracy: 0.5 level
2.17. Machine working voltage: 0~300V Accuracy: 0.5 level
2.18. Machine working current: 0~10A Accuracy: 0.5 level
2.19. Machine power: 0~3KW Accuracy: 0.5 level
Zhipinhui after-sales service
Equipment after-sales policy:
*Equipment warranty period: One Year
*After sales hotline: 4008166687
1. Our company has assembled a team of experienced on-site engineers and senior technicians who can respond promptly to any equipment issues and provide after-sales maintenance.
2. Within one week of the delivery of the new product, our after-sales technical department staff will provide installation and after-sales training for the equipment at the customer's location based on the contact information and address provided by the customer.
3. All complaints related to product quality will be responded to within 1 hour. Within 3-5 hours within the province and 24-48 hours outside the province, the customer will arrive at the scene and determine the handling measures based on the complaint situation, and carry out after-sales maintenance.
4. To better address customers' difficulties and concerns, our company promises that all maintenance personnel will be on call.
5. Any costs related to product quality during the shelf life will be borne by our company.
6. During the warranty period, we will provide free repairs due to improper use by your side or natural environment. The materials and accessories used for repairs will only be charged at cost price.
