ZH-L380-DZ立式转盘多轴螺丝机

Home > Automation Equipment > Production line automatic screw machine > ZH-L380-DZ立式转盘多轴螺丝机

ZH-L380-DZ立式转盘多轴螺丝机

ZHIPIN price

¥58000

Market price

¥58000

Specification classification

ZH-L380-DZ

colour

灰白色

Material

机箱喷漆

Delivery

Free delivery

400-816-6687

Product Details Parameter Overview evaluate（0） After sales guarantee

Book Now

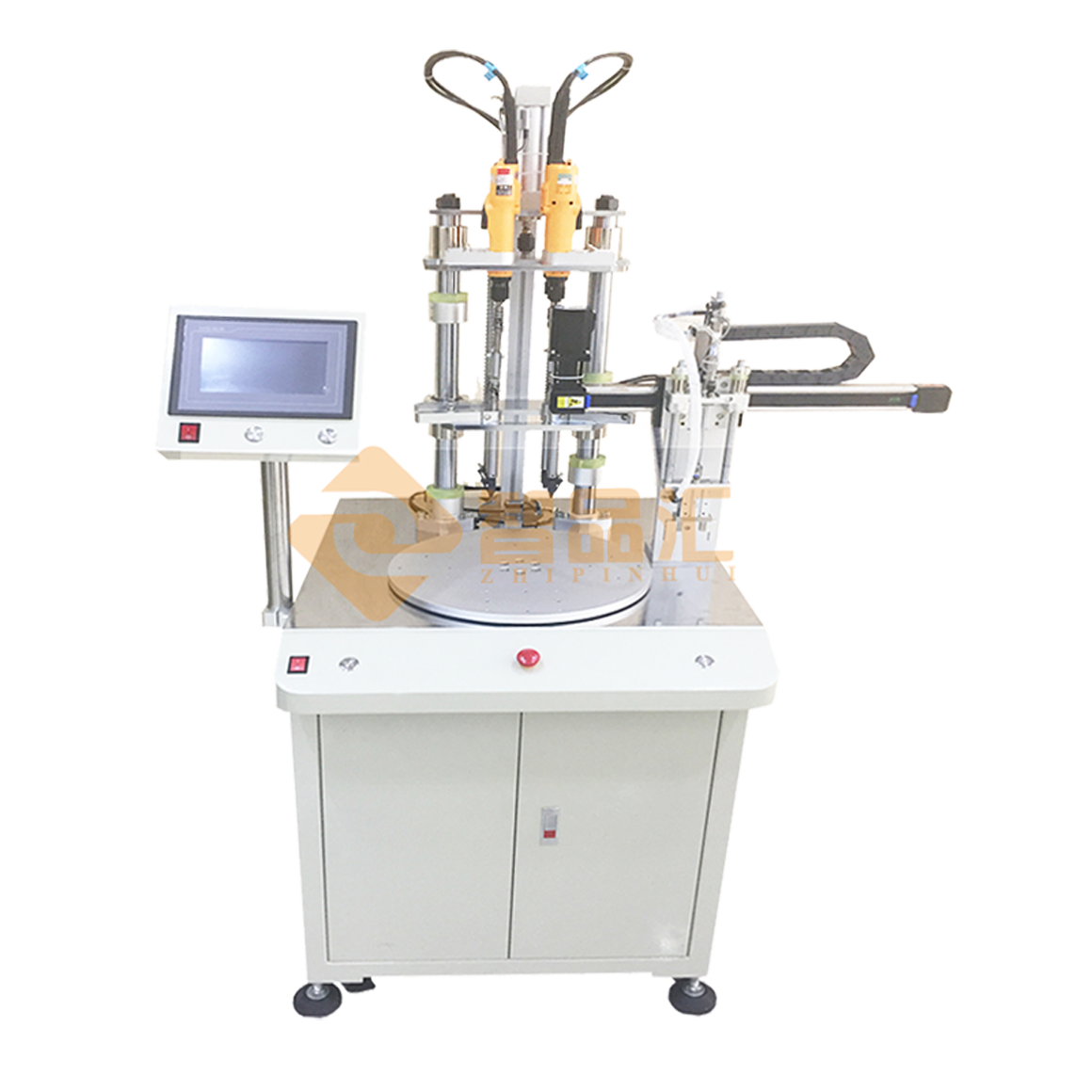

ZH-L380-DZ立式转盘多轴螺丝机Vertical Turntable Multi-Axis Screw Machine

功能特点Functions and characteristics

1. 锁付轴数2-12轴可选。The number of lock axes 2-12 is optional.
2. 漏锁/浮锁/滑牙检测客户可以选配。Latch/float/slip detection customers can choose.
3. 可调整主轴位置和高低，适应不同产品的快速更换。Can adjust the spindle position and height to adapt to the rapid replacement of different products.
4. 可配合流水线实现全自动作业。Can realize automatic operation with the assembly line.
5. 锁付速度:1-2秒/PCS，视螺丝长短而定。Locking speed: 1-2 seconds / PCS, depending on the length of the screw.
6. 扭力调整:每个轴可单独调整。Torque adjustment: Each axis can be adjusted individually.
7. 适合镙丝： M1---M8。Suitable for reeling: M1---M8.

产品规格Product Specification

型号Model		ZH-L380-DZ	ZH-L580-DZ
外形尺寸Dimensions		1100mm800mm 1900mm	1250mm950mm 1900mm
机器毛重Machine Gross Weight		200KG	230KG
机器构造 Machine Construction	盘面尺寸Disk size	直径Diameter 550
	电源Power supply	AC 220V 50HZ
	功率Power	0.3KW
	用气量Air consumption	15m3/hour
	机架Frame	钢板台面，铝合金机架Steel plate table, aluminum alloy rack
控制说明 Control Instructions	主机程序控制 Host program control	PLC 控制PLC control
	人机界面 Human-machine interface	台湾威纶Taiwan Weinview
	机器启动Machine start	双手启动模式Hands-on mode
	报警Alarm	报警灯闪烁和蜂鸣器啸叫Alarm lamp flashing and buzzer howling
连接Connection	万向结&联轴器组件 Universal Joint & Coupling	万向结连接Universal connection
送螺钉机 Screw-feeding machine	自动送钉机 Automatic nailing machine	放在机器旁边或下面Placed next to or below the machine
	自动送钉机数量Number of automatic nail feeders	按照锁螺丝的多少配备，一台机可送1-4或多颗螺丝According to the number of lock screws, a machine can send 1-4 or more screws
螺丝批Screwdriver	台湾奇力速电批 Taiwan KILEWS electric screwdriver	台湾奇力速电批Taiwan KILEWS electric screwdriver
适用范围 Scope of application	最小螺丝孔距 Minimum screw hole spacing	20mm，最大孔距无限制Maximum hole spacing is unlimited

All reviews0

Instrument After-sales Policy:

*Instrument warranty period: one year

*After sales hotline: 4008166687

We provide remote installation and debugging of some equipment, as well as on-site installation and maintenance services, but charge a certain service fee; Our company will provide free technical guidance for those with a foundation, and the demander will debug and install it.
