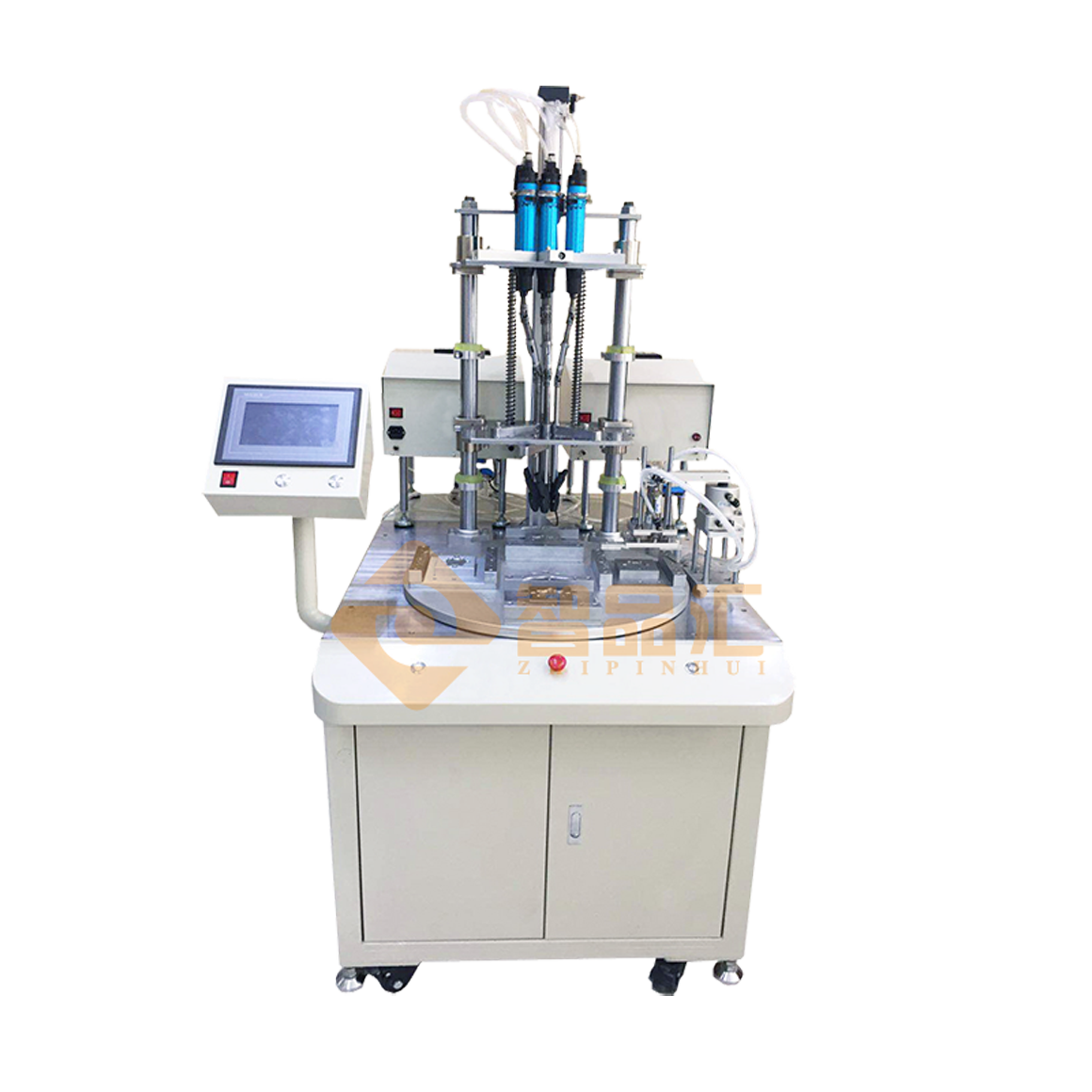

ZH-L580-DZ-F Turntable Multi-axis Pneumatic Screwdriver Automatic Screwing Machine

Home > Automation Equipment > Production line automatic screw machine > ZH-L580-DZ-F Turntable Multi-axis Pneumatic Screwdriver Automatic Screwing Machine

ZH-L580-DZ-F Turntable Multi-axis Pneumatic Screwdriver Automatic Screwing Machine

Non-standard products

Delivery

Free delivery

reservation

400-816-6687

Product Details Parameter Overview evaluate（0） After sales guarantee

Book Now


ZH-L580-DZ-F转盘多轴风批自动螺丝机

Turntable multi axis wind batch automatic screw driver

功能特点Functions and characteristics

1、锁付轴数2-12轴可选。

The number of lock axes 2-12 is optional.

2、高可靠性和耐久性，电、气系统全采用原装进口部件。

High reliability and durability. All electrical and pneumatic systems are imported.

3、可调整主轴位置和高低，适应不同产品的快速更换;每个轴可单独调整。

The spindle position and height can be adjusted to adapt to quick replacement of different products; Each axis can be adjusted separately.

4、可配合流水线实现全自动作业。

The automatic operation can be realized with the assembly line.

5、锁付速度:1-2秒/PCS，视螺丝长短而定；适合镙丝： M1---M8。

Locking speed: 1-2 seconds /PCS, depending on the length of the screw；Suitable for M1---M8.

6、适合产品：五金件、轮毂、叠杀片、电脑、部件等的锁螺丝作业。

Suitable for products: hardware, wheel hub, stacking slice, computer, parts and so on.

产品规格Product Specification

型号Model			ZH-L380-DZ-F	ZH-L580-DZ-F
外形尺寸Dimensions			800mm900mm 1900mm	1250mm950mm 1900mm
机器毛重Machine Gross Weight			210KG	230KG
机器构造Machine Construction	盘面尺寸Disk size	直径Diameter 550
	电源Power supply	AC 220V 50HZ
	功率Power	0.3KW
	用气量Air consumption	15m3/hour
控制说明Control Instructions	主机程序控制Host program control	基恩士PLC 控制 KEYENCE PLC control
	人机界面Human-machine interface	台湾威纶、昆仑通Taiwan Weinview, Kunluntongtai
	机器启动Machine start	双手启动模式Hands-on mode
	报警Alarm	报警灯闪烁和蜂鸣器啸叫Alarm lamp flashing and buzzer howling
连接Connection	万向结&联轴器组件Universal Joint & Coupling Assembly	万向结连接Universal connection
送螺钉机Screw-feeding machine	自动送钉机Automatic nailing machine	放在机器旁边或下面Placed next to or below the machine
	自动送钉机数量Number of automatic nail feeders	按照锁螺丝的多少配备，一台机可送1-4颗螺丝According to the number of lock screws, a machine can send 1-4 or more screws
螺丝批Screwdriver	台湾美之岚M&L	台湾美之岚气动批M&L
适用范围Scope of application	适用产品尺寸Applicable product size	根据客户产品订制Custom-made
	水平调整范围Level adjustment range	根据客户产品订制Custom-made
	垂直调整范围Vertical adjustment range	根据客户产品订制Custom-made
	螺丝锁紧的深度The tightened depth of the screw	根据客户产品订制Custom-made
	最小螺丝孔距Minimum screw hole spacing	20mm，最大孔距无限制Maximum hole distance without restriction
	螺丝漏送检测Screw leak detection	有Yes
	锁紧不良品的处理Handling of unlocked products	报警灯和蜂鸣器提示Warning lights and buzzer tips
