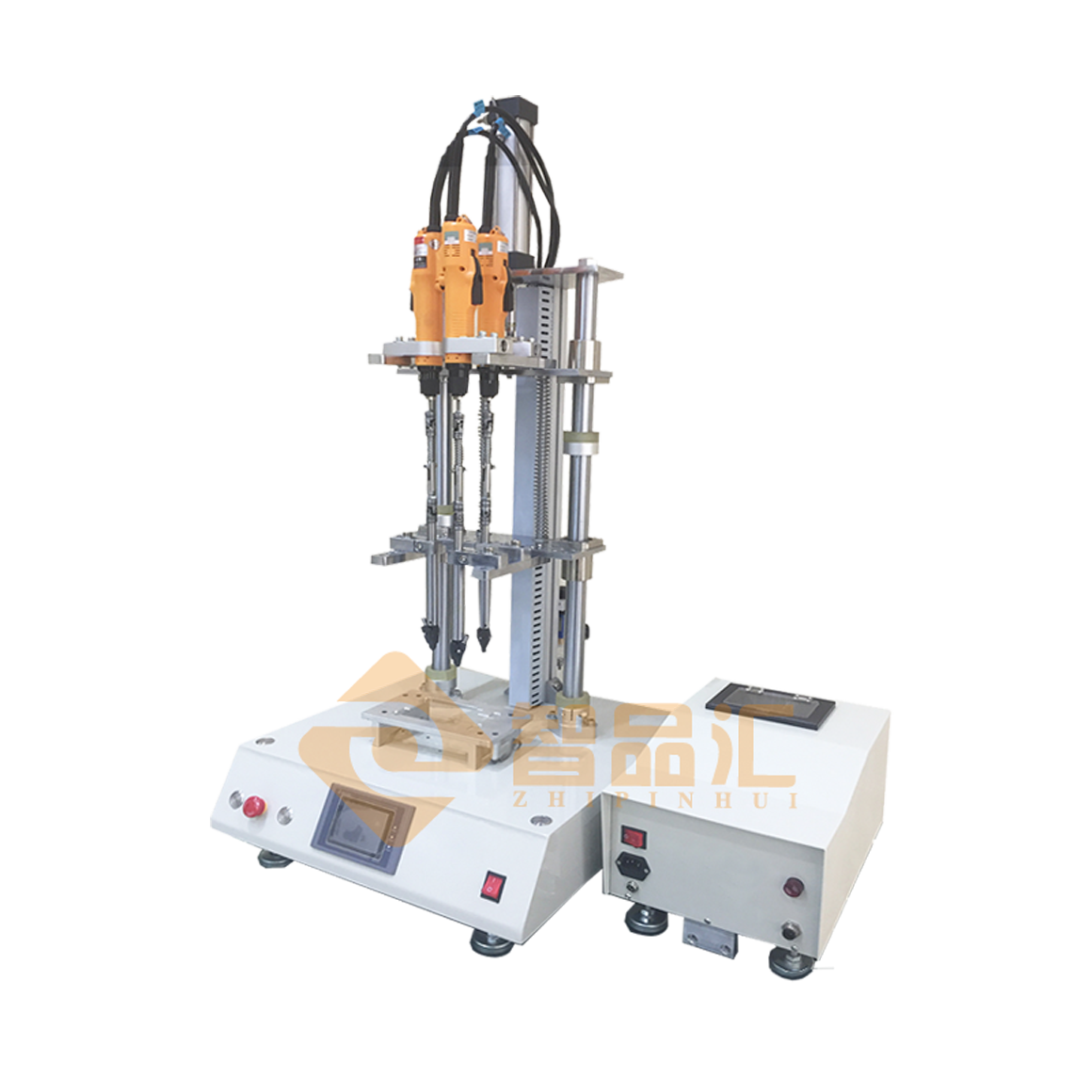

ZH-PT500-DZ台式多轴螺丝机Desktop Multi-axis Screw Machine
功能特点Functions and characteristics
1. 锁付轴数2-6轴可选。The number of lock axes 2-12 is optional.
2. 漏锁/浮锁/滑牙检测客户可以选配。Latch/float/slip detection customers can choose.
3. 可调整主轴位置和高低,适应不同产品的快速更换。Can adjust the spindle position and height to adapt to the rapid replacement of different products.
4. 可配合流水线实现全自动作业。Can realize automatic operation with the assembly line.
5. 锁付速度:1-2秒/PCS,视螺丝长短而定。Locking speed: 1-2 seconds / PCS, depending on the length of the screw.
6. 扭力调整:每个轴可单独调整。Torque adjustment: Each axis can be adjusted individually.
7. 适合镙丝: M1---M8。Suitable for reeling: M1---M8.
产品规格Product Specification
型号Model | ZH-PT500-DZ | ZH-PT600-DZ | |
外形尺寸Dimensions | 500mm*550mm *1200mm | 600mm*600mm *1200mm | |
机器毛重Machine Gross Weight | 100KG | 150KG | |
机器构造Machine Construction | 电源Power supply | AC 220V 50HZ | |
功率Power | 0.3KW | ||
用气量Air consumption | 15m3/hour | ||
机架Frame | 钢板台面,铝合金机架Steel plate table, aluminum alloy rack | ||
控制说明Control Instructions | 主机程序控制Host program control | PLC 控制PLC control | |
人机界面Human-machine interface | 触摸屏Taiwan Weinview | ||
机器启动Machine start | 双手启动模式Hands-on mode | ||
报警Alarm | 报警灯闪烁和蜂鸣器啸叫Alarm lamp flashing and buzzer howling | ||
连接Connection | 万向结&联轴器组件Universal Joint & Coupling Assembly | 万向结连接Universal connection | |
送螺钉机 | 自动送钉机Automatic nailing machine | 放在机器旁边或下面Placed next to or below the machine | |
自动送钉机数量Number of automatic nail feeders | 按照锁螺丝的多少配备,一台机可送1-4颗螺丝According to the number of lock screws, one machine can send 1-4 screws | ||
螺丝批Screwdriver | 台湾奇力速电批Taiwan KILEWS electric screwdriver | 台湾奇力速电批Taiwan KILEWS electric screwdriver | |
适用范围Scope of application | 最小螺丝孔距Minimum screw hole spacing | 20mm,最大孔距无限制Maximum hole spacing is unlimited |
Zhipinhui after-sales service
Equipment after-sales policy:
*Equipment warranty period: One Year
*After sales hotline: 4008166687
1. Our company has assembled a team of experienced on-site engineers and senior technicians who can respond promptly to any equipment issues and provide after-sales maintenance.
2. Within one week of the delivery of the new product, our after-sales technical department staff will provide installation and after-sales training for the equipment at the customer's location based on the contact information and address provided by the customer.
3. All complaints related to product quality will be responded to within 1 hour. Within 3-5 hours within the province and 24-48 hours outside the province, the customer will arrive at the scene and determine the handling measures based on the complaint situation, and carry out after-sales maintenance.
4. To better address customers' difficulties and concerns, our company promises that all maintenance personnel will be on call.
5. Any costs related to product quality during the shelf life will be borne by our company.
6. During the warranty period, we will provide free repairs due to improper use by your side or natural environment. The materials and accessories used for repairs will only be charged at cost price.
