ZH-L380-DZ-S立式转盘多轴螺丝机(伺服)

Non-standard products
Delivery
Free delivery
400-816-6687

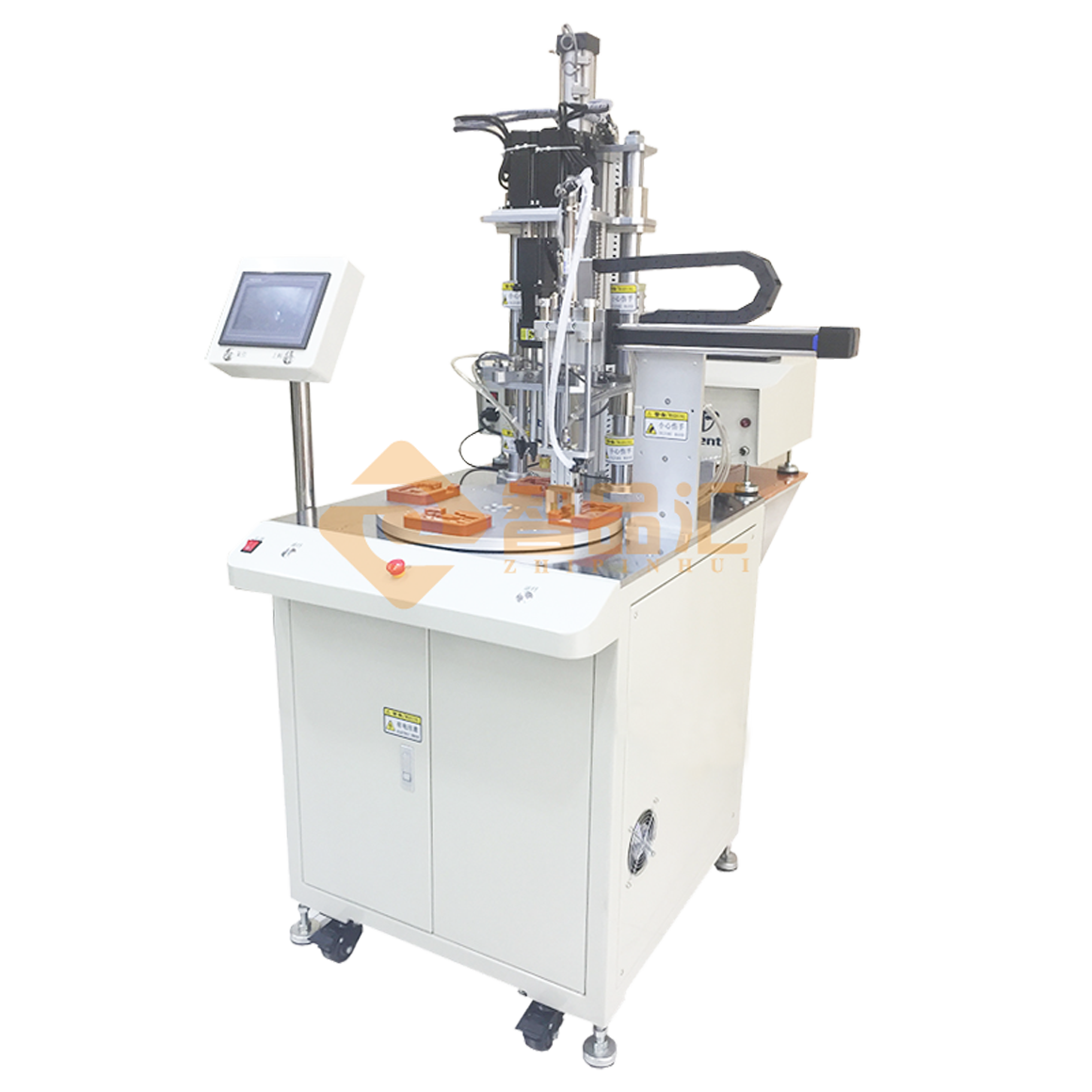

ZH-L380-DZ-S立式转盘多轴螺丝机(伺服)

Vertical Turntable Multi-Axis Screw Machine (Servo)

功能特点Functions and characteristics

1.锁付轴数2-12轴可选。The number of lock axes 2-12 is optional.

2. 漏锁/浮锁/滑牙检测客户可以选配。Latch/float/slip detection customers can choose.

3.锁付时,实时扭力显示。When the lock is paid, real-time torque display.
4. 可调整主轴位置和高低,适应不同产品的快速更换。Can adjust the spindle position and height to adapt to the rapid replacement of different products.
5.扭力调整:每个轴可单独数字式调整。Torque adjustment: Each axis can be individually digitally adjusted.
6.适合镙丝: M1---M8。Suitable for reeling: M1---M8.

产品规格Product Specification

型号Model

ZH-L380-DZ-S

ZH-L580-DZ-S

外形尺寸Dimensions

800mm*900mm *1900mm

1250mm*950mm *1900mm

机器毛重Machine Gross Weight

210KG

240KG

机器构造Machine Construction

盘面尺寸Disk size

直径Diameter 550

电源Power supply

AC 220V 50HZ

功率Power

0.3KW

用气量Air consumption

15m3/hour

控制说明Control Instructions

主机程序控制Host program control

基恩士PLC 控制 KEYENCE PLC control

人机界面Human-machine interface

台湾威纶、昆仑通Taiwan Weinview, Kunluntongtai

机器启动Machine start

双手启动模式Hands-on mode

报警Alarm

报警灯闪烁和蜂鸣器啸叫Alarm lamp flashing and buzzer howling

连接Connection

万向结&联轴器组件Universal Joint & Coupling Assembly

万向结连接Universal connection


送螺钉机Screw-feeding machine

自动送钉机Automatic nailing machine

放在机器旁边或下面Placed next to or below the machine

自动送钉机数量Number of automatic nail feeders

按照锁螺丝的多少配备,一台机可送1-4颗螺丝According to the number of lock screws, a machine can send 1-4 or more screws

电批Screwdriver

TLD-伺服电机TLD-Servo motor

自动螺丝伺服电机(100-400W)速度1-3000  Automatic Screw Servo Motor (100-400W) Speed 1-3000

适用范围Scope of application

适用产品尺寸Applicable product size

根据客户产品订制Customized according to customer's products

最小螺丝孔距Minimum screw hole spacing

20mm,最大孔距无限制20mm,Maximum hole spacing is unlimited

检测项目Test Items

螺丝扭力实时检测Screw torque real-time detection

有Yes

螺丝滑牙\浮锁\漏锁\漏送检测Latch/float/slip detection

有Yes
