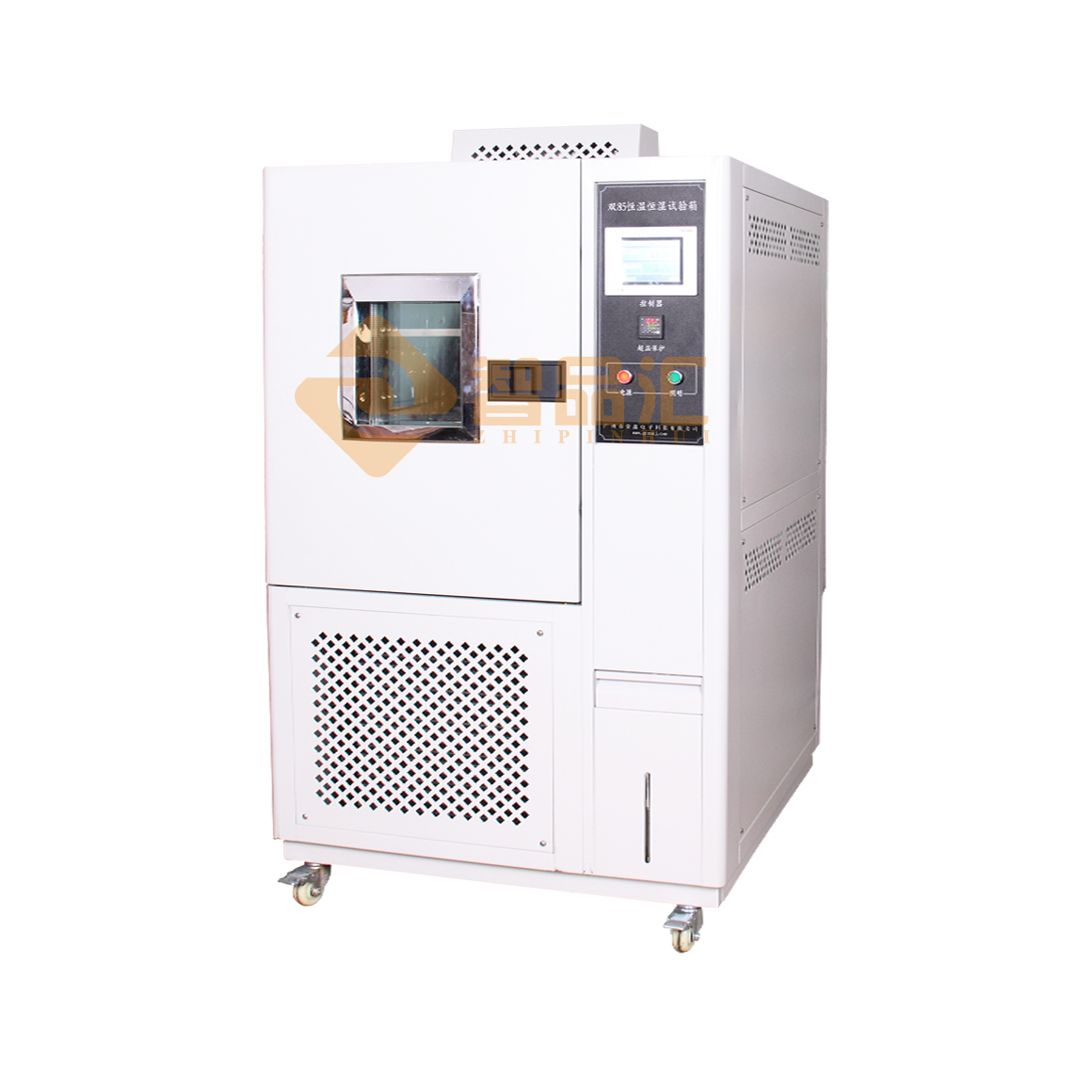

ZHHW-85 Constant Temperature and Humidity Test Chamber

Functional Introduction

l Constant temperature and constant temperature test chamber can conduct high temperature, low temperature and humidity test on electrical, electronic, household appliances, automobiles, motorcycles, chemicals and other product parts and materials under constant humidity and heat conditions. Test their various performance indicators and adaptability.

This device complies with

l GB/T10586-89 Test conditions of thermal -humidity test chamber

l GB/T2423.1-2001 GB/T2423.1-2001 Test method of low temperature test chamber

l GB/T2423.2-2001 GB/T2423.2-2001 Test method of high temperature test chamber

l GB/T2423.3-93 GB/T2423.3-93 Test method of thermal-humidity test chamber

Specifications and Technical Parameters

型号 Model	ZHHW-85	ZHHW -85A	ZHHW -85B	ZHHW-85C	ZHHW-85D
内部尺寸 Internal Dimensions WxHxD(cm)	400×500×500	500×600×750	600×800×850	850×1000×1000	1000×1000×1000
外形尺寸External Dimensions WxHxD(cm)	950×930×1620	1050×1070×1870	1150×1430×1970	1350×1430×2120	1500×1430×2120
内箱容积	100L	225L	408L	800L	1000L
温度上限Upper temperature limit	+150℃/+200℃
温度下限Lower temperature limit	0℃、-20℃、-40℃、-70℃
湿度范围 Humidity range	20%~98%RH
温湿度精度/均匀度 Humiture precision/uniformity	±0.1℃; ±0.1%RH/±1.0℃; ±2%RH
升温/降温时间 Warming up/cooling down time	升温约Warming about 4℃/MIN 降温约 Cooling about 1℃/MIN
温湿度控制器 Control panel	韩国进口TEMI系列温湿度控制器 South Korea”TEMI”series temperature and humidity controller
制冷机组 Compressor	法国进口泰康压缩机组（环保型） Franceas “Tecumseh”Brand
制冷机组	法国进口泰康压缩机组（环保型） Franceas”Tecumseh”Brand
加湿器	KD 不锈钢发生器 Stainless deviser
冷却方式	风冷或水冷 Air cooling/water cooling
加热器	镍锘合金加热单元 Nichrome heater
安全保护措施 Protection device	超温、过载、超压、漏电、断水、短路、电源缺相、错相保护 Over heating,over loading,over pressure,leakage,water-break,cutting off and power phase dislocation protect
外壳材料 Housing materials	SUS304拉丝不锈钢板或钢板静电喷塑 Brushed or static plastic spraying on steel plates
内壁材料 Inner material	SUS304不锈钢 Stainless plates
保温材料 Insulation material	超细玻璃棉或聚氨酯泡沫 Extra-fine glasswool or Polyurethane foam
电源 Power	220V/380V±10%,50Hz,3P+N+G
产品标准Standards	Gb10586:湿热试验箱技术条件 Thermal-humidity specification Db10589: 低温试验箱技术条件 Low temperature specification
试验方式 Testing method	Gb/T2423.1、 Gb/T2423.9、Gjb150.4
