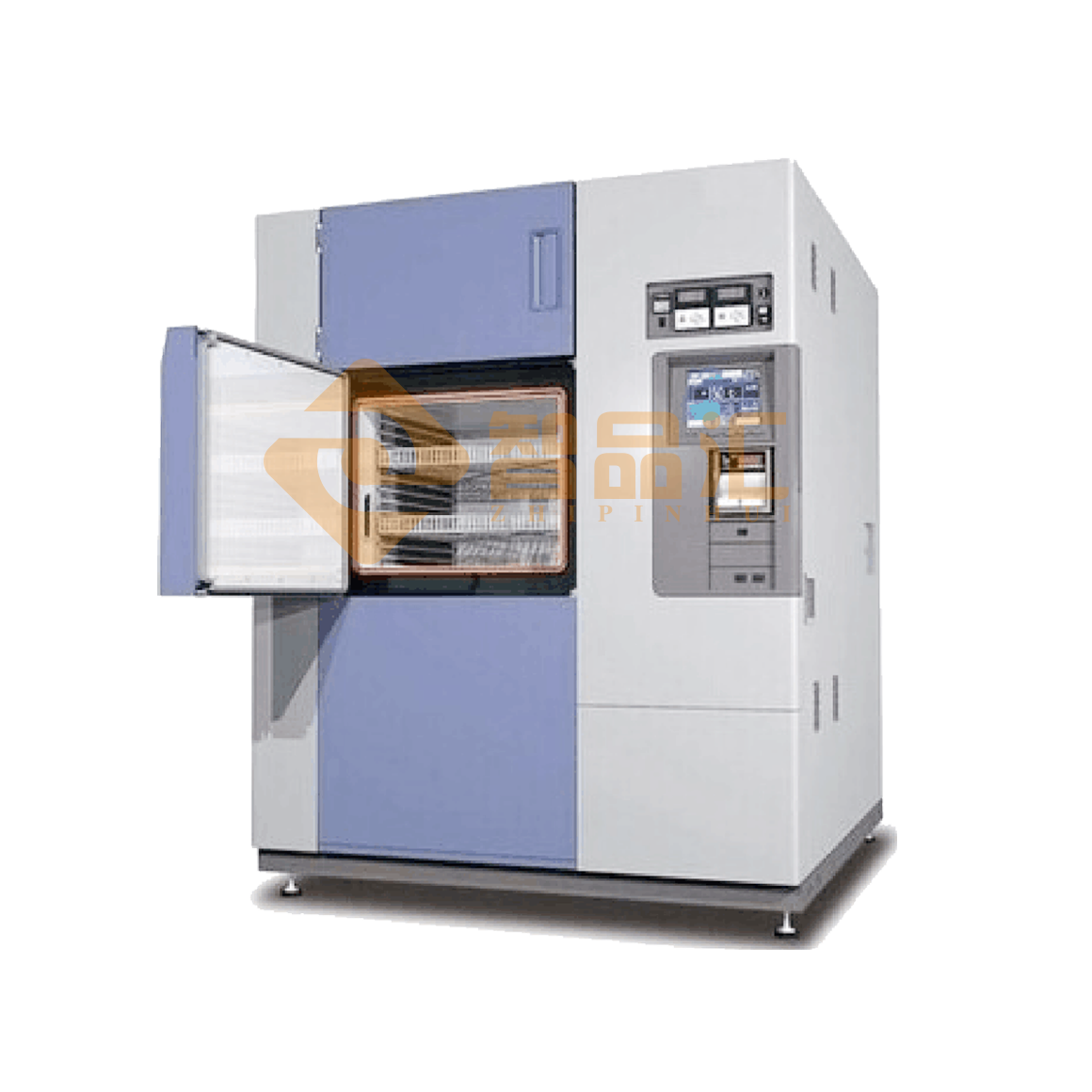

ZHLR2S-100 Thermal Shock Test Chamber

1. Vertical two-box structure, automatic control of high and low temperature box cycle process, adjustable dwell and conversion time, divided into high temperature zone and low temperature zone, test samples are placed in the mobile hanging basket, adopting a unique heat storage and cold storage structure, the cylinder drives the hanging basket to move up and down in the hot and cold tanks to complete the hot and cold temperature shock test.

2. The test hole can be loaded with Peixian test components, large color screen touch mode computer control system, easy to operate, with abnormal and troubleshooting display function. The operating status is clear at a glance

3. Fully enclosed imported compressor + environmentally friendly refrigerant, plate-type heat exchanger and binary ultra-low temperature freezing system.

4. High temperature, low temperature and hot and cold shock three functions can be set independently. When executing hot and cold shock conditions, it has the function of high and low temperature test box, and can automatically pre-cool, preheat and standby functions according to the scheduled work, and can set the number of cycles and defrost times, automatic (manual) defrost

Specifications and Technical Parameters

Temperature impulse test chamber				ZHLR2S-100	ZHLR2S-300	ZHLR2S-500
Work room size(mm)				460×460×480	680×680×650	780×780×850
Boundary dimension(mm)				2000×1100×1650	2350×1360×2000	2500×1580×2200
Specifications	perature arrange			High	+60℃~200℃
				low	-75℃~-10℃
	Precooling/preheating temperature			+200℃/-75℃
	Temperature deviation			±2.0℃
	Heating/cooling time			About:40min(RT~200℃)/40min(RT~-75℃)
	Temperture recovery			≤5min
Basket weighing				10Kg	18Kg	25Kg
Refrigeration system		Refrigeration unit/mode		Imported German or French Tecumseh Copeland semi-hermetic compressor/dual cascade compression refrigeration
		Cooling method		Water cooling(cooling water pressure:0.2~0.4Mpa,water temperature: ≤30℃)
		Condenser		Stainless steel welded plate heat exchanger
		Heater/evaporimeter		Nichrome electric heater/finned evaporator
circulating fan				Axial air machine
Cylinder				High&low temperature transfrom actuator
Air compressor				Compressed air of supply drive cylinder
Protection				Over temperature,over load,over pressure,leakage,cutting-out,power open phase,angular misalignment and protection
Material			Outer materials	SUS304# stainless steel treated with mist
			Inner material	SUS304 Inner box is stainless steel
			Insulation materials	Heat-resistance high-density aluminum silicate fiber cotton or foam insulator materials
Accessories				Test port hole,light,viewing window
Power				380V±10%,50hz,3P+N-G

ZHLR2S-100 Thermal Shock Test Chamber

3. Fully enclosed imported compressor + environmentally friendly refrigerant, plate-type heat exchanger and binary ultra-low temperature freezing system.

Specifications and Technical Parameters

Temperature impulse test chamber				ZHLR2S-100	ZHLR2S-300	ZHLR2S-500
Work room size(mm)				460×460×480	680×680×650	780×780×850
Boundary dimension(mm)				2000×1100×1650	2350×1360×2000	2500×1580×2200
Specifications	perature arrange			High	+60℃~200℃
				low	-75℃~-10℃
	Precooling/preheating temperature			+200℃/-75℃
	Temperature deviation			±2.0℃
	Heating/cooling time			About:40min(RT~200℃)/40min(RT~-75℃)
	Temperture recovery			≤5min
Basket weighing				10Kg	18Kg	25Kg
Refrigeration system		Refrigeration unit/mode		Imported German or French Tecumseh Copeland semi-hermetic compressor/dual cascade compression refrigeration
		Cooling method		Water cooling(cooling water pressure:0.2~0.4Mpa,water temperature: ≤30℃)
		Condenser		Stainless steel welded plate heat exchanger
		Heater/evaporimeter		Nichrome electric heater/finned evaporator
circulating fan				Axial air machine
Cylinder				High&low temperature transfrom actuator
Air compressor				Compressed air of supply drive cylinder
Protection				Over temperature,over load,over pressure,leakage,cutting-out,power open phase,angular misalignment and protection
Material			Outer materials	SUS304# stainless steel treated with mist
			Inner material	SUS304 Inner box is stainless steel
			Insulation materials	Heat-resistance high-density aluminum silicate fiber cotton or foam insulator materials
Accessories				Test port hole,light,viewing window
Power				380V±10%,50hz,3P+N-G
