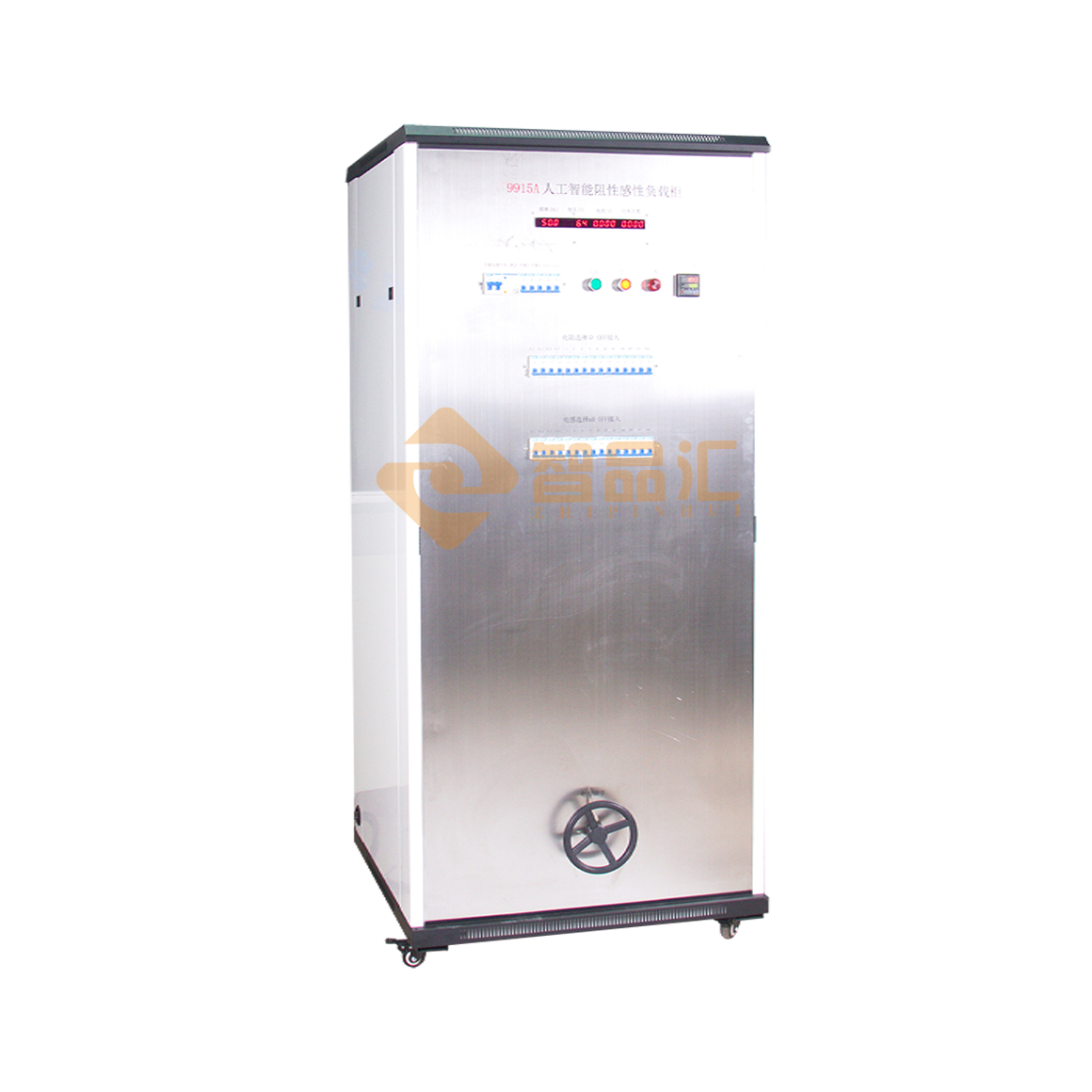

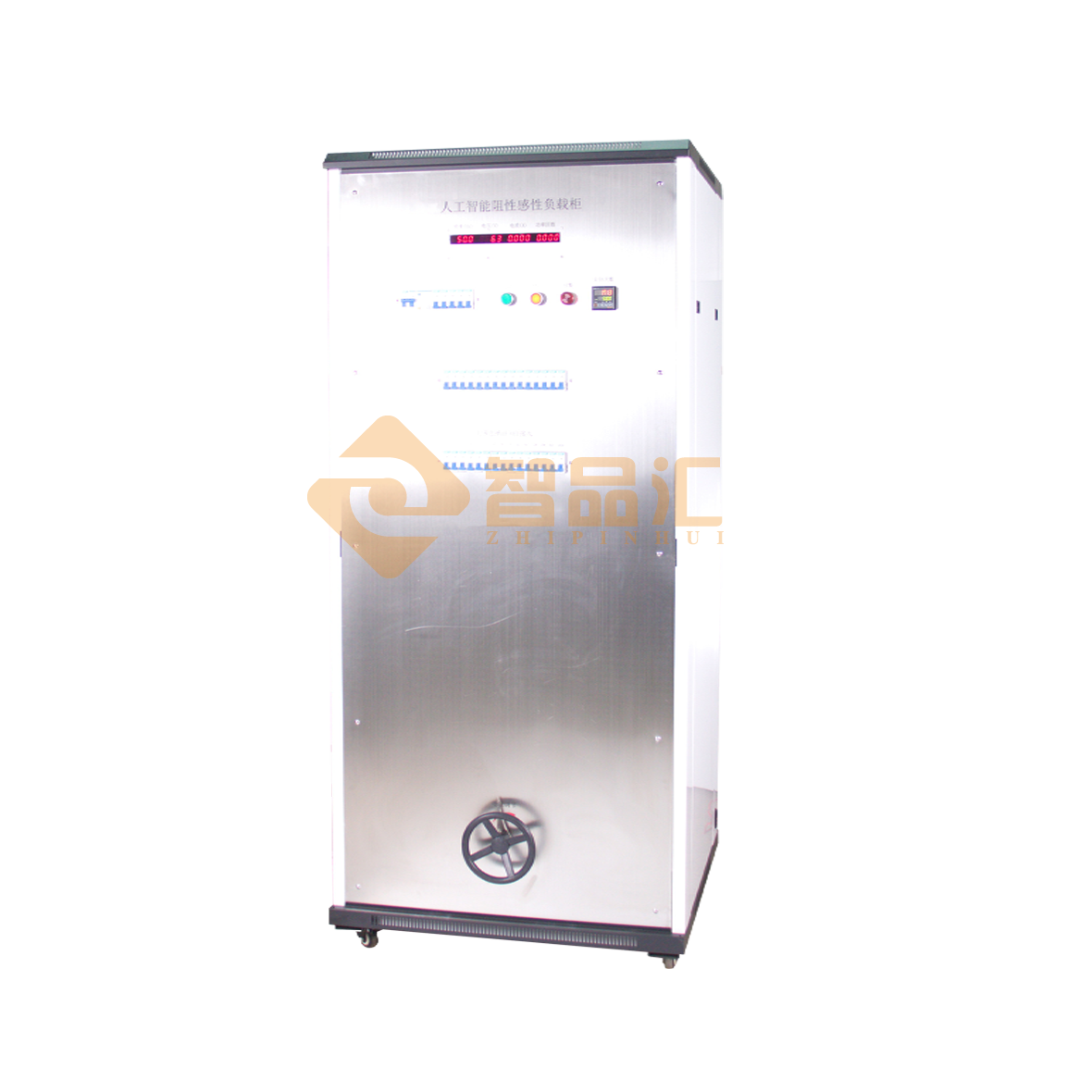

RX9517 artificial intelligence resistive inductive load cabinet
1. Overview:
Complies with GB2099, GB16915.1, GB7000.1-2003, IEC60884, IEC61058, IEC60669.1, etc. It is used for the breaking capacity and normal operating life test of switches for household and similar fixed electrical installations, and is also suitable for the breaking capacity and normal operating life test of plugs and sockets for household and similar purposes.
2. Technical parameters:
2.1. Load power supply: three-phase four-wire AC380/50Hz (single-phase AC220V, 2 groups in total)
2.2. Workstation: single workstation
2.3. Digital voltmeter: 10~300V, accuracy ± (0.25% reading + 0.25% range)
2.4. Digital ammeter: 1~30A, accuracy ± (0.25% reading + 0.25% range)
2.5. Digital power factor meter: 0.3~0.98, accuracy ±0.03
2.6. Load mode: resistive, inductive, capacitive three-in-one, switchable
2.7. Capacitive load: 70uf, 140uf, 7.3uf optional
2.8. Counter: 0~999999 times, preset
2.9. Load power supply capacity: 10KVA
2.10, with overcurrent and timeout protection
2.11, operating environment: atmospheric pressure 80~106kpa, temperature 5~40°C, humidity (20~90)%RH
RX9517 artificial intelligence resistive inductive load cabinet
1. Overview:
Complies
with GB2099, GB16915.1, GB7000.1-2003, IEC60884, IEC61058, IEC60669.1,
etc. It is used for the breaking capacity and normal operating life test
of switches for household and similar fixed electrical installations,
and is also suitable for the breaking capacity and normal operating life
test of plugs and sockets for household and similar purposes.
2. Technical parameters:
2.1. Load power supply: three-phase four-wire AC380/50Hz (single-phase AC220V, 2 groups in total)
2.2. Workstation: single workstation
2.3. Digital voltmeter: 10~300V, accuracy ± (0.25% reading + 0.25% range)
2.4. Digital ammeter: 1~30A, accuracy ± (0.25% reading + 0.25% range)
2.5. Digital power factor meter: 0.3~0.98, accuracy ±0.03
2.6. Load mode: resistive, inductive, capacitive three-in-one, switchable
2.7. Capacitive load: 70uf, 140uf, 7.3uf optional
2.8. Counter: 0~999999 times, preset
2.9. Load power supply capacity: 10KVA
2.10, with overcurrent and timeout protection
2.11, operating environment: atmospheric pressure 80~106kpa, temperature 5~40°C, humidity (20~90)%RH
