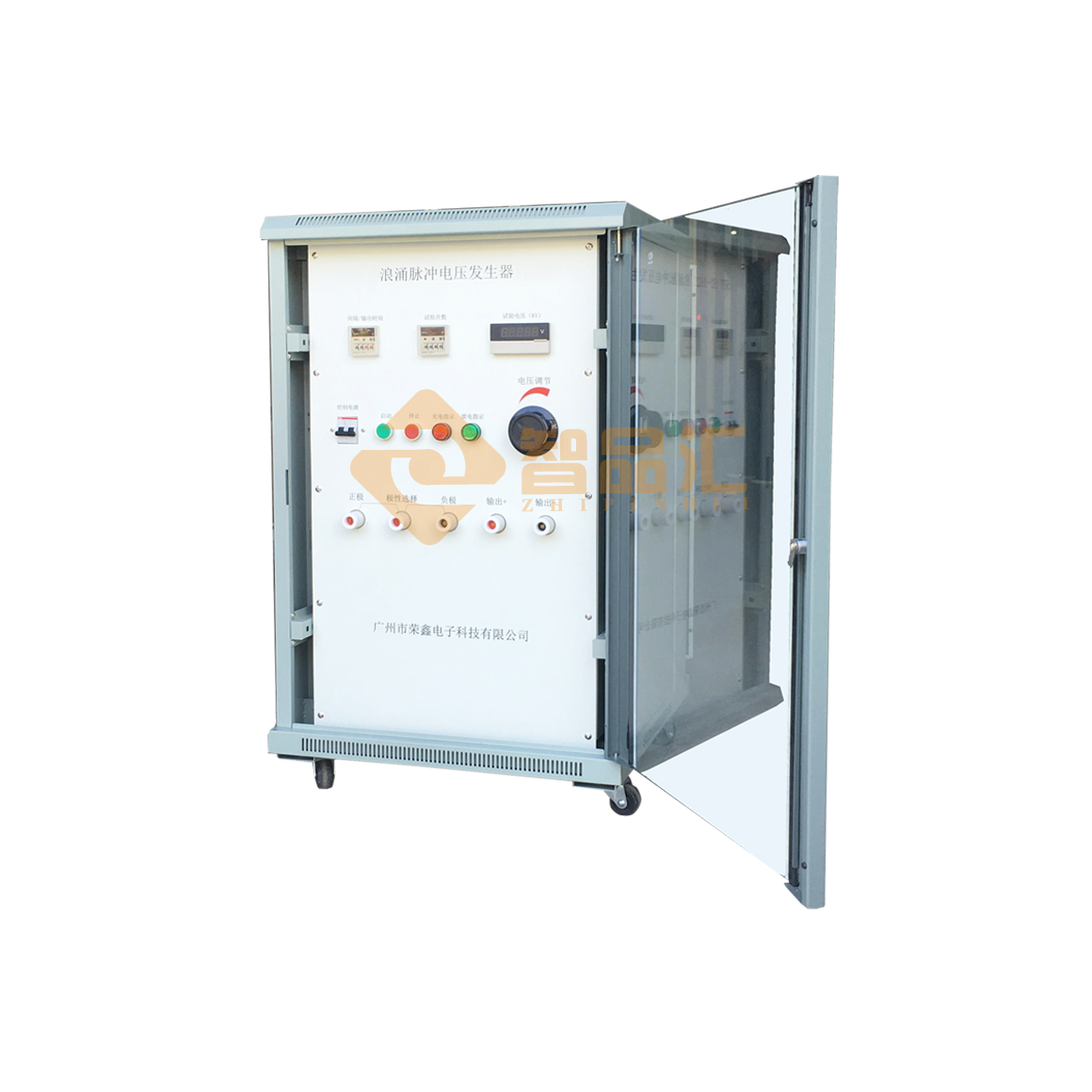

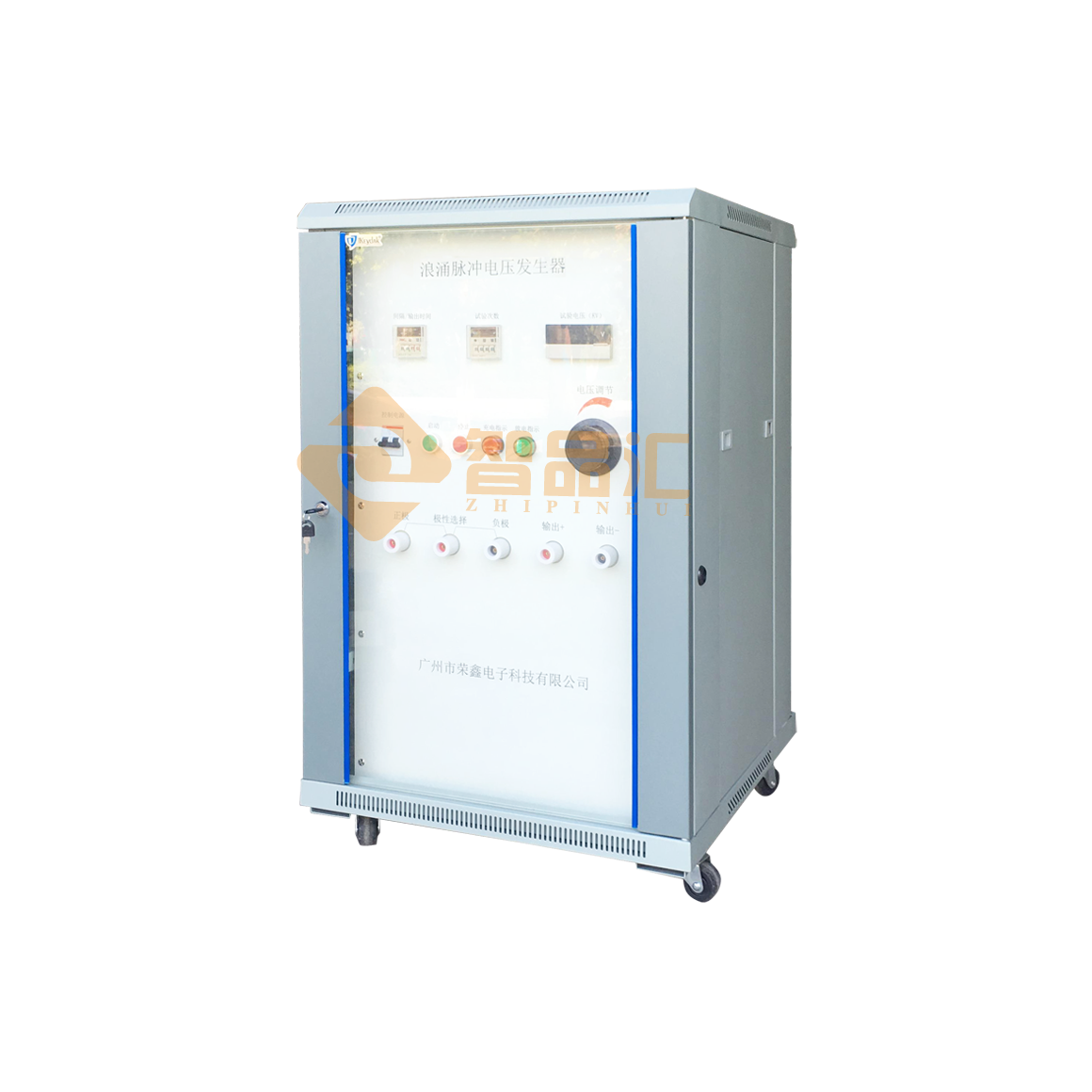

RX9850A Surge Generator（Pulse Tester), It is a test instrument used to generate pulse signals and high-voltage DC signals. This instrument is designed and manufactured according to the requirements of Appendix N.1 of GB4943.1-2011 (IEC60950-1: 2005, MOD) standard. It simulates lightning interference in communication networks and transient voltage in power distribution systems for various information technology equipment. It is an electrical safety test instrument.
RX9850A Surge Generator is controlled by Mitsubishi PLC programmable controller. All parameters and working status of the instrument are displayed and set on Taiwan Wellentong 7-inch color touch screen (TK6070iH), with Chinese menu interface. The instrument also has overvoltage protection to ensure the safety and reliability of the instrument. It can be widely used in electrical safety testing laboratories and electronic and electrical appliance manufacturing companies.
Technical indicators
1. Test pulse waveform: 10/700uS
l Waveform error: Time before empty carrier: 1.2μs ±20%
No-load half peak time: 50μs ±20%
l Output pulse voltage: 0.5～ 4kV, continuously adjustable;
l Voltage digital display accuracy: ± 5% ± 3 digits;
2. Test pulse waveform: 1.2/50uS
l Waveform error: Time before empty carrier: 1.2μs ±20%
No-load half-peak time: 50μs ±20%
l Output pulse voltage: 0.5～ 4kV, continuously adjustable;
l Voltage digital display accuracy: ± 5% ± 3 digits;
3. Charge and discharge time setting: 1 second to 999 seconds
4. Its accuracy: ± 1%
5. Charge and discharge times setting: 0 to 999 times
6. Its accuracy: ± 1 time.
7. Output voltage polarity: Positive and negative switching alternately
8. Monitoring output voltage divider ratio: 1:1000
9.
Overcurrent protection and overvoltage protection can continuously set
the protection value (adjustment setting inside the machine);
10. Display and operation mode: 7-inch color touch screen (TK6070iH) display and menu interface operation;
11. High-voltage transformer power: 400VA;
12. The waveform test requires the user to prepare a high-voltage probe + digital storage oscilloscope
13. Instrument size: about 600mm (length) × 600mm (depth) × 1000mm (height);
14. Working power: 220V ± 10%, 50Hz ± 2Hz.
RX9850A Surge Generator（Pulse Tester), It is a test instrument used to generate pulse signals and high-voltage DC signals. This instrument is designed and manufactured according to the requirements of Appendix N.1 of GB4943.1-2011 (IEC60950-1: 2005, MOD) standard. It simulates lightning interference in communication networks and transient voltage in power distribution systems for various information technology equipment. It is an electrical safety test instrument.
RX9850A Surge Generator is controlled by Mitsubishi PLC programmable controller. All parameters and working status of the instrument are displayed and set on Taiwan Wellentong 7-inch color touch screen (TK6070iH), with Chinese menu interface. The instrument also has overvoltage protection to ensure the safety and reliability of the instrument. It can be widely used in electrical safety testing laboratories and electronic and electrical appliance manufacturing companies.
Technical indicators
1. Test pulse waveform: 10/700uS
l Waveform error: Time before empty carrier: 1.2μs ±20%
No-load half peak time: 50μs ±20%
l Output pulse voltage: 0.5～ 4kV, continuously adjustable;
l Voltage digital display accuracy: ± 5% ± 3 digits;
2. Test pulse waveform: 1.2/50uS
l Waveform error: Time before empty carrier: 1.2μs ±20%
No-load half-peak time: 50μs ±20%
l Output pulse voltage: 0.5～ 4kV, continuously adjustable;
l Voltage digital display accuracy: ± 5% ± 3 digits;
3. Charge and discharge time setting: 1 second to 999 seconds
4. Its accuracy: ± 1%
5. Charge and discharge times setting: 0 to 999 times
6. Its accuracy: ± 1 time.
7. Output voltage polarity: Positive and negative switching alternately
8. Monitoring output voltage divider ratio: 1:1000
9. Overcurrent protection and overvoltage protection can continuously set the protection value (adjustment setting inside the machine);
10. Display and operation mode: 7-inch color touch screen (TK6070iH) display and menu interface operation;
11. High-voltage transformer power: 400VA;
12. The waveform test requires the user to prepare a high-voltage probe + digital storage oscilloscope
13. Instrument size: about 600mm (length) × 600mm (depth) × 1000mm (height);
14. Working power: 220V ± 10%, 50Hz ± 2Hz.
