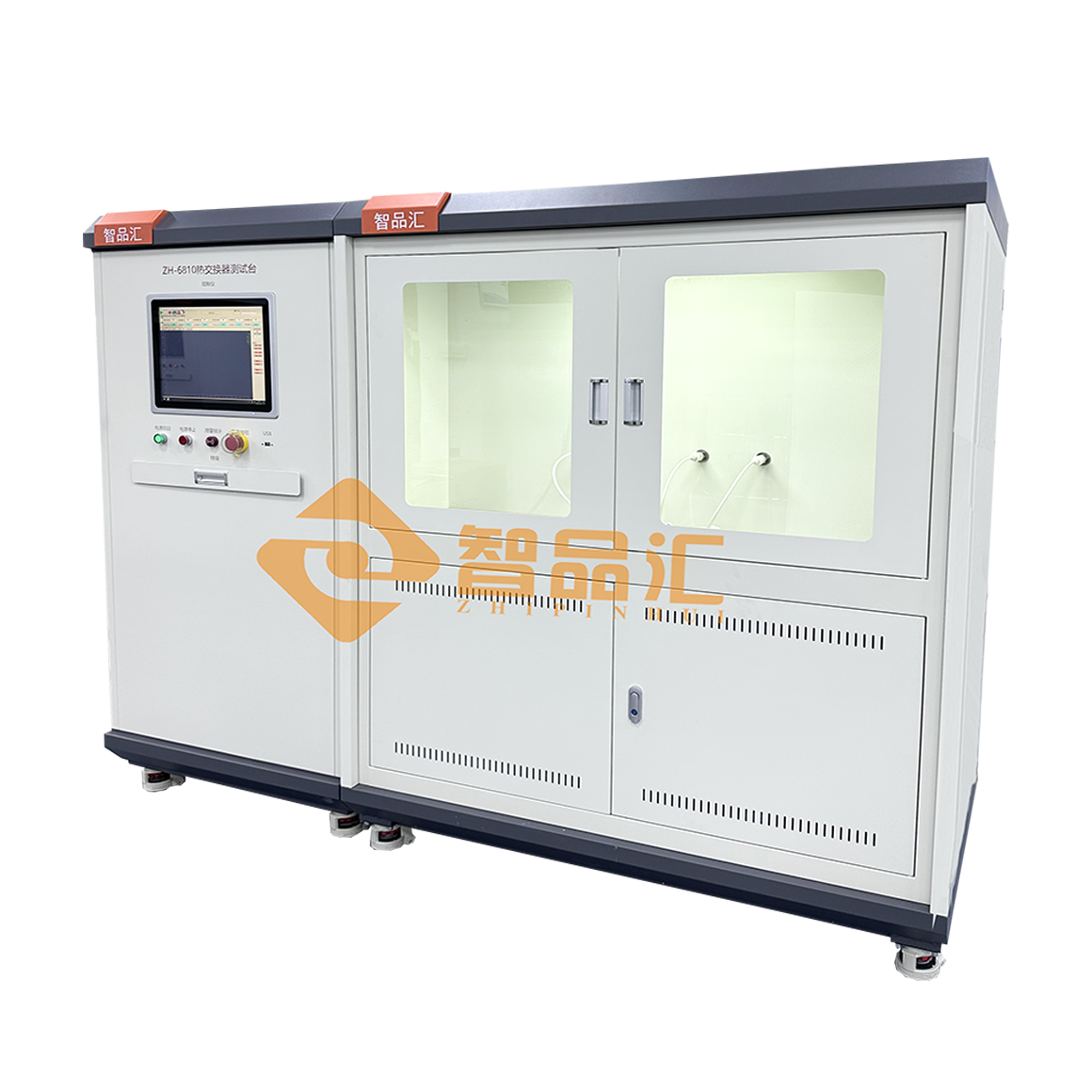

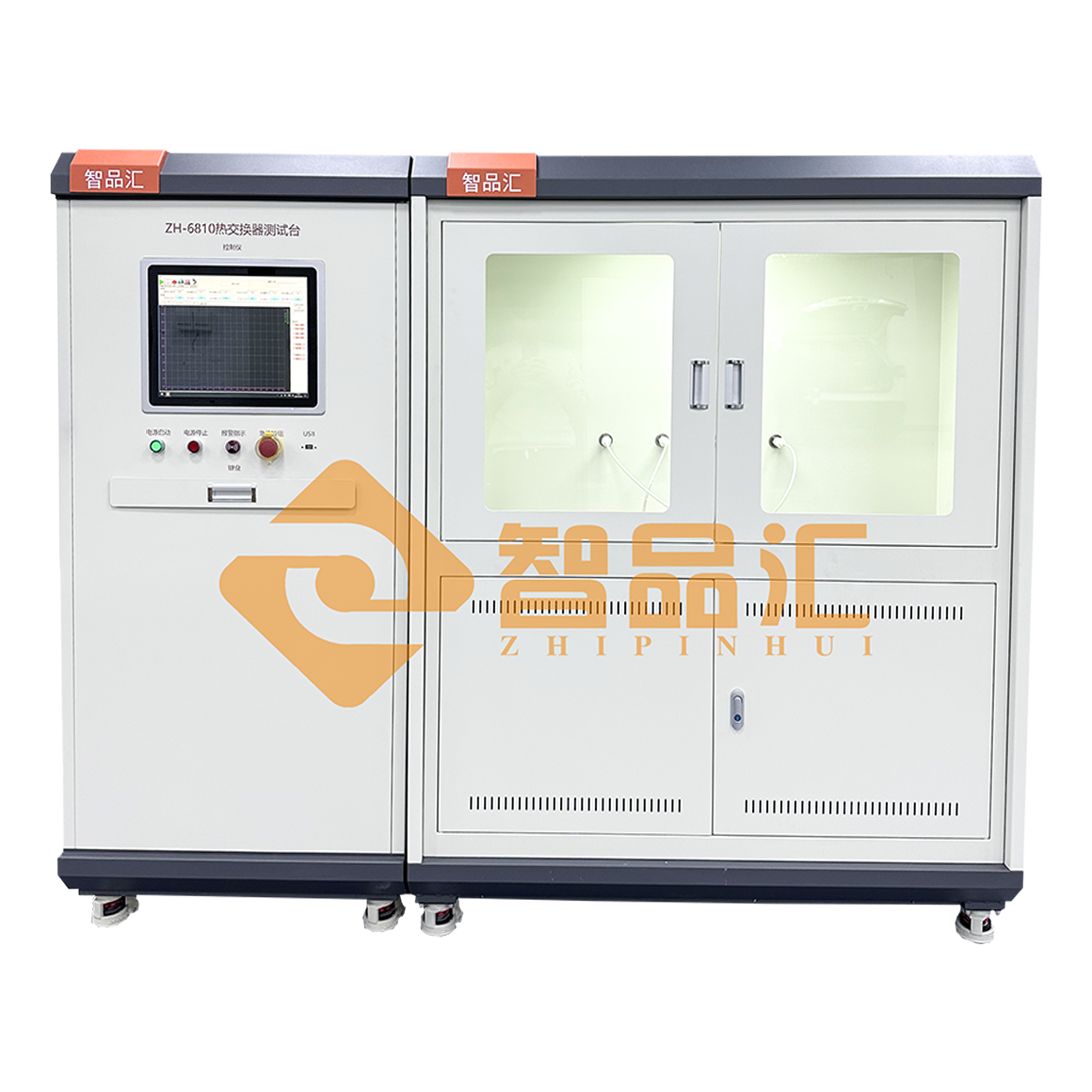

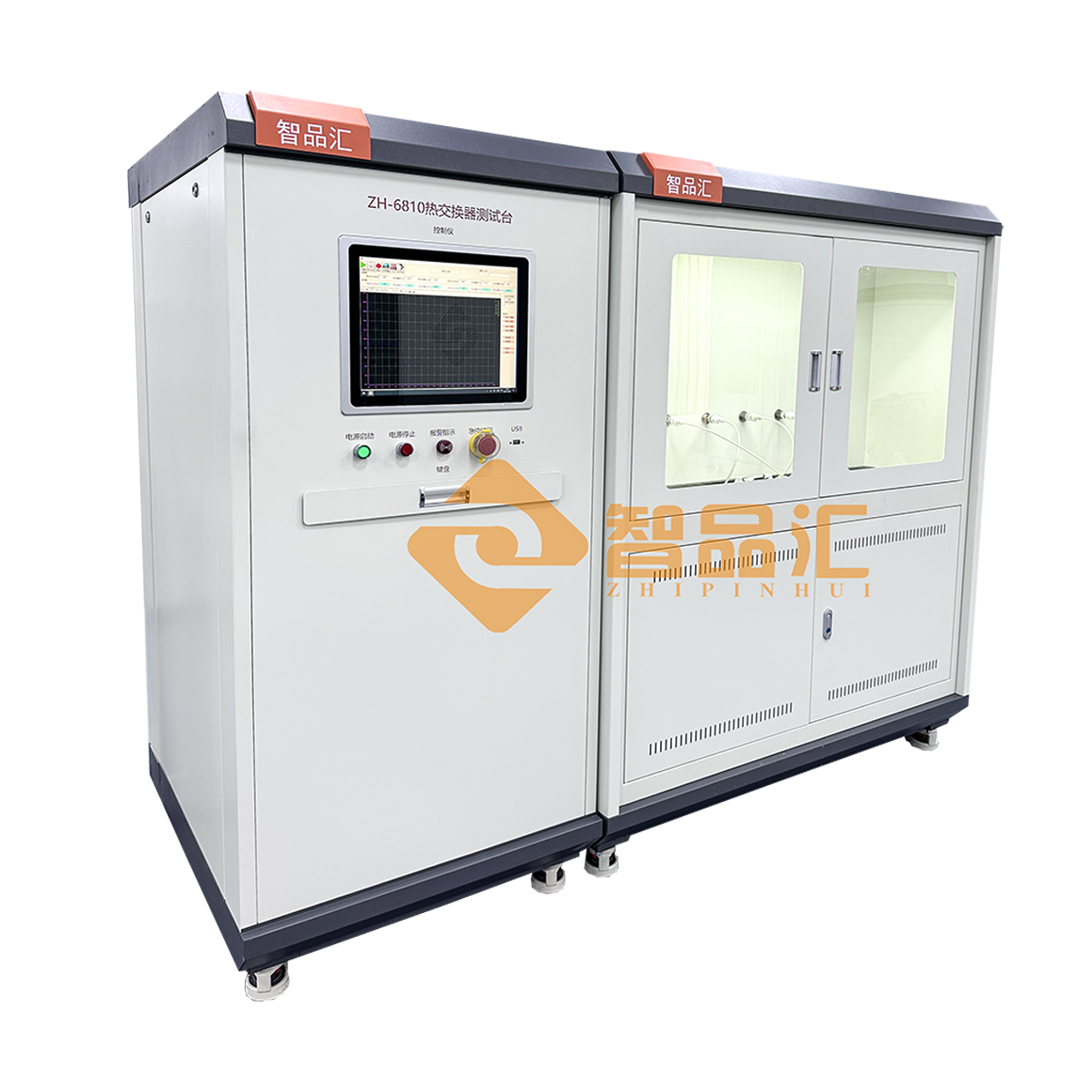

ZH-6810Heat exchanger life test bench
一. Overview
Applicable to the heat exchange capacity test of the heat exchanger of the water purification equipment;
二. Technical parameters
1. Workstation: 1 workstation
2. Water tank: 2 100L water tanks (one normal temperature water tank, one heating water tank), material 304, thickness ≥1.2mm
3. Test time: 0-999s can be preset
4. Hot water outlet temperature detection: 0-120℃
5. Normal temperature outlet temperature detection: 0-60℃
6. Hot water outlet flow detection: 0.2-2L/min
7. Normal temperature water outlet flow detection: 0.2-2L/min
8. Normal temperature water inlet temperature: 25℃ ± 2℃, using air-cooled constant temperature unit
9. Normal temperature water inlet pressure: 0.05-0.3MPa adjustable
ZH-6810Heat exchanger life test bench
一. Overview
Applicable to the heat exchange capacity test of the heat exchanger of the water purification equipment;
二. Technical parameters
1. Workstation: 1 workstation
2. Water tank: 2 100L water tanks (one normal temperature water tank, one heating water tank), material 304, thickness ≥1.2mm
3. Test time: 0-999s can be preset
4. Hot water outlet temperature detection: 0-120℃
5. Normal temperature outlet temperature detection: 0-60℃
6. Hot water outlet flow detection: 0.2-2L/min
7. Normal temperature water outlet flow detection: 0.2-2L/min
8. Normal temperature water inlet temperature: 25℃ ± 2℃, using air-cooled constant temperature unit
9. Normal temperature water inlet pressure: 0.05-0.3MPa adjustable
Zhipinhui After-Sales Policy:
*After-Sales Hotline: +864008166687
1. Our company has assembled a team of experienced field engineers and senior technicians to promptly respond
to any equipment issues and provide after-sales maintenance.
2. Within China, within one week of new product delivery, our after-sales technical staff will install the equipment and
provide after-sales training at the customer's location, using the contact information and address provided by the customer.
3. All complaints related to product quality will be responded to within one hour. Within 3-5 hours within the province,
and within 24-48 hours outside the province, we will arrive at the customer's site,
determine the appropriate action based on the complaint, and provide after-sales repairs. (Domestic)
4. For international travel, our company can also arrange for an after-sales engineer to visit you for installation and
commissioning. Please discuss any travel and catering issues in advance.
We also provide video installation guides for you to choose from, providing you with a comprehensive and multi-faceted solution.
5. Any material costs related to product quality during the warranty period will be borne by our company.
6. During the warranty period, we will provide free repairs due to improper use or environmental factors.
The materials and accessories used for repairs will be charged at cost only.
