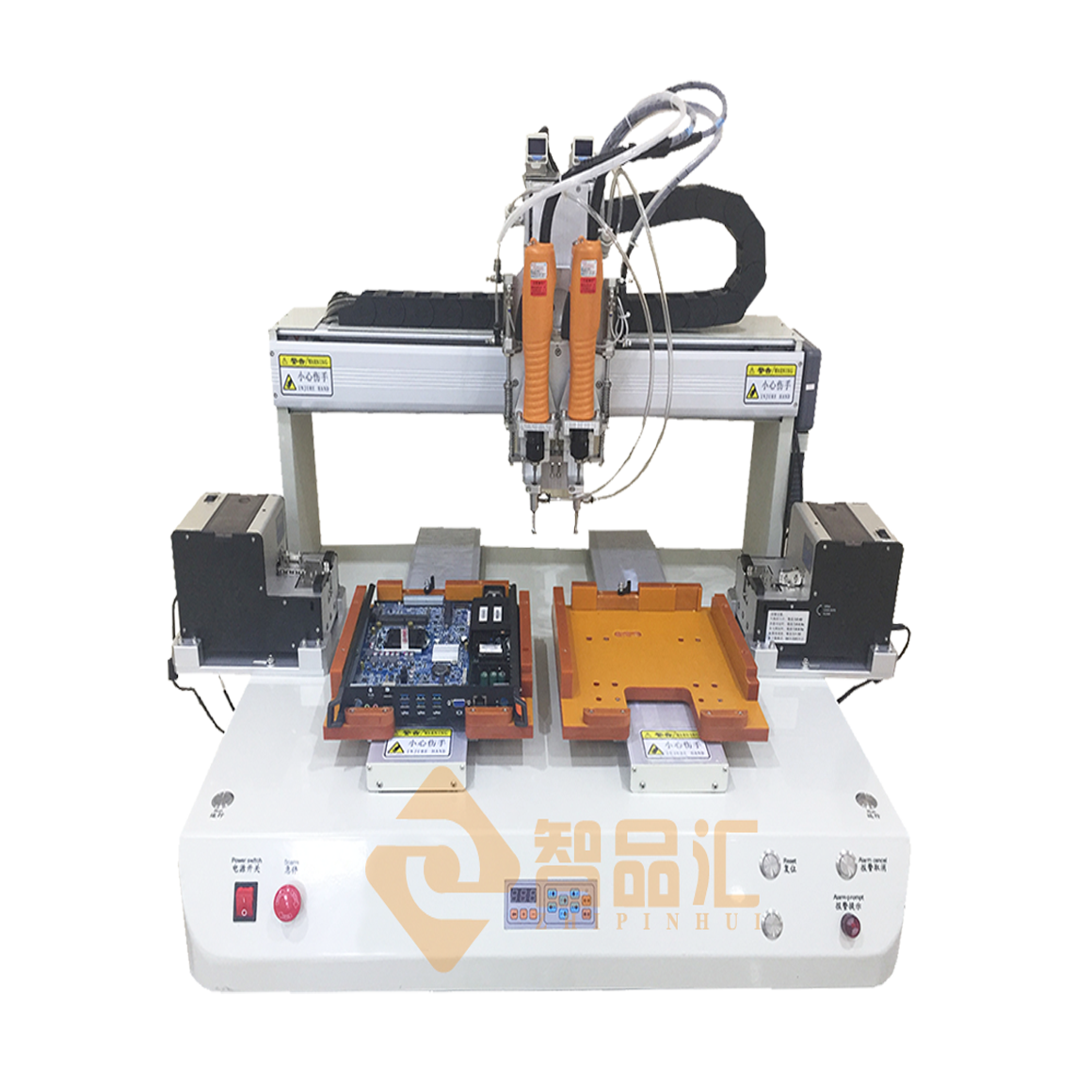

ZH-5331X-2螺丝机 (吸气式双系统) Screw machine robot (Suction double system)
产品规格Product Specification
螺丝机 (吸气式双系统) Screw machine (suction double system) | ZH-5331X-2 精准6轴Accurate 6-axis |
加工范围Processing range X/Y/ /Z/R | 300mm/300mm/100mm(可定制Customizable) |
Y轴平台最大负载Y-axis platform maximum load | 15KG |
X/Y/Z轴移动速度(mm/sec) X/Y/Z-axis movement speed (mm/sec) | 0-1200 |
XYZ轴重复精度XYZ Axis Repeatability | <±0.02mm |
控制方式Control Mode | PLC |
编程方式Programming method | 工业控制卡Industrial Control Card |
程序记录容量Program recording capacity | 999组程序999 programs |
马达系统Motor system | 步进级精密马达Stepping precision motors |
传动方式Transfer method | 高精度同步带+直线导轨High precision synchronous belt or precision grade wire rod + linear guide rail |
电批Screwdriver | 奇力速Kilews |
批头Electric batch | 日本进口Import from Japan |
输入电源Input power | AC220V(内部开关转换Internal switch conversion) |
工作环境温度Working temperature | 5-40℃ |
外形尺寸Dimensions | L880*W720*H820 |
机器重量Machine weight | 120KG |
螺丝机器人功能：
1、高精准的电动起子，可控制扭矩提供给客户稳定而高精度的品质保证。High precision electric screwdriver can control torque and provide customers with stable and high precision quality assurance.
2、电批带螺丝滑牙、浮锁检测功能的系统：当螺丝打不良（漏锁、滑牙、浮锁）时，系统会自动暂停并且报警。Electric batch system with screw sliding and floating lock detection function: When the screw is bad (leak lock, slide tooth, float lock), the system will automatically pause and alarm.
3、强力的吸嘴，确保每次都吸起螺丝。Strong suction nozzle, make sure to suck the screws every time.
4、螺丝通用性强，只需调整轨道，更换吸嘴、批头即可适应M0.8-M4的螺丝锁附。The screw has strong versatility, only adjust the track, replace the suction nozzle, and the batch head can adapt to the screw lock attachment of M0. 8-M4.
5、双Y双头，可以打两种不同螺丝，交替作业，无产品取放时间，实现生产效率最大化。Double Y& Double Z design, can use two different screws, alternately work, no product take and release time, and achieve maximum production efficiency.
Zhipinhui after-sales service
Equipment after-sales policy:
*Equipment warranty period: One Year
*After sales hotline: 4008166687
1. Our company has assembled a team of experienced on-site engineers and senior technicians who can respond promptly to any equipment issues and provide after-sales maintenance.
2. Within one week of the delivery of the new product, our after-sales technical department staff will provide installation and after-sales training for the equipment at the customer's location based on the contact information and address provided by the customer.
3. All complaints related to product quality will be responded to within 1 hour. Within 3-5 hours within the province and 24-48 hours outside the province, the customer will arrive at the scene and determine the handling measures based on the complaint situation, and carry out after-sales maintenance.
4. To better address customers' difficulties and concerns, our company promises that all maintenance personnel will be on call.
5. Any costs related to product quality during the shelf life will be borne by our company.
6. During the warranty period, we will provide free repairs due to improper use by your side or natural environment. The materials and accessories used for repairs will only be charged at cost price.
