ZH-T-Z2P2台式双轴双批螺丝机

Home > Automation Equipment > Production line automatic screw machine > ZH-T-Z2P2台式双轴双批螺丝机

ZH-T-Z2P2台式双轴双批螺丝机

Non-standard products

Delivery

Free delivery

reservation

400-816-6687

Product Details Parameter Overview evaluate（0） After sales guarantee

Book Now

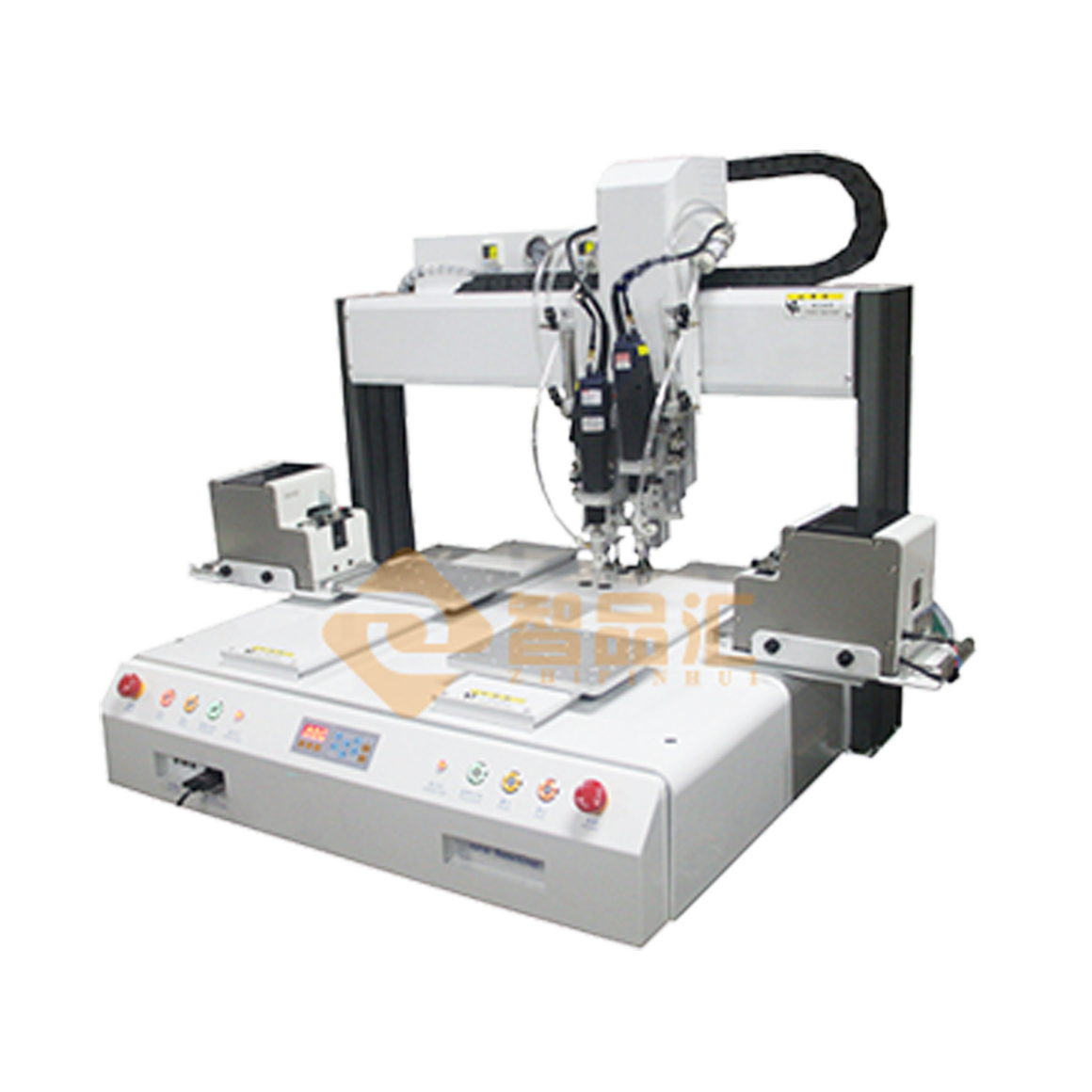

ZH-T-Z2P2台式双轴双批螺丝机Desktop Dual Axis Double Batch Screw Machine

螺丝机机器人Screw machine robot	ZH-T-Z2P2精准4轴ZH-T-Z2P2 Accurate 4-axis
加工范围Processing range X/Y1Y2/ /Z/R	500mm/300mm/300mm/100mm(可定制Customizable)
Y轴平台最大负载Y-axis platform maximum load	15KG
X/Y/Z轴移动速度X/Y/Zaxis movement speed (mm/sec)	0-1200
XYZ轴重复精度Axis Repeatability	<±0.02mm
控制方式Control Mode	PLC/工业控制卡PLC/Industrial Control Card
编程方式Programming method	触摸屏/手持编程器Touch screen / handheld programmer
程序记录容量Program recording capacity	多个程序多个编辑点Multiple programs with multiple edit points
马达系统Motor system	步进级精密马达Stepping precision motors
传动方式Transfer method	高精度同步带或精密级丝杆+直线导轨。High precision synchronous belt or precision grade wire rod + linear guide rail
电批Electric batch	日本HIOS或奇力速(客户也可指定) HIOS from Japan or Kilews (Customers can also specify)
批头Batch head	日本进口Import from Japan
输入电源Input power	AC220V(内部开关转换Internal switch conversion)
工作环境温度Working temperature	5-40℃
外形尺寸Dimensions	L680W720H820
机器重量Machine weight	75KG

功能特点Functions and characteristics

1、高精准的电动起子，可控制扭矩提供给客户稳定而高精度的品质保证。High-precision electric screwdriver ,can control torque to provide customers with stable and high-precision quality assurance.

2、电批带螺丝滑牙、浮锁检测功能的系统：当螺丝打不良（漏锁、滑牙、浮锁）时，系统会自动暂停并且报警。Electric batch system with screw sliding and floating lock detection function: When the screw is bad (leak lock, slide tooth, float lock), the system will automatically pause and alarm.

3、强力的吸嘴，确保每次都吸起螺丝。Strong suction nozzle, make sure to suck the screws every time.

4、螺丝通用性强，只需调整轨道，更换吸嘴、批头即可适应M0.8-M4的螺丝锁附。The screw has strong versatility, only adjust the track, replace the suction nozzle, and the batch head can adapt to the screw lock attachment of M0. 8-M4.

5、双Y轴双头设计、交替作业、无产品取放时间、实现生产效率最大化。Double Y-axis design, alternate operation, no product take-up time, realize maximum production efficiency.

All reviews0

Zhipinhui after-sales service

Equipment after-sales policy:

*Equipment warranty period: One Year

*After sales hotline: 4008166687

1. Our company has assembled a team of experienced on-site engineers and senior technicians who can respond promptly to any equipment issues and provide after-sales maintenance.

2. Within one week of the delivery of the new product, our after-sales technical department staff will provide installation and after-sales training for the equipment at the customer's location based on the contact information and address provided by the customer.

3. All complaints related to product quality will be responded to within 1 hour. Within 3-5 hours within the province and 24-48 hours outside the province, the customer will arrive at the scene and determine the handling measures based on the complaint situation, and carry out after-sales maintenance.

4. To better address customers' difficulties and concerns, our company promises that all maintenance personnel will be on call.

5. Any costs related to product quality during the shelf life will be borne by our company.

6. During the warranty period, we will provide free repairs due to improper use by your side or natural environment. The materials and accessories used for repairs will only be charged at cost price.
