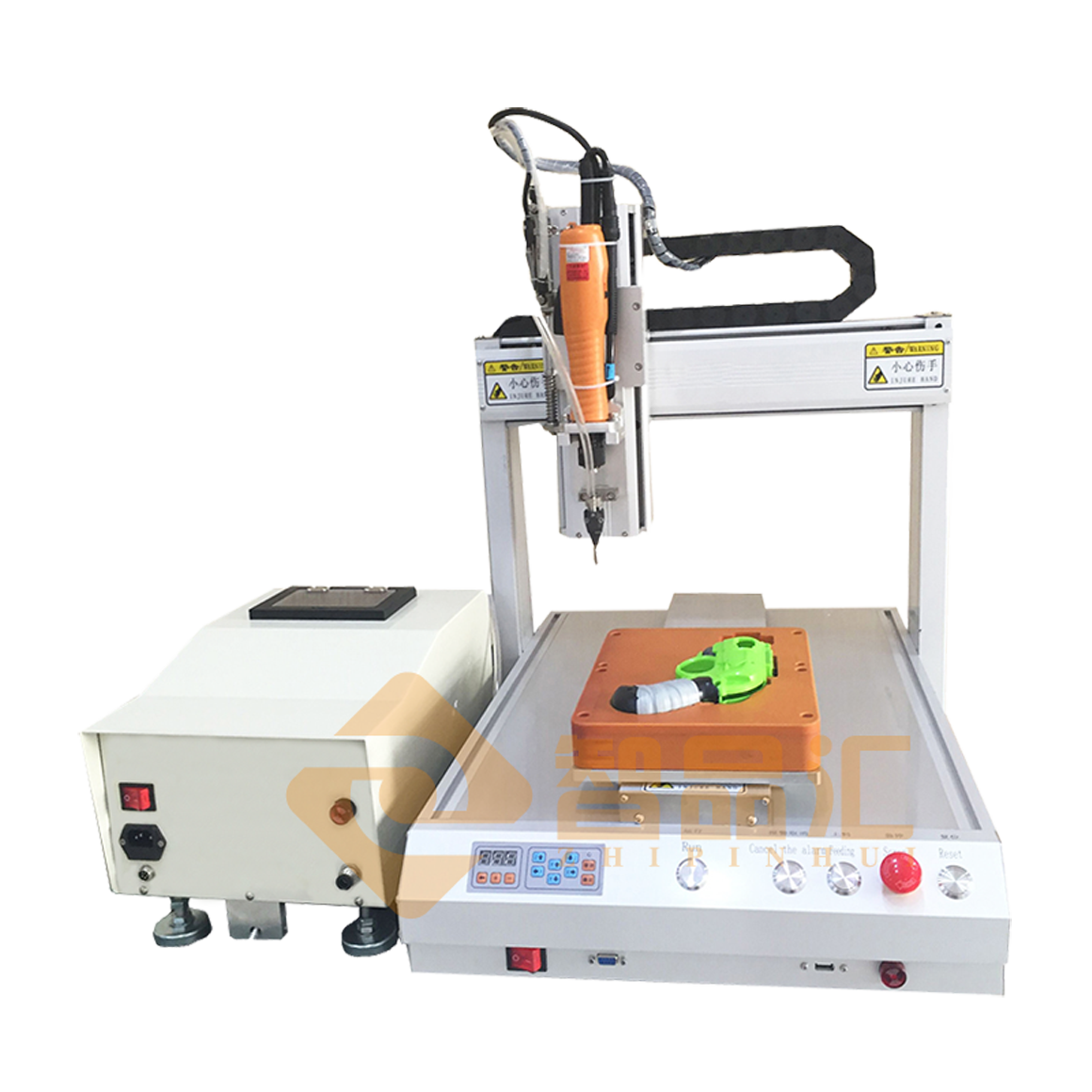

ZH-331C台式螺丝机Desktop Screw Machine
螺丝机机器人Screw machine robot | ZH-331C 精准3轴 ZH-331C Accurate 3-axis |
加工范围Processing range X/Y/ /Z/R | 300mm/300mm/100mm(可定制Customizable) |
Y轴平台最大负载Y-axis platform maximum load | 15KG |
X/Y/Z轴移动速度(mm/sec) X/Y/Z-axis movement speed (mm/sec) | 0-1200 |
XYZ轴重复精度XYZ Axis Repeatability | <±0.02mm |
控制方式Control Mode | 工业控制卡PLC/Industrial Control Card |
编程方式Programming method | 触摸屏Touch screen |
程序记录容量Program recording capacity | 可存储999组程序999 sets of programs can be stored |
马达系统Motor system | 步进级精密马达Stepping precision motors |
传动方式Transfer method | 高精度同步带+直线导轨High precision synchronous belt or precision grade wire rod + linear guide rail |
电批Screwdriver | 奇力速Kilews |
批头Electric batch | 日本进口Import from Japan |
输入电源Input power | AC220V(内部开关转换Internal switch conversion) |
工作环境温度Working temperature | 5-40℃ |
外形尺寸Dimensions | L680*W510*H820 |
机器重量Machine weight |
功能特点Functions and characteristics
1、高精准的电动起子，可控制扭矩提供给客户稳定而高精度的品质保证。High-precision electric screwdriver ,can control torque to provide customers with stable and high-precision quality assurance.
2、电批带螺丝滑牙、浮锁检测功能的系统：当螺丝打不良（漏锁、滑牙、浮锁）时，系统会自动暂停并且报警。Electric batch system with screw sliding and floating lock detection function: When the screw is bad (leak lock, slide tooth, float lock), the system will automatically pause and alarm.
3、锁嘴采用进口高强度钢，经热处理硬度可达HRC60度，经久耐磨、耐用。The lock mouth imported high-strength steel, heat treatment hardness of up to HRC60 degrees, durable wear and durability.
4、分料器采用耐磨不锈钢，分料定位精准。The distributor adopts wear-resistant stainless steel, and the material is accurately positioned.
5、本产品采用吹气式锁附效率高，且能快速排除螺丝故障，当故障排除后，能直接在原错误点继续动作。This product uses blow-type lock with high efficiency, and can quickly eliminate the screw failure, when the fault is removed, can continue to action at the original point of error.
6、螺丝通用性强，更换分料器、锁嘴、批头即可适应M1.5~M6，长径比大于1.3的螺丝锁附。The screw has strong versatility, replace the feeder, lock nozzle, and the batch head can accommodate M1.5~M6, and the screw with the aspect ratio greater than 1.3.
Zhipinhui after-sales service
Equipment after-sales policy:
*Equipment warranty period: One Year
*After sales hotline: 4008166687
1. Our company has assembled a team of experienced on-site engineers and senior technicians who can respond promptly to any equipment issues and provide after-sales maintenance.
2. Within one week of the delivery of the new product, our after-sales technical department staff will provide installation and after-sales training for the equipment at the customer's location based on the contact information and address provided by the customer.
3. All complaints related to product quality will be responded to within 1 hour. Within 3-5 hours within the province and 24-48 hours outside the province, the customer will arrive at the scene and determine the handling measures based on the complaint situation, and carry out after-sales maintenance.
4. To better address customers' difficulties and concerns, our company promises that all maintenance personnel will be on call.
5. Any costs related to product quality during the shelf life will be borne by our company.
6. During the warranty period, we will provide free repairs due to improper use by your side or natural environment. The materials and accessories used for repairs will only be charged at cost price.
