Air conditioning simulation environment laboratory

Used to simulate the indoor and outdoor usage environments of air conditioners during actual operation, measure the temperature, humidity, and wind speed distribution characteristics in the room during air conditioner operation, and evaluate the comfort, energy efficiency, weather resistance, and environmental adaptability of air conditioners under actual usage conditions. It is suitable for the research and development of air conditioners.

The laboratory consists of two main parts: an indoor environment simulation room and an outdoor environment simulation room.

Simulate the actual residential building of air conditioning users in the indoor environment room.

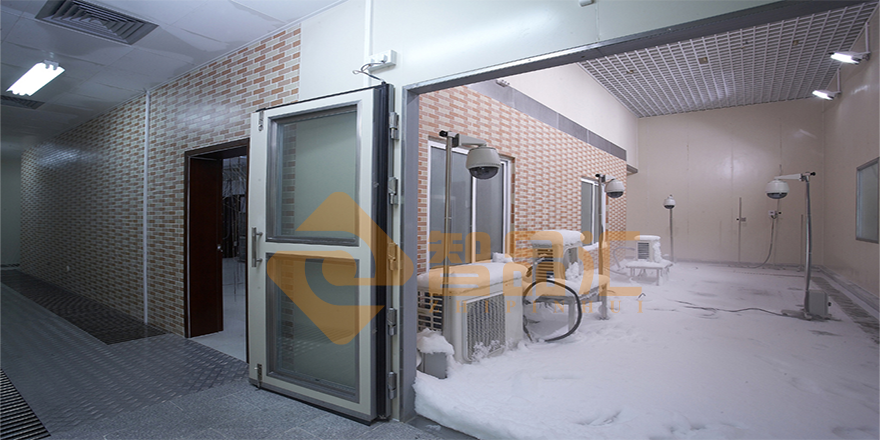

The external environment room can simulate typical global climate conditions, such as tropical, temperate, and polar climates, and provide various meteorological conditions such as wind, sunshine, rainfall, snowfall, etc.

The external environment room can also be applied to fields such as vehicles, weapons, aircraft, electricity, communication, textiles, agriculture, etc.

Reference standards: GB/T 7725、ISO 5151、JIS B 8615

Test project

1. Air conditioning comfort test and research

2. Temperature rise and fall rate and amplitude test of air conditioner

3. Power consumption test of air conditioner in different environments

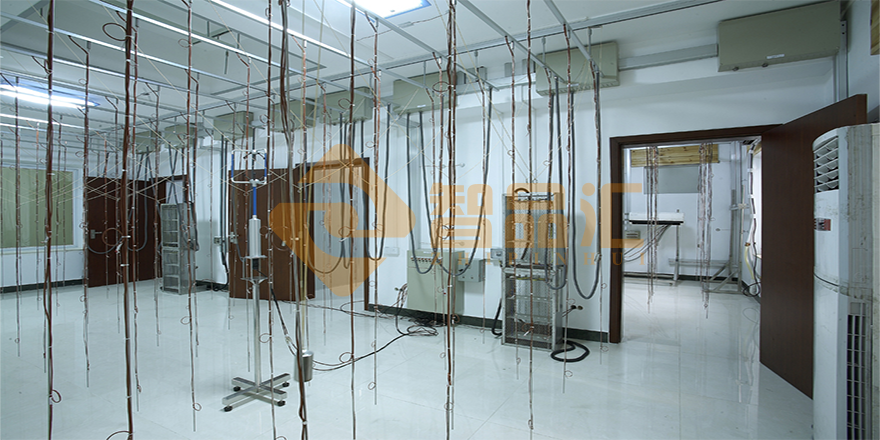

4. Distribution characteristics test of room temperature field, humidity field, and airflow velocity field

5. Environmental adaptability (weather resistance) test of air conditioner.

6. Practical testing of air conditioners (mainly referring to operational performance).

technical specifications

1. Outdoor dry bulb temperature range: - 20 ～ 55 ℃

2. Indoor relative humidity range: 30-90% RH

3. Rainfall: water temperature of 5-35 ℃, rainfall of 90-150mm/h, rainfall area of 20m2

4. Snowfall: continuous spray snowfall for more than 1 hour, ambient temperature -7~-20 ℃, snowfall area of 10 m2

5. Sunshine: 0.6~1.05KW/m2, intensity can be automatically adjusted according to different time periods

6. Wind blowing: wind speed of 1-10m/s, air outlet area of 1 m2

7. Interior: concrete frame+brick wall structure, ground polished brick or wooden floor, adjacent to the exterior wall with adjustable temperature heating layer. 8. Various specifications can be customized according to customer requirements.
