400-816-6687ET3255五位半台式万用表---参数简介
ET3255是一款5 ½显示、220000计数的双数显台式真有效值万用表。本台表采用STM32芯片配合外部双积分AD，提供精准的测量，稳定的性能。3.5寸320*480高分辨率TFT液晶显示屏读数清晰、显示丰富，具有良好的视觉效果。本台表采用市电供电，并提供全功能、全量程过载保护。清新、简约的外观设计配合出色的性能使之成为电工、电子爱好者、工程师及高等院校实验室的必备之选。
基本特色：
l 5 ½位分辨率，最大显示位数220000。
l 双参显示：可显示同一输入信号的两项参数。
l 测量速度：快速(7次/秒)、中速(5次/秒)、慢速(2次/秒)。
l 触发方式：自动触发、单次触发、外部触发。
l 12种基本测量功能：交直流电压、交直流电流、二线/四线电阻、周期/频率、二极管、通断、电容、占空比。
l 直流电压基本准确度：0.015%。
l 数学功能：MAX、MX+B、MIN、dB、dBm、REL、Hold、上限比较、下限比较、统计。
l 附加功能：数据保持、数据存储、数据回读。
l 开放校准功能。
l 按键可以锁定。
l 方波输出。
l 提供系统设置，可自行配置语言(中文或英文)、蜂鸣器、屏幕亮度、界面风格。
l 温度测量：热电偶：K/N/R/S/T/B/E/J/WRe325/WRe526;热电阻：PT100/PT50/Cu100/Cu50。

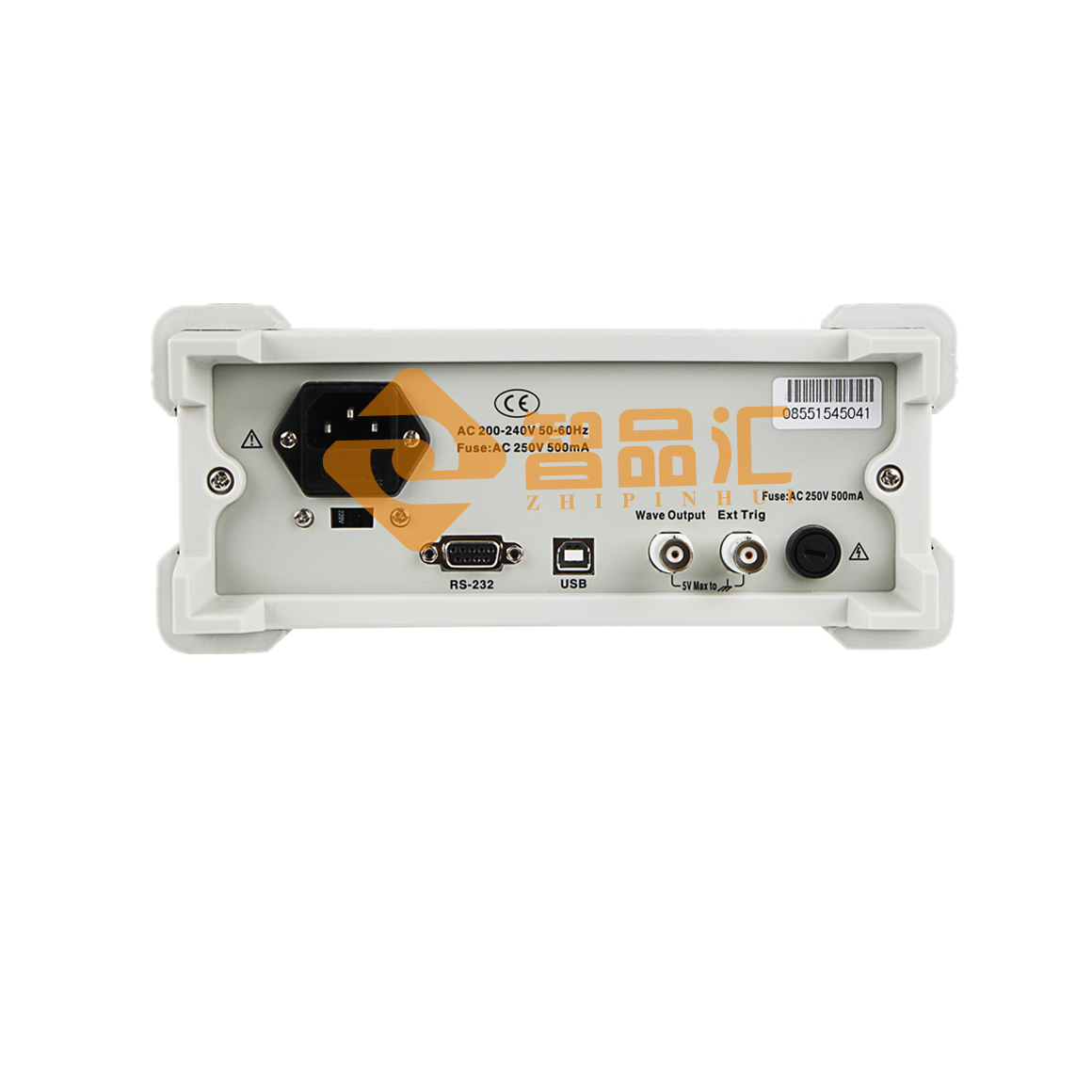

l 通讯接口：标配：USB Device、RS232
l 支持SCPI协议。
ET3255 five and a half position desktop multimeter---Parameter Introduction

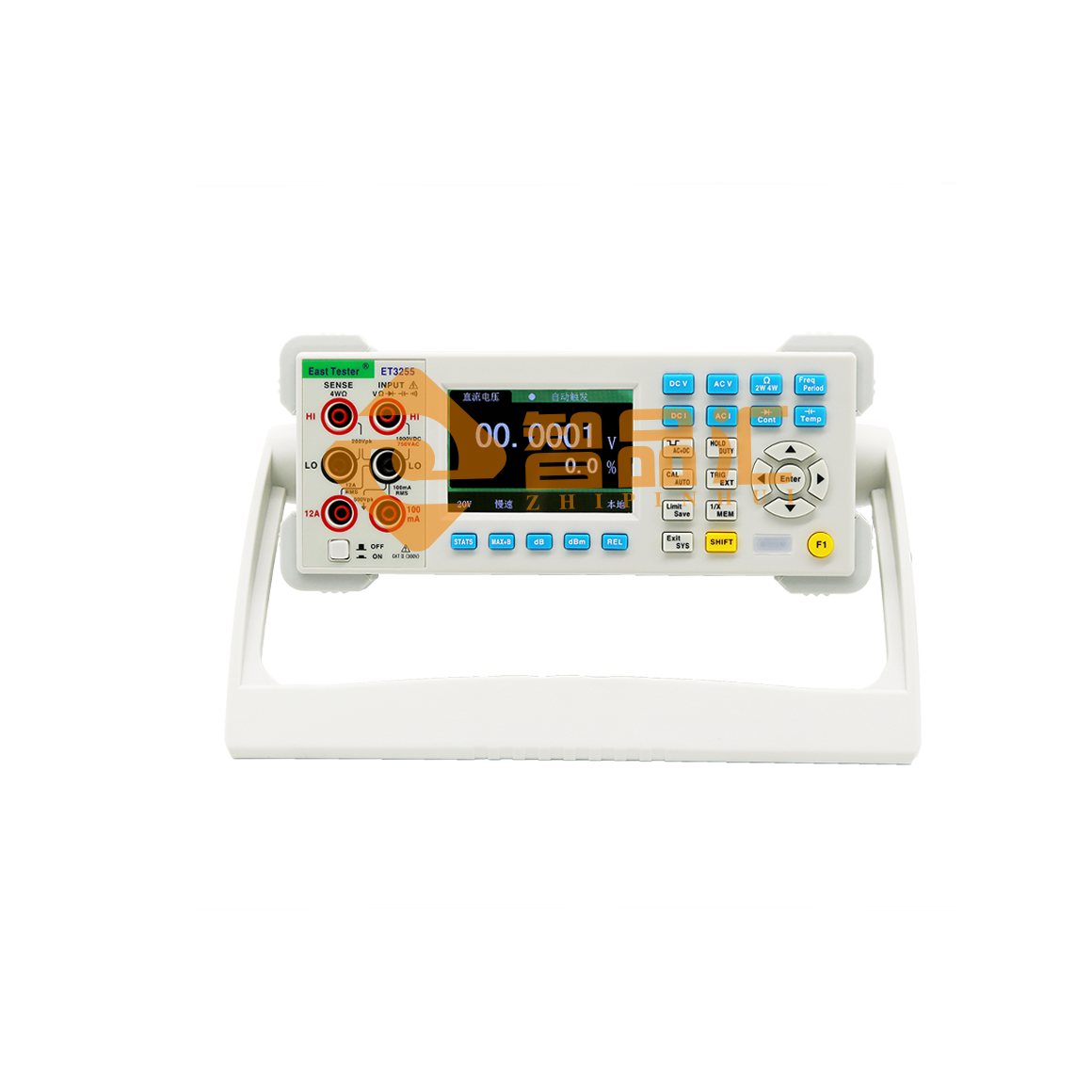

The ET3255 is a 5 ½ display, 220,000 count dual digital display true RMS multimeter. This meter uses the STM32 chip with an external dual integral AD to provide accurate measurement and stable performance. The 3.5-inch 320*480 high-resolution TFT LCD display has clear readings, rich displays, and good visual effects. This meter is powered by AC power and provides full-function, full-range overload protection. The fresh and simple appearance design combined with excellent performance makes it a must-have for electricians, electronics enthusiasts, engineers and university laboratories.
Basic features:
l 5 ½-digit resolution, maximum display digits 220,000.
l Dual parameter display: can display two parameters of the same input signal.
l Measurement speed: fast (7 times/second), medium (5 times/second), slow (2 times/second).
l Trigger mode: automatic trigger, single trigger, external trigger.
l 12 basic measurement functions: AC/DC voltage, AC/DC current, two-wire/four-wire resistance, period/frequency, diode, on/off, capacitance, duty cycle.
l Basic DC voltage accuracy: 0.015%.
l Mathematical functions: MAX, MX+B, MIN, dB, dBm, REL, Hold, upper limit comparison, lower limit comparison, statistics.
l Additional functions: data hold, data storage, data readback.
l Open calibration function.
l Buttons can be locked.
l Square wave output.
l Provide system settings, you can configure the language (Chinese or English), buzzer, screen brightness, interface style.
l Temperature measurement: Thermocouple: K/N/R/S/T/B/E/J/WRe325/WRe526; Thermal resistor: PT100/PT50/Cu100/Cu50.
l Communication interface: Standard: USB Device, RS232
l Support SCPI protocol.
