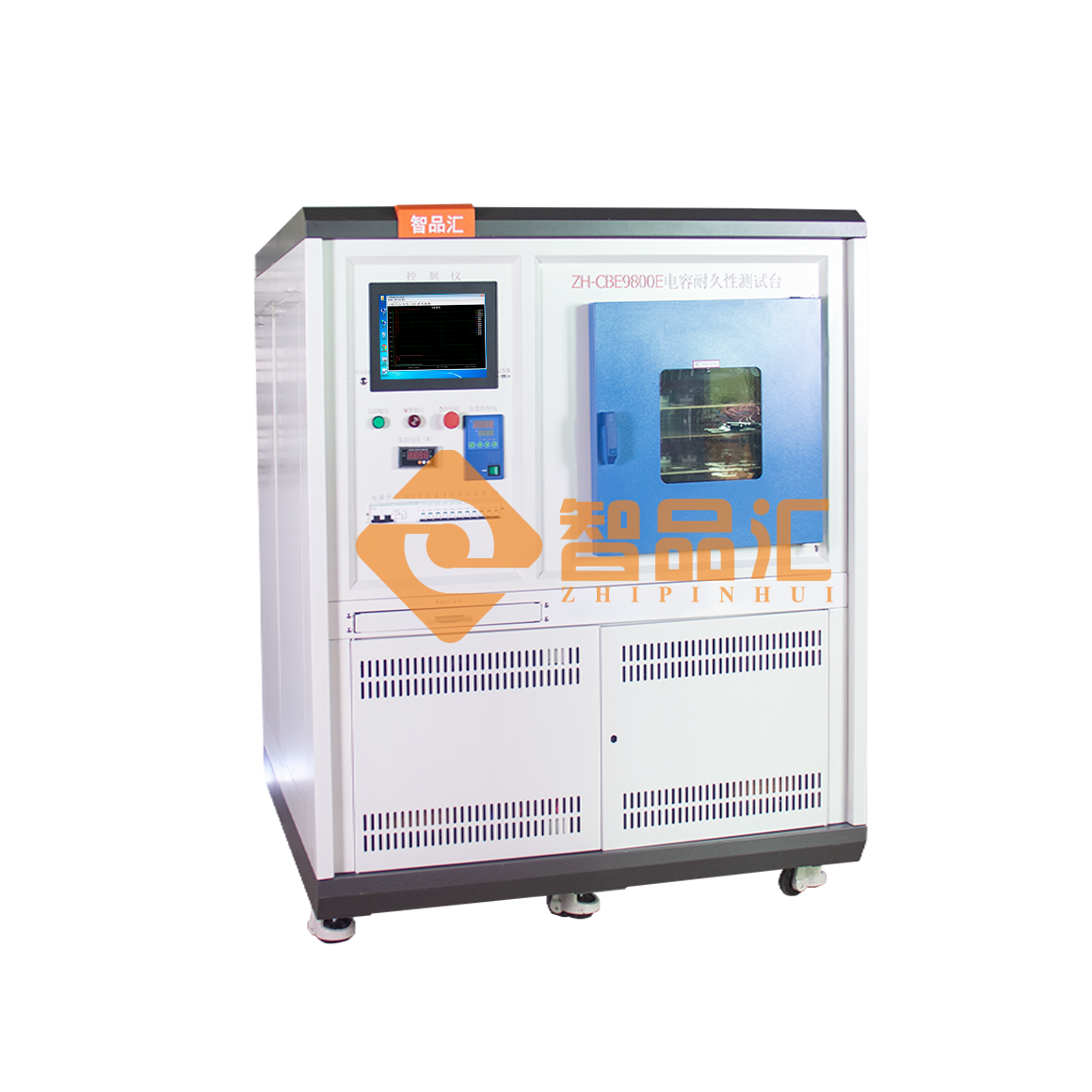

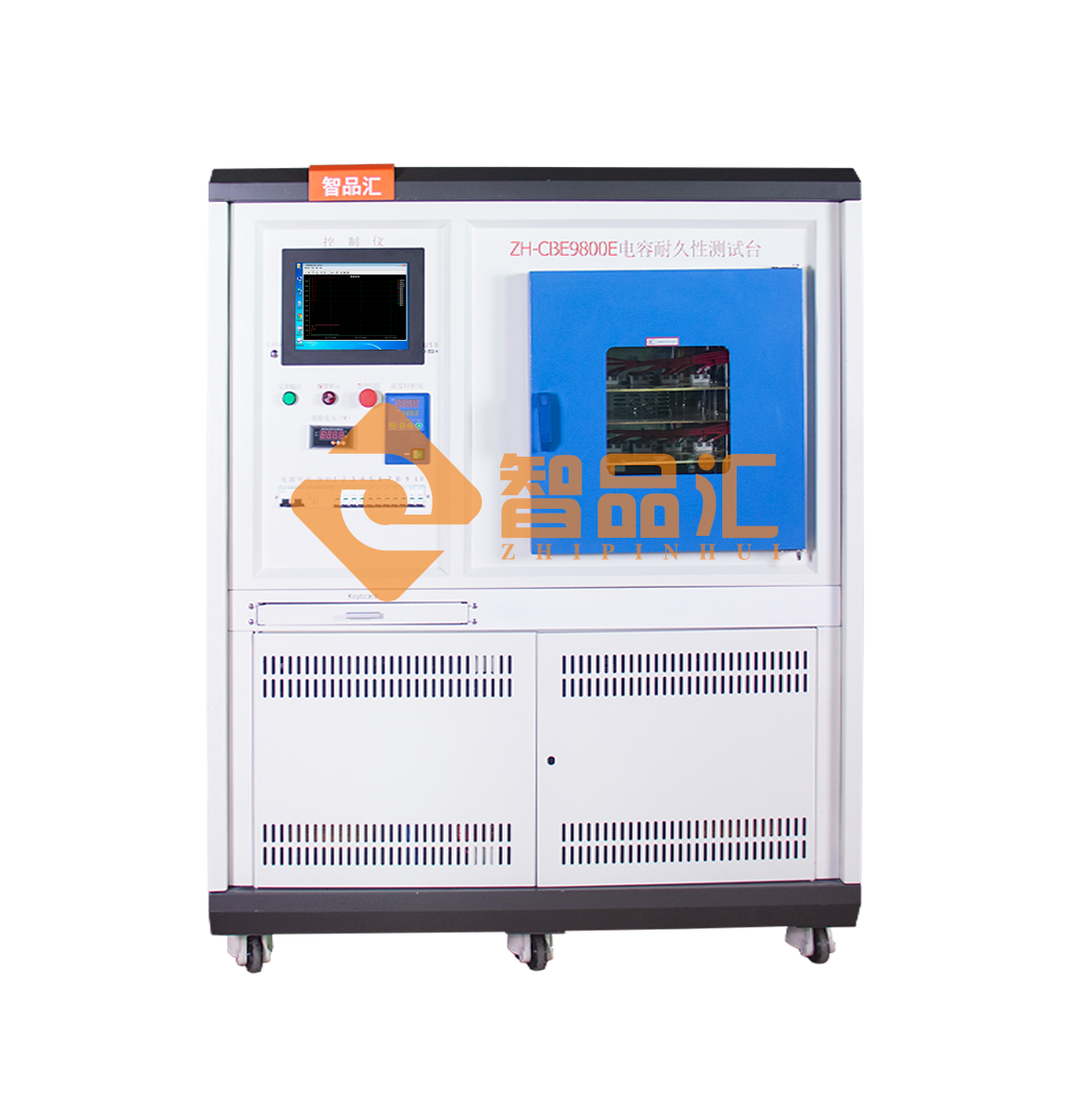

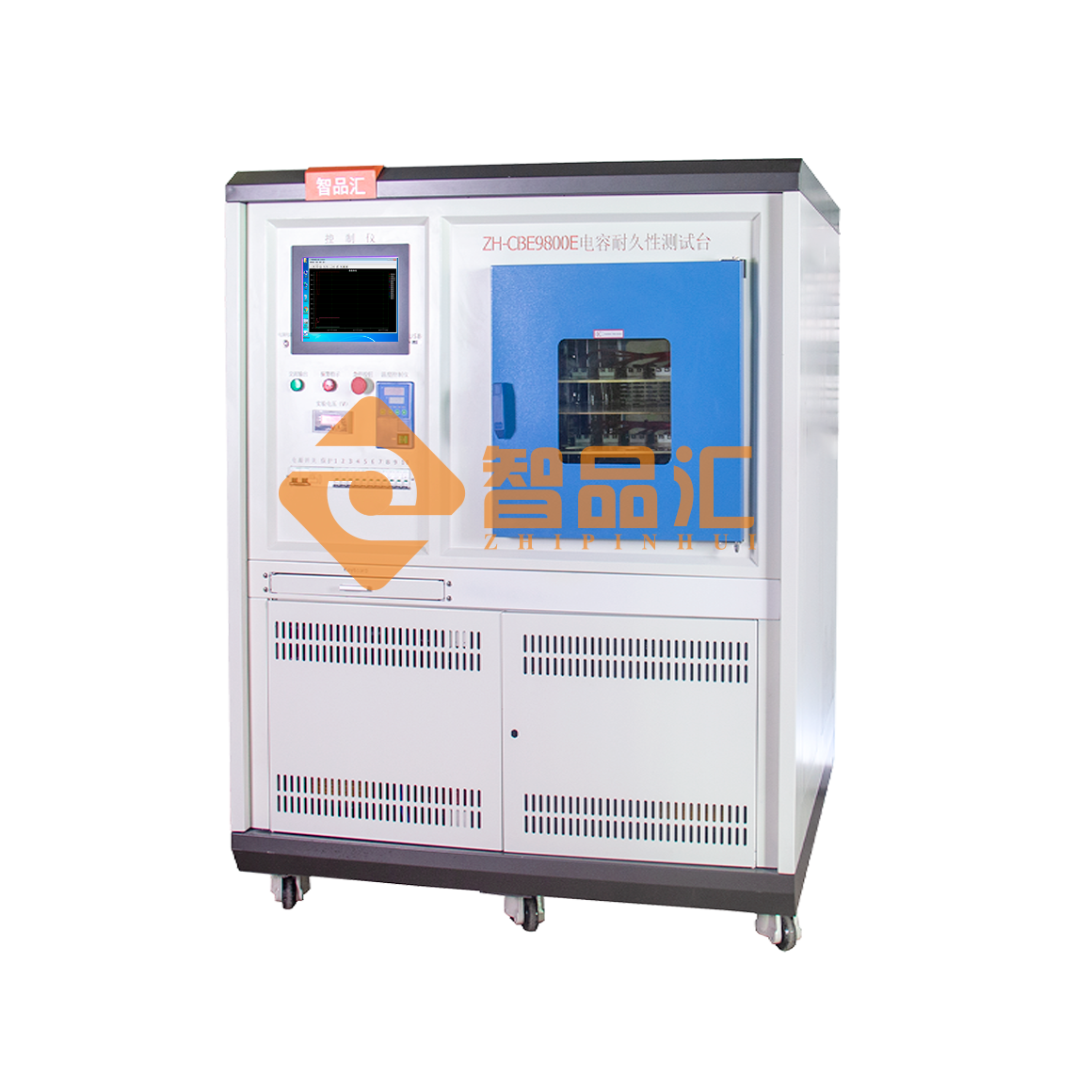

ZH-CBE9800E Capacitor Durability Test Stand (Upgraded Version)

This device is designed and manufactured in accordance with the requirements of GB/T3667·1-2016, IEC60252·2-2011, GB12747-1991, Japan JIS C 4908-2007 and other standards. It is suitable for capacitor manufacturers, household appliance factories and quality inspection departments to conduct capacitor quality inspection. The device uses parallel reactors for precise compensation, which makes it have very low requirements for grid capacity. It adopts PLC+touch screen control, which can digitally set the test voltage, running time, test capacity, power on and off time, number of times, etc.; and digitally display the test voltage and each capacitor test current. The system is equipped with an electric voltage regulator, which can automatically increase and decrease the voltage, and at the same time complete the automatic voltage regulation of the output voltage, eliminating the need for a voltage regulator. It has the characteristics of simple operation, intuitive display, and convenient adjustment.
1. Test range: 1~100μF Un≤560V self-healing capacitor

2. Test voltage: 0~1300V, digital setting, display accuracy ±(1%+3 characters) voltage control accuracy: ±(1%+2V), voltage setting resolution is 1V

3. Working mode

A. Continuous endurance mode:

Test voltage: 0~800V adjustable

Test time: 0.1~9999.9 hours, power-off memory ±0.2%

Time control accuracy index: ±(0•1%＋1min;)

B. Inter-electrode withstand voltage mode: 1-999 seconds can be set

Test voltage: 0~1300V adjustable

Test one capacitor at a time, automatically and quickly increase the voltage

Automatically time when the voltage reaches, and automatically shut down when the test time reaches

Automatically determine whether the tested product is broken down at the end of the test

C. On-off endurance mode:

Test voltage: 0~800V adjustable

Test on-off time setting: 1.0～999.9S;

Number of on-offs 1～999999 times can be set

Test number accuracy: ±1 time

4. Equipment load: The total load of the equipment does not exceed 1000uF

Number of test paths: 10 paths, each path has a capacity of no more than 100uF

Each path has an overcurrent protection circuit

5. Total current 0～20A digital display accuracy ±1.5%FS

Total inductance current 0～500A digital display accuracy ±1.5%FS

Total capacitance current 0～500A digital display accuracy ±1.5%FS

Each current display 0～40A digital display accuracy ±1.5%FS

6. Integrated touch screen computer settings, control, real-time display of test voltage, current, number, time and other parameters
