400-816-6687 ZH-1023 Rainy Experiment Device for Central Air Conditioning External Unit
1. Overview:
IPX3-6 shower rain test device is based on IEC60529：1989+A1：1999+A2:2013《Degrees of protection provided by enclosure（IP Code）》、GB/T 4208-2017《Enclosure Protection Grade (IP Code)》/IEC 60529:2013《Degrees of protection provided by enclosure(IP code)》Clause 14.2 of the standard (IPX3-6 sprinkler head test and nozzle test), UL 50E-2007 《Enclosures for Electrical Equipment, Environmental Considerations》(Electrical
equipment housing, environmental factors) are designed and manufactured
for IPX3-4 sprinkler head test, IPX5-6 nozzle test, and UL water spray
test (Clause 8.3).
The complete set of equipment consists of 4 sets of electric brackets that can be lifted up and down and moved left and right, 6 shower heads, 1 nozzle, water supply system, control system, and UL water spray test device. Automatic frequency conversion technology to adjust water flow rate, just select the nozzle in the interface and input the total test flow rate, and the corresponding IP water flow rate requirements can be automatically met, and the blowing state can be simulated.
2. Technical requirements:
1 | Rain surface | Five sides: front, back, left, right, top |
2 | Shower spray bracket | 4 brackets, each bracket can adjust the shower position up and down |
3 | Number of shower heads | 6 in total. Move to the surface that needs spraying and spray it. |
4 | Nozzle (IPX5, 6) | 1, can be fixed on a spray bracket |
5 | UL Spray | 4 nozzles |
6 | Shower head fixing method | The shower head is fixed on the spray bracket by a clamp and can be adjusted up and down to facilitate testing. |
7 | Flow control for each | The system is equipped with 4 water supply lines, and the flow rate of each water supply line can be monitored separately. When the water pump is started, the flow rate of each line is adjusted by the throttle valve. |
8 | Water spray angle | Manual adjustment, adjust the spray angle before testing. |
9 | Pressure control | Depending on the flow control, the pressure is in the range of 30 to 150 kPa. |
10 | Time Control | Total test time control, set the test time on the touch screen, and it will stop automatically when the time comes. |
11 | Number of pumps | 1 unit |
12 | Number of water tanks | 1 pcs |
ZH-1023 Rainy Experiment Device for Central Air Conditioning External Unit
1. Overview:
IPX3-6 shower rain test device is based on IEC60529：1989+A1：1999+A2:2013《Degrees of protection provided by enclosure（IP Code）》、GB/T 4208-2017《Enclosure Protection Grade (IP Code)》/IEC 60529:2013《Degrees of protection provided by enclosure(IP code)》Clause 14.2 of the standard (IPX3-6 sprinkler head test and nozzle test), UL 50E-2007 《Enclosures for Electrical Equipment, Environmental Considerations》(Electrical equipment housing, environmental factors) are designed and manufactured for IPX3-4 sprinkler head test, IPX5-6 nozzle test, and UL water spray test (Clause 8.3).

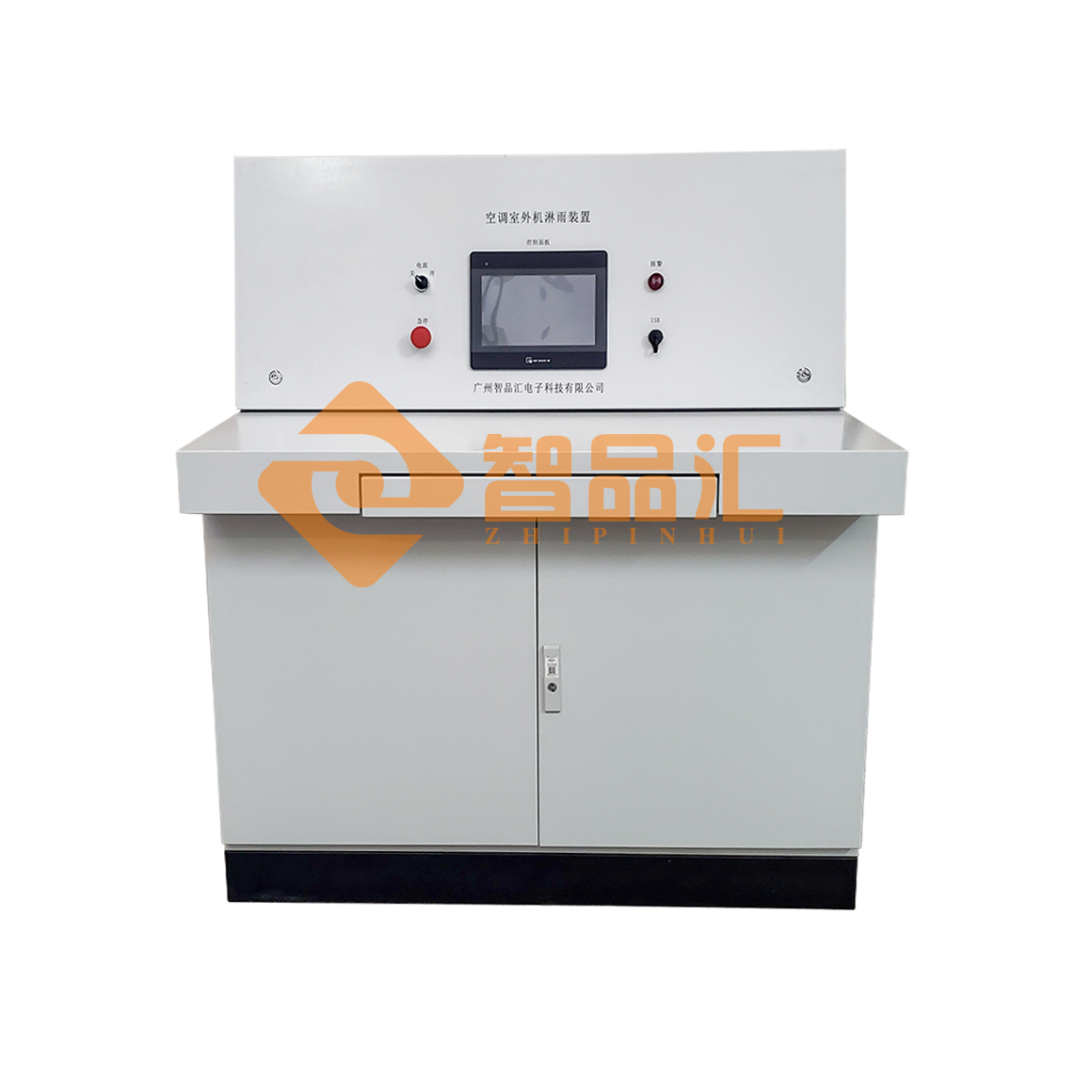

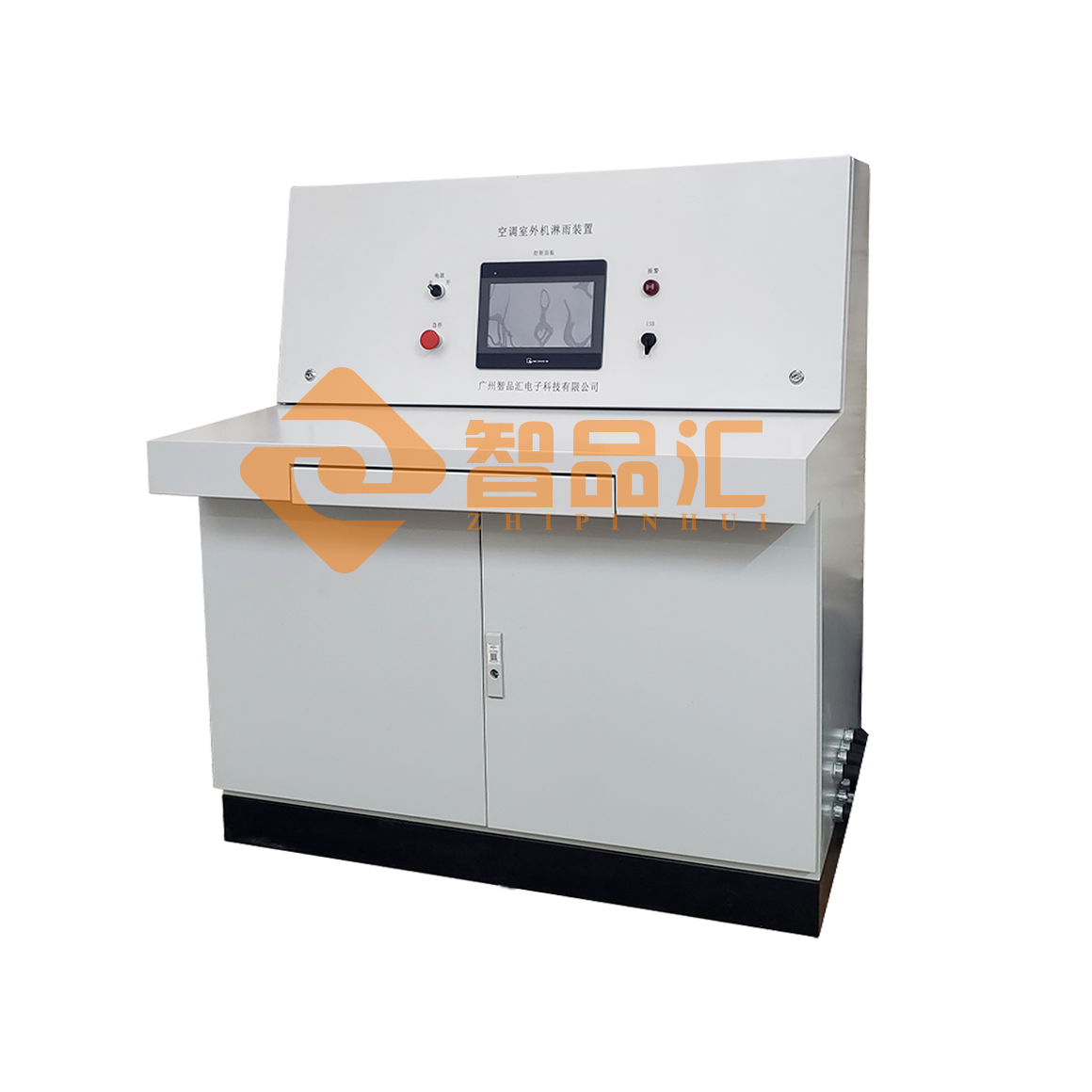

The complete set of equipment consists of 4 sets of electric brackets that can be lifted up and down and moved left and right, 6 shower heads, 1 nozzle, water supply system, control system, and UL water spray test device. Automatic frequency conversion technology to adjust water flow rate, just select the nozzle in the interface and input the total test flow rate, and the corresponding IP water flow rate requirements can be automatically met, and the blowing state can be simulated.
2. Technical requirements:
1 | Rain surface | Five sides: front, back, left, right, top |
2 | Shower spray bracket | 4 brackets, each bracket can adjust the shower position up and down |
3 | Number of shower heads | 6 in total. Move to the surface that needs spraying and spray it. |
4 | Nozzle (IPX5, 6) | 1, can be fixed on a spray bracket |
5 | UL Spray | 4 nozzles |
6 | Shower head fixing method | The shower head is fixed on the spray bracket by a clamp and can be adjusted up and down to facilitate testing. |
7 | Flow control for each | The system is equipped with 4 water supply lines, and the flow rate of each water supply line can be monitored separately. When the water pump is started, the flow rate of each line is adjusted by the throttle valve. |
8 | Water spray angle | Manual adjustment, adjust the spray angle before testing. |
9 | Pressure control | Depending on the flow control, the pressure is in the range of 30 to 150 kPa. |
10 | Time Control | Total test time control, set the test time on the touch screen, and it will stop automatically when the time comes. |
11 | Number of pumps | 1 unit |
12 | Number of water tanks | 1 pcs |
