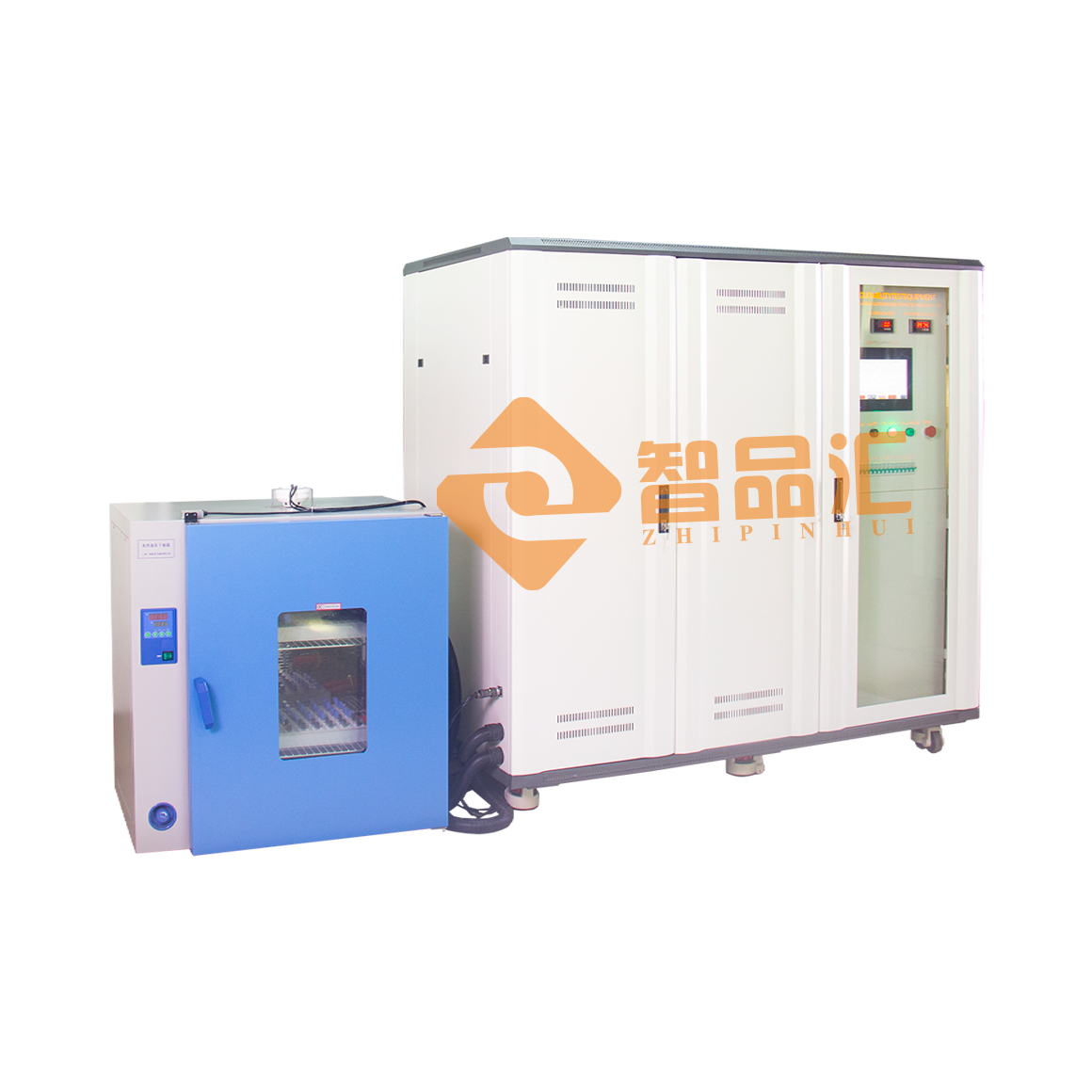

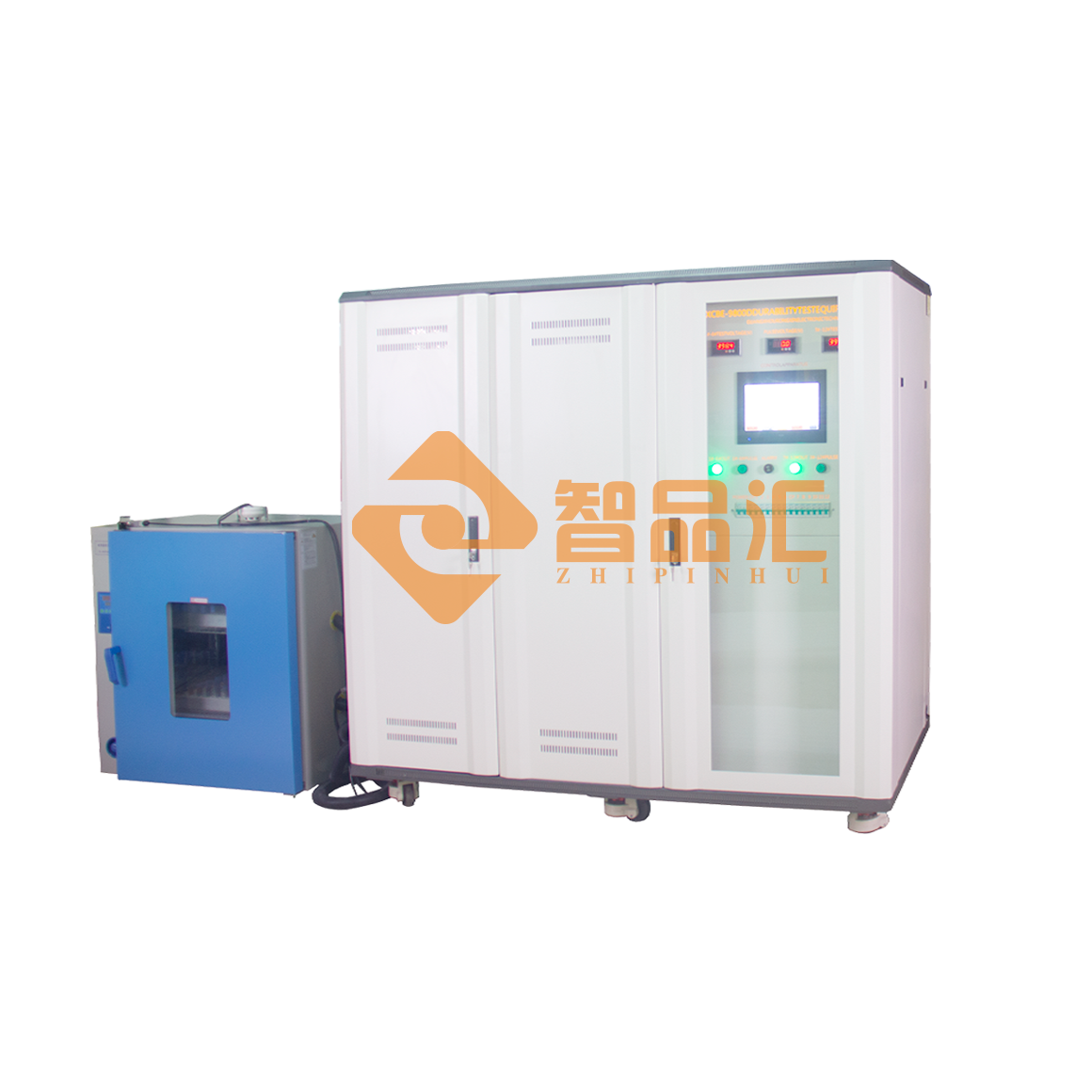

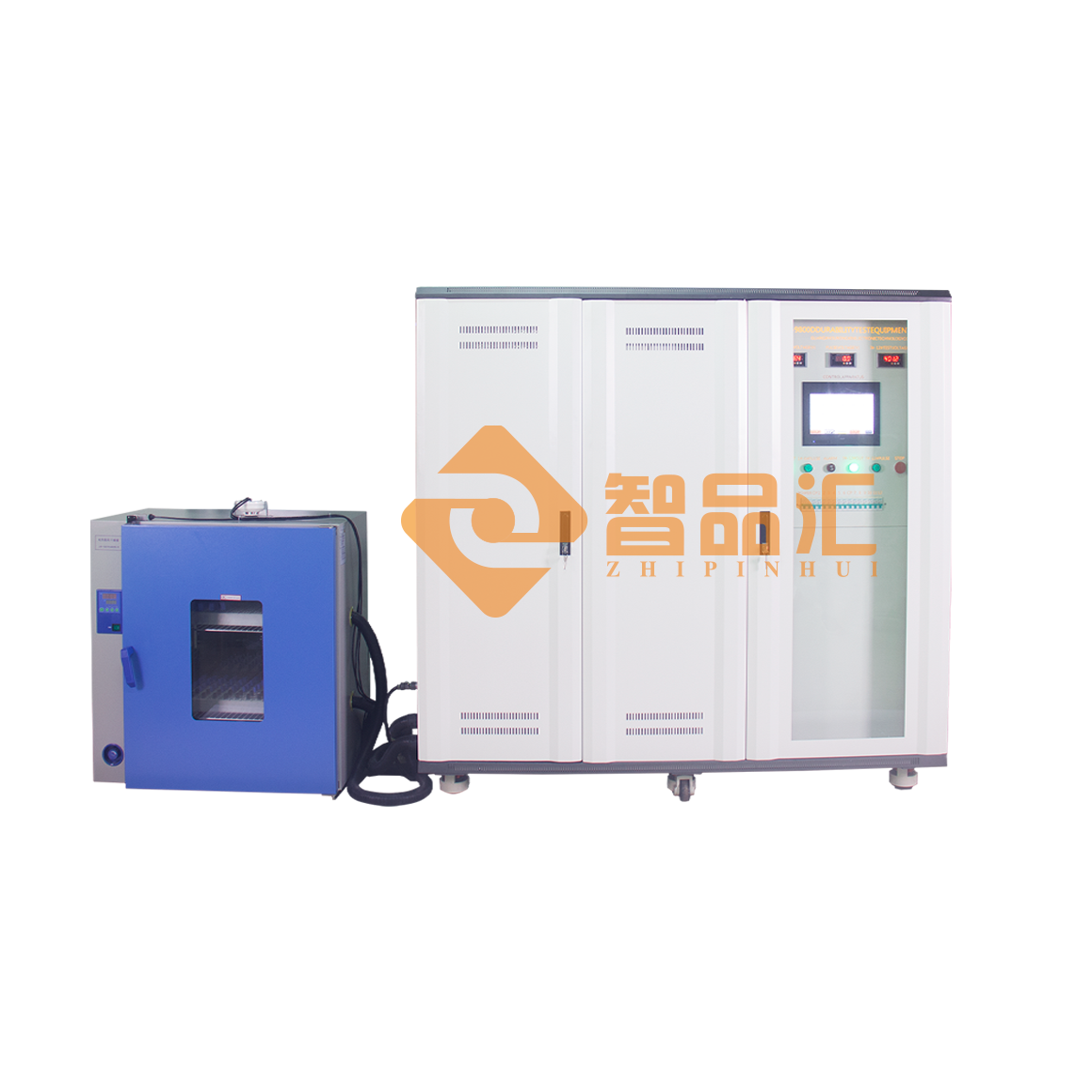

RXCBE9800D capacitor pulse voltage durability test bench (2021 model)

1. Designed according to 4.14 of IEC60384-14 and GB6346.14-2015, it adopts microcomputer control, can digitally set test voltage, running time, test capacity, etc.; and digitally display test voltage and current, and is equipped with multiple sets of compensation reactors, so that the durability test of large-capacity capacitors can be realized with a smaller power supply capacity

2. Capacitance range: Capacity does not exceed 12μF Rated voltage ≤ 500V

3. Test voltage: AC 100~800V continuously adjustable, digital display accuracy ±1.5% FS

4. 1000V pulse high voltage: 100~1000V continuously adjustable, display accuracy ±1.5%

Duration: 0.1s; Accuracy: ≤±10%

5. Pulse interval time: 5~99 minutes can be set

6. Pulse mode: 10 continuous individual pulses, pulse high voltage can be canceled, complete continuous endurance mode

7. Test time: 0~9999.9H power off retention, automatic discharge of capacitor after test completion

8. Control display: touch screen + PLC

9. Protection function: overvoltage, overcurrent protection

10. High temperature test chamber: equipped with a high temperature test chamber with an inner tank of not less than: 220 liters, the temperature control range is ambient temperature +15~200℃

11. Safety/alarm device: door opening power off, door opening alarm, smoke alarm, over-temperature alarm

12. Power supply: single-phase AC 220V 50/60Hz 10KVA

13. Approximate size of equipment: Control cabinet: about 1800mm wide x 900mm deep x 1800mm high, weighing about 550kg

14. Desktop oven: about 750mm wide x 650mm deep x 650mm high
