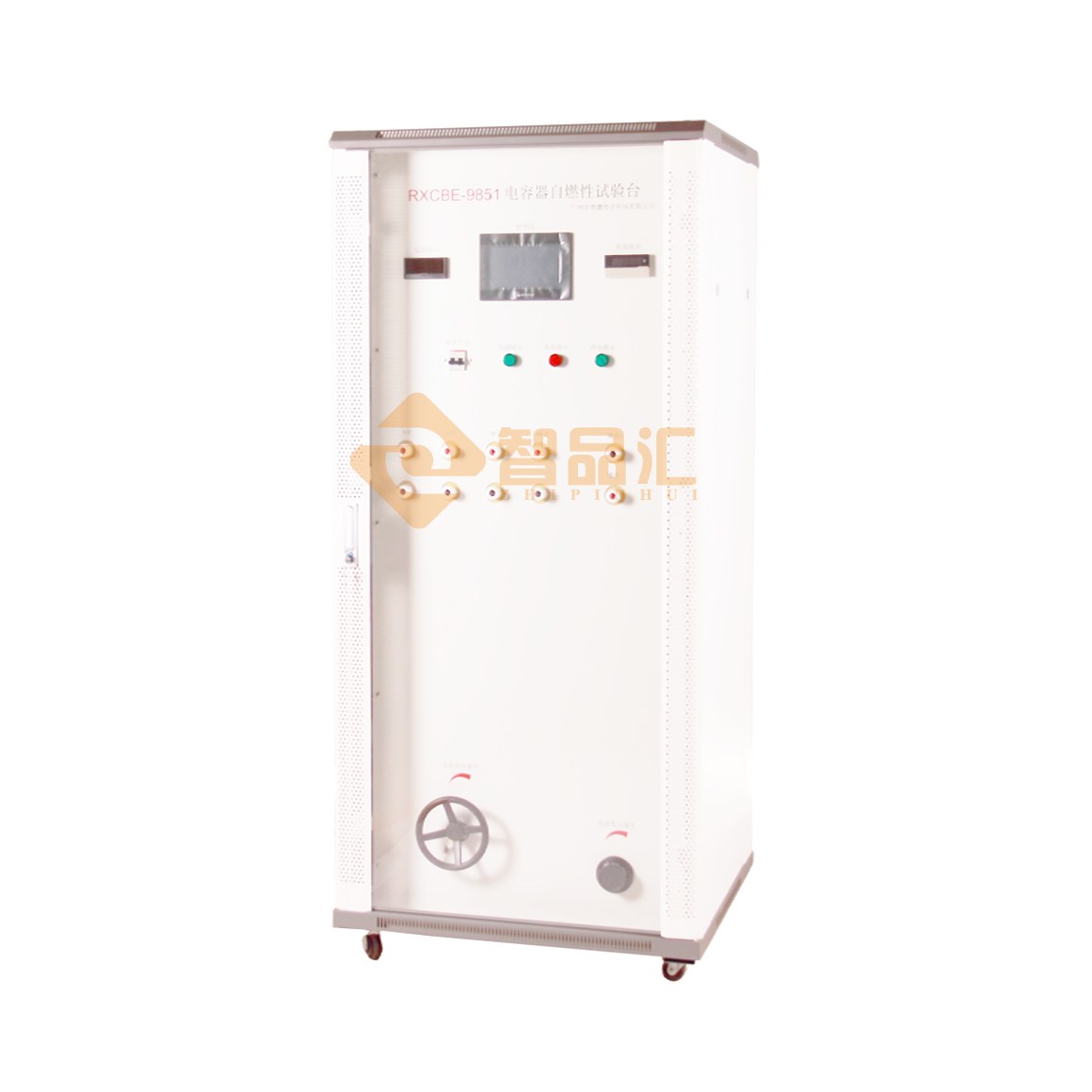

400-816-6687RX-CBE9851 Pulse Capacitor Spontaneous Combustion Test Device
According to the standard | IEC60384-14, GB/T14472 4.18 design, the capacitor under test is subjected to 20 discharges of an energy storage capacitor, after which the energy storage capacitor is discharged, the capacitor under test is charged to the voltage of Ui; the interval between each two discharges is 5s, and the self-ignition of the capacitor is tested. |
Output DC high voltage | 500V～6000V, continuously adjustable, digital display accuracy ± 3% |
Output AC voltage | 0～650V, continuously adjustable, digital display accuracy ± 3％ |
Sample capacity | No more than 10uF |
Pulse break time | 1～99.99s, adjustable, digital display, accuracy: ±3% |
Number of tests | 1～99 times can be set |
Program Control | PLC+touch screen program control |
Fuse | Equipped with 16A chronic fuse |
Stainless steel inner liner test box | Equipped with explosion-proof safety stainless steel liner test box with tempered glass observation window |
Power supply | Single phase AC220V 10KVA |
Box structure | Aluminum alloy + iron plate spraying |
RX-CBE9851 Pulse Capacitor Spontaneous Combustion Test Device
According to the standard | IEC60384-14, GB/T14472 4.18 design, the capacitor under test is subjected to 20 discharges of an energy storage capacitor, after which the energy storage capacitor is discharged, the capacitor under test is charged to the voltage of Ui; the interval between each two discharges is 5s, and the self-ignition of the capacitor is tested. |
Output DC high voltage | 500V～6000V, continuously adjustable, digital display accuracy ± 3% |
Output AC voltage | 0～650V, continuously adjustable, digital display accuracy ± 3％ |
Sample capacity | No more than 10uF |
Pulse break time | 1～99.99s, adjustable, digital display, accuracy: ±3% |
Number of tests | 1～99 times can be set |
Program Control | PLC+touch screen program control |
Fuse | Equipped with 16A chronic fuse |
Stainless steel inner liner test box | Equipped with explosion-proof safety stainless steel liner test box with tempered glass observation window |
Power supply | Single phase AC220V 10KVA |
Box structure | Aluminum alloy + iron plate spraying |
