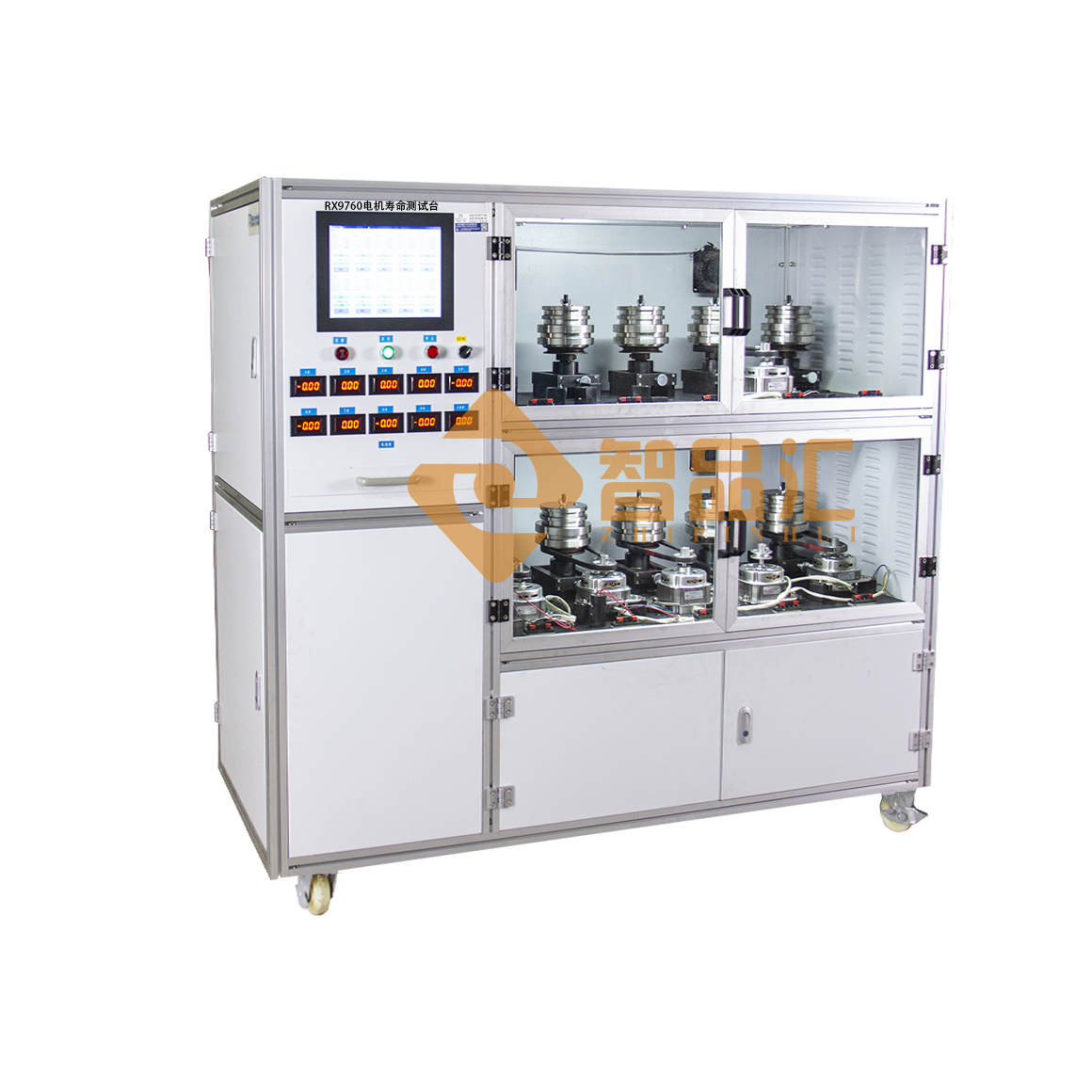

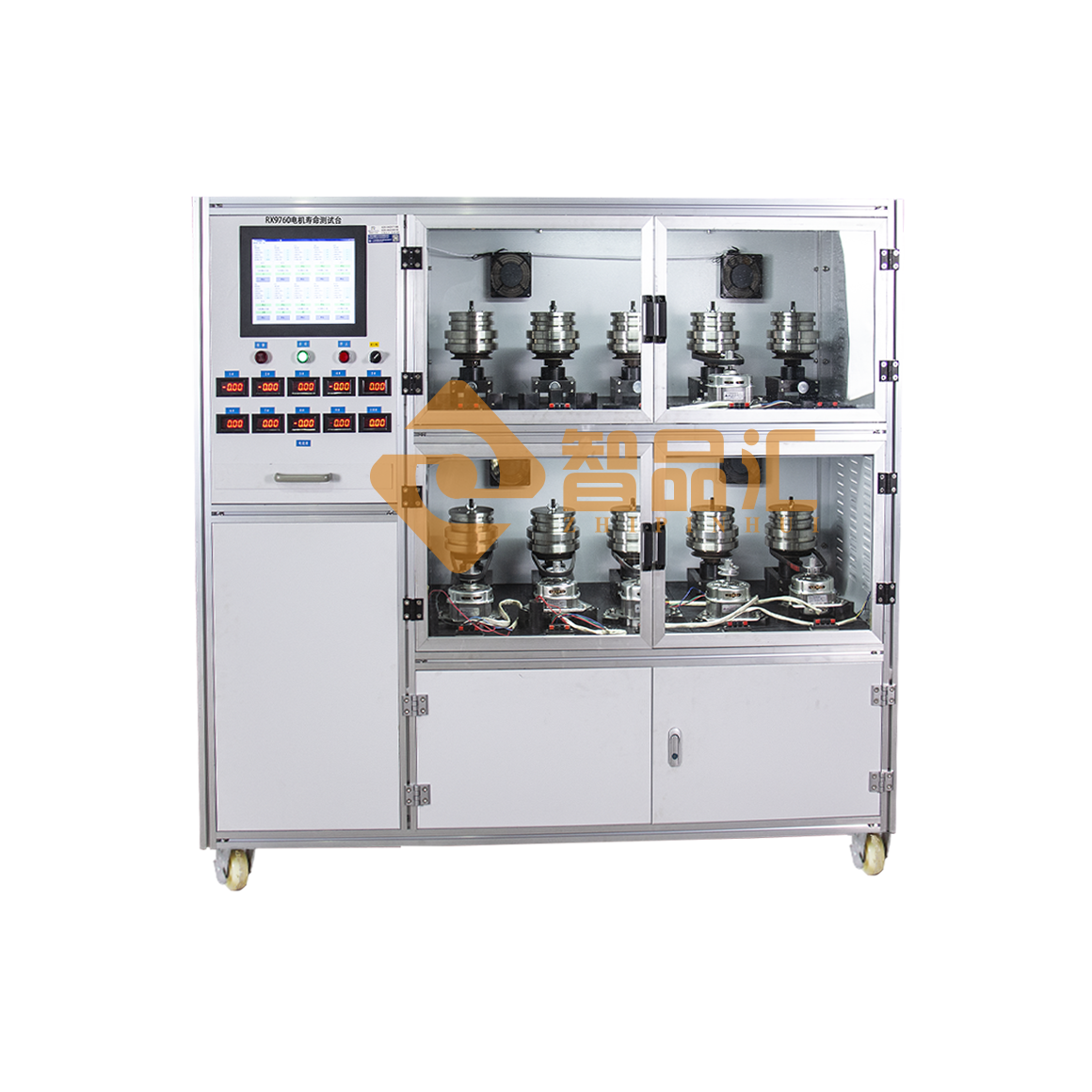

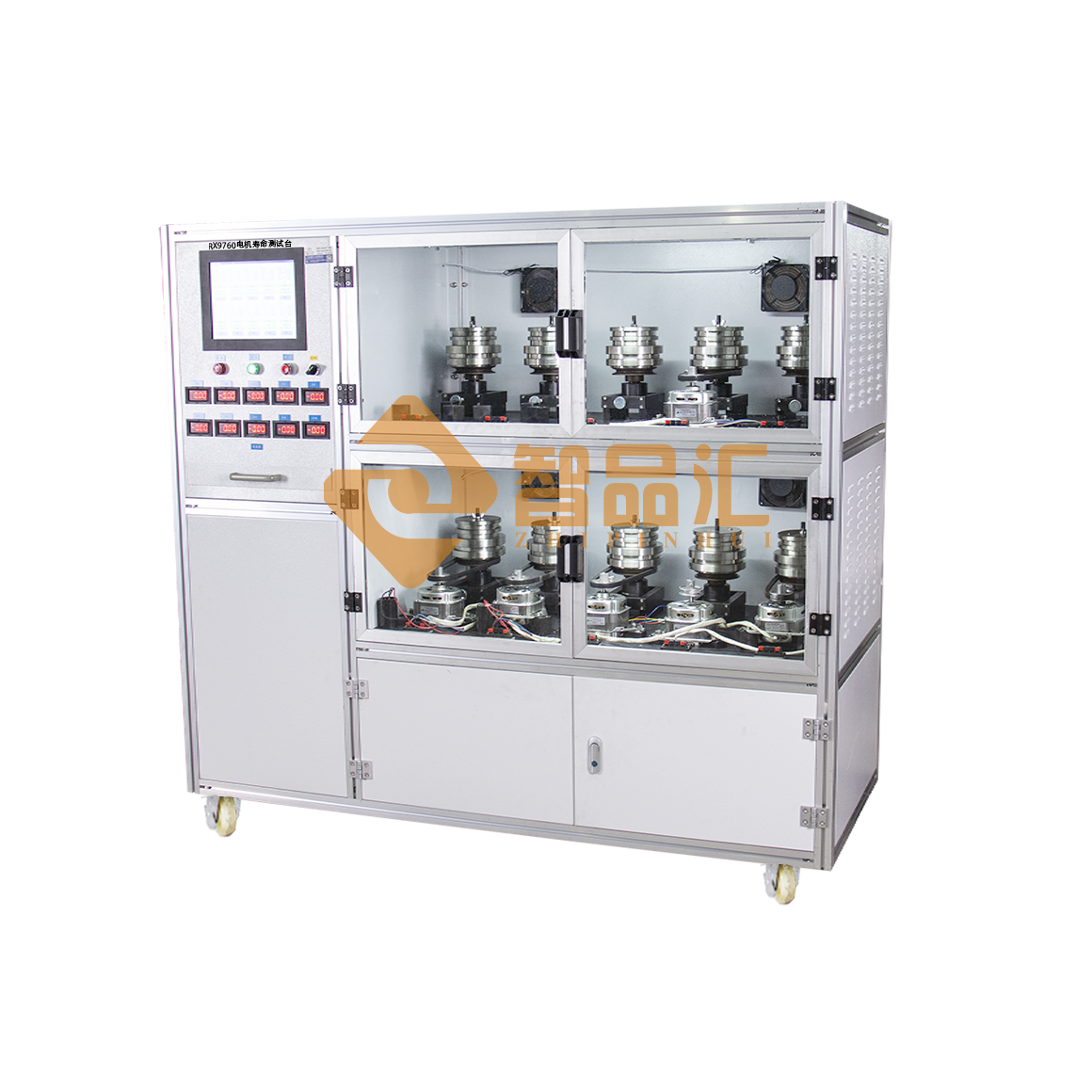

RX9760 motor life test bench

1. Overview

This system consists of an electrical control cabinet, a test mechanism, etc. The measurement and control technology developed by our company makes the measurement more scientific and the operation simpler. The control cabinet is equipped with a human-machine interface for control, which is the core of the interaction between the entire control system and the operator. The control core is a PLC from Mitsubishi of Japan, making the entire system simpler and the control more intuitive and reliable.

2. Related parameters

2.1. Mechanical safety performance meets: GB5226.1-2002 "Mechanical Safety Mechanical Electrical Equipment Part 1: General Technical Conditions"

2.2. Power supply: AC220V 50HZ

There is no corrosive or explosive gas in the room.

Working environment temperature: 0-45 degrees, relative humidity: 45%-95% RH

2.3. Number of workstations: 10

2.4.Load range: 4-12Kg

2.5.Weights configured for each workstation: 0.5Kg (4), 2kg (2), 4kg (2)

2.6. PC+ software program control, test motor parameters can be set:

Power-on time: 0-9999H continuously adjustable

Power-off time: 0-9999H continuously adjustable

Test number setting range: 0-999999 times

Motor power: 20W-300W

2.7. Configure a 5KW Aino variable frequency power supply for motor power supply, power supply program-controlled output

2.8. Use high-grade aluminum alloy material, customize motor fixtures according to the number of workstations to ensure the safety and reliability of the test process, and facilitate users to replace the motor.

2.9. The motor is placed vertically for testing, and the belt pulls the weight load to restore the real operation scene. The motor load is 4-12Kg. Self-made stainless steel weights (minimum resolution 0.5Kg) are used, which are beautiful and durable, and convenient for users to test (manual weight selection is required and placed on the product being tested)
