产品介绍

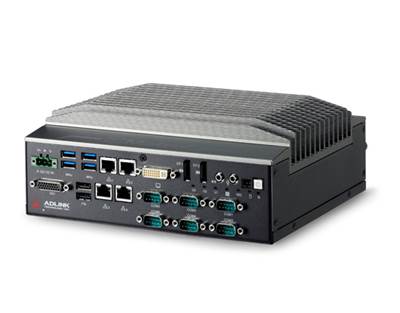

基于第六代Intel® Core™ i7/i5/i3处理器的无风扇嵌入式工控机
ADLink(凌华)全新加固级四核无风扇嵌入式工控机Matrix MXE-5500系列,采用第六代 Intel® Core™ i7/i5/i3处理器,具有杰出的计算性能和更加坚固耐用的结构。

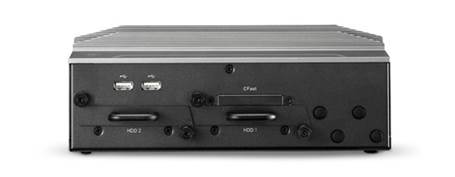

MXE-5500系列产品结构紧凑,但I/O接口却很丰富。提供2个Display-Port接口,1个DVI-I接口(支持DVI和VGA信号),4个由IntelR网络接口控制器提供的千兆以太网口,4个USB 2.0和4个USB 3.0接口,8个隔离数字输入/输出接口,以及6个COM接口,其中4个可通过BIOS配置为RS-232/422/485。除此之外,MXE-5500系列还提供了2个支持热插拔的2.5”SATA硬盘槽位,1个CFast接口和1个M2.2280接口,通用的存储选项可满足多种应用需求。2个mini PCIe插槽和USIM卡槽使得MXE-5500可以作为一个通信Hub,提供各种无线连接,如蓝牙 4.0/WiFi/3G。
MXE-5500系列沿袭了Matrix E系列的所有主流特性,如无线缆的架构,宽温工作范围,5Grms抗振性能等。凌华科技Matrix产品线所有的产品都经过严格的测试和验证。
MXE-5500系列具备优异的计算性能,超强的无线通信性能,以及丰富的可扩展的I/O接口,紧凑坚固的机械结构,非常适合智能交通、车载多媒体及监控和工厂自动化等应用。
产品亮点

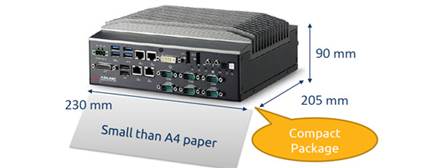

性能强大,外形紧凑
ADLink(凌华)的MXE-5500系列搭配了第6代IntelR Core? i7-6820EQ/i5-6440EQ/i3-6100E处理器,与上一代CPU相比计算性能提升30%,图形处理能力以及加速硬件媒体解码能力提升30%,支持高清4K显示,双通道DDR4 2133MHz的SO-DIMM插槽支持高达32GB的内存。

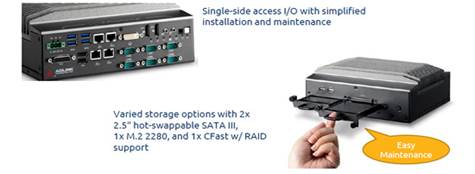

易于维护和管理
SEMA 3.0优越的管理功能
1、内建凌华科技的SEMA(Smart Embedded Management Agent):
u 直观的GUI和易于使用的库函数用于加强系统管理
2、功能:
n 统计系统信息
n 自定义1KB闪存
n 看门狗定时器
n HW监控:
n CPU/系统温度
n 实时功耗/电压输入
n 数字输入/输出控制
n S.M.A.R.T.信息存储
n 通过Web接口远程监控
无线移动整合更优秀的数据
两个mini PCI插槽和USIM卡槽使MXE-5500可作为一个通信hub提供各种无线连接,如蓝牙4.0/WiFi/3G
订购指南
型号 | 产品描述 | |
主件 | MXE-5501 | Intel® Core™ i7-6820EQ 无风扇嵌入式工控机 |
MXE-5502 | Intel® Core™ i5-6440EQ 无风扇嵌入式工控机 | |
MXE-5503 | Intel® Core™ i3-6100E 无风扇嵌入式工控机 | |
附件 | 8/16/32GB DDR4 升级 | 升级至 8/16/32GB DDR4内存 |
64/128/256GB 固态硬盘 | 出厂预装 64/128/256 GB MLC 工业级固态硬盘 | |
160W AC-DC 适配器 | 160W 工业级 AC-DC 适配器 | |
无线设备选项 | 3G/WiFi/BT/GPS无线设备 | |
扩展温度选项* | 通过筛选支持扩展宽温 MXE-5501:-20℃至+60℃ MXE-5502/5503:-20℃至+70℃ |
