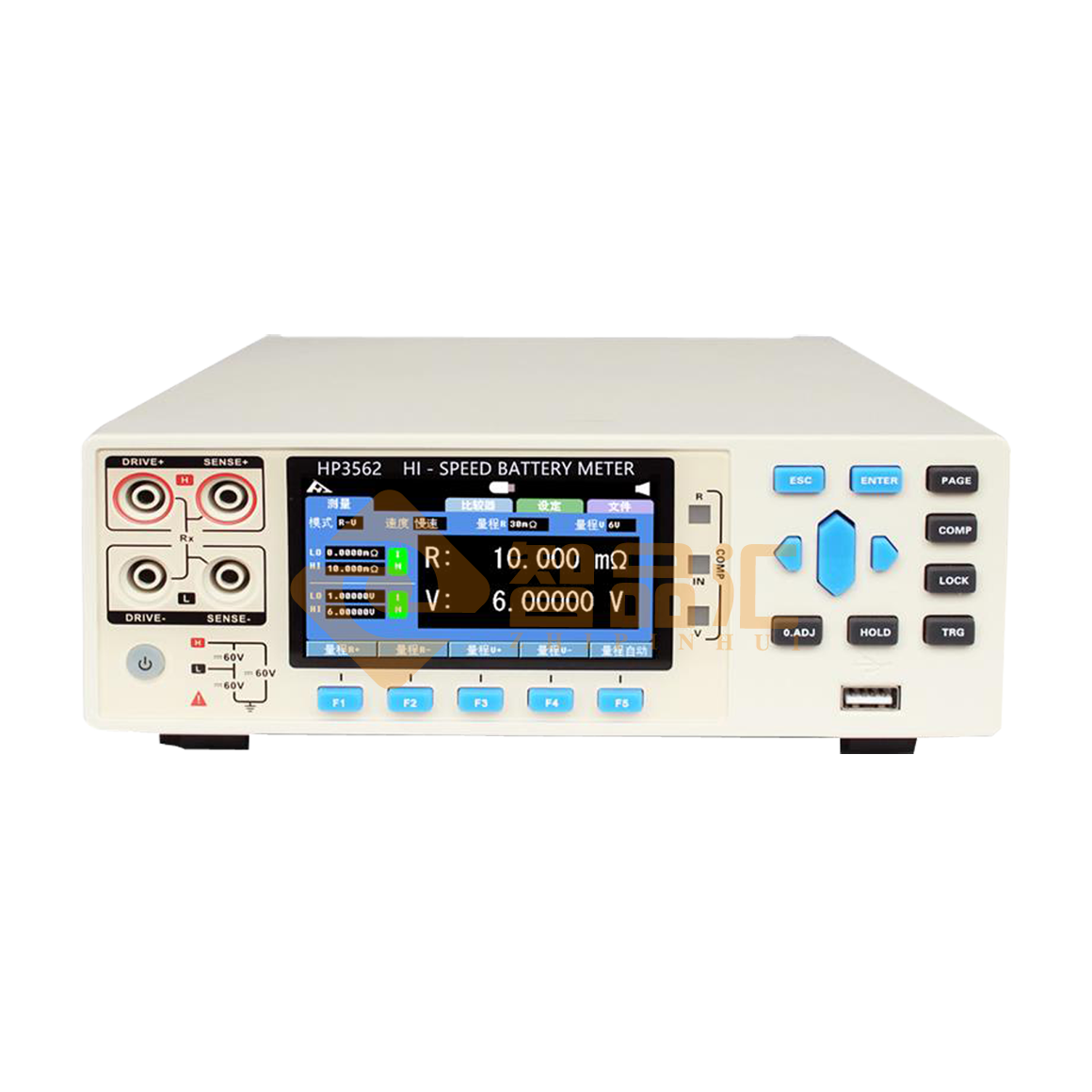

HP3562 high-precision battery internal resistance voltage tester

1. Overview
The HP3562 series of high-voltage, high-precision battery internal resistance testers are developed to meet the new needs of the battery industry and are designed for testing low-resistance and large-scale lithium battery packs and high-speed sorting of assembly lines. With Hepu Technology's many years of technical advantages in the field of battery internal resistance testing, the CHT3563 series has a maximum test resolution of 0.1uΩ, a maximum test voltage of 60V, and a test cycle of 10mS. RS232C and HANDLER interfaces are standard, which can realize automated measurement, and the fastest test speed can reach 100 times/second.

2. Technical parameters:

Test Parameters	AC resistance, DC voltage
Basic accuracy	Resistance: 0.3%, Voltage: 0.01%
Measuring range	Resistance: 0.1μΩ～3kΩ, Voltage: DC 10μV~60V
Signal Source	AC 1kHz, open circuit voltage <5V, test current: <100m
Range	Seven ranges: automatic and manual
Test speed	100 times/second, 50 times/second, 20 times/second, 3 times/second
Display results	Direct reading, sorting results
Maximum reading	Resistance: 32,000 Voltage: 600,000
Correction	Short circuit reset within full range
Comparator	30 groups of records, 7 levels of sorting
trigger	Internal trigger, manual trigger, external trigger

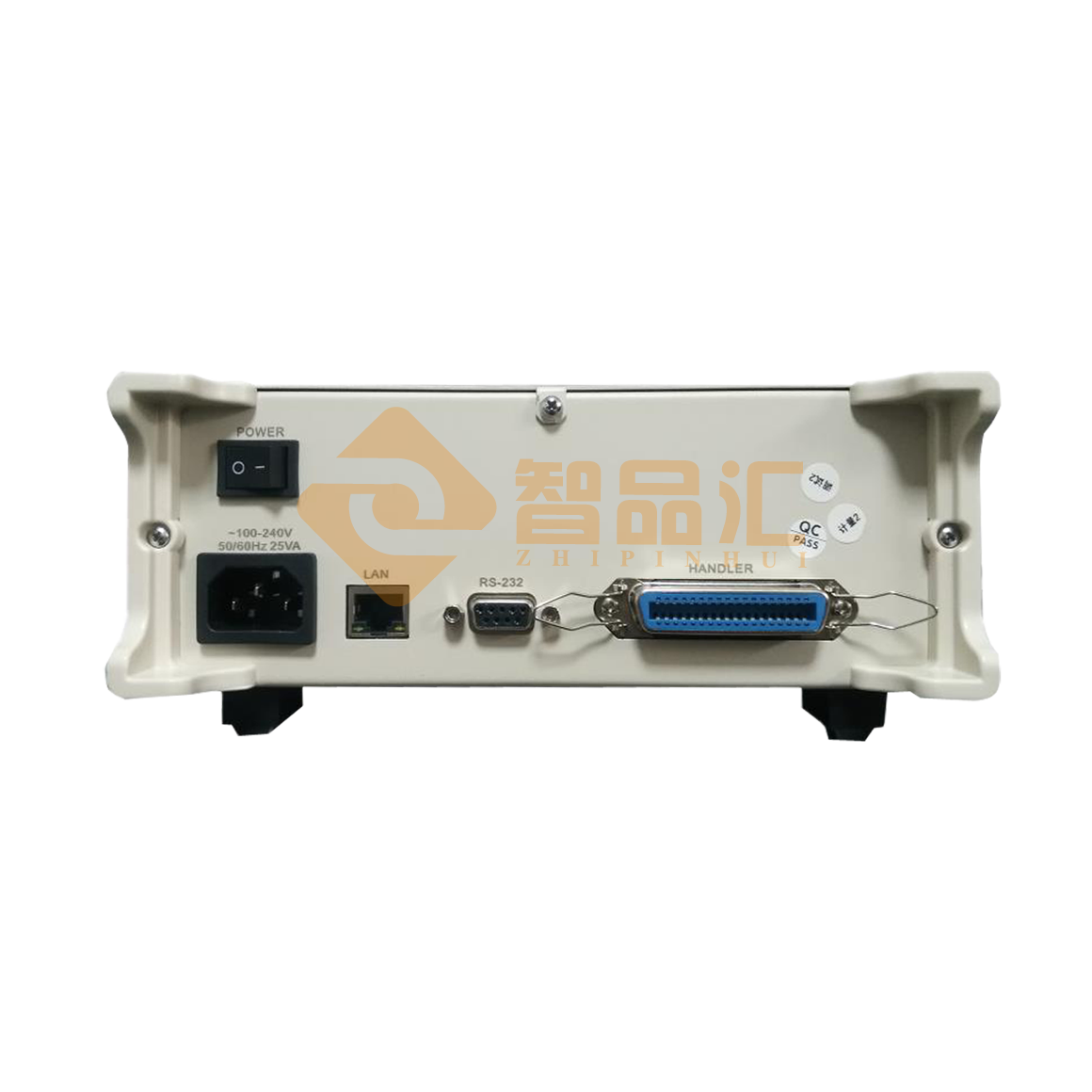

interface	RS-232C interface Handler interface (PLC) USB interface
Power Requirements	Voltage: 100V AC~256V AC; Frequency: 50Hz/60Hz; Maximum power consumption 10W
Size and weight	External dimensions (mm): 325 (length) x 215 (width) x 96.5 (height); Weight: 3kg
appendix	HP9363B test probe, HP9363A test clip, HP9800 communication cable, power cord
other	File data export, USB storage

HP3562 high-precision battery internal resistance voltage tester

2. Technical parameters:

Test Parameters	AC resistance, DC voltage
Basic accuracy	Resistance: 0.3%, Voltage: 0.01%
Measuring range	Resistance: 0.1μΩ～3kΩ, Voltage: DC 10μV~60V
Signal Source	AC 1kHz, open circuit voltage <5V, test current: <100m
Range	Seven ranges: automatic and manual
Test speed	100 times/second, 50 times/second, 20 times/second, 3 times/second
Display results	Direct reading, sorting results
Maximum reading	Resistance: 32,000 Voltage: 600,000
Correction	Short circuit reset within full range
Comparator	30 groups of records, 7 levels of sorting
trigger	Internal trigger, manual trigger, external trigger
interface	RS-232C interface Handler interface (PLC) USB interface
Power Requirements	Voltage: 100V AC~256V AC; Frequency: 50Hz/60Hz; Maximum power consumption 10W
Size and weight	External dimensions (mm): 325 (length) x 215 (width) x 96.5 (height); Weight: 3kg
appendix	HP9363B test probe, HP9363A test clip, HP9800 communication cable, power cord
other	File data export, USB storage
