RX97A LED Lighting Comprehensive Testing System

1. Overview

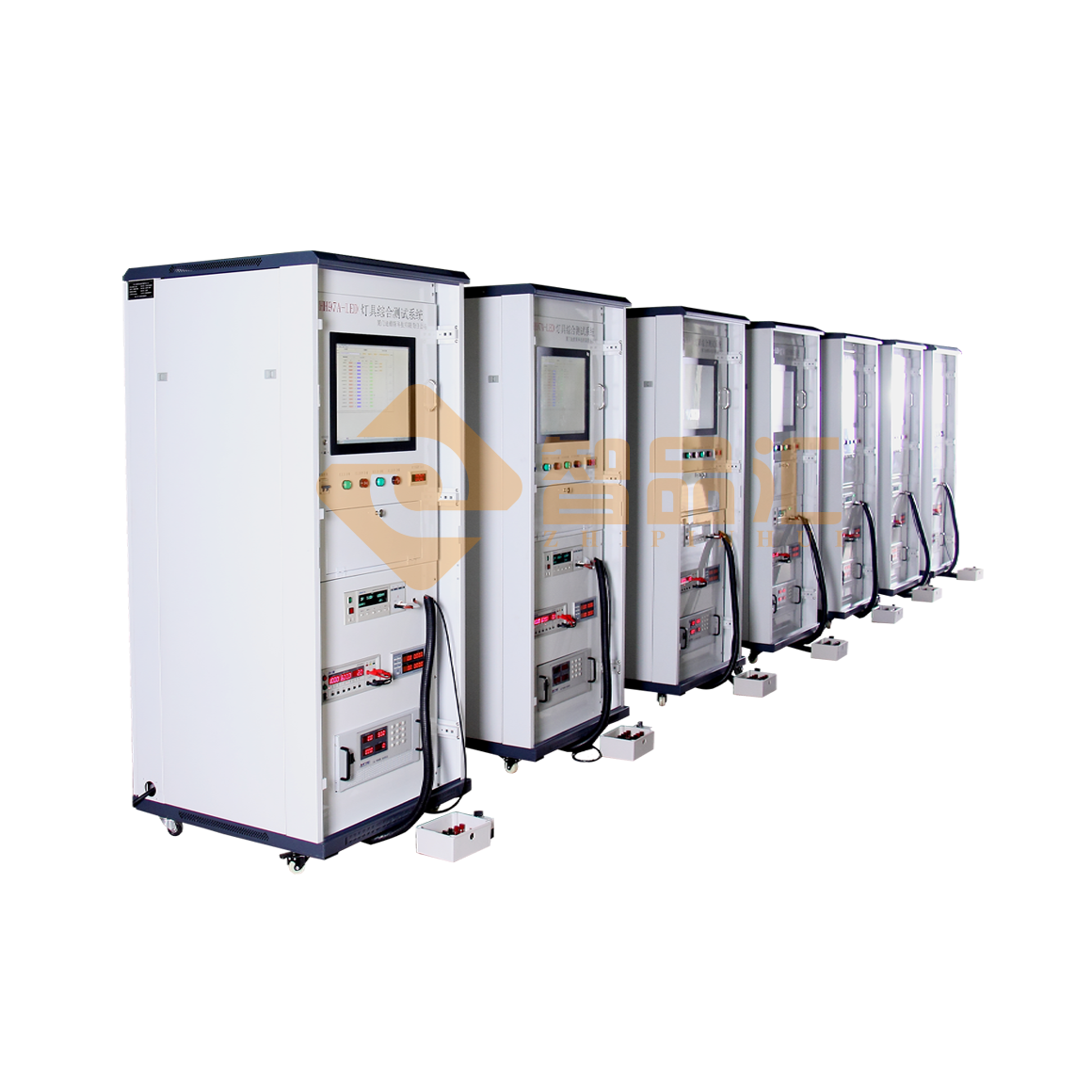

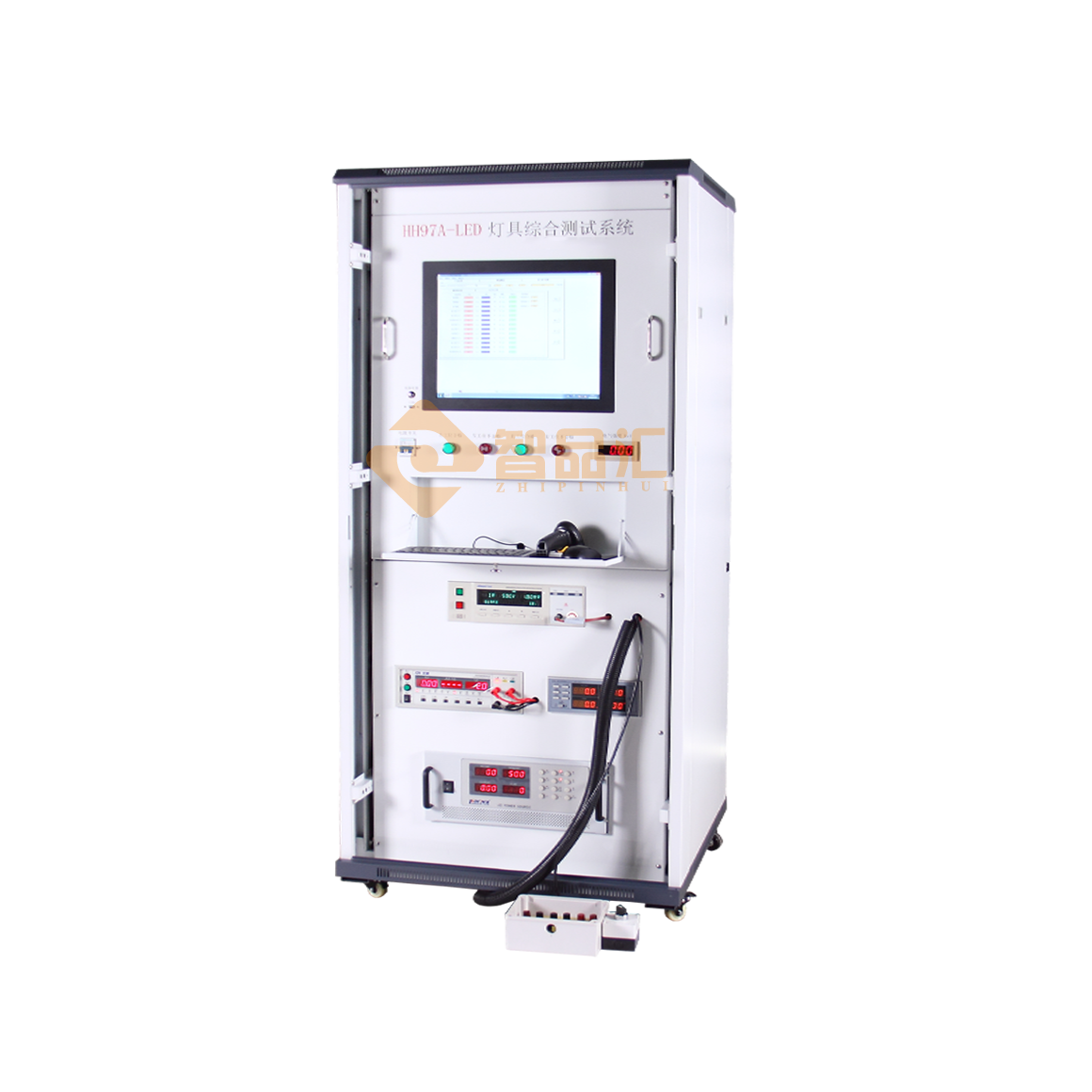

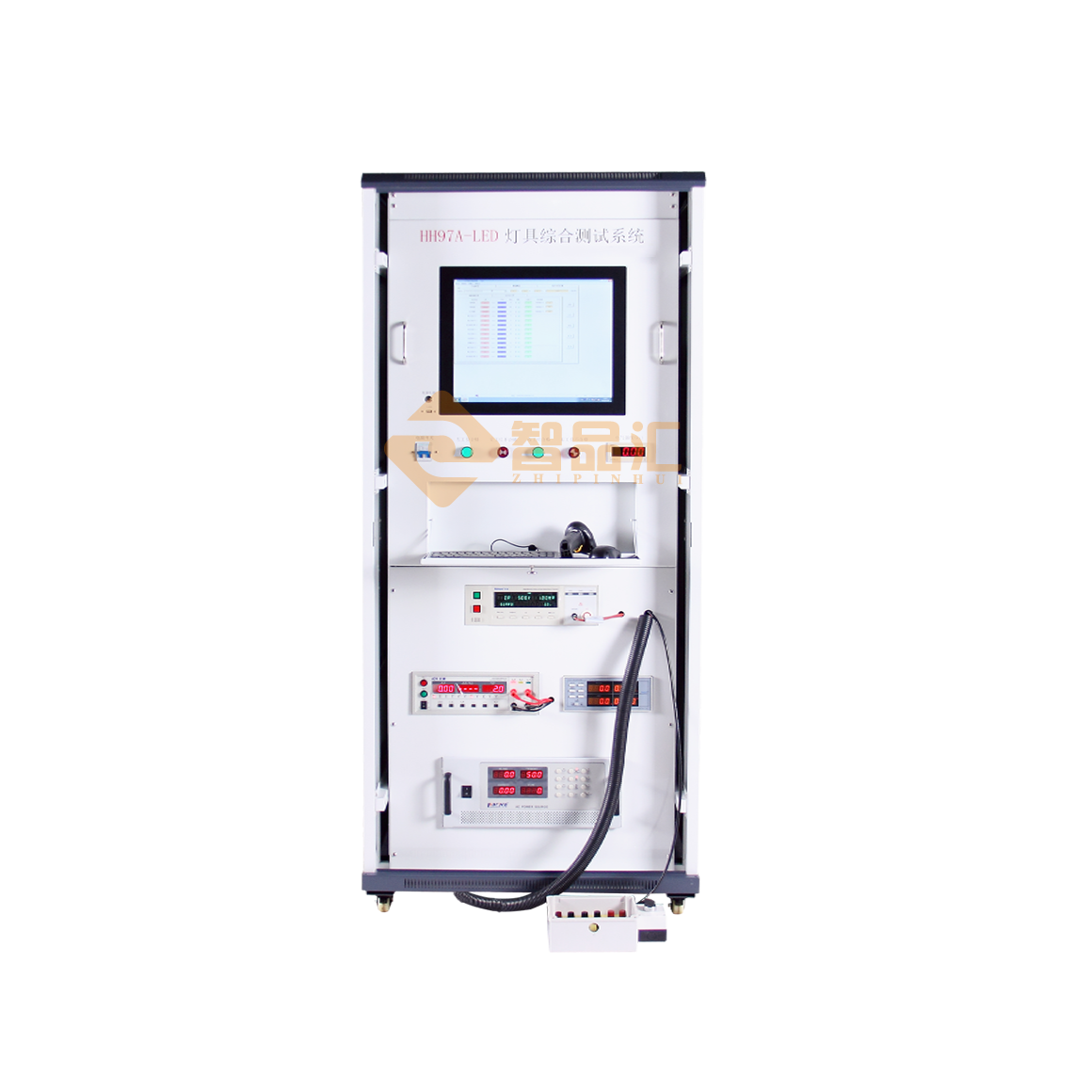

1. One set of detection control cabinet; the main parts are: central host control machine, control device, test device, display and warning device and mechanical frame, etc.;

2. Equipped with an integrated computer host (main configuration is about dual-core CPU, 19-inch LCD display, 4G memory, 128G solid-state hard disk) and keyboard, mouse, etc.; computer system has been installed, touch screen operation;

The display can slide outward for easy observation by operators; the external display is cancelled. The placement of the keyboard and mouse can facilitate employees to operate, and there is no need to take them out and put them on the workbench.

3. Equipped with high-precision electrical parameter instruments, which can be used to collect data for input electrical performance parameter testing;

4. A set of product test system software is randomly provided; a set of random operating instructions is provided.

5. Workstation switching device: The system equipment has two workstations. When the operator is testing a product at one of the workstations, he can replace and remove the product at the other workstation and replace it with another new product for clamping and installation;

6. Whether the product test is qualified or not will be indicated by a signal indication system through an indicator light. If it is unqualified, an audible and visual alarm will sound, and if it is qualified, the green light will be on.

7. The ground resistance test method is pneumatic, using a universal bracket movable telescopic cylinder device (about 80mm long, adjustable, universally movable), which is convenient for adjusting the alignment position and conducive to good contact;

8. Start configuration: manual start button at the left and right stations, or scanning start with a scanner

9. The equipment can adapt to the user's product assembly line specifications: width * height = 940 * 780mm (table height)

10. Barcode or QR code scanners are provided by users (can be used as standard, subject to the final contract)

11. Operator safety protection: A. Users configure insulating floor mats and protective rubber gloves by themselves; B. Ensure that the ground wire has good contact before conducting withstand voltage, insulation, and power-on tests;

12. The product to be tested is placed on the user's production line, and the junction box is placed outside the equipment with insulating material for easy wiring (preferably built-in, with a reserved test line outlet)

II. Software functions:

2.1. Automatic project detection program;

2.2. Model input, selection and free modification of qualified judgment parameters;

Up to 500 product model data can be saved; (with the search function of saving the tested models, convenient for selecting the previously saved test model data for the current test)

2.3, project selection and test time modification program;

A, the project can be shielded and not tested, and no qualified judgment is made, which does not affect the functions of other projects.

B, test items, you can also choose not to make qualified judgments, just test the result parameters and display and save them

2.4, after the power cord and grounding test wire are clamped, start the test and the test software controls all data to be tested at one time;

The program automatically sets the test parameters without the operator adjusting them.

2.5, instruction sheet pre-input function:

20 groups of instruction sheet data can be pre-entered: instruction sheet number, lamp name, product model, customer code, certification standard, product quantity, etc. (specific subject to customer needs).

2.6, instruction sheet statistics function:

Automatically display the number of tests, qualified numbers, how many are not tested, and the number of grounding failures, so that operators can complete the product tests specified in the instruction sheet.
