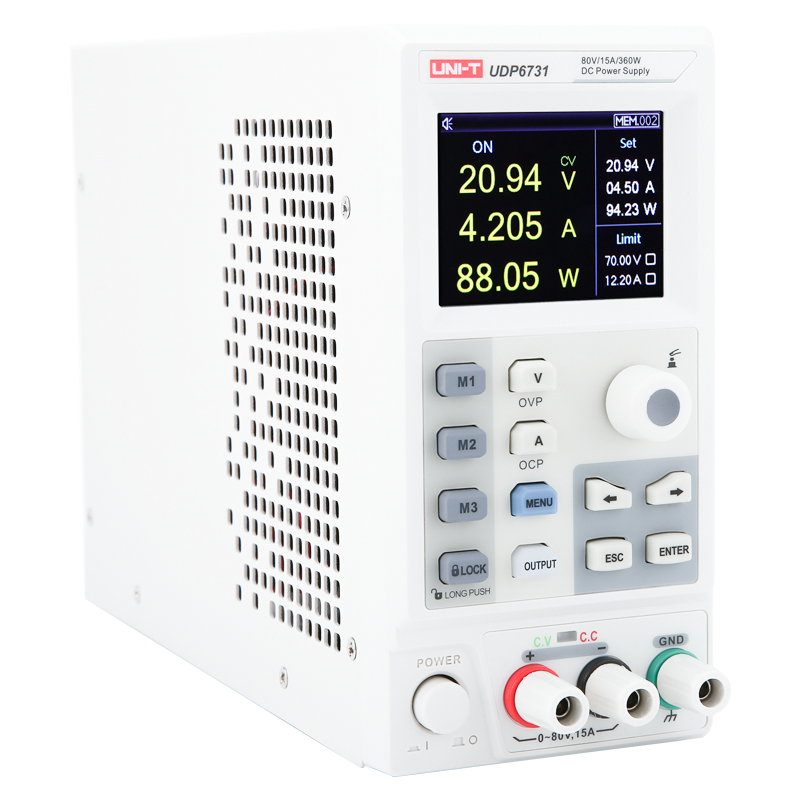

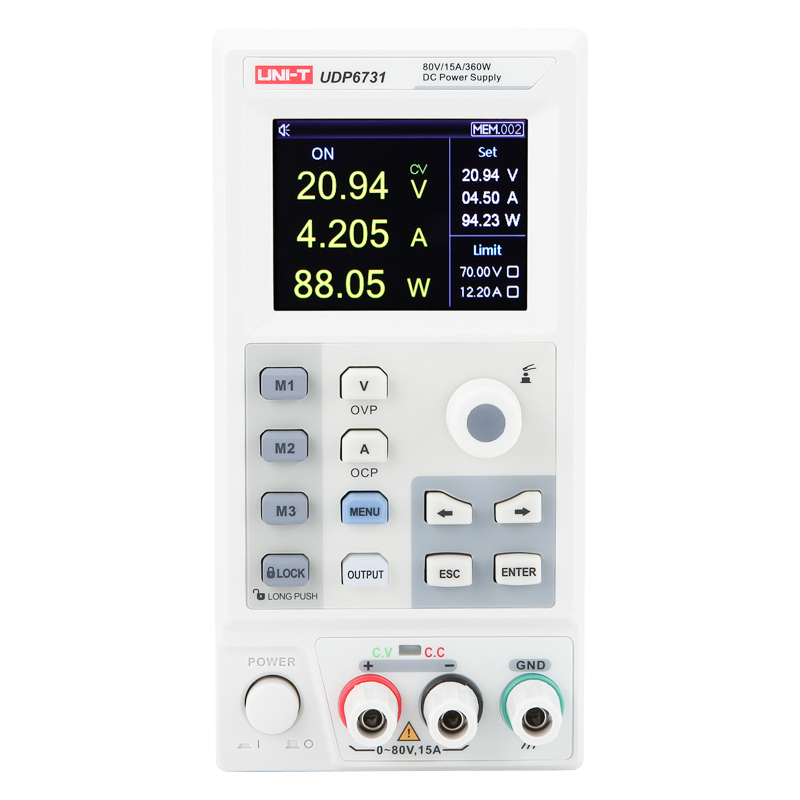

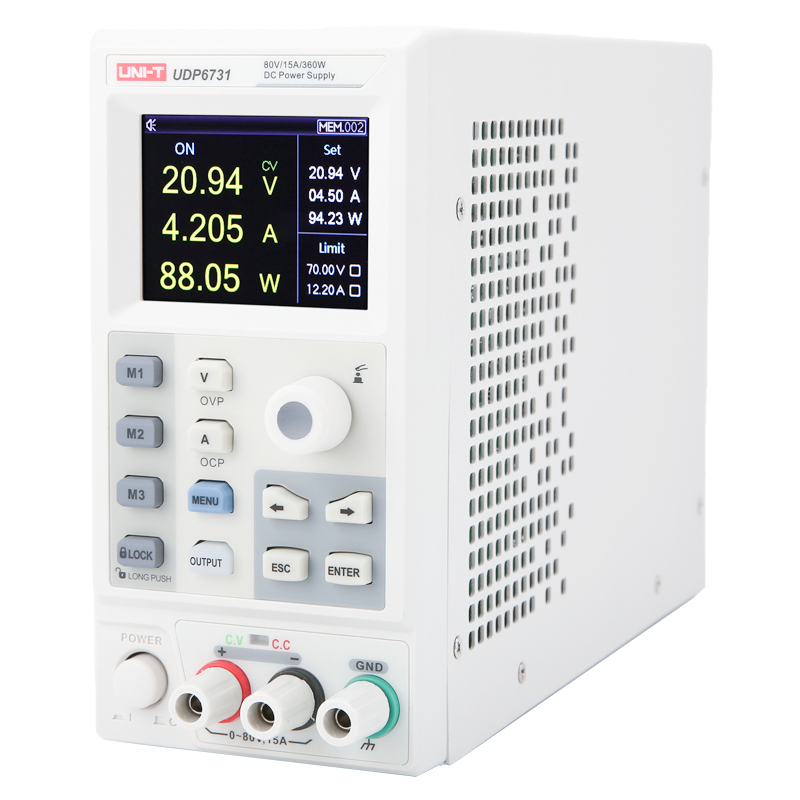

1. It provides users with a human-computer interaction interface with rich functions and simple operation. It uses a 2.8'' LCD high-definition liquid crystal display screen, with clear readings and easy operation. It
can not only display the current output voltage/current, actual output
voltage/current and protection output voltage/current values of the
power supply in real time; at the same time, users can also conveniently set the system. This humanized setting can meet the various application needs of engineers in testing.
2. The list mode can set 48 groups of arbitrary voltage and current outputs, and the output interval time is adjustable. It also provides output waveform preview and output cycle settings to achieve true online programming functions.
3. The delay function provides 48 groups of switch state presets and also provides protection voltage threshold settings. The switching DC power supply has a leading wide range of voltage/current utilization rates in its class. It can achieve combined outputs of different voltages and currents at a fixed power. A
single power supply can meet the test of different DUTs with high
voltage and low current or low voltage and high current, automatically
control the rate of change of voltage and current, and the power ratio
reaches three times, which greatly improves the application range.
4. Provide remote compensation function. Users can activate this function by connecting the voltage signal at the load end to the remote compensation terminal. The
application of the compensation function makes the output load end
voltage no longer affected by the current size and load line voltage
division, so that the output voltage can always maintain the set value
output, and finally ensure the accuracy of the output voltage.
5.

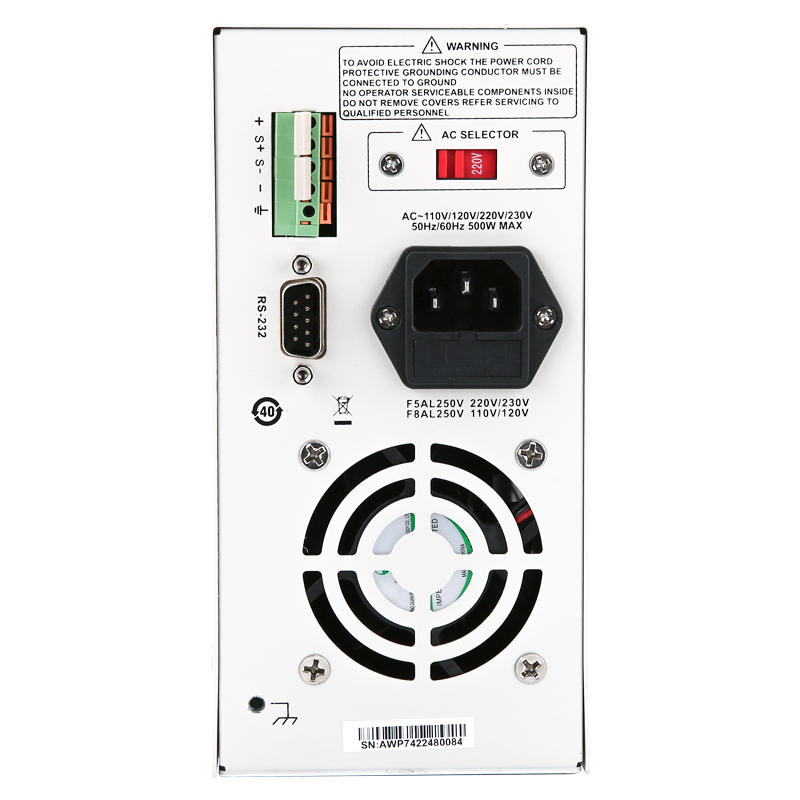

Standard RS232 communication interface and host computer software,
using which users can easily remotely control the power system, set the
output voltage and current, and save data.
1. It provides users with a human-computer interaction interface with rich functions and simple operation. It uses a 2.8'' LCD high-definition liquid crystal display screen, with clear readings and easy operation. It can not only display the current output voltage/current, actual output voltage/current and protection output voltage/current values of the power supply in real time; at the same time, users can also conveniently set the system. This humanized setting can meet the various application needs of engineers in testing.
2. The list mode can set 48 groups of arbitrary voltage and current outputs, and the output interval time is adjustable. It also provides output waveform preview and output cycle settings to achieve true online programming functions.
3. The delay function provides 48 groups of switch state presets and also provides protection voltage threshold settings. The switching DC power supply has a leading wide range of voltage/current utilization rates in its class. It can achieve combined outputs of different voltages and currents at a fixed power. A single power supply can meet the test of different DUTs with high voltage and low current or low voltage and high current, automatically control the rate of change of voltage and current, and the power ratio reaches three times, which greatly improves the application range.
4. Provide remote compensation function. Users can activate this function by connecting the voltage signal at the load end to the remote compensation terminal. The application of the compensation function makes the output load end voltage no longer affected by the current size and load line voltage division, so that the output voltage can always maintain the set value output, and finally ensure the accuracy of the output voltage.
5. Standard RS232 communication interface and host computer software, using which users can easily remotely control the power system, set the output voltage and current, and save data.
Zhipinhui After-Sales Policy:
*After-Sales Hotline: +864008166687
1. Our company has assembled a team of experienced field engineers and senior technicians to promptly respond
to any equipment issues and provide after-sales maintenance.
2. Within China, within one week of new product delivery, our after-sales technical staff will install the equipment and
provide after-sales training at the customer's location, using the contact information and address provided by the customer.
3. All complaints related to product quality will be responded to within one hour. Within 3-5 hours within the province,
and within 24-48 hours outside the province, we will arrive at the customer's site,
determine the appropriate action based on the complaint, and provide after-sales repairs. (Domestic)
4. For international travel, our company can also arrange for an after-sales engineer to visit you for installation and
commissioning. Please discuss any travel and catering issues in advance.
We also provide video installation guides for you to choose from, providing you with a comprehensive and multi-faceted solution.
5. Any material costs related to product quality during the warranty period will be borne by our company.
6. During the warranty period, we will provide free repairs due to improper use or environmental factors.
The materials and accessories used for repairs will be charged at cost only.
