Four channel DC power supply

Home > Safety Testing Instruments > Low Power DC Power Supply > Four channel DC power supply

Four channel DC power supply

Series and parallel functionRemote controlList/delay function

Non-standard products

Delivery

Free delivery

reservation

400-816-6687

Product Details Parameter Overview evaluate（0） After sales guarantee

Book Now

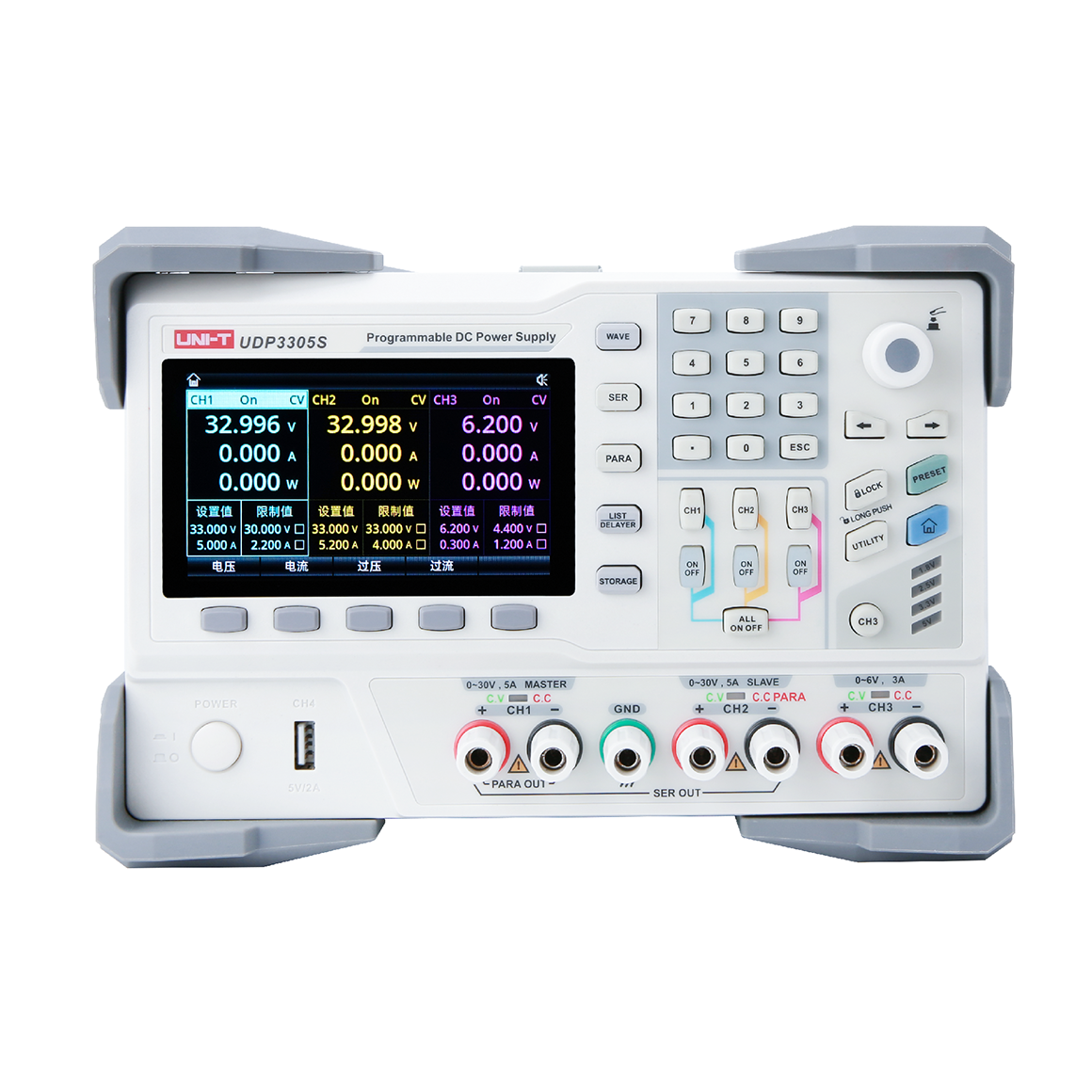

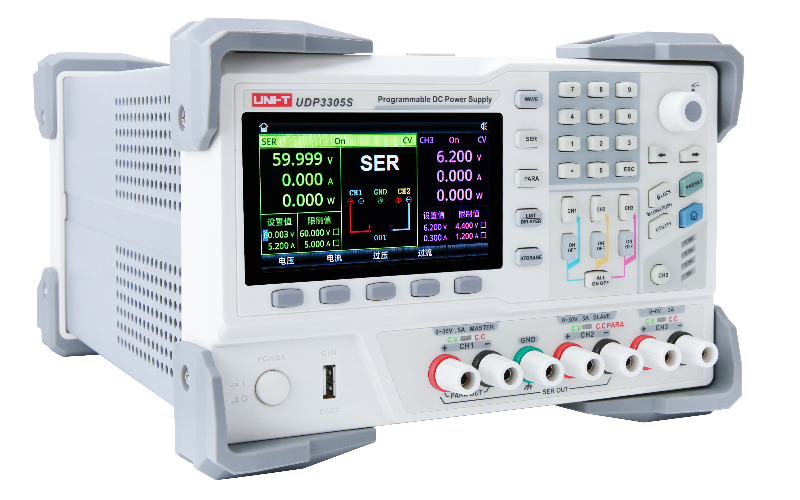

1. The programmable linear DC power supply has two 30V/5A outputs, one 6V/3A and one standard USB output. The product's 4.3-inch TFT large screen provides a rich functional interface, making the list/delay function, trigger, monitor function, waveform display function, system settings and output preset functions convenient and easy to use.

2. The entire series of products are equipped with standard RS-232 communication interface, support SCPI protocol, Ethernet and Digital I/O and other interfaces, convenient remote control, extremely low load adjustment rate and low ripple noise output, and each channel is isolated from each other. When using the series and parallel function, only one button is needed to switch. The rich functions are widely used in the field of industrial control, hardware development & maintenance, scientific research, teaching and laboratory fields, and can meet diverse testing needs.

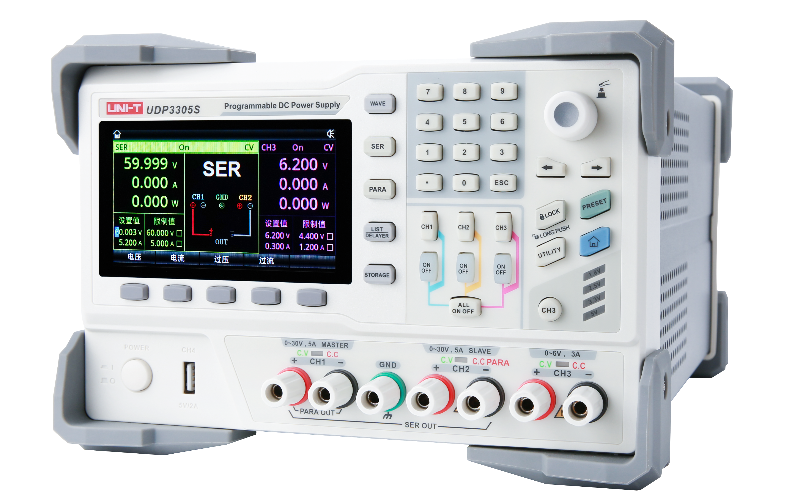

3. The series and parallel connection between the main channels CH1 and CH2 can be realized without external wiring, simplifying the connection and making the test easier.

4. It has list and delay setting functions, and can set up to 2048 groups of data according to test requirements, with a cycle number of up to 99999 times, and can be used with waveform templates, which is very convenient for cycle testing and aging testing.

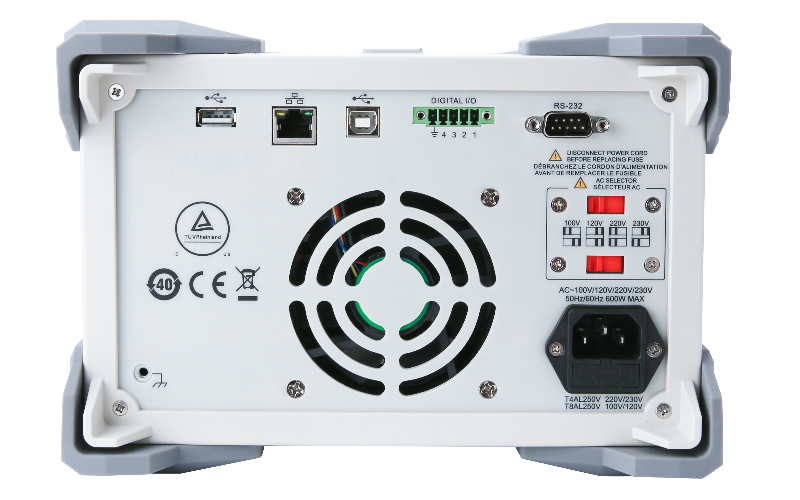

5. It is equipped with RS232 communication interface, Ethernet interface, Digital I/O and master and slave USB interfaces as standard. It can be controlled through remote connection to Ethernet, or through RS232 and USB, with the upper computer software to achieve software control.

6. Input voltage: AC100V/120V/220V/230V, output power: 348W

7. Output voltage: 30V, output current: 5A.

3. The series and parallel connection between the main channels CH1 and CH2 can be realized without external wiring, simplifying the connection and making the test easier.

6. Input voltage: AC100V/120V/220V/230V, output power: 348W

7. Output voltage: 30V, output current: 5A.
