ZH-I07 Test Direct Point

ZHIPIN price

¥750

Market price

¥750

Specification classification

ZH-I07

colour

White

Material

Stainless steel, Teflon

Delivery

Free delivery

400-816-6687

Product Details Parameter Overview evaluate（0） After sales guarantee

Book Now

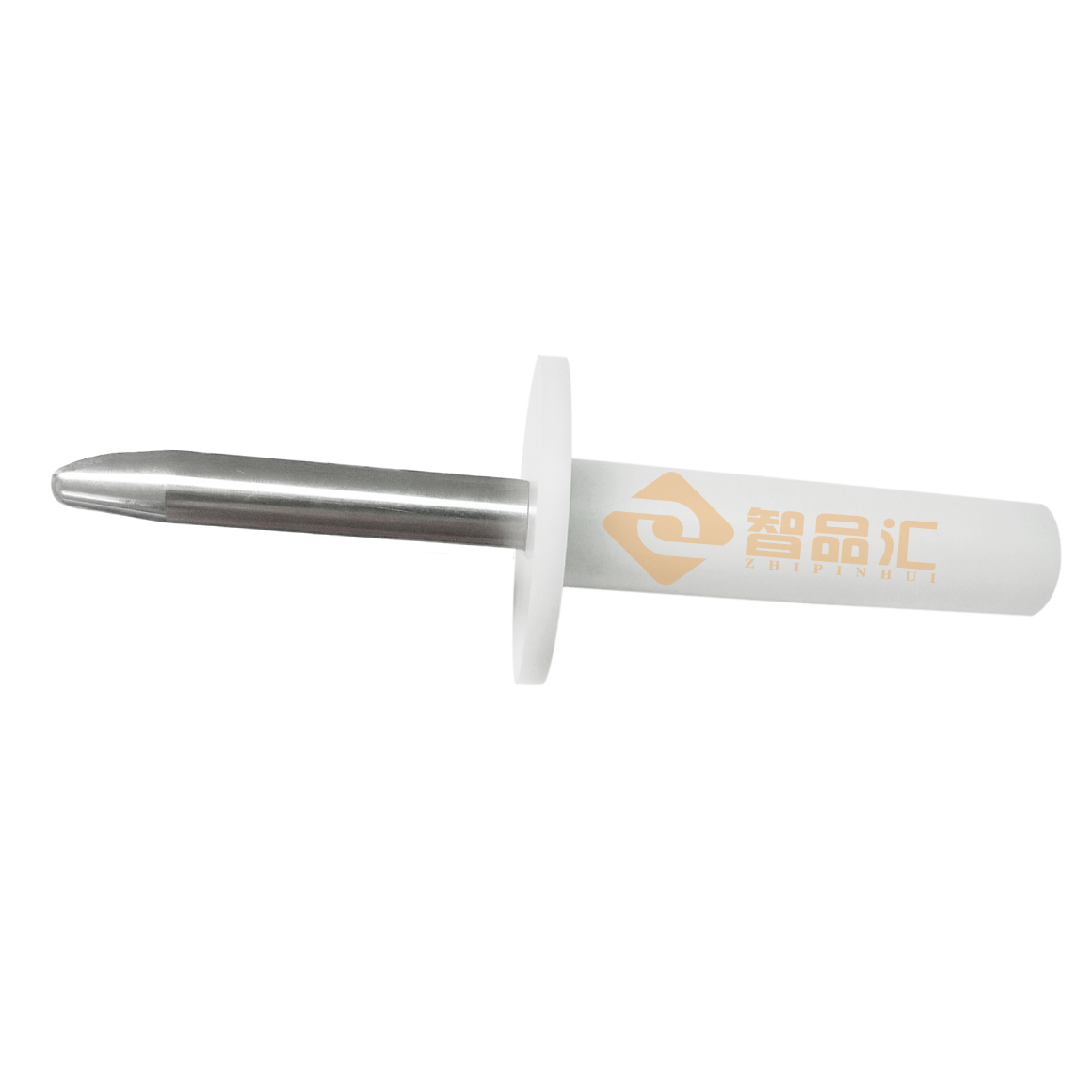

ZH-I07 Test Direct Point

1. Product Overview

Complies with the requirements of IEC61032 Figure 7 Test Fixture 11, GB/T16842 Figure 7 Test Fixture 11, IEC60884, IEC60598, IEC60335, IEC60065, GB8898, GB7000, GB4706 and GB2099. Used to test the parts to prevent human contact, and can also be used to test the mechanical strength of the holes in the shell or the internal baffle of the shell.

Customizable: with wiring terminals for anti-electric shock test, or M6 threaded holes at the end of the handle (for use with push-pull force gauge) for shell protection test. Models with T after the model have built-in thrust, and are available in nylon shell (anti-electric shock test) and stainless steel shell (strength test).

2. Main specifications and corresponding technical parameters:

Parameters/Model	ZH-I07	ZH-I07T1	ZH-I07T2
Name	Direct Point	50N thrust test point	75N thrust test point
1	20 0 -0.05	20 0 -0.05	20 0 -0.05
2	80±0.2	80±0.2	80±0.2
3	R2±0.05	R2±0.05	R2±0.05
4	S4±0.05	S4±0.05	S4±0.05
5	37^o 0 -10’	37^o 0 -10’	37^o 0 -10’
6	14^o 0 -10’	14^o 0 -10’	14^o 0 -10’
7	Ф12 0 -0.05	Ф12 0 -0.05	Ф12 0 -0.05
8	Ф50	Ф50	----
9	5±0.5	5±0.5	----
10	----	0-50N thrust	0-75N thrust
