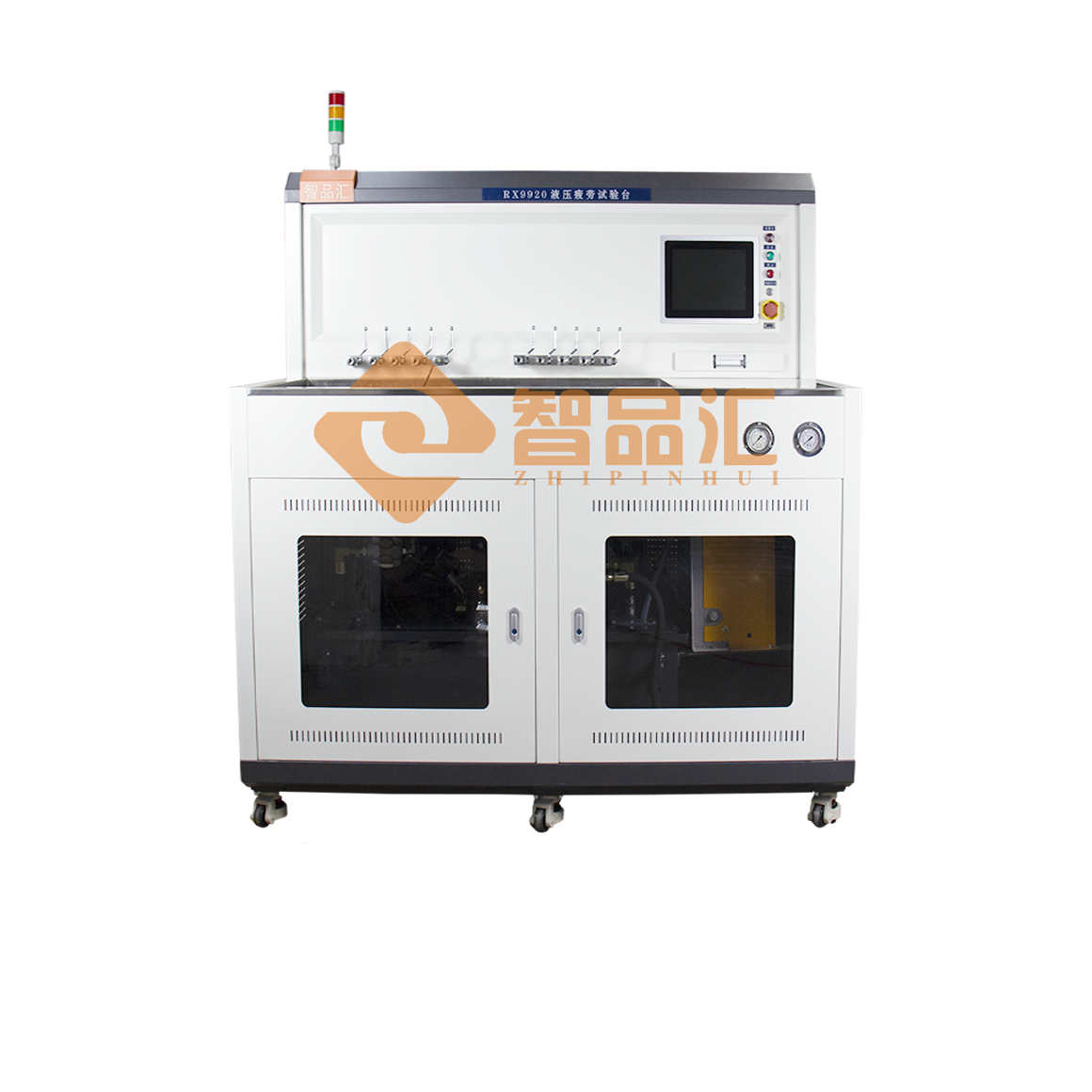

What are the technical features of the air conditioning pipe hydraulic fatigue test bench

　　The equipment uses imported pressure sensors to detect pipeline pressure and hydraulic stations, etc., to ensure stable pressure output. What are the technical features of the air conditioning pipe hydraulic fatigue test bench? Let's see how Guangzhou Zhipinhui Electronic Technology introduces it.

1. Maximum volume of test workpiece:

Ø Oil separator, gas separator and other steel containers up to 300L (test conditions: pressure 1MPa, repeated impact, 1~2 seconds to reach the required pressure during formal test);

Ø Copper tube heat exchanger up to 15L (test pressure range 0~5MPa)

2. Cycle pressure: 0~10Mpa, adjustable; (actual test pressure range 0~6MPa)

Depressurization 0~1Mpa, adjustable. (with 0 pressure condition)

3. System pressure control accuracy: ±2%

4. Number of test paths: 10 paths (only one test is done for devices with a volume of more than 100L at the same time, and multiple tests can be connected for small parts at the same time)
